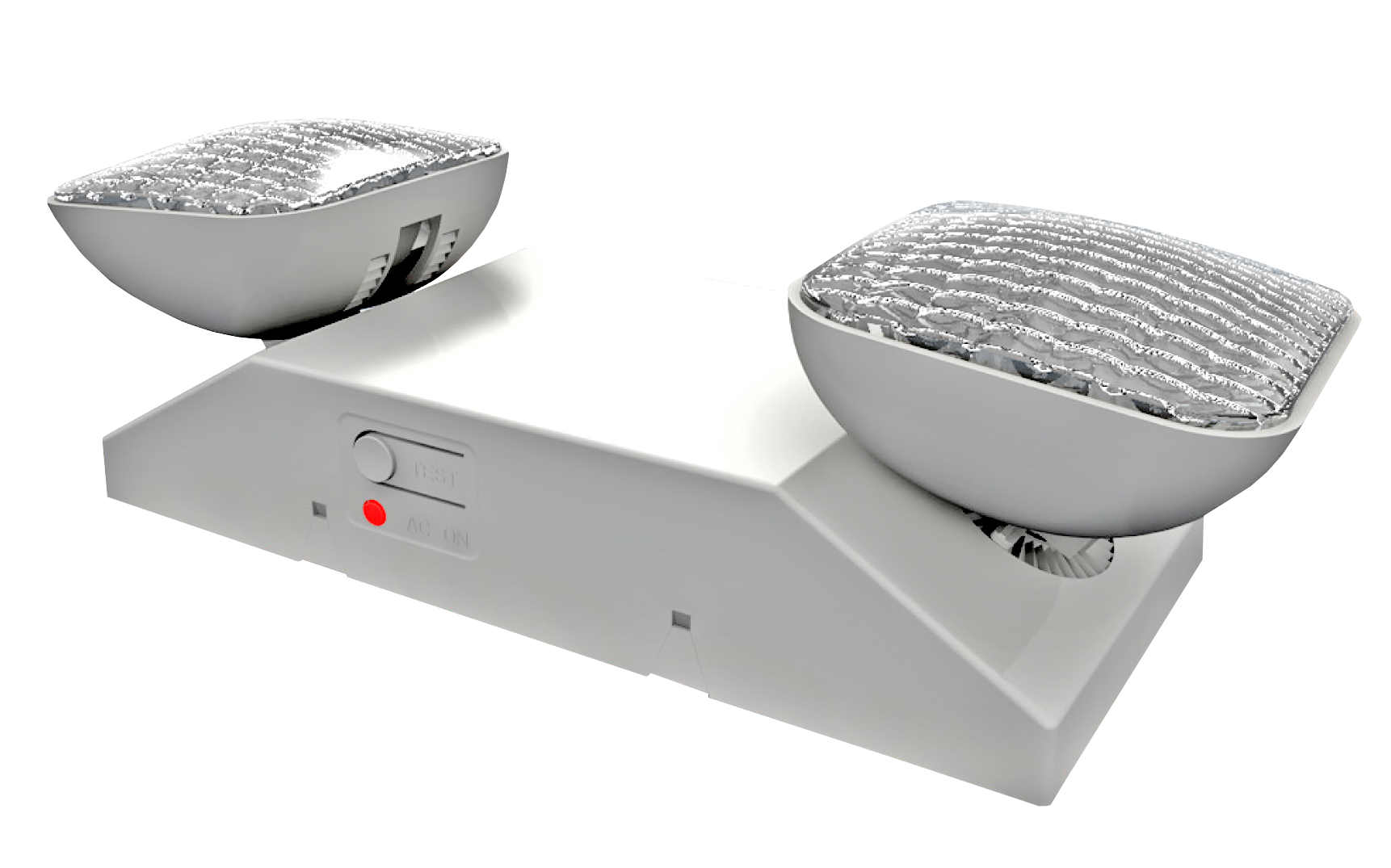

LED Emergency Unit

The LEM emergency unit features eight LEDs per head (1 watt total per head). Adjustable lamp heads allow for optimal center-to-center spacing. The LEM possesses a 3.6V long-life, maintenance-free rechargeable NiCd battery. A fully automated solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

  • Applications: Wall or ceiling mount in dry or damp locations where emergency lighting is needed
  • Lumen Output: From 90 lm - 130 lm
  • Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 5 years
  • Certifications: UL listed for damp locations. Other certifications - UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes

UL listed

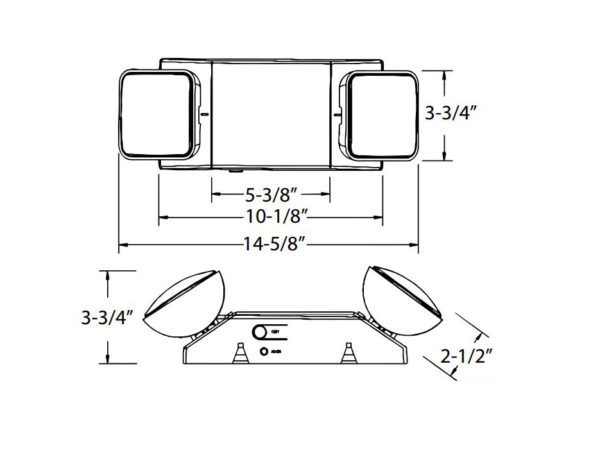

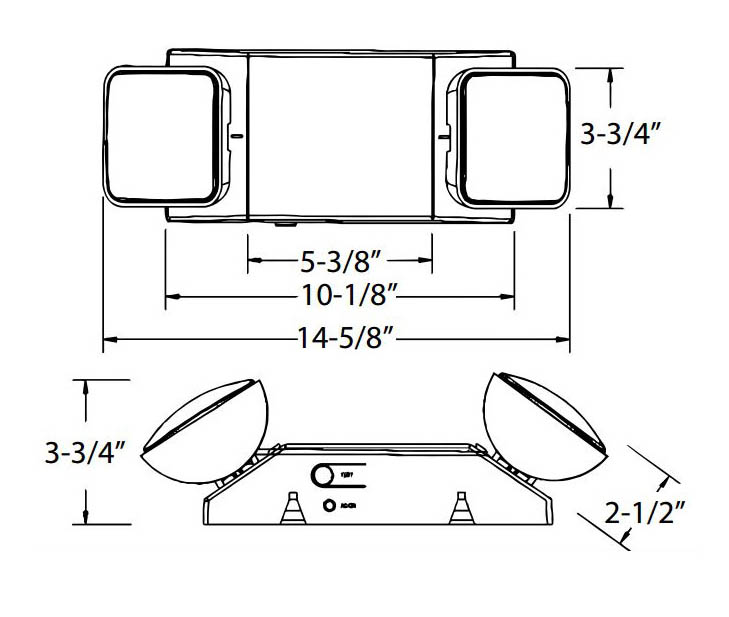

LEM schematic tightcrop

Installation and construction

Installation & construction

The LEM's housing is constructed of injection molded 5VA flame retardant, high-impact resistant thermoplastic. It can be surface mounted via a quick-connect back plate that fits most standard-sized junction boxes. The unit snaps into place to make internal electrical connections. The LEM has top and side knockouts for conduit applications.

Remote Compatibility Matrix

Catalog #Remote CapacityVoltage Output Compatible with REH 1? Compatible with REH 1 HL? Compatible with REH 2? Compatible with REH 2 HL? Compatible with MREH 1? Compatible with MREH 1 HL?Compatible with MREH 2?Compatible with MREH 2 HL?Compatible with MREHF 1?Compatible with MREHF 2? Compatible with MREHH 1? Compatible with MREHH 2?
EME RC3W9.6VYESYESYESYESNONONONONONONONO
EME RC HL2W9.6VYESYESYESNONONONONONONONONO
EME RC NH5W9.6VYESYESYESYESNONONONONONONONO
EMEC RC2.5W3.6VYESYESYESNONONONONONONONONO
EMEF 124.8W6V/12VYESYESYESYESYESNONONOYESNOYESNO
EMEF 157.8W6V/12VYESYESYESYESYESYESYESNOYESYESYESYES
EMEF 2820.8W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
EMERM RC4W9.6VYESYESYESYESYESNONONONONONONO
EMERM RC HL3W9.6VYESYESYESYESNONONONONONONONO
EMEW RC7.2W6VYESYESYESYESYESYESYESNOYESYESYESYES
EMRW3.7W9.6VYESYESYESYESYESNONONONONONONO
EMX1W9.6VYESNONONONONONONONONONONO
LEM RC4W3.6VYESYESYESYESNONONONONONONONO
LEM RC HL3W3.6VYESYESYESYESNONONONONONONONO
LEMC RC2.5W3.6VYESYESYESNONONONONONONONONO
LEMHO3W9.6VYESYESYESYESNONONONONONONONO
LEXC5.5W3.6VYESYESYESYESYESYESNONONONONONO
MREMF 157.8W6V/12VYESYESYESYESYESYESYESNOYESYESYESYES
MREMF 3628.8W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
MREMF 5446.8W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
MREMH7.8W6V/12VYESYESYESYESYESYESYESNOYESYESYESYES
MREMHO43W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
MREMHO HL36W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
*NOTE: Table scrolls horizontally
