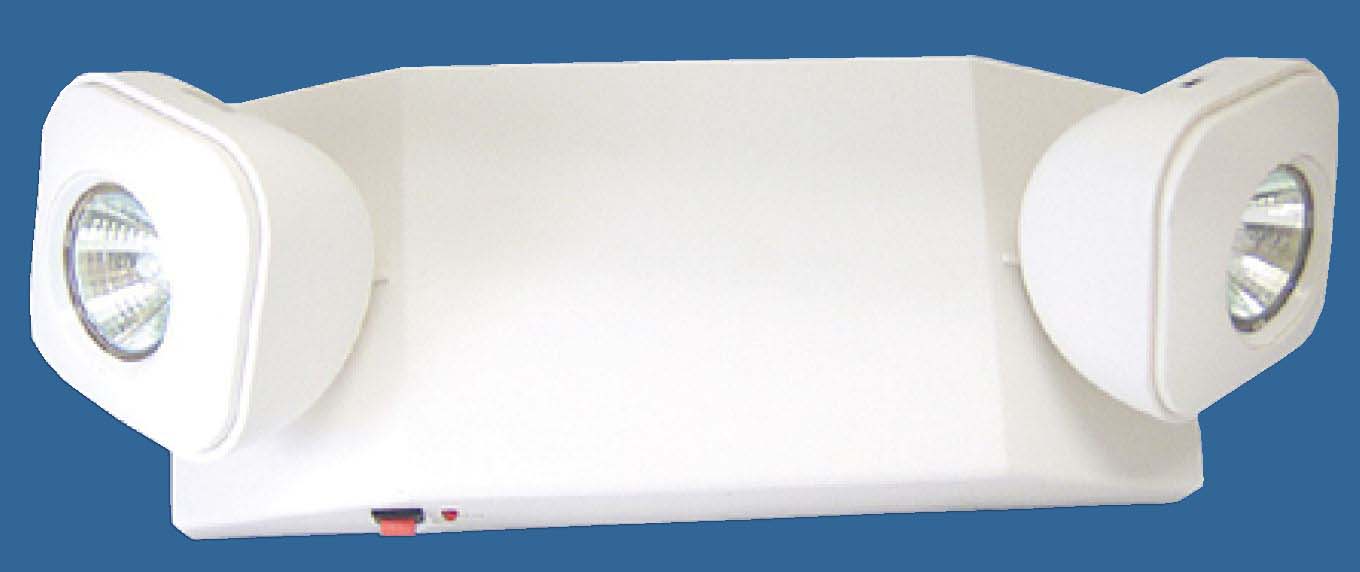

LED NSF / NEMA 4X MR-16 Remote Lamp Head

The MREMF features fully adjustable, ultra-bright, long-life 3.6W MR-16 base LED lamp heads for optimized center-to-center spacing. It offers 7.8W, 28.8W, and 46.8W of remote capacity (6V/12V DC output) standard on the 15W, 36W and 54W models, respectively. An internal solid-state transfer switch automatically connects the internal battery to the LED board and LED lamp heads for a minimum 90 minutes of emergency illumination. A fully automated solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

  • Applications: Suitable for most indoor wall mount applications where emergency lighting is needed
  • Warranty: 5 year limited warranty on housing and electronics. Battery prorated for 5 years (NiCd) / 2 years (lead acid)
  • Certifications: UL listed for wet locations, UL certified for use in food service operations. Other certifications - NSF, NEMA 4X-rated, IP66, UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes

NEMA4x, NSF, IP66, UL
MREMF schem-jpg-tight

Installation and construction

Installation & construction

The MREHF housing is reinforced polycarbonate, available in white or black finish. The corrosion-resistant enclosure features a one-piece, high-impact resistant, UV-stabilized polycarbonate lens and molded gasket with stainless steel screws. A universal knockout pattern on the back is provided for back mounting, with a gasket for watertight seal.

Remote Compatibility Matrix

Catalog #Remote CapacityVoltage Output Compatible with REH 1? Compatible with REH 1 HL? Compatible with REH 2? Compatible with REH 2 HL? Compatible with MREH 1? Compatible with MREH 1 HL?Compatible with MREH 2?Compatible with MREH 2 HL?Compatible with MREHF 1?Compatible with MREHF 2? Compatible with MREHH 1? Compatible with MREHH 2?
EMEC RC2.5W3.6VYESYESYESNONONONONONONONONO
EMEF 124.8W6V/12VYESYESYESYESYESNONONOYESNOYESNO
EMEF 157.8W6V/12VYESYESYESYESYESYESYESNOYESYESYESYES
EMEF 2820.8W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
EMERM RC4W9.6VYESYESYESYESYESNONONONONONONO
EMERM RC HL3W9.6VYESYESYESYESNONONONONONONONO
EMEW RC7.2W6VYESYESYESYESYESYESYESNOYESYESYESYES
EMRW3.7W9.6VYESYESYESYESYESNONONONONONONO
EMX1W9.6VYESNONONONONONONONONONONO
LEM RC4W3.6VYESYESYESYESNONONONONONONONO
LEM RC HL3W3.6VYESYESYESYESNONONONONONONONO
LEMC RC2.5W3.6VYESYESYESNONONONONONONONONO
LEMHO3W9.6VYESYESYESYESNONONONONONONONO
LEXC5.5W3.6VYESYESYESYESYESYESNONONONONONO
MREMF 157.8W6V/12VYESYESYESYESYESYESYESNOYESYESYESYES
MREMF 3628.8W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
MREMF 5446.8W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
MREMH7.8W6V/12VYESYESYESYESYESYESYESNOYESYESYESYES
MREMHO43W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
MREMHO HL36W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
*NOTE: Table scrolls horizontally
