LED Lay-In Retrofit Kit
About 3-5 minutes is all it takes to install the FFR LED troffer retrofit. The FFR is part of the FormFocus product line. A matching luminaire is also available - the FFL (click here to view the FFL page). The FFR is available in 2x2, 2x4, 1x4, 1x2 and 1x4 tandem options. It features a wide variety of lumen outputs for maximum versatility. The frosted diffuser is optimized to balance efficiency and style. Every FFR is made in the USA - in our Henderson, NC facility, utilizing mostly domestic and some foreign components.
Click to download (.pdf):

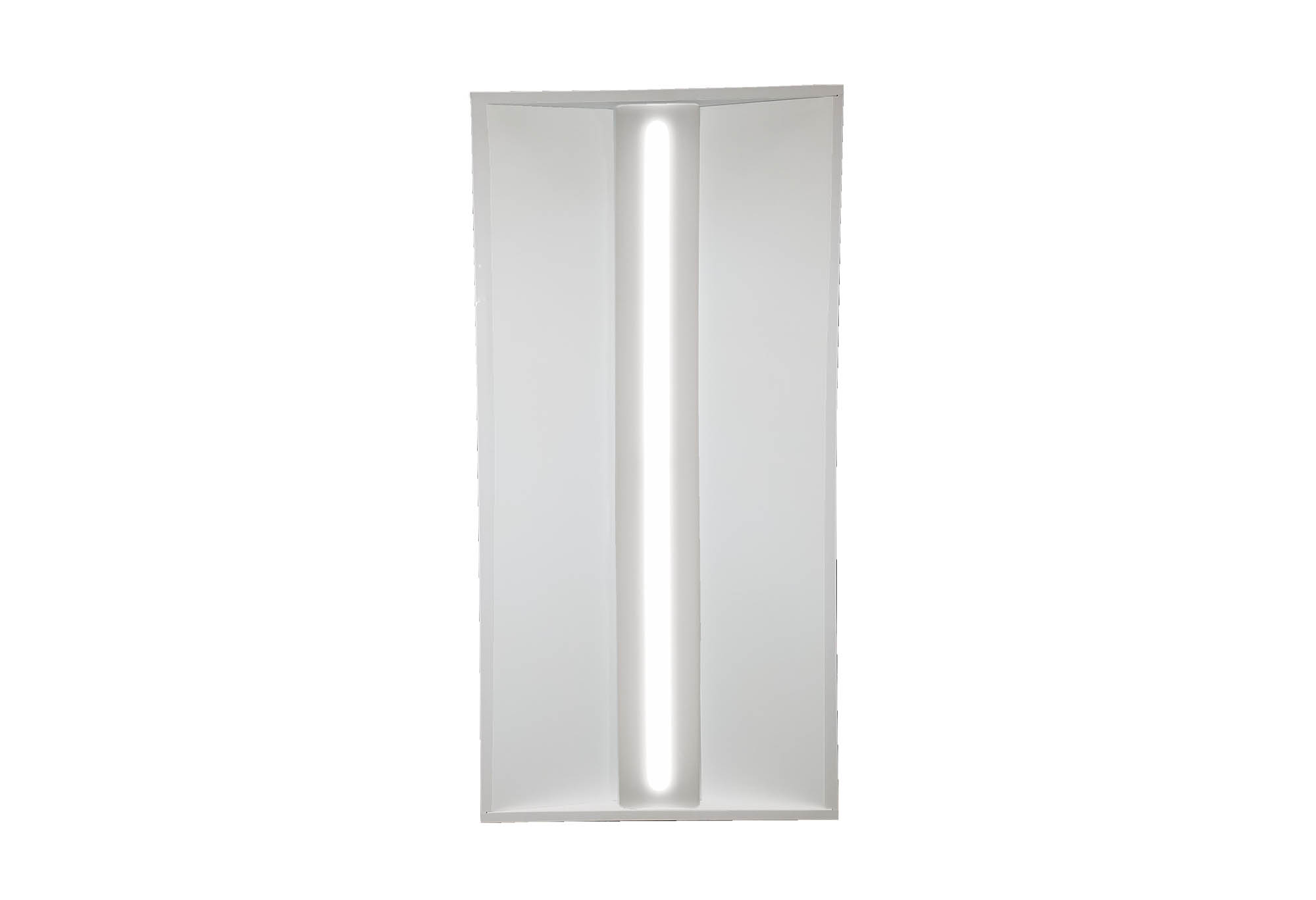

FormFocus FFR 2x4Â
FormFocus FFR 2x2

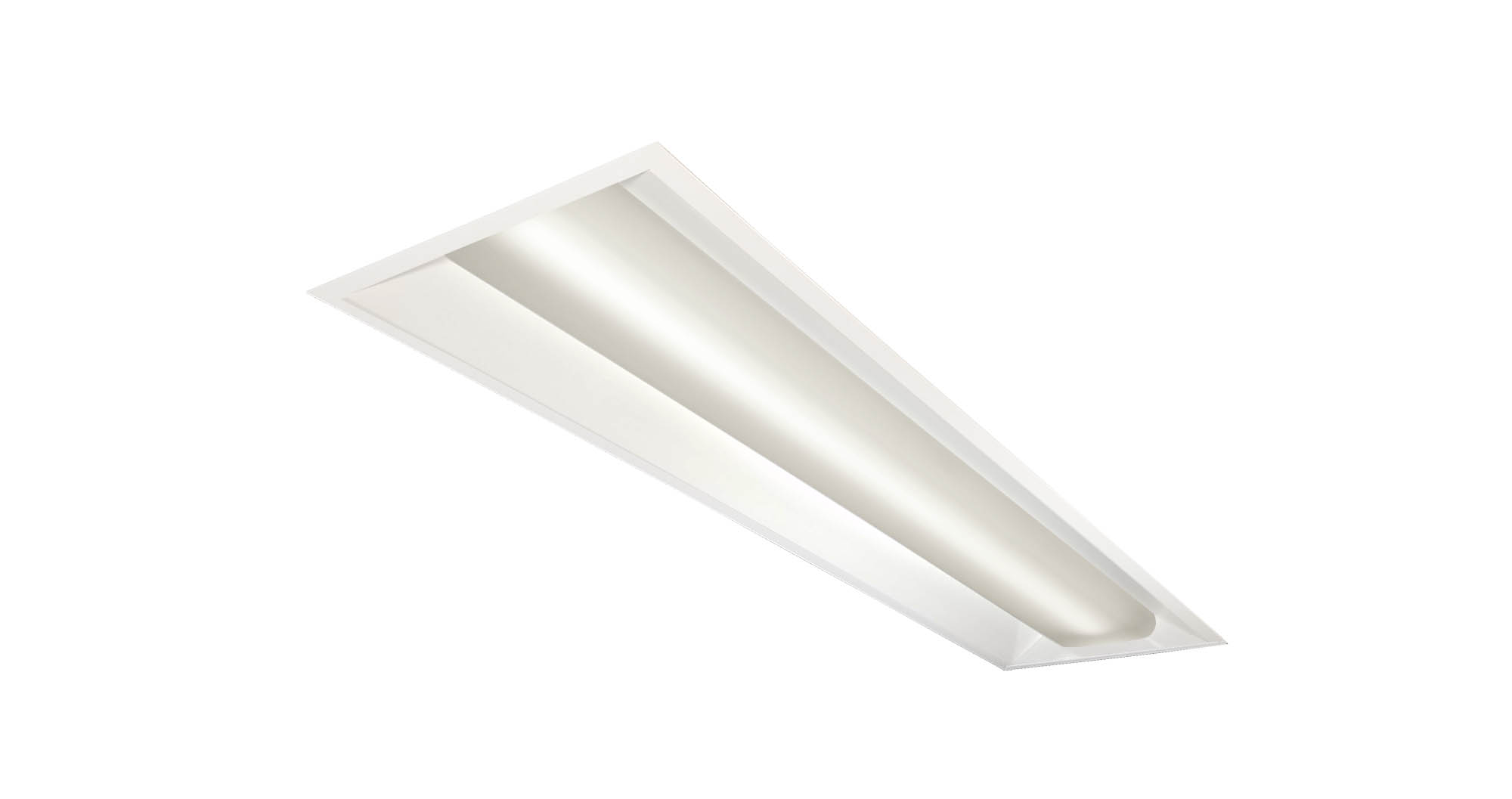

FormFocus FFR 1x4

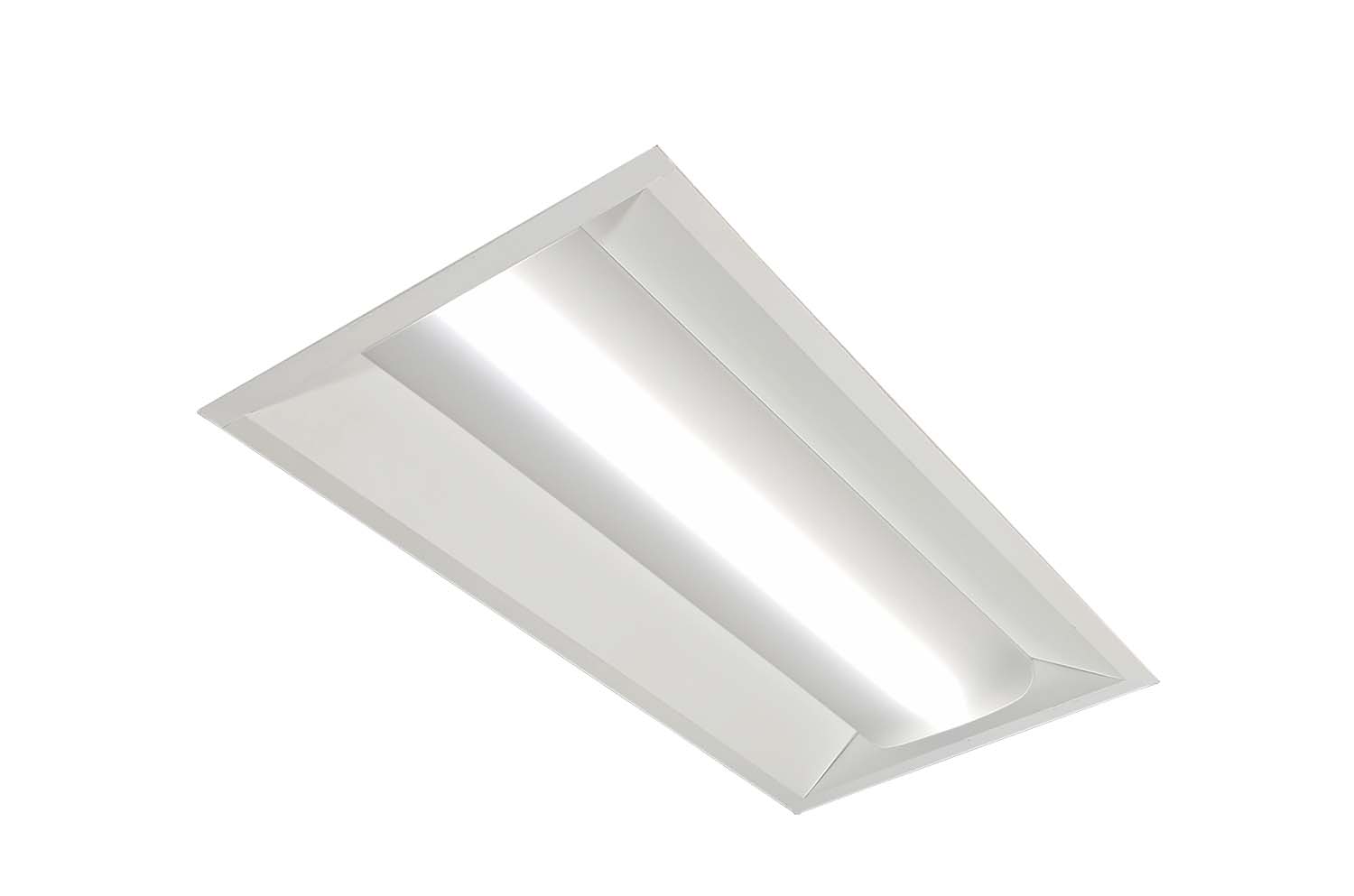

FormFocus FFR 1x2
FormFocus FFR 1x4T
FormFocus FFR 2x4Â
FormFocus FFR 2x2
FormFocus FFR 1x4
FormFocus FFR 1x2
FormFocus FFR 1x4T
Click to download (.pdf):
FormFocus FFR Sell Sheet
FormFocus FFR Sell Sheet
Click to download:
FFR 2x4: .ies files | .pdf files
FFR 2x2: .ies files | .pdf files
FFR 1x4: .ies files | .pdf files
FFR 2x4: .ies files | .pdf files
FFR 2x2: .ies files | .pdf files
FFR 1x4: .ies files | .pdf files
- Applications:Â Ideal for classrooms, retail, offices and healthcare facilities.
- Lumen Output: From 2,200 lm in the 2x2 to over 10,000 lm in the 1x4T
- Max Lumens Per Watt:Â About 148
- Size Options: 2x2, 2x4, 1x4, 1x2, 1x4T
- Predicted L70 Lifetime: Up to 189,000 hours (calculated)
- Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
- Re-BoardABILITY: Every FFR is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
- Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified, and DLC Premium qualified, on specific configurations
- Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

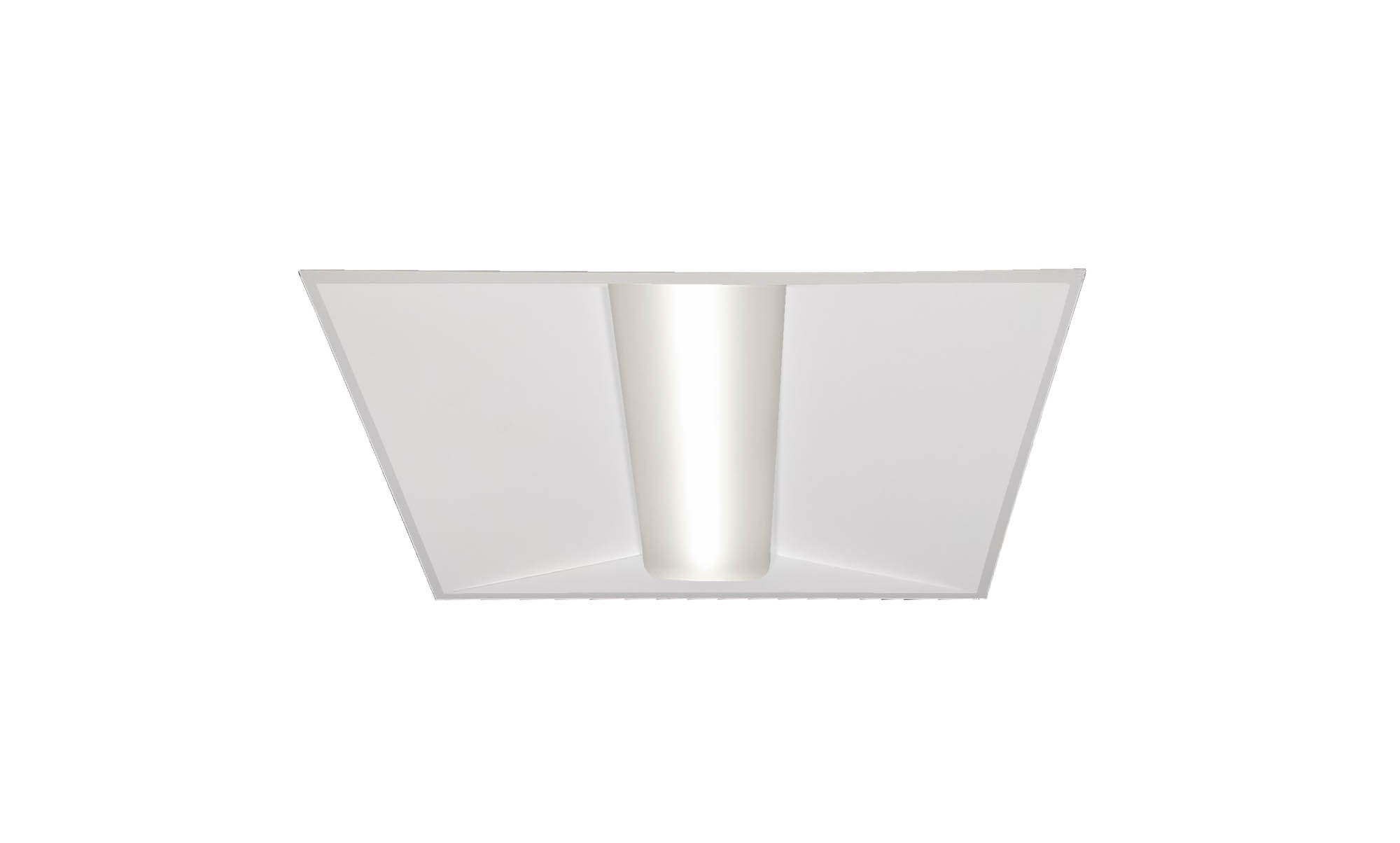

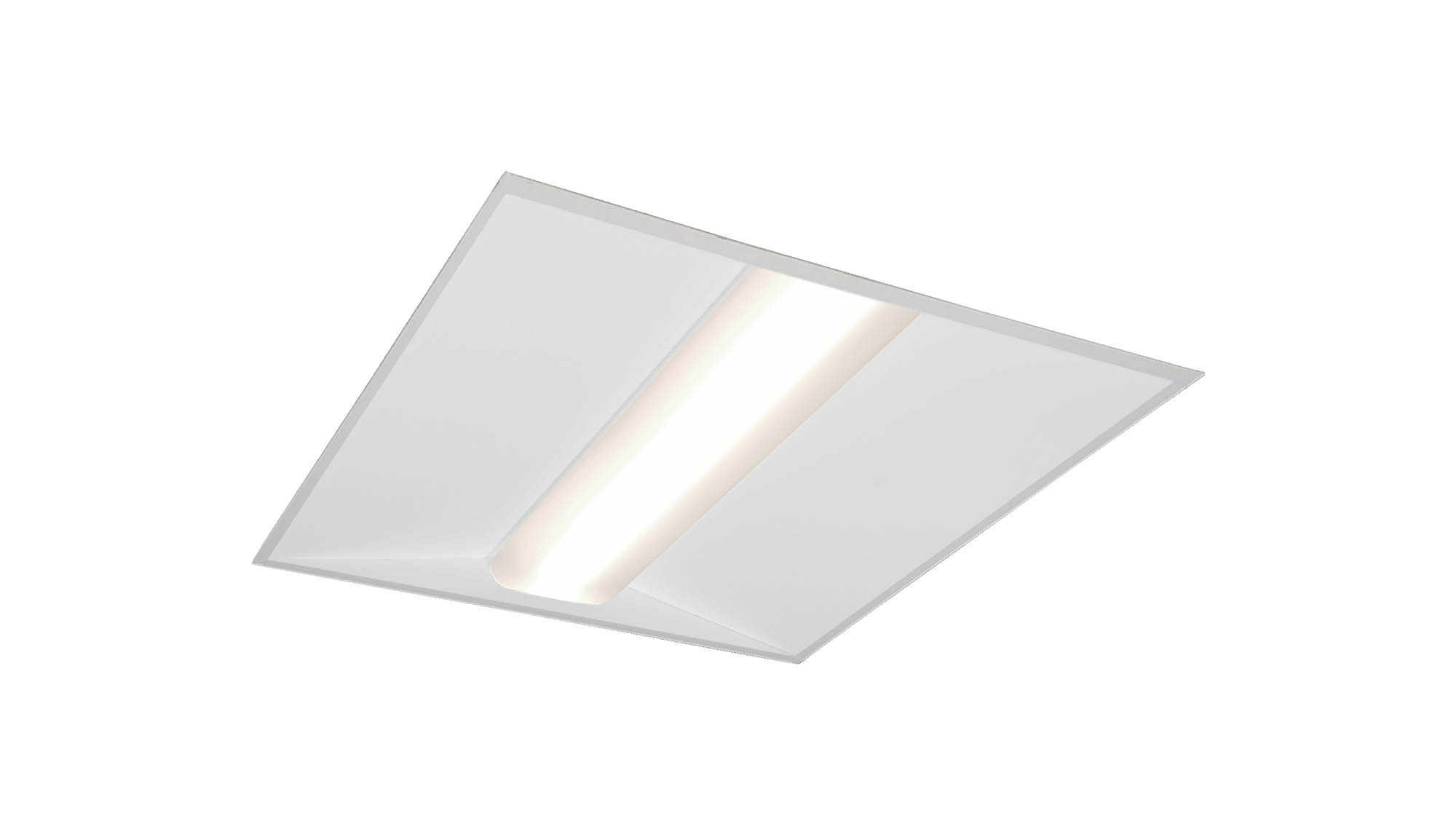

FFR 2x2
Installation time take just 3-5 minutes, depending on the model.
All FormFocus products are upgradeable through Re-boardABILITY. The process is simple, and only takes a few minutes.
Note: Table scrolls horizontally
| Size | Lumens | Watts | LPW | CRI / Color Temp | Voltages Available | DLC Listed | Predicted L70 Lifetime | |
|---|---|---|---|---|---|---|---|---|
| FFR 24 SL UV FA 830 | 2x4 | 3108 | 26 | 120.5 | 80 CRI / 3000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 SL UV FA 835 | 2x4 | 3160 | 26 | 122.5 | 80 CRI / 3500K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 SL UV FA 840 | 2x4 | 3264 | 26 | 126.5 | 80 CRI / 4000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 SL UV FA 850 | 2x4 | 3362 | 26 | 130.3 | 80 CRI / 5000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 VL UV FA 830 | 2x4 | 3714 | 28 | 132.6 | 80 CRI / 3000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 VL UV FA 835 | 2x4 | 3772 | 28 | 134.4 | 80 CRI / 3500K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 VL UV FA 840 | 2x4 | 3888 | 28 | 138.8 | 80 CRI / 4000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 VL UV FA 850 | 2x4 | 4004 | 28 | 143 | 80 CRI / 5000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 LW UV FA 830 | 2x4 | 4249 | 33 | 128.8 | 80 CRI / 3000K | 120-277V, 347V | Yes - Premium | >Up to 189,000 hrs (calculated) |
| FFR 24 LW UV FA 835 | 2x4 | 4288 | 33 | 129.9 | 80 CRI / 3500K | 120-277V, 347V | Yes - Premium | >Up to 189,000 hrs (calculated) |
| FFR 24 LW UV FA 840 | 2x4 | 4430 | 33 | 134.2 | 80 CRI / 4000K | 120-277V, 347V | Yes - Premium | >Up to 189,000 hrs (calculated) |
| FFR 24 LW UV FA 850 | 2x4 | 4563 | 33 | 138.3 | 80 CRI / 5000K | 120-277V, 347V | Yes - Premium | >Up to 189,000 hrs (calculated) |
| FFR 24 ML UV FA 830 | 2x4 | 4551 | 36 | 126.4 | 80 CRI / 3000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 ML UV FA 835 | 2x4 | 4597 | 36 | 127.7 | 80 CRI / 3500K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 ML UV FA 840 | 2x4 | 4749 | 36 | 131.9 | 80 CRI / 4000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 ML UV FA 850 | 2x4 | 4891 | 36 | 135.9 | 80 CRI / 5000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 MD UV FA 830 | 2x4 | 5805 | 46 | 126.9 | 80 CRI / 3000K | 120-277V, 347V | Yes - Premium | >Up to 189,000 hrs (calculated) |
| FFR 24 MD UV FA 835 | 2x4 | 5903 | 46 | 129.1 | 80 CRI / 3500K | 120-277V, 347V | Yes - Premium | >Up to 189,000 hrs (calculated) |
| FFR 24 MD UV FA 840 | 2x4 | 6098 | 46 | 133.3 | 80 CRI / 4000K | 120-277V, 347V | Yes - Premium | >Up to 189,000 hrs (calculated) |
| FFR 24 MD UV FA 850 | 2x4 | 6281 | 46 | 137.3 | 80 CRI / 5000K | 120-277V, 347V | Yes - Premium | >Up to 189,000 hrs (calculated) |
| FFR 24 HI UV FA 830 | 2x4 | 6870 | 52 | 132.1 | 80 CRI / 3000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 HI UV FA 835 | 2x4 | 6929 | 52 | 133.2 | 80 CRI / 3500K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 HI UV FA 840 | 2x4 | 7158 | 52 | 137.6 | 80 CRI / 4000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 HI UV FA 850 | 2x4 | 7372 | 52 | 141.8 | 80 CRI / 5000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 VH UV FA 830 | 2x4 | 7650 | 60 | 127.5 | 80 CRI / 3000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 VH UV FA 835 | 2x4 | 7747 | 60 | 129.1 | 80 CRI / 3500K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 VH UV FA 840 | 2x4 | 8003 | 60 | 133.4 | 80 CRI / 4000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 VH UV FA 850 | 2x4 | 8243 | 60 | 137.4 | 80 CRI / 5000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 SH UV FA 830 | 2x4 | 8763 | 68 | 128.3 | 80 CRI / 3000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 SH UV FA 835 | 2x4 | 8911 | 68 | 130.4 | 80 CRI / 3500K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 SH UV FA 840 | 2x4 | 9205 | 68 | 134.8 | 80 CRI / 4000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 24 SH UV FA 850 | 2x4 | 9481 | 68 | 138.8 | 80 CRI / 5000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 22 SL UV FA 830 | 2x2 | 2227 | 18 | 123 | 80 CRI / 3000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 22 SL UV FA 835 | 2x2 | 2264 | 18 | 125.1 | 80 CRI / 3500K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 22 SL UV FA 840 | 2x2 | 2339 | 18 | 129.2 | 80 CRI / 4000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 22 SL UV FA 850 | 2x2 | 2409 | 18 | 133.1 | 80 CRI / 5000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 22 VL UV FA 830 | 2x2 | 2894 | 25 | 116.2 | 80 CRI / 3000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 22 VL UV FA 835 | 2x2 | 2951 | 25 | 118.5 | 80 CRI / 3500K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 22 VL UV FA 840 | 2x2 | 3049 | 25 | 122.4 | 80 CRI / 4000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 22 VL UV FA 850 | 2x2 | 3140 | 25 | 126.1 | 80 CRI / 5000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 22 LW UV FA 830 | 2x2 | 3769 | 32 | 117.8 | 80 CRI / 3000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 22 LW UV FA 835 | 2x2 | 3810 | 32 | 119.1 | 80 CRI / 3500K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 22 LW UV FA 840 | 2x2 | 3936 | 32 | 123 | 80 CRI / 4000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 22 LW UV FA 850 | 2x2 | 4054 | 32 | 126.7 | 80 CRI / 5000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 22 MD UV FA 830 | 2x2 | 4552 | 37 | 124 | 80 CRI / 3000K | 120-277V, 347V | Yes - Premium | >Up to 189,000 hrs (calculated) |
| FFR 22 MD UV FA 835 | 2x2 | 4628 | 37 | 126.1 | 80 CRI / 3500K | 120-277V, 347V | Yes - Premium | >Up to 189,000 hrs (calculated) |
| FFR 22 MD UV FA 840 | 2x2 | 4781 | 37 | 130.3 | 80 CRI / 4000K | 120-277V, 347V | Yes - Premium | >Up to 189,000 hrs (calculated) |
| FFR 22 MD UV FA 850 | 2x2 | 4925 | 37 | 134.2 | 80 CRI / 5000K | 120-277V, 347V | Yes - Premium | >Up to 189,000 hrs (calculated) |
| FFR 22 HI UV FA 830 | 2x2 | 5731 | 50 | 114.2 | 80 CRI / 3000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 22 HI UV FA 835 | 2x2 | 5828 | 50 | 116.2 | 80 CRI / 3500K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 22 HI UV FA 840 | 2x2 | 6020 | 50 | 120 | 80 CRI / 4000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 22 HI UV FA 850 | 2x2 | 6201 | 50 | 123.6 | 80 CRI / 5000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 12 SL UV FA 830 | 1x2 | 2227 | 18 | 123 | 80 CRI / 3000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 SL UV FA 835 | 1x2 | 2264 | 18 | 125.1 | 80 CRI / 3500K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 SL UV FA 840 | 1x2 | 2339 | 18 | 129.2 | 80 CRI / 4000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 SL UV FA 850 | 1x2 | 2409 | 18 | 133.1 | 80 CRI / 5000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 VL UV FA 830 | 1x2 | 2894 | 25 | 116.2 | 80 CRI / 3000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 VL UV FA 835 | 1x2 | 2951 | 25 | 118.5 | 80 CRI / 3500K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 VL UV FA 840 | 1x2 | 3049 | 25 | 122.4 | 80 CRI / 4000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 VL UV FA 850 | 1x2 | 3140 | 25 | 126.1 | 80 CRI / 5000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 LW UV FA 830 | 1x2 | 3769 | 32 | 117.8 | 80 CRI / 3000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 LW UV FA 835 | 1x2 | 3810 | 32 | 119.1 | 80 CRI / 3500K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 LW UV FA 840 | 1x2 | 3936 | 32 | 123 | 80 CRI / 4000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 LW UV FA 850 | 1x2 | 4054 | 32 | 126.7 | 80 CRI / 5000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 MD UV FA 830 | 1x2 | 4552 | 37 | 124 | 80 CRI / 3000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 MD UV FA 835 | 1x2 | 4628 | 37 | 126.1 | 80 CRI / 3500K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 MD UV FA 840 | 1x2 | 4781 | 37 | 130.3 | 80 CRI / 4000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 MD UV FA 850 | 1x2 | 4925 | 37 | 134.2 | 80 CRI / 5000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 HI UV FA 830 | 1x2 | 5731 | 50 | 114.2 | 80 CRI / 3000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 HI UV FA 835 | 1x2 | 5828 | 50 | 116.2 | 80 CRI / 3500K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 HI UV FA 840 | 1x2 | 6020 | 50 | 120 | 80 CRI / 4000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 12 HI UV FA 850 | 1x2 | 6201 | 50 | 123.6 | 80 CRI / 5000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 14 SL UV FA 830 | 1x4 | 2238 | 18 | 125.7 | 80 CRI / 3000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 14 SL UV FA 835 | 1x4 | 2275 | 18 | 127.8 | 80 CRI / 3500K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 14 SL UV FA 840 | 1x4 | 2350 | 18 | 132 | 80 CRI / 4000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 14 SL UV FA 850 | 1x4 | 2421 | 18 | 136 | 80 CRI / 5000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 14 VL UV FA 830 | 1x4 | 2939 | 24 | 121.5 | 80 CRI / 3000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 14 VL UV FA 835 | 1x4 | 2988 | 24 | 123.5 | 80 CRI / 3500K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 14 VL UV FA 840 | 1x4 | 3087 | 24 | 127.5 | 80 CRI / 4000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 14 VL UV FA 850 | 1x4 | 3179 | 24 | 131.4 | 80 CRI / 5000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 14 LW UV FA 830 | 1x4 | 3663 | 28 | 130.8 | 80 CRI / 3000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 14 LW UV FA 835 | 1x4 | 3741 | 28 | 133.6 | 80 CRI / 3500K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 14 LW UV FA 840 | 1x4 | 3864 | 28 | 138 | 80 CRI / 4000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 14 LW UV FA 850 | 1x4 | 3980 | 28 | 142.2 | 80 CRI / 5000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 14 MD UV FA 830 | 1x4 | 4489 | 36 | 124.7 | 80 CRI / 3000K | 120-277V, 347V | Yes - Premium | >Up to 189,000 hrs (calculated) |
| FFR 14 MD UV FA 835 | 1x4 | 4570 | 36 | 126.9 | 80 CRI / 3500K | 120-277V, 347V | Yes - Premium | >Up to 189,000 hrs (calculated) |
| FFR 14 MD UV FA 840 | 1x4 | 4721 | 36 | 131.1 | 80 CRI / 4000K | 120-277V, 347V | Yes - Premium | >Up to 189,000 hrs (calculated) |
| FFR 14 MD UV FA 850 | 1x4 | 4862 | 36 | 135.1 | 80 CRI / 5000K | 120-277V, 347V | Yes - Premium | >Up to 189,000 hrs (calculated) |
| FFR 14 HI UV FA 830 | 1x4 | 6023 | 49 | 122.3 | 80 CRI / 3000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 14 HI UV FA 835 | 1x4 | 6124 | 49 | 124.3 | 80 CRI / 3500K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 14 HI UV FA 840 | 1x4 | 6327 | 49 | 128.4 | 80 CRI / 4000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 14 HI UV FA 850 | 1x4 | 6516 | 49 | 132.3 | 80 CRI / 5000K | 120-277V, 347V | Yes | >Up to 189,000 hrs (calculated) |
| FFR 14T SL UV FA 830 | 1x4 Tandem | 4518 | 36 | 125.5 | 80 CRI / 3000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 14T SL UV FA 835 | 1x4 Tandem | 4712 | 36 | 130.9 | 80 CRI / 3500K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 14T SL UV FA 840 | 1x4 Tandem | 4867 | 36 | 135.2 | 80 CRI / 4000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 14T SL UV FA 850 | 1x4 Tandem | 5013 | 36 | 139.3 | 80 CRI / 5000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 14T VL UV FA 830 | 1x4 Tandem | 6024 | 50 | 120.5 | 80 CRI / 3000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 14T VL UV FA 835 | 1x4 Tandem | 6406 | 50 | 128.1 | 80 CRI / 3500K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 14T VL UV FA 840 | 1x4 Tandem | 6617 | 50 | 132.3 | 80 CRI / 4000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 14T VL UV FA 850 | 1x4 Tandem | 6816 | 50 | 136.3 | 80 CRI / 5000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 14T LW UV FA 830 | 1x4 Tandem | 7368 | 56 | 131.6 | 80 CRI / 3000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 14T LW UV FA 835 | 1x4 Tandem | 7818 | 56 | 139.6 | 80 CRI / 3500K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 14T LW UV FA 840 | 1x4 Tandem | 8077 | 56 | 144.2 | 80 CRI / 4000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 14T LW UV FA 850 | 1x4 Tandem | 8319 | 56 | 148.6 | 80 CRI / 5000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 14T MD UV FA 830 | 1x4 Tandem | 9029 | 72 | 125.4 | 80 CRI / 3000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 14T MD UV FA 835 | 1x4 Tandem | 9897 | 72 | 137.5 | 80 CRI / 3500K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 14T MD UV FA 840 | 1x4 Tandem | 10224 | 72 | 142 | 80 CRI / 4000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| FFR 14T MD UV FA 850 | 1x4 Tandem | 10531 | 72 | 146.3 | 80 CRI / 5000K | 120-277V, 347V | No | >Up to 189,000 hrs (calculated) |
| Equivalency* | |
|---|---|
| FFR 24 SL UV FA 830 | 2L F34 T12 in a 2x4 |
| FFR 24 SL UV FA 835 | 2L F34 T12 in a 2x4 |
| FFR 24 SL UV FA 840 | 2L F34 T12 in a 2x4 |
| FFR 24 SL UV FA 850 | 2L F34 T12 in a 2x4 |
| FFR 24 VL UV FA 830 | 2L F32 T8 with NBF in a 2x4 |
| FFR 24 VL UV FA 835 | 2L F32 T8 with NBF in a 2x4 |
| FFR 24 VL UV FA 840 | 2L F32 T8 with NBF in a 2x4 |
| FFR 24 VL UV FA 850 | 2L F32 T8 with NBF in a 2x4 |
| FFR 24 LW UV FA 830 | 2L F32 T8 with NBF in a 2x4 |
| FFR 24 LW UV FA 835 | 2L F32 T8 with NBF in a 2x4 |
| FFR 24 LW UV FA 840 | 2L F32 T8 with NBF in a 2x4 |
| FFR 24 LW UV FA 850 | 2L F32 T8 with NBF in a 2x4 |
| FFR 24 ML UV FA 830 | 3L F34 T12 in a 2x4 |
| FFR 24 ML UV FA 835 | 3L F34 T12 in a 2x4 |
| FFR 24 ML UV FA 840 | 3L F34 T12 in a 2x4 |
| FFR 24 ML UV FA 850 | 3L F34 T12 in a 2x4 |
| FFR 24 MD UV FA 830 | 3L F32 T8 with NBF in a 2x4 |
| FFR 24 MD UV FA 835 | 3L F32 T8 with NBF in a 2x4 |
| FFR 24 MD UV FA 840 | 3L F32 T8 with NBF in a 2x4 |
| FFR 24 MD UV FA 850 | 3L F32 T8 with NBF in a 2x4 |
| FFR 24 HI UV FA 830 | 4L F34 T12 in a 2x4 |
| FFR 24 HI UV FA 835 | 4L F34 T12 in a 2x4 |
| FFR 24 HI UV FA 840 | 4L F34 T12 in a 2x4 |
| FFR 24 HI UV FA 850 | 4L F34 T12 in a 2x4 |
| FFR 24 VH UV FA 830 | 4L F32 T8 with NBF in a 2x4 |
| FFR 24 VH UV FA 835 | 4L F32 T8 with NBF in a 2x4 |
| FFR 24 VH UV FA 840 | 4L F32 T8 with NBF in a 2x4 |
| FFR 24 VH UV FA 850 | 4L F32 T8 with NBF in a 2x4 |
| FFR 24 SH UV FA 830 | 5L F32 T8 with NBF in a 2x4 |
| FFR 24 SH UV FA 835 | 5L F32 T8 with NBF in a 2x4 |
| FFR 24 SH UV FA 840 | 5L F32 T8 with NBF in a 2x4 |
| FFR 24 SH UV FA 850 | 5L F32 T8 with NBF in a 2x4 |
| FFR 22 SL UV FA 830 | 2L F17 T8 with NBF in a 2x2 |
| FFR 22 SL UV FA 835 | 2L F17 T8 with NBF in a 2x2 |
| FFR 22 SL UV FA 840 | 2L F17 T8 with NBF in a 2x2 |
| FFR 22 SL UV FA 850 | 2L F17 T8 with NBF in a 2x2 |
| FFR 22 VL UV FA 830 | 3L F17 T8 with NBF in a 2x2 |
| FFR 22 VL UV FA 835 | 3L F17 T8 with NBF in a 2x2 |
| FFR 22 VL UV FA 840 | 3L F17 T8 with NBF in a 2x2 |
| FFR 22 VL UV FA 850 | 3L F17 T8 with NBF in a 2x2 |
| FFR 22 LW UV FA 830 | 4L F17 T8 with NBF in a 2x2 |
| FFR 22 LW UV FA 835 | 4L F17 T8 with NBF in a 2x2 |
| FFR 22 LW UV FA 840 | 4L F17 T8 with NBF in a 2x2 |
| FFR 22 LW UV FA 850 | 4L F17 T8 with NBF in a 2x2 |
| FFR 22 MD UV FA 830 | 2L FB32 T8 with HBF in a 2x2 |
| FFR 22 MD UV FA 835 | 2L FB32 T8 with HBF in a 2x2 |
| FFR 22 MD UV FA 840 | 2L FB32 T8 with HBF in a 2x2 |
| FFR 22 MD UV FA 850 | 2L FB32 T8 with HBF in a 2x2 |
| FFR 22 HI UV FA 830 | 3L F32 T8 with NBF in a 2x2 |
| FFR 22 HI UV FA 835 | 3L F32 T8 with NBF in a 2x2 |
| FFR 22 HI UV FA 840 | 3L F32 T8 with NBF in a 2x2 |
| FFR 22 HI UV FA 850 | 3L F32 T8 with NBF in a 2x2 |
| FFR 12 SL UV FA 830 | 2L F17 T8 with NBF in a 1x2 |
| FFR 12 SL UV FA 835 | 2L F17 T8 with NBF in a 1x2 |
| FFR 12 SL UV FA 840 | 2L F17 T8 with NBF in a 1x2 |
| FFR 12 SL UV FA 850 | 2L F17 T8 with NBF in a 1x2 |
| FFR 12 VL UV FA 830 | 3L F17 T8 with NBF in a 1x2 |
| FFR 12 VL UV FA 835 | 3L F17 T8 with NBF in a 1x2 |
| FFR 12 VL UV FA 840 | 3L F17 T8 with NBF in a 1x2 |
| FFR 12 VL UV FA 850 | 3L F17 T8 with NBF in a 1x2 |
| FFR 12 LW UV FA 830 | 4L F17 T8 with NBF in a 1x2 |
| FFR 12 LW UV FA 835 | 4L F17 T8 with NBF in a 1x2 |
| FFR 12 LW UV FA 840 | 4L F17 T8 with NBF in a 1x2 |
| FFR 12 LW UV FA 850 | 4L F17 T8 with NBF in a 1x2 |
| FFR 12 MD UV FA 830 | 2L FB32 T8 with HBF in a 1x2 |
| FFR 12 MD UV FA 835 | 2L FB32 T8 with HBF in a 1x2 |
| FFR 12 MD UV FA 840 | 2L FB32 T8 with HBF in a 1x2 |
| FFR 12 MD UV FA 850 | 2L FB32 T8 with HBF in a 1x2 |
| FFR 12 HI UV FA 830 | 3L F32 T8 with NBF in a 1x2 |
| FFR 12 HI UV FA 835 | 3L F32 T8 with NBF in a 1x2 |
| FFR 12 HI UV FA 840 | 3L F32 T8 with NBF in a 1x2 |
| FFR 12 HI UV FA 850 | 3L F32 T8 with NBF in a 1x2 |
| FFR 14 SL UV FA 830 | 1L F32 T8 with HBF in a 1x4 |
| FFR 14 SL UV FA 835 | 1L F32 T8 with HBF in a 1x4 |
| FFR 14 SL UV FA 840 | 1L F32 T8 with HBF in a 1x4 |
| FFR 14 SL UV FA 850 | 1L F32 T8 with HBF in a 1x4 |
| FFR 14 VL UV FA 830 | 2L F32 T8 with LBF in a 1x4 |
| FFR 14 VL UV FA 835 | 2L F32 T8 with LBF in a 1x4 |
| FFR 14 VL UV FA 840 | 2L F32 T8 with LBF in a 1x4 |
| FFR 14 VL UV FA 850 | 2L F32 T8 with LBF in a 1x4 |
| FFR 14 LW UV FA 830 | 2L F32 T8 with NBF in a 1x4 |
| FFR 14 LW UV FA 835 | 2L F32 T8 with NBF in a 1x4 |
| FFR 14 LW UV FA 840 | 2L F32 T8 with NBF in a 1x4 |
| FFR 14 LW UV FA 850 | 2L F32 T8 with NBF in a 1x4 |
| FFR 14 MD UV FA 830 | 3L F32 T8 with LBF in a 1x4 |
| FFR 14 MD UV FA 835 | 3L F32 T8 with LBF in a 1x4 |
| FFR 14 MD UV FA 840 | 3L F32 T8 with LBF in a 1x4 |
| FFR 14 MD UV FA 850 | 3L F32 T8 with LBF in a 1x4 |
| FFR 14 HI UV FA 830 | 3L F32 T8 with NBF in a 1x4 |
| FFR 14 HI UV FA 835 | 3L F32 T8 with NBF in a 1x4 |
| FFR 14 HI UV FA 840 | 3L F32 T8 with NBF in a 1x4 |
| FFR 14 HI UV FA 850 | 3L F32 T8 with NBF in a 1x4 |

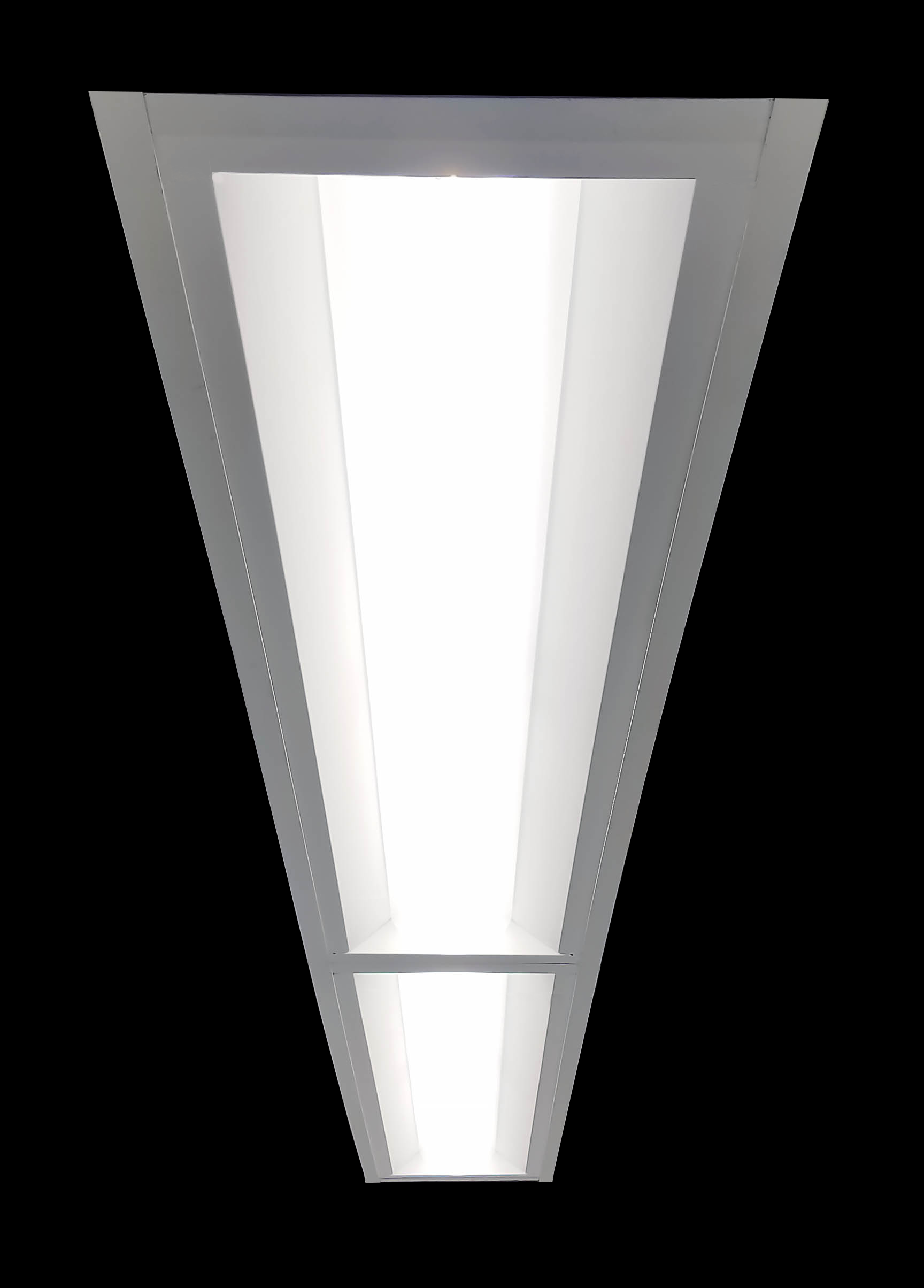

| FFR 14T SL UV FA 830 | 2L F32 T8 with HBF in a 1x4 (tandem) |
| FFR 14T SL UV FA 835 | 2L F32 T8 with HBF in a 1x4 (tandem) |
| FFR 14T SL UV FA 840 | 2L F32 T8 with HBF in a 1x4 (tandem) |
| FFR 14T SL UV FA 850 | 2L F32 T8 with HBF in a 1x4 (tandem) |
| FFR 14T VL UV FA 830 | 4L F32 T8 with LBF in a 1x4 (tandem) |
| FFR 14T VL UV FA 835 | 4L F32 T8 with LBF in a 1x4 (tandem) |
| FFR 14T VL UV FA 840 | 4L F32 T8 with LBF in a 1x4 (tandem) |
| FFR 14T VL UV FA 850 | 4L F32 T8 with LBF in a 1x4 (tandem) |
| FFR 14T LW UV FA 830 | 4L F32 T8 with NBF in a 1x4 (tandem) |
| FFR 14T LW UV FA 835 | 4L F32 T8 with NBF in a 1x4 (tandem) |
| FFR 14T LW UV FA 840 | 4L F32 T8 with NBF in a 1x4 (tandem) |
| FFR 14T LW UV FA 850 | 4L F32 T8 with NBF in a 1x4 (tandem) |
| FFR 14T MD UV FA 830 | 6L F32 T8 with LBF in a 1x4 (tandem) |
| FFR 14T MD UV FA 835 | 6L F32 T8 with LBF in a 1x4 (tandem) |
| FFR 14T MD UV FA 840 | 6L F32 T8 with LBF in a 1x4 (tandem) |
| FFR 14T MD UV FA 850 | 6L F32 T8 with LBF in a 1x4 (tandem) |
Download the Room Estimator to get an idea how many luminaires you need for your space. Fill out the criteria under "Area" and select the model you're looking for. Based on the desired light level selected, the Estimator will calculate the number of luminaires required.
Note: This is an estimate only. Actual results may vary depending on field conditions. LumenFocus makes no warranties as to the performance predicted by the calculations. Please contact your LumenFocus representative for a more detailed photometric analysis.
Note: This is an estimate only. Actual results may vary depending on field conditions. LumenFocus makes no warranties as to the performance predicted by the calculations. Please contact your LumenFocus representative for a more detailed photometric analysis.
Quick and easy installation
The FFR provides drastic energy savings potential when compared to traditional light sources found in many existing troffers. Not only will it help you save on the energy bill, but it'll help you save you time and money in the field. We've designed this kit to be installed in 3-5 minutes, depending on the model. Installation instructions, as well as all the necessary hardware, are included in each box. Even the cartons were designed with installers in mind, with a convenient carrying handle for easy transport.

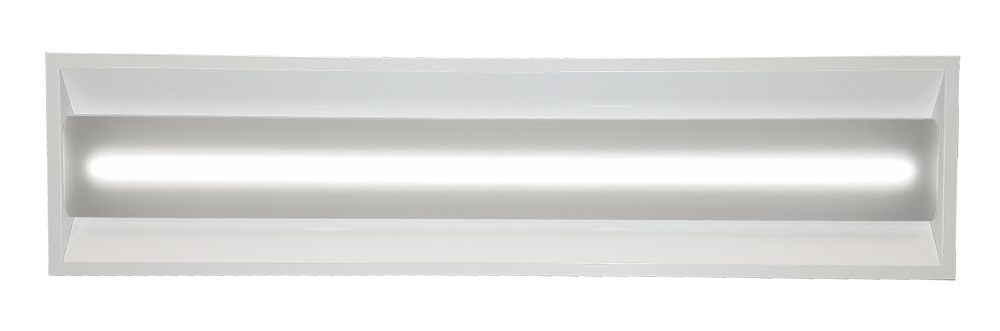

Aesthetics and performance
The lens of the FFR kit is designed to accentuate the modern lines and styling of the assembled unit. LED pixelation is non-existent - with a solid bar of light as the source. The lens minimizes glare without compromising on performance.
