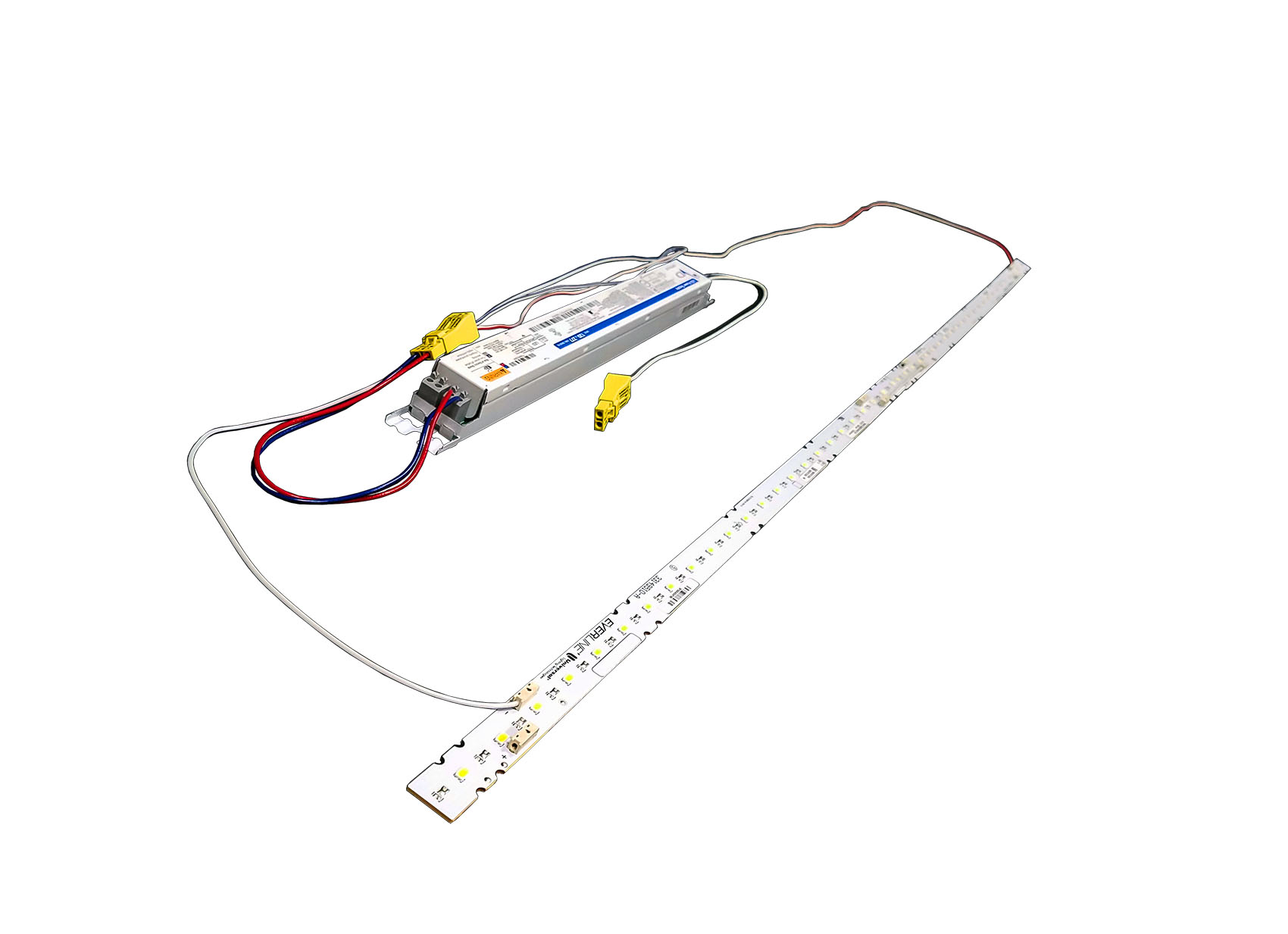

LED Board/Driver Retrofit Kit

The RLK G2 series offers quick and efficient retrofit solutions for prismatic troffers (2x2 and 2x4) and wrap luminaires (2-footers and 4-footers). The RLK G2 utilizes highly efficient LED arrays rated at 90+ CRI. Components come pre-wired, and the driver quick-disconnect allows for easy installation, saving on labor costs. Magnetic fasteners come standard on the LED boards, allowing for easy application and adjustment onto existing housings before self-tapping screws affix everything in place.

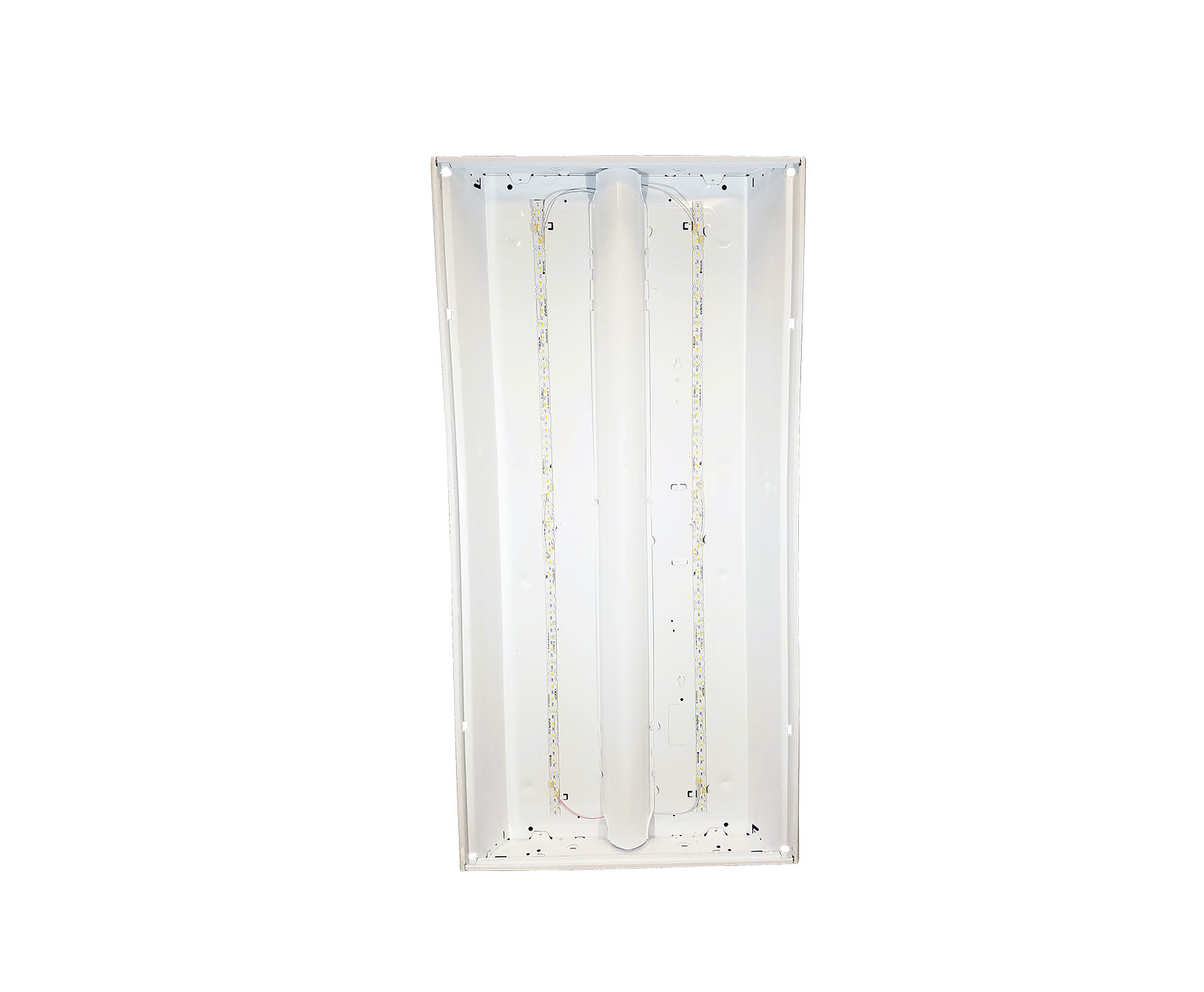

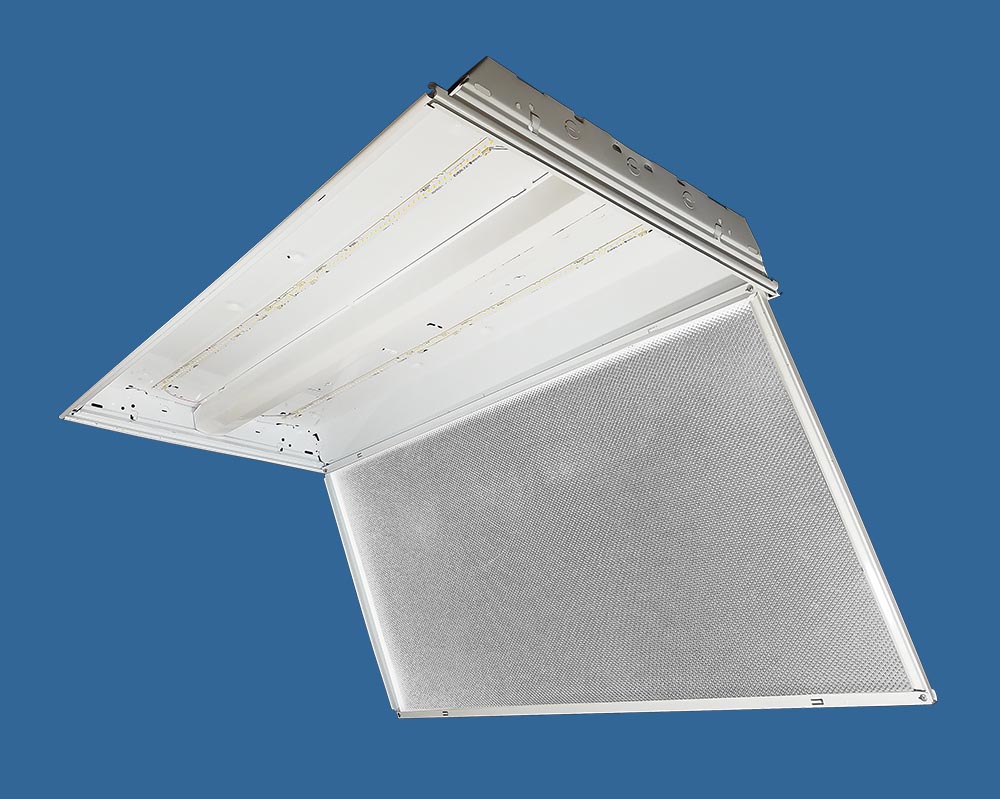

  • Applications: RLK G2 T22/T24: For use in most existing 2x2/2x4 prismatic troffer and surface box luminaires. RLK G2 W2/W4: For use in most existing 2-foot/4-foot wrap luminaires. The RLK G2 series is suitable for dry/indoor use only
  • Lumen Output: RLK G2 T22: 1,700-4,800 lumens; RLK G2 T24: 2,700-9,380 lumens; RLK G2 W2: 1,040-4,880 lumens; RLK G2 W4: 1,700-9,380 lumens
  • Max Lumens Per Watt: 161.1 (in the RLK G2 T24 and W4)
  • Size Options: For 2x2 and 2x4 prismatic troffers, and 2-foot and 4-foot wrap luminaires
  • Predicted L70 Lifetime: Greater or equal to 129,000 hours (calculated)
  • Warranty: 5 year limited system warranty
  • Certifications: UL 1598c listed for US and Canada. RoHS compliant
  • Assembled in the USA: Each RLK kit is assembled at our facility in Henderson, NC

cULus-AiA

Note: Table scrolls horizontally
Catalog #
Retrofit ForNo. of Board RowsLumensWattsLPWCRI / Color TempVoltages Available
RLK G2 T22 2 SL UV 9302x2 troffer or surface box luminairesTwo1,737.112.2142.090 CRI / 3000K120-277V
RLK G2 T22 2 SL UV 9352x2 troffer or surface box luminairesTwo1,744.412.2142.690 CRI / 3500K120-277V
RLK G2 T22 2 SL UV 9402x2 troffer or surface box luminairesTwo1,785.912.2146.090 CRI / 4000K120-277V
RLK G2 T22 2 SL UV 9502x2 troffer or surface box luminairesTwo1,785.912.2146.090 CRI / 5000K120-277V
RLK G2 T22 2 VL UV 9302x2 troffer or surface box luminairesTwo2,362.916.3145.390 CRI / 3000K120-277V
RLK G2 T22 2 VL UV 9352x2 troffer or surface box luminairesTwo2,372.916.3145.990 CRI / 3500K120-277V
RLK G2 T22 2 VL UV 9402x2 troffer or surface box luminairesTwo2,429.216.3149.390 CRI / 4000K120-277V
RLK G2 T22 2 VL UV 9502x2 troffer or surface box luminairesTwo2,429.216.3149.390 CRI / 5000K120-277V
RLK G2 T22 2 LW UV 9302x2 troffer or surface box luminairesTwo2,908.219.7147.490 CRI / 3000K120-277V
RLK G2 T22 2 LW UV 9352x2 troffer or surface box luminairesTwo2,920.519.7148.090 CRI / 3500K120-277V
RLK G2 T22 2 LW UV 9402x2 troffer or surface box luminairesTwo2,989.819.7151.590 CRI / 4000K120-277V
RLK G2 T22 2 LW UV 9502x2 troffer or surface box luminairesTwo2,989.819.7151.590 CRI / 5000K120-277V
RLK G2 T22 2 MD UV 9302x2 troffer or surface box luminairesTwo3,501.423.6148.290 CRI / 3000K120-277V
RLK G2 T22 2 MD UV 9352x2 troffer or surface box luminairesTwo3,516.223.6148.890 CRI / 3500K120-277V
RLK G2 T22 2 MD UV 9402x2 troffer or surface box luminairesTwo3,599.723.6152.490 CRI / 4000K120-277V
RLK G2 T22 2 MD UV 9502x2 troffer or surface box luminairesTwo3,599.723.6152.490 CRI / 5000K120-277V
RLK G2 T22 2 HI UV 9302x2 troffer or surface box luminairesTwo3,942.726.9146.590 CRI / 3000K120-277V
RLK G2 T22 2 HI UV 9352x2 troffer or surface box luminairesTwo3,959.326.9147.290 CRI / 3500K120-277V
RLK G2 T22 2 HI UV 9402x2 troffer or surface box luminairesTwo4,053.426.9150.690 CRI / 4000K120-277V
RLK G2 T22 2 HI UV 9502x2 troffer or surface box luminairesTwo4,053.426.9150.690 CRI / 5000K120-277V
RLK G2 T22 2 VH UV 9302x2 troffer or surface box luminairesTwo4,419.830.5144.890 CRI / 3000K120-277V
RLK G2 T22 2 VH UV 9352x2 troffer or surface box luminairesTwo4,438.430.5145.490 CRI / 3500K120-277V
RLK G2 T22 2 VH UV 9402x2 troffer or surface box luminairesTwo4,543.830.5148.890 CRI / 4000K120-277V
RLK G2 T22 2 VH UV 9502x2 troffer or surface box luminairesTwo4,543.830.5148.890 CRI / 5000K120-277V
RLK G2 T22 2 SH UV 9302x2 troffer or surface box luminairesTwo4,755.033.7140.990 CRI / 3000K120-277V
RLK G2 T22 2 SH UV 9352x2 troffer or surface box luminairesTwo4,775.133.7141.590 CRI / 3500K120-277V
RLK G2 T22 2 SH UV 9402x2 troffer or surface box luminairesTwo4,888.533.7144.990 CRI / 4000K120-277V
RLK G2 T22 2 SH UV 9502x2 troffer or surface box luminairesTwo4,888.533.7144.990 CRI / 5000K120-277V
RLK G2 T24 2 SL UV 9302x4 troffer or surface box luminairesTwo2,703.518.1149.790 CRI / 3000K120-277V
RLK G2 T24 2 SL UV 9352x4 troffer or surface box luminairesTwo2,714.918.1150.390 CRI / 3500K120-277V
RLK G2 T24 2 SL UV 9402x4 troffer or surface box luminairesTwo2,779.418.1153.990 CRI / 4000K120-277V
RLK G2 T24 2 SL UV 9502x4 troffer or surface box luminairesTwo2,779.418.1153.990 CRI / 5000K120-277V
RLK G2 T24 2 VL UV 9302x4 troffer or surface box luminairesTwo3,544.122.9154.590 CRI / 3000K120-277V
RLK G2 T24 2 VL UV 9352x4 troffer or surface box luminairesTwo3,559.122.9155.190 CRI / 3500K120-277V
RLK G2 T24 2 VL UV 9402x4 troffer or surface box luminairesTwo3,643.622.9158.890 CRI / 4000K120-277V
RLK G2 T24 2 VL UV 9502x4 troffer or surface box luminairesTwo3,643.622.9158.890 CRI / 5000K120-277V
RLK G2 T24 2 LW UV 9302x4 troffer or surface box luminairesTwo4,449.428.5155.990 CRI / 3000K120-277V
RLK G2 T24 2 LW UV 9352x4 troffer or surface box luminairesTwo4,468.228.5156.590 CRI / 3500K120-277V
RLK G2 T24 2 LW UV 9402x4 troffer or surface box luminairesTwo4,574.328.5160.290 CRI / 4000K120-277V
RLK G2 T24 2 LW UV 9502x4 troffer or surface box luminairesTwo4,574.328.5160.290 CRI / 5000K120-277V
RLK G2 T24 2 ML UV 9302x4 troffer or surface box luminairesTwo5,001.031.9156.890 CRI / 3000K120-277V
RLK G2 T24 2 ML UV 9352x4 troffer or surface box luminairesTwo5,022.031.9157.490 CRI / 3500K120-277V
RLK G2 T24 2 ML UV 9402x4 troffer or surface box luminairesTwo5,141.331.9161.190 CRI / 4000K120-277V
RLK G2 T24 2 ML UV 9502x4 troffer or surface box luminairesTwo5,141.331.9161.190 CRI / 5000K120-277V
RLK G2 T24 2 MD UV 9302x4 troffer or surface box luminairesTwo5,816.437.7154.290 CRI / 3000K120-277V
RLK G2 T24 2 MD UV 9352x4 troffer or surface box luminairesTwo5,841.037.7154.890 CRI / 3500K120-277V
RLK G2 T24 2 MD UV 9402x4 troffer or surface box luminairesTwo5,979.737.7158.590 CRI / 4000K120-277V
RLK G2 T24 2 MD UV 9502x4 troffer or surface box luminairesTwo5,979.737.7158.590 CRI / 5000K120-277V
RLK G2 T24 2 HI UV 9302x4 troffer or surface box luminairesTwo6,938.445.3153.190 CRI / 3000K120-277V
RLK G2 T24 2 HI UV 9352x4 troffer or surface box luminairesTwo6,967.645.3153.890 CRI / 3500K120-277V
RLK G2 T24 2 HI UV 9402x4 troffer or surface box luminairesTwo7,133.145.3157.490 CRI / 4000K120-277V
RLK G2 T24 2 HI UV 9502x4 troffer or surface box luminairesTwo7,133.145.3157.490 CRI / 5000K120-277V
RLK G2 T24 2 VH UV 9302x4 troffer or surface box luminairesTwo8,069.153.8149.990 CRI / 3000K120-277V
RLK G2 T24 2 VH UV 9352x4 troffer or surface box luminairesTwo8,103.153.8150.590 CRI / 3500K120-277V
RLK G2 T24 2 VH UV 9402x4 troffer or surface box luminairesTwo8,295.653.8154.190 CRI / 4000K120-277V
RLK G2 T24 2 VH UV 9502x4 troffer or surface box luminairesTwo5,295.653.8154.190 CRI / 5000K120-277V
RLK G2 T24 2 SH UV 9302x4 troffer or surface box luminairesTwo9,124.062.5146.190 CRI / 3000K120-277V
RLK G2 T24 2 SH UV 9352x4 troffer or surface box luminairesTwo9,162.462.5146.790 CRI / 3500K120-277V
RLK G2 T24 2 SH UV 9402x4 troffer or surface box luminairesTwo9,380.162.5150.290 CRI / 4000K120-277V
RLK G2 T24 2 SH UV 9502x4 troffer or surface box luminairesTwo9,380.162.5150.290 CRI / 5000K120-277V
RLK G2 W2 1 VL UV 9302' wrap luminairesOne1,043.08.1129.290 CRI / 3000K120-277V
RLK G2 W2 1 VL UV 9352' wrap luminairesOne1,047.48.1129.890 CRI / 3500K120-277V
RLK G2 W2 1 VL UV 9402' wrap luminairesOne1,072.28.1132.890 CRI / 4000K120-277V
RLK G2 W2 1 VL UV 9502' wrap luminairesOne1,072.28.1132.890 CRI / 5000K120-277V
RLK G2 W2 1 LW UV 9302' wrap luminairesOne1,386.610.3134.990 CRI / 3000K120-277V
RLK G2 W2 1 LW UV 9352' wrap luminairesOne1,392.510.3135.590 CRI / 3500K120-277V
RLK G2 W2 1 LW UV 9402' wrap luminairesOne1,425.510.3138.790 CRI / 4000K120-277V
RLK G2 W2 1 LW UV 9502' wrap luminairesOne1,425.510.3138.790 CRI / 5000K120-277V
RLK G2 W2 1 MD UV 9302' wrap luminairesOne1,718.412.6136.790 CRI / 3000K120-277V
RLK G2 W2 1 MD UV 9352' wrap luminairesOne1,725.712.6137.390 CRI / 3500K120-277V
RLK G2 W2 1 MD UV 9402' wrap luminairesOne1,766.712.6140.690 CRI / 4000K120-277V
RLK G2 W2 1 MD UV 9502' wrap luminairesOne1,766.712.6140.690 CRI / 5000K120-277V
RLK G2 W2 1 HI UV 9302' wrap luminairesOne1,971.414.5136.090 CRI / 3000K120-277V
RLK G2 W2 1 HI UV 9352' wrap luminairesOne1,979.714.5136.690 CRI / 3500K120-277V
RLK G2 W2 1 HI UV 9402' wrap luminairesOne2,026.714.5139.890 CRI / 4000K120-277V
RLK G2 W2 1 HI UV 9502' wrap luminairesOne2,026.714.5139.890 CRI / 5000K120-277V
RLK G2 W2 1 VH UV 9302' wrap luminairesOne2,322.817.4133.590 CRI / 3000K120-277V
RLK G2 W2 1 VH UV 9352' wrap luminairesOne2,332.617.4134.190 CRI / 3500K120-277V
RLK G2 W2 1 VH UV 9402' wrap luminairesOne2,388.017.4137.390 CRI / 4000K120-277V
RLK G2 W2 1 VH UV 9502' wrap luminairesOne2,388.017.4137.390 CRI / 5000K120-277V
RLK G2 W2 2 SL UV 9302' wrap luminairesTwo1,737.112.2142.090 CRI / 3000K120-277V
RLK G2 W2 2 SL UV 9352' wrap luminairesTwo1,744.412.2142.690 CRI / 3500K120-277V
RLK G2 W2 2 SL UV 9402' wrap luminairesTwo1,785.912.2146.090 CRI / 4000K120-277V
RLK G2 W2 2 SL UV 9502' wrap luminairesTwo1,785.912.2146.090 CRI / 5000K120-277V
RLK G2 W2 2 VL UV 9302' wrap luminairesTwo2,362.916.3145.390 CRI / 3000K120-277V
RLK G2 W2 2 VL UV 9352' wrap luminairesTwo2,372.916.3145.990 CRI / 3500K120-277V
RLK G2 W2 2 VL UV 9402' wrap luminairesTwo2,429.216.3149.390 CRI / 4000K120-277V
RLK G2 W2 2 VL UV 9502' wrap luminairesTwo2,429.216.3149.390 CRI / 5000K120-277V
RLK G2 W2 2 LW UV 9302' wrap luminairesTwo2,908.219.7147.490 CRI / 3000K120-277V
RLK G2 W2 2 LW UV 9352' wrap luminairesTwo2,920.519.7148.090 CRI / 3500K120-277V
RLK G2 W2 2 LW UV 9402' wrap luminairesTwo2,989.819.7151.590 CRI / 4000K120-277V
RLK G2 W2 2 LW UV 9502' wrap luminairesTwo2,989.819.7151.590 CRI / 5000K120-277V
RLK G2 W2 2 MD UV 9302' wrap luminairesTwo3,501.423.6148.290 CRI / 3000K120-277V
RLK G2 W2 2 MD UV 9352' wrap luminairesTwo3,516.223.6148.890 CRI / 3500K120-277V
RLK G2 W2 2 MD UV 9402' wrap luminairesTwo3,599.723.6152.490 CRI / 4000K120-277V
RLK G2 W2 2 MD UV 9502' wrap luminairesTwo3,599.723.6152.490 CRI / 5000K120-277V
RLK G2 W2 2 HI UV 9302' wrap luminairesTwo3,942.726.9146.590 CRI / 3000K120-277V
RLK G2 W2 2 HI UV 9352' wrap luminairesTwo3,959.326.9147.290 CRI / 3500K120-277V
RLK G2 W2 2 HI UV 9402' wrap luminairesTwo4,053.426.9150.690 CRI / 4000K120-277V
RLK G2 W2 2 HI UV 9502' wrap luminairesTwo4,053.426.9150.690 CRI / 5000K120-277V
RLK G2 W2 2 VH UV 9302' wrap luminairesTwo4,419.830.5144.890 CRI / 3000K120-277V
RLK G2 W2 2 VH UV 9352' wrap luminairesTwo4,438.430.5145.490 CRI / 3500K120-277V
RLK G2 W2 2 VH UV 9402' wrap luminairesTwo4,543.830.5148.890 CRI / 4000K120-277V
RLK G2 W2 2 VH UV 9502' wrap luminairesTwo4,543.830.5148.890 CRI / 5000K120-277V
RLK G2 W2 2 SH UV 9302' wrap luminairesTwo4,755.033.7140.990 CRI / 3000K120-277V
RLK G2 W2 2 SH UV 9352' wrap luminairesTwo4,775.133.7141.590 CRI / 3500K120-277V
RLK G2 W2 2 SH UV 9402' wrap luminairesTwo4,888.533.7144.990 CRI / 4000K120-277V
RLK G2 W2 2 SH UV 9502' wrap luminairesTwo4,888.533.7144.990 CRI / 5000K120-277V
RLK G2 W4 1 SL UV 9304' wrap luminairesOne1,737.112.2142.090 CRI / 3000K120-277V
RLK G2 W4 1 SL UV 9354' wrap luminairesOne1,744.412.2142.690 CRI / 3500K120-277V
RLK G2 W4 1 SL UV 9404' wrap luminairesOne1,785.912.2146.090 CRI / 4000K120-277V
RLK G2 W4 1 SL UV 9504' wrap luminairesOne1,785.912.2146.090 CRI / 5000K120-277V
RLK G2 W4 1 VL UV 9304' wrap luminairesOne2,362.916.3145.390 CRI / 3000K120-277V
RLK G2 W4 1 VL UV 9354' wrap luminairesOne2,372.916.3145.990 CRI / 3500K120-277V
RLK G2 W4 1 VL UV 9404' wrap luminairesOne2,429.216.3149.390 CRI / 4000K120-277V
RLK G2 W4 1 VL UV 9504' wrap luminairesOne2,429.216.3149.390 CRI / 5000K120-277V
RLK G2 W4 1 LW UV 9304' wrap luminairesOne2,908.219.7147.490 CRI / 3000K120-277V
RLK G2 W4 1 LW UV 9354' wrap luminairesOne2,920.519.7148.090 CRI / 3500K120-277V
RLK G2 W4 1 LW UV 9404' wrap luminairesOne2,989.819.7151.590 CRI / 4000K120-277V
RLK G2 W4 1 LW UV 9504' wrap luminairesOne2,989.819.7151.590 CRI / 5000K120-277V
RLK G2 W4 1 MD UV 9304' wrap luminairesOne3,501.423.6148.290 CRI / 3000K120-277V
RLK G2 W4 1 MD UV 9354' wrap luminairesOne3,516.223.6148.890 CRI / 3500K120-277V
RLK G2 W4 1 MD UV 9404' wrap luminairesOne3,599.723.6152.490 CRI / 4000K120-277V
RLK G2 W4 1 MD UV 9504' wrap luminairesOne3,599.723.6152.490 CRI / 5000K120-277V
RLK G2 W4 1 HI UV 9304' wrap luminairesOne3,942.726.9146.590 CRI / 3000K120-277V
RLK G2 W4 1 HI UV 9354' wrap luminairesOne3,959.326.9147.290 CRI / 3500K120-277V
RLK G2 W4 1 HI UV 9404' wrap luminairesOne4,053.426.9150.690 CRI / 4000K120-277V
RLK G2 W4 1 HI UV 9504' wrap luminairesOne4,053.426.9150.690 CRI / 5000K120-277V
RLK G2 W4 1 VH UV 9304' wrap luminairesOne4,419.830.5144.890 CRI / 3000K120-277V
RLK G2 W4 1 VH UV 9354' wrap luminairesOne4,438.430.5145.490 CRI / 3500K120-277V
RLK G2 W4 1 VH UV 9404' wrap luminairesOne4,543.830.5148.890 CRI / 4000K120-277V
RLK G2 W4 1 VH UV 9504' wrap luminairesOne4,543.830.5148.890 CRI / 5000K120-277V
RLK G2 W4 1 SH UV 9304' wrap luminairesOne4,755.033.7140.990 CRI / 3000K120-277V
RLK G2 W4 1 SH UV 9354' wrap luminairesOne4,775.133.7141.590 CRI / 3500K120-277V
RLK G2 W4 1 SH UV 9404' wrap luminairesOne4,888.533.7144.990 CRI / 4000K120-277V
RLK G2 W4 1 SH UV 9504' wrap luminairesOne4,888.533.7144.990 CRI / 5000K120-277V
RLK G2 W4 2 SL UV 9304' wrap luminairesTwo2,703.518.1149.790 CRI / 3000K120-277V
RLK G2 W4 2 SL UV 9354' wrap luminairesTwo2,714.918.1150.390 CRI / 3500K120-277V
RLK G2 W4 2 SL UV 9404' wrap luminairesTwo2,779.418.1153.990 CRI / 4000K120-277V
RLK G2 W4 2 SL UV 9504' wrap luminairesTwo2,779.418.1153.990 CRI / 5000K120-277V
RLK G2 W4 2 VL UV 9304' wrap luminairesTwo3,544.122.9154.590 CRI / 3000K120-277V
RLK G2 W4 2 VL UV 9354' wrap luminairesTwo3,559.122.9155.190 CRI / 3500K120-277V
RLK G2 W4 2 VL UV 9404' wrap luminairesTwo3,643.622.9158.890 CRI / 4000K120-277V
RLK G2 W4 2 VL UV 9504' wrap luminairesTwo3,643.622.9158.890 CRI / 5000K120-277V
RLK G2 W4 2 LW UV 9304' wrap luminairesTwo4,449.428.5155.990 CRI / 3000K120-277V
RLK G2 W4 2 LW UV 9354' wrap luminairesTwo4,468.228.5156.590 CRI / 3500K120-277V
RLK G2 W4 2 LW UV 9404' wrap luminairesTwo4,574.328.5160.290 CRI / 4000K120-277V
RLK G2 W4 2 LW UV 9504' wrap luminairesTwo4,574.328.5160.290 CRI / 5000K120-277V
RLK G2 W4 2 ML UV 9304' wrap luminairesTwo5,001.031.9156.890 CRI / 3000K120-277V
RLK G2 W4 2 ML UV 9354' wrap luminairesTwo5,022.031.9157.490 CRI / 3500K120-277V
RLK G2 W4 2 ML UV 9404' wrap luminairesTwo5,141.331.9161.190 CRI / 4000K120-277V
RLK G2 W4 2 ML UV 9504' wrap luminairesTwo5,141.331.9161.190 CRI / 5000K120-277V
RLK G2 W4 2 MD UV 9304' wrap luminairesTwo5,816.437.7154.290 CRI / 3000K120-277V
RLK G2 W4 2 MD UV 9354' wrap luminairesTwo5,841.037.7154.890 CRI / 3500K120-277V
RLK G2 W4 2 MD UV 9404' wrap luminairesTwo5,979.737.7158.590 CRI / 4000K120-277V
RLK G2 W4 2 MD UV 9504' wrap luminairesTwo5,979.737.7158.590 CRI / 5000K120-277V
RLK G2 W4 2 HI UV 9304' wrap luminairesTwo6,938.445.3153.190 CRI / 3000K120-277V
RLK G2 W4 2 HI UV 9354' wrap luminairesTwo6,967.645.3153.890 CRI / 3500K120-277V
RLK G2 W4 2 HI UV 9404' wrap luminairesTwo7,133.145.3157.490 CRI / 4000K120-277V
RLK G2 W4 2 HI UV 9504' wrap luminairesTwo7,133.145.3157.490 CRI / 5000K120-277V
RLK G2 W4 2 VH UV 9304' wrap luminairesTwo8,069.153.8149.990 CRI / 3000K120-277V
RLK G2 W4 2 VH UV 9354' wrap luminairesTwo8,103.153.8150.590 CRI / 3500K120-277V
RLK G2 W4 2 VH UV 9404' wrap luminairesTwo8,295.653.8154.190 CRI / 4000K120-277V
RLK G2 W4 2 VH UV 9504' wrap luminairesTwo8,295.653.8154.190 CRI / 5000K120-277V
RLK G2 W4 2 SH UV 9304' wrap luminairesTwo9,124.062.5146.190 CRI / 3000K120-277V
RLK G2 W4 2 SH UV 9354' wrap luminairesTwo9,162.462.5146.790 CRI / 3500K120-277V
RLK G2 W4 2 SH UV 9404' wrap luminairesTwo9,380.162.5150.290 CRI / 4000K120-277V
RLK G2 W4 2 SH UV 9504' wrap luminairesTwo9,380.162.5150.290 CRI / 5000K120-277V
Catalog #
Equivalency*
RLK G2 T22 2 SL UV 9302L F17 T8, LBF / 1L FB32 T8, LBF
RLK G2 T22 2 SL UV 9352L F17 T8, LBF / 1L FB32 T8, LBF
RLK G2 T22 2 SL UV 9402L F17 T8, LBF / 1L FB32 T8, LBF
RLK G2 T22 2 SL UV 9502L F17 T8, LBF / 1L FB32 T8, LBF
RLK G2 T22 2 VL UV 9302L F17 T8, NBF / 1L FB32 T8, NBF
RLK G2 T22 2 VL UV 9352L F17 T8, NBF / 1L FB32 T8, NBF
RLK G2 T22 2 VL UV 9402L F17 T8, NBF / 1L FB32 T8, NBF
RLK G2 T22 2 VL UV 9502L F17 T8, NBF / 1L FB32 T8, NBF
RLK G2 T22 2 LW UV 9303L F17 T8, LBF
RLK G2 T22 2 LW UV 9353L F17 T8, LBF
RLK G2 T22 2 LW UV 9403L F17 T8, LBF
RLK G2 T22 2 LW UV 9503L F17 T8, LBF
RLK G2 T22 2 MD UV 9303L F17 T8, NBF
RLK G2 T22 2 MD UV 9353L F17 T8, NBF
RLK G2 T22 2 MD UV 9403L F17 T8, NBF
RLK G2 T22 2 MD UV 9503L F17 T8, NBF
RLK G2 T22 2 HI UV 9302L FB32 T8, LBF
RLK G2 T22 2 HI UV 9352L FB32 T8, LBF
RLK G2 T22 2 HI UV 9402L FB32 T8, LBF
RLK G2 T22 2 HI UV 9502L FB32 T8, LBF
RLK G2 T22 2 VH UV 9304L F17 T8, LBF
RLK G2 T22 2 VH UV 9354L F17 T8, LBF
RLK G2 T22 2 VH UV 9404L F17 T8, LBF
RLK G2 T22 2 VH UV 9504L F17 T8, LBF
RLK G2 T22 2 SH UV 9304L F17 T8, NBF / 2L FB32 T8, NBF
RLK G2 T22 2 SH UV 9354L F17 T8, NBF / 2L FB32 T8, NBF
RLK G2 T22 2 SH UV 9404L F17 T8, NBF / 2L FB32 T8, NBF
RLK G2 T22 2 SH UV 9504L F17 T8, NBF / 2L FB32 T8, NBF
RLK G2 T24 2 SL UV 9302L F34 T12
RLK G2 T24 2 SL UV 9352L F34 T12
RLK G2 T24 2 SL UV 9402L F34 T12
RLK G2 T24 2 SL UV 9502L F34 T12
RLK G2 T24 2 VL UV 9302L F40 T12
RLK G2 T24 2 VL UV 9352L F40 T12
RLK G2 T24 2 VL UV 9402L F40 T12
RLK G2 T24 2 VL UV 9502L F40 T12
RLK G2 T24 2 LW UV 9302L F32 T8 ES (28W), NBF
RLK G2 T24 2 LW UV 9352L F32 T8 ES (28W), NBF
RLK G2 T24 2 LW UV 9402L F32 T8 ES (28W), NBF
RLK G2 T24 2 LW UV 9502L F32 T8 ES (28W), NBF
RLK G2 T24 2 ML UV 9302L F32 T8, NBF
RLK G2 T24 2 ML UV 9352L F32 T8, NBF
RLK G2 T24 2 ML UV 9402L F32 T8, NBF
RLK G2 T24 2 ML UV 9502L F32 T8, NBF
RLK G2 T24 2 MD UV 9303L F40 T12
RLK G2 T24 2 MD UV 9353L F40 T12
RLK G2 T24 2 MD UV 9403L F40 T12
RLK G2 T24 2 MD UV 9503L F40 T12
RLK G2 T24 2 HI UV 9303L F32 T8, NBF
RLK G2 T24 2 HI UV 9353L F32 T8, NBF
RLK G2 T24 2 HI UV 9403L F32 T8, NBF
RLK G2 T24 2 HI UV 9503L F32 T8, NBF
RLK G2 T24 2 VH UV 9304L F40 T12
RLK G2 T24 2 VH UV 9354L F40 T12
RLK G2 T24 2 VH UV 9404L F40 T12
RLK G2 T24 2 VH UV 9504L F40 T12
RLK G2 T24 2 SH UV 9304L F32 T8, NBF
RLK G2 T24 2 SH UV 9354L F32 T8, NBF
RLK G2 T24 2 SH UV 9404L F32 T8, NBF
RLK G2 T24 2 SH UV 9504L F32 T8, NBF
RLK G2 W2 1 VL UV 9301L F17 T8, NBF
RLK G2 W2 1 VL UV 9351L F17 T8, NBF
RLK G2 W2 1 VL UV 9401L F17 T8, NBF
RLK G2 W2 1 VL UV 9501L F17 T8, NBF
RLK G2 W2 1 LW UV 9301L F34 T12
RLK G2 W2 1 LW UV 9351L F34 T12
RLK G2 W2 1 LW UV 9401L F34 T12
RLK G2 W2 1 LW UV 9501L F34 T12
RLK G2 W2 1 MD UV 9301L F24 T5HO
RLK G2 W2 1 MD UV 9351L F24 T5HO
RLK G2 W2 1 MD UV 9401L F24 T5HO
RLK G2 W2 1 MD UV 9501L F24 T5HO
RLK G2 W2 1 HI UV 9302L F17 T8, LBF
RLK G2 W2 1 HI UV 9352L F17 T8, LBF
RLK G2 W2 1 HI UV 9402L F17 T8, LBF
RLK G2 W2 1 HI UV 9502L F17 T8, LBF
RLK G2 W2 1 VH UV 9302L F17 T8, NBF
RLK G2 W2 1 VH UV 9352L F17 T8, NBF
RLK G2 W2 1 VH UV 9402L F17 T8, NBF
RLK G2 W2 1 VH UV 9502L F17 T8, NBF
RLK G2 W2 2 SL UV 9301L F24 T5HO
RLK G2 W2 2 SL UV 9351L F24 T5HO
RLK G2 W2 2 SL UV 9401L F24 T5HO
RLK G2 W2 2 SL UV 9501L F24 T5HO
RLK G2 W2 2 VL UV 9302L F17 T8, NBF
RLK G2 W2 2 VL UV 9352L F17 T8, NBF
RLK G2 W2 2 VL UV 9402L F17 T8, NBF
RLK G2 W2 2 VL UV 9502L F17 T8, NBF
RLK G2 W2 2 LW UV 9303L F17 T8, LBF
RLK G2 W2 2 LW UV 9353L F17 T8, LBF
RLK G2 W2 2 LW UV 9403L F17 T8, LBF
RLK G2 W2 2 LW UV 9503L F17 T8, LBF
RLK G2 W2 2 MD UV 9303L F17 T8, NBF / 2L F24 T5HO
RLK G2 W2 2 MD UV 9353L F17 T8, NBF / 2L F24 T5HO
RLK G2 W2 2 MD UV 9403L F17 T8, NBF / 2L F24 T5HO
RLK G2 W2 2 MD UV 9503L F17 T8, NBF / 2L F24 T5HO
RLK G2 W2 2 HI UV 9303L F14 T5
RLK G2 W2 2 HI UV 9353L F14 T5
RLK G2 W2 2 HI UV 9403L F14 T5
RLK G2 W2 2 HI UV 9503L F14 T5
RLK G2 W2 2 VH UV 9304L F17 T8, NBF
RLK G2 W2 2 VH UV 9354L F17 T8, NBF
RLK G2 W2 2 VH UV 9404L F17 T8, NBF
RLK G2 W2 2 VH UV 9504L F17 T8, NBF
RLK G2 W2 2 SH UV 9303L F24 T5HO
RLK G2 W2 2 SH UV 9353L F24 T5HO
RLK G2 W2 2 SH UV 9403L F24 T5HO
RLK G2 W2 2 SH UV 9503L F24 T5HO
RLK G2 W4 1 SL UV 9301L F40 T12
RLK G2 W4 1 SL UV 9351L F40 T12
RLK G2 W4 1 SL UV 9401L F40 T12
RLK G2 W4 1 SL UV 9501L F40 T12
RLK G2 W4 1 VL UV 9301L F32 T8, NBF
RLK G2 W4 1 VL UV 9351L F32 T8, NBF
RLK G2 W4 1 VL UV 9401L F32 T8, NBF
RLK G2 W4 1 VL UV 9501L F32 T8, NBF
RLK G2 W4 1 LW UV 9302L F34 T12
RLK G2 W4 1 LW UV 9352L F34 T12
RLK G2 W4 1 LW UV 9402L F34 T12
RLK G2 W4 1 LW UV 9502L F34 T12
RLK G2 W4 1 MD UV 9302L F40 T12
RLK G2 W4 1 MD UV 9352L F40 T12
RLK G2 W4 1 MD UV 9402L F40 T12
RLK G2 W4 1 MD UV 9502L F40 T12
RLK G2 W4 1 HI UV 9302L F32 T8, LBF
RLK G2 W4 1 HI UV 9352L F32 T8, LBF
RLK G2 W4 1 HI UV 9402L F32 T8, LBF
RLK G2 W4 1 HI UV 9502L F32 T8, LBF
RLK G2 W4 1 VH UV 9302L F32 T8, NBF / 1L F54 T5HO
RLK G2 W4 1 VH UV 9352L F32 T8, NBF / 1L F54 T5HO
RLK G2 W4 1 VH UV 9402L F32 T8, NBF / 1L F54 T5HO
RLK G2 W4 1 VH UV 9502L F32 T8, NBF / 1L F54 T5HO
RLK G2 W4 1 SH UV 9302L F32 T8, NBF / 1L F54 T5HO
RLK G2 W4 1 SH UV 9352L F32 T8, NBF / 1L F54 T5HO
RLK G2 W4 1 SH UV 9402L F32 T8, NBF / 1L F54 T5HO
RLK G2 W4 1 SH UV 9502L F32 T8, NBF / 1L F54 T5HO
RLK G2 W4 2 SL UV 9301L F32 T8, NBF
RLK G2 W4 2 SL UV 9351L F32 T8, NBF
RLK G2 W4 2 SL UV 9401L F32 T8, NBF
RLK G2 W4 2 SL UV 9501L F32 T8, NBF
RLK G2 W4 2 VL UV 9302L F40 T12
RLK G2 W4 2 VL UV 9352L F40 T12
RLK G2 W4 2 VL UV 9402L F40 T12
RLK G2 W4 2 VL UV 9502L F40 T12
RLK G2 W4 2 LW UV 9302L F32 T8, NBF / 1L F54 T5HO
RLK G2 W4 2 LW UV 9352L F32 T8, NBF / 1L F54 T5HO
RLK G2 W4 2 LW UV 9402L F32 T8, NBF / 1L F54 T5HO
RLK G2 W4 2 LW UV 9502L F32 T8, NBF / 1L F54 T5HO
RLK G2 W4 2 ML UV 9302L F32 T8, NBF / 1L F54 T5HO
RLK G2 W4 2 ML UV 9352L F32 T8, NBF / 1L F54 T5HO
RLK G2 W4 2 ML UV 9402L F32 T8, NBF / 1L F54 T5HO
RLK G2 W4 2 ML UV 9502L F32 T8, NBF / 1L F54 T5HO
RLK G2 W4 2 MD UV 9303L F40 T12
RLK G2 W4 2 MD UV 9353L F40 T12
RLK G2 W4 2 MD UV 9403L F40 T12
RLK G2 W4 2 MD UV 9503L F40 T12
RLK G2 W4 2 HI UV 9303L F32 T8, NBF
RLK G2 W4 2 HI UV 9353L F32 T8, NBF
RLK G2 W4 2 HI UV 9403L F32 T8, NBF
RLK G2 W4 2 HI UV 9503L F32 T8, NBF
RLK G2 W4 2 VH UV 9304L F32 T8, LBF
RLK G2 W4 2 VH UV 9354L F32 T8, LBF
RLK G2 W4 2 VH UV 9404L F32 T8, LBF
RLK G2 W4 2 VH UV 9504L F32 T8, LBF
RLK G2 W4 2 SH UV 9302L F54 T5HO
RLK G2 W4 2 SH UV 9352L F54 T5HO
RLK G2 W4 2 SH UV 9402L F54 T5HO
RLK G2 W4 2 SH UV 9502L F54 T5HO
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
RLK G2 T22 2 SL UV 930View Download Spec Contact Factory
RLK G2 T22 2 SL UV 935View Download Spec Contact Factory
RLK G2 T22 2 SL UV 940View Download Spec Contact Factory
RLK G2 T22 2 SL UV 950View Download Spec Contact Factory
RLK G2 T22 2 VL UV 930View Download Spec Contact Factory
RLK G2 T22 2 VL UV 935View Download Spec Contact Factory
RLK G2 T22 2 VL UV 940View Download Spec Contact Factory
RLK G2 T22 2 VL UV 950View Download Spec Contact Factory
RLK G2 T22 2 LW UV 930View Download Spec Contact Factory
RLK G2 T22 2 LW UV 935View Download Spec Contact Factory
RLK G2 T22 2 LW UV 940View Download Spec Contact Factory
RLK G2 T22 2 LW UV 950View Download Spec Contact Factory
RLK G2 T22 2 MD UV 930View Download Spec Contact Factory
RLK G2 T22 2 MD UV 935View Download Spec Contact Factory
RLK G2 T22 2 MD UV 940View Download Spec Contact Factory
RLK G2 T22 2 MD UV 950View Download Spec Contact Factory
RLK G2 T22 2 HI UV 930View Download Spec Contact Factory
RLK G2 T22 2 HI UV 935View Download Spec Contact Factory
RLK G2 T22 2 HI UV 940View Download Spec Contact Factory
RLK G2 T22 2 HI UV 950View Download Spec Contact Factory
RLK G2 T22 2 VH UV 930View Download Spec Contact Factory
RLK G2 T22 2 VH UV 935View Download Spec Contact Factory
RLK G2 T22 2 VH UV 940View Download Spec Contact Factory
RLK G2 T22 2 VH UV 950View Download Spec Contact Factory
RLK G2 T22 2 SH UV 930View Download Spec Contact Factory
RLK G2 T22 2 SH UV 935View Download Spec Contact Factory
RLK G2 T22 2 SH UV 940View Download Spec Contact Factory
RLK G2 T22 2 SH UV 950View Download Spec Contact Factory
RLK G2 T24 2 SL UV 930View Download Spec Contact Factory
RLK G2 T24 2 SL UV 935View Download Spec Contact Factory
RLK G2 T24 2 SL UV 940View Download Spec Contact Factory
RLK G2 T24 2 SL UV 950View Download Spec Contact Factory
RLK G2 T24 2 VL UV 930View Download Spec Contact Factory
RLK G2 T24 2 VL UV 935View Download Spec Contact Factory
RLK G2 T24 2 VL UV 940View Download Spec Contact Factory
RLK G2 T24 2 VL UV 950View Download Spec Contact Factory
RLK G2 T24 2 LW UV 930View Download Spec Contact Factory
RLK G2 T24 2 LW UV 935View Download Spec Contact Factory
RLK G2 T24 2 LW UV 940View Download Spec Contact Factory
RLK G2 T24 2 LW UV 950View Download Spec Contact Factory
RLK G2 T24 2 ML UV 930View Download Spec Contact Factory
RLK G2 T24 2 ML UV 935View Download Spec Contact Factory
RLK G2 T24 2 ML UV 940View Download Spec Contact Factory
RLK G2 T24 2 ML UV 950View Download Spec Contact Factory
RLK G2 T24 2 MD UV 930View Download Spec Contact Factory
RLK G2 T24 2 MD UV 935View Download Spec Contact Factory
RLK G2 T24 2 MD UV 940View Download Spec Contact Factory
RLK G2 T24 2 MD UV 950View Download Spec Contact Factory
RLK G2 T24 2 HI UV 930View Download Spec Contact Factory
RLK G2 T24 2 HI UV 935View Download Spec Contact Factory
RLK G2 T24 2 HI UV 940View Download Spec Contact Factory
RLK G2 T24 2 HI UV 950View Download Spec Contact Factory
RLK G2 T24 2 VH UV 930View Download Spec Contact Factory
RLK G2 T24 2 VH UV 935View Download Spec Contact Factory
RLK G2 T24 2 VH UV 940View Download Spec Contact Factory
RLK G2 T24 2 VH UV 950View Download Spec Contact Factory
RLK G2 T24 2 SH UV 930View Download Spec Contact Factory
RLK G2 T24 2 SH UV 935View Download Spec Contact Factory
RLK G2 T24 2 SH UV 940View Download Spec Contact Factory
RLK G2 T24 2 SH UV 950View Download Spec Contact Factory
RLK G2 W2 1 VL UV 930View Download Spec Contact Factory
RLK G2 W2 1 VL UV 935View Download Spec Contact Factory
RLK G2 W2 1 VL UV 940View Download Spec Contact Factory
RLK G2 W2 1 VL UV 950View Download Spec Contact Factory
RLK G2 W2 1 LW UV 930View Download Spec Contact Factory
RLK G2 W2 1 LW UV 935View Download Spec Contact Factory
RLK G2 W2 1 LW UV 940View Download Spec Contact Factory
RLK G2 W2 1 LW UV 950View Download Spec Contact Factory
RLK G2 W2 1 MD UV 930View Download Spec Contact Factory
RLK G2 W2 1 MD UV 935View Download Spec Contact Factory
RLK G2 W2 1 MD UV 940View Download Spec Contact Factory
RLK G2 W2 1 MD UV 950View Download Spec Contact Factory
RLK G2 W2 1 HI UV 930View Download Spec Contact Factory
RLK G2 W2 1 HI UV 935View Download Spec Contact Factory
RLK G2 W2 1 HI UV 940View Download Spec Contact Factory
RLK G2 W2 1 HI UV 950View Download Spec Contact Factory
RLK G2 W2 1 VH UV 930View Download Spec Contact Factory
RLK G2 W2 1 VH UV 935View Download Spec Contact Factory
RLK G2 W2 1 VH UV 940View Download Spec Contact Factory
RLK G2 W2 1 VH UV 950View Download Spec Contact Factory
RLK G2 W2 2 SL UV 930View Download Spec Contact Factory
RLK G2 W2 2 SL UV 935View Download Spec Contact Factory
RLK G2 W2 2 SL UV 940View Download Spec Contact Factory
RLK G2 W2 2 SL UV 950View Download Spec Contact Factory
RLK G2 W2 2 VL UV 930View Download Spec Contact Factory
RLK G2 W2 2 VL UV 935View Download Spec Contact Factory
RLK G2 W2 2 VL UV 940View Download Spec Contact Factory
RLK G2 W2 2 VL UV 950View Download Spec Contact Factory
RLK G2 W2 2 LW UV 930View Download Spec Contact Factory
RLK G2 W2 2 LW UV 935View Download Spec Contact Factory
RLK G2 W2 2 LW UV 940View Download Spec Contact Factory
RLK G2 W2 2 LW UV 950View Download Spec Contact Factory
RLK G2 W2 2 MD UV 930View Download Spec Contact Factory
RLK G2 W2 2 MD UV 935View Download Spec Contact Factory
RLK G2 W2 2 MD UV 940View Download Spec Contact Factory
RLK G2 W2 2 MD UV 950View Download Spec Contact Factory
RLK G2 W2 2 HI UV 930View Download Spec Contact Factory
RLK G2 W2 2 HI UV 935View Download Spec Contact Factory
RLK G2 W2 2 HI UV 940View Download Spec Contact Factory
RLK G2 W2 2 HI UV 950View Download Spec Contact Factory
RLK G2 W2 2 VH UV 930View Download Spec Contact Factory
RLK G2 W2 2 VH UV 935View Download Spec Contact Factory
RLK G2 W2 2 VH UV 940View Download Spec Contact Factory
RLK G2 W2 2 VH UV 950View Download Spec Contact Factory
RLK G2 W2 2 SH UV 930View Download Spec Contact Factory
RLK G2 W2 2 SH UV 935View Download Spec Contact Factory
RLK G2 W2 2 SH UV 940View Download Spec Contact Factory
RLK G2 W2 2 SH UV 950View Download Spec Contact Factory
RLK G2 W4 1 SL UV 930View Download Spec Contact Factory
RLK G2 W4 1 SL UV 935View Download Spec Contact Factory
RLK G2 W4 1 SL UV 940View Download Spec Contact Factory
RLK G2 W4 1 SL UV 950View Download Spec Contact Factory
RLK G2 W4 1 VL UV 930View Download Spec Contact Factory
RLK G2 W4 1 VL UV 935View Download Spec Contact Factory
RLK G2 W4 1 VL UV 940View Download Spec Contact Factory
RLK G2 W4 1 VL UV 950View Download Spec Contact Factory
RLK G2 W4 1 LW UV 930View Download Spec Contact Factory
RLK G2 W4 1 LW UV 935View Download Spec Contact Factory
RLK G2 W4 1 LW UV 940View Download Spec Contact Factory
RLK G2 W4 1 LW UV 950View Download Spec Contact Factory
RLK G2 W4 1 MD UV 930View Download Spec Contact Factory
RLK G2 W4 1 MD UV 935View Download Spec Contact Factory
RLK G2 W4 1 MD UV 940View Download Spec Contact Factory
RLK G2 W4 1 MD UV 950View Download Spec Contact Factory
RLK G2 W4 1 HI UV 930View Download Spec Contact Factory
RLK G2 W4 1 HI UV 935View Download Spec Contact Factory
RLK G2 W4 1 HI UV 940View Download Spec Contact Factory
RLK G2 W4 1 HI UV 950View Download Spec Contact Factory
RLK G2 W4 1 VH UV 930View Download Spec Contact Factory
RLK G2 W4 1 VH UV 935View Download Spec Contact Factory
RLK G2 W4 1 VH UV 940View Download Spec Contact Factory
RLK G2 W4 1 VH UV 950View Download Spec Contact Factory
RLK G2 W4 1 SH UV 930View Download Spec Contact Factory
RLK G2 W4 1 SH UV 935View Download Spec Contact Factory
RLK G2 W4 1 SH UV 940View Download Spec Contact Factory
RLK G2 W4 1 SH UV 950View Download Spec Contact Factory
RLK G2 W4 2 SL UV 930View Download Spec Contact Factory
RLK G2 W4 2 SL UV 935View Download Spec Contact Factory
RLK G2 W4 2 SL UV 940View Download Spec Contact Factory
RLK G2 W4 2 SL UV 950View Download Spec Contact Factory
RLK G2 W4 2 VL UV 930View Download Spec Contact Factory
RLK G2 W4 2 VL UV 935View Download Spec Contact Factory
RLK G2 W4 2 VL UV 940View Download Spec Contact Factory
RLK G2 W4 2 VL UV 950View Download Spec Contact Factory
RLK G2 W4 2 LW UV 930View Download Spec Contact Factory
RLK G2 W4 2 LW UV 935View Download Spec Contact Factory
RLK G2 W4 2 LW UV 940View Download Spec Contact Factory
RLK G2 W4 2 LW UV 950View Download Spec Contact Factory
RLK G2 W4 2 ML UV 930View Download Spec Contact Factory
RLK G2 W4 2 ML UV 935View Download Spec Contact Factory
RLK G2 W4 2 ML UV 940View Download Spec Contact Factory
RLK G2 W4 2 ML UV 950View Download Spec Contact Factory
RLK G2 W4 2 MD UV 930View Download Spec Contact Factory
RLK G2 W4 2 MD UV 935View Download Spec Contact Factory
RLK G2 W4 2 MD UV 940View Download Spec Contact Factory
RLK G2 W4 2 MD UV 950View Download Spec Contact Factory
RLK G2 W4 2 HI UV 930View Download Spec Contact Factory
RLK G2 W4 2 HI UV 935View Download Spec Contact Factory
RLK G2 W4 2 HI UV 940View Download Spec Contact Factory
RLK G2 W4 2 HI UV 950View Download Spec Contact Factory
RLK G2 W4 2 VH UV 930View Download Spec Contact Factory
RLK G2 W4 2 VH UV 935View Download Spec Contact Factory
RLK G2 W4 2 VH UV 940View Download Spec Contact Factory
RLK G2 W4 2 VH UV 950View Download Spec Contact Factory
RLK G2 W4 2 SH UV 930View Download Spec Contact Factory
RLK G2 W4 2 SH UV 935View Download Spec Contact Factory
RLK G2 W4 2 SH UV 940View Download Spec Contact Factory
RLK G2 W4 2 SH UV 950View Download Spec Contact Factory

RLK T24 in troffer bluebg

Quick and efficient

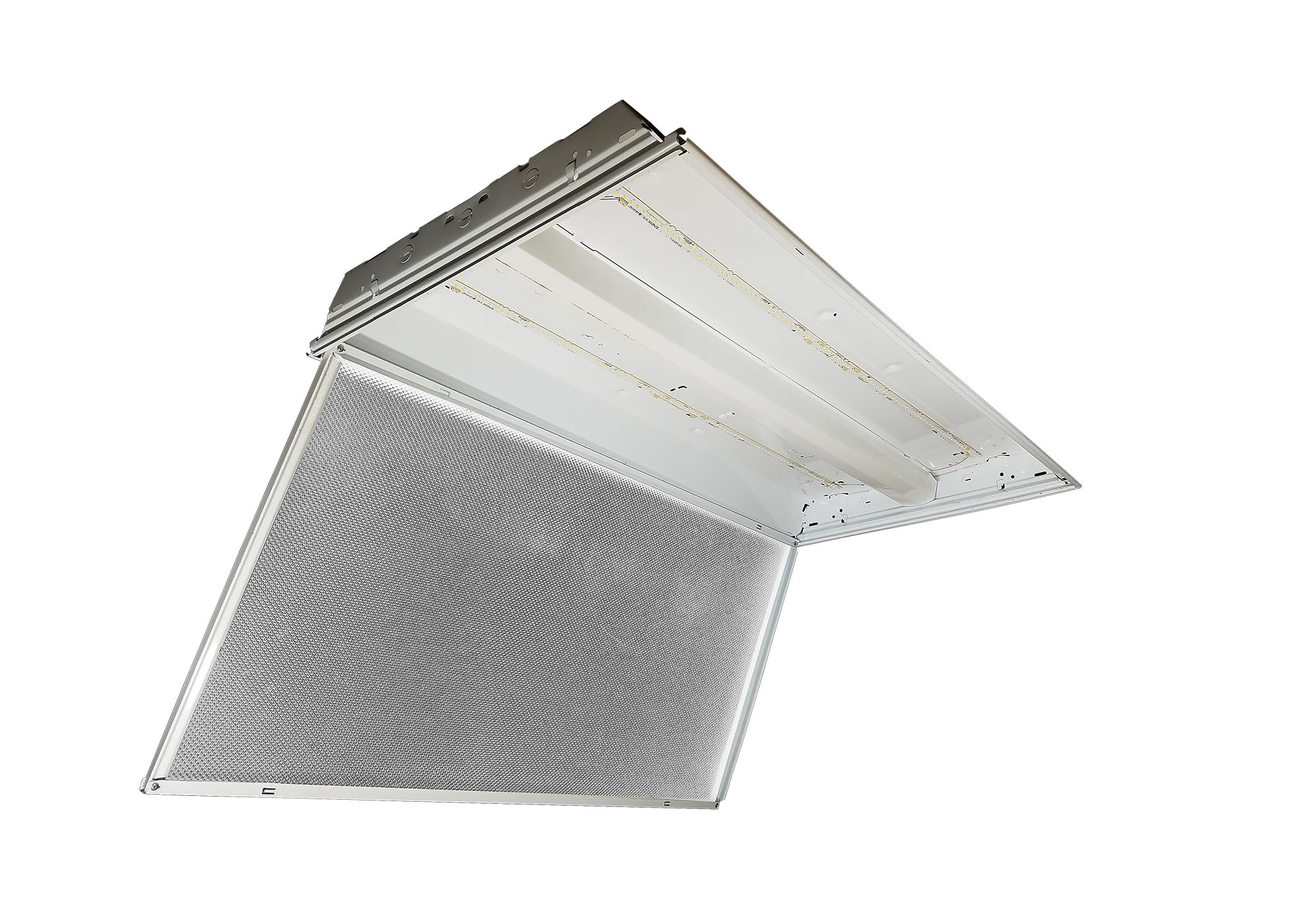

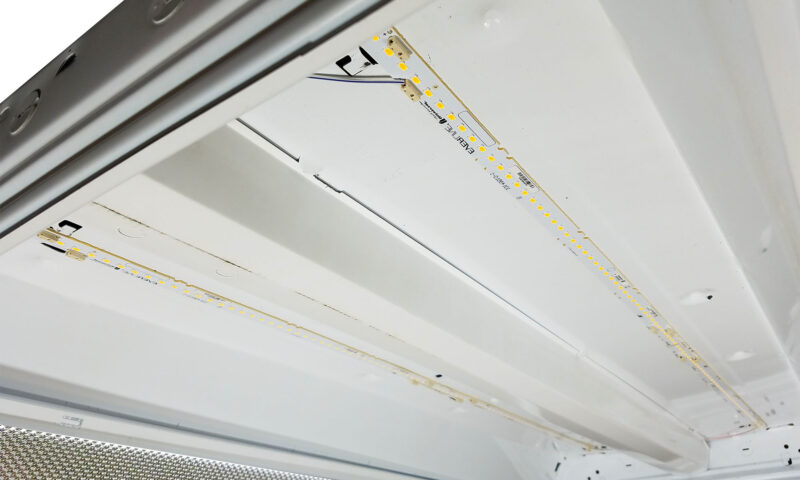

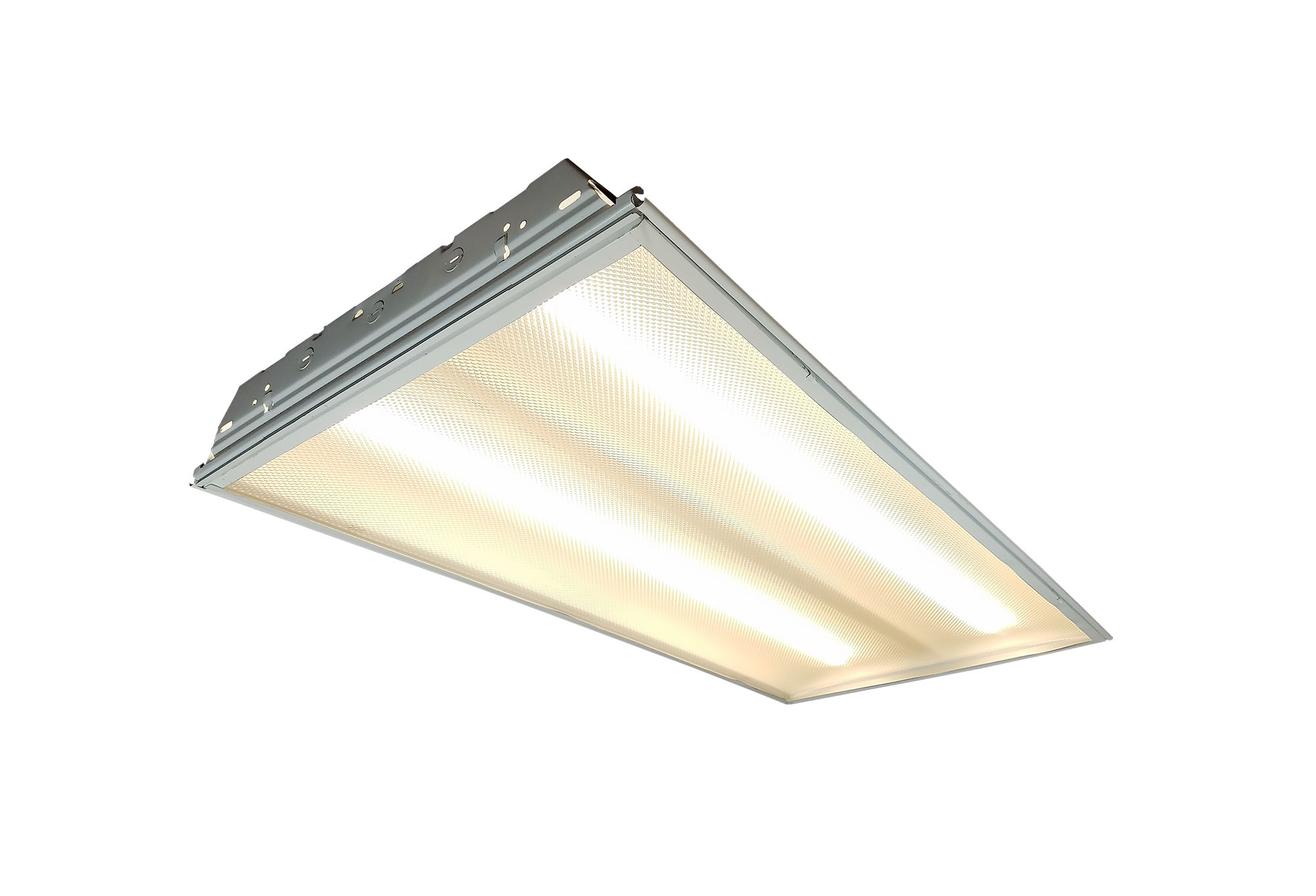

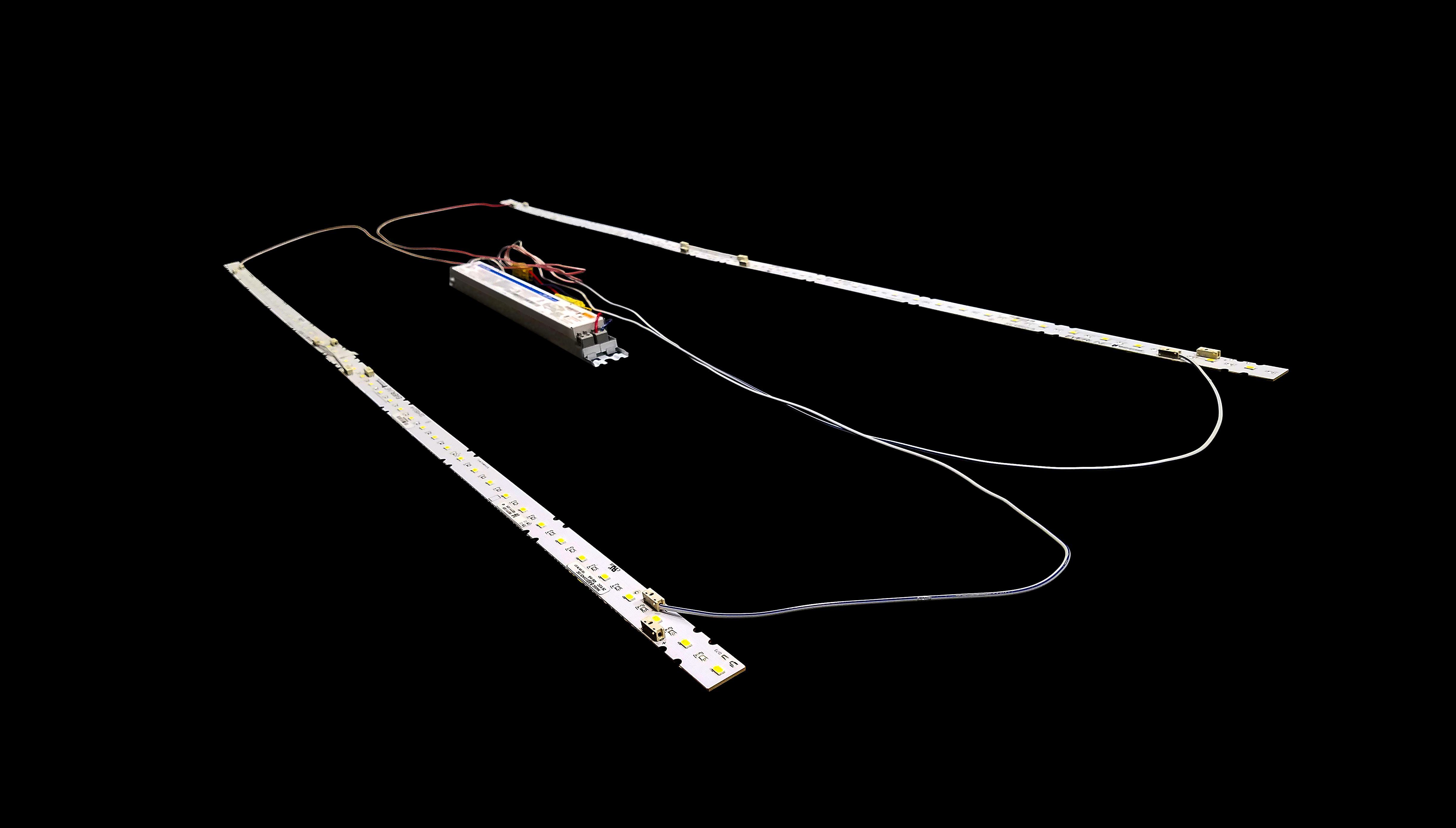

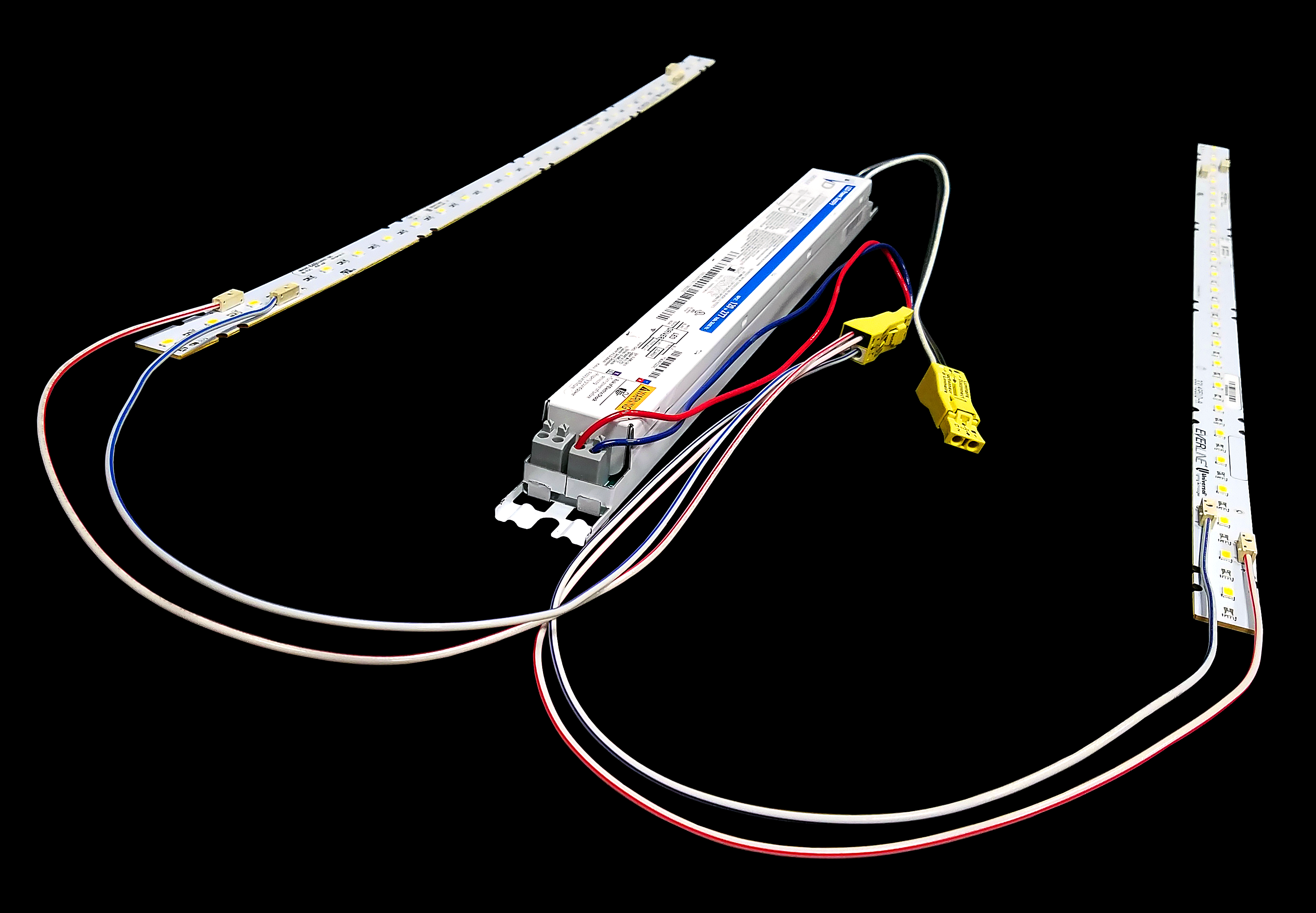

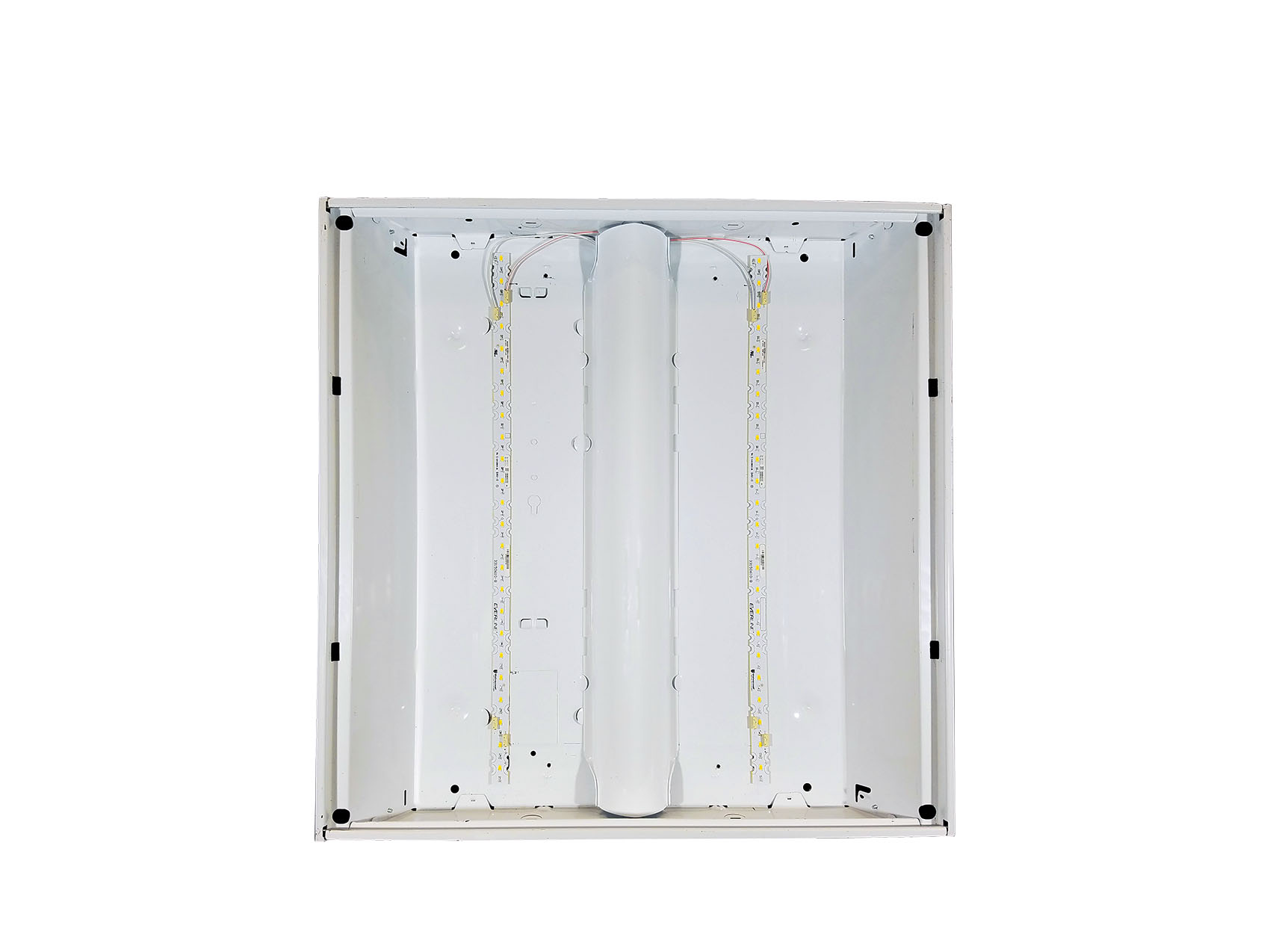

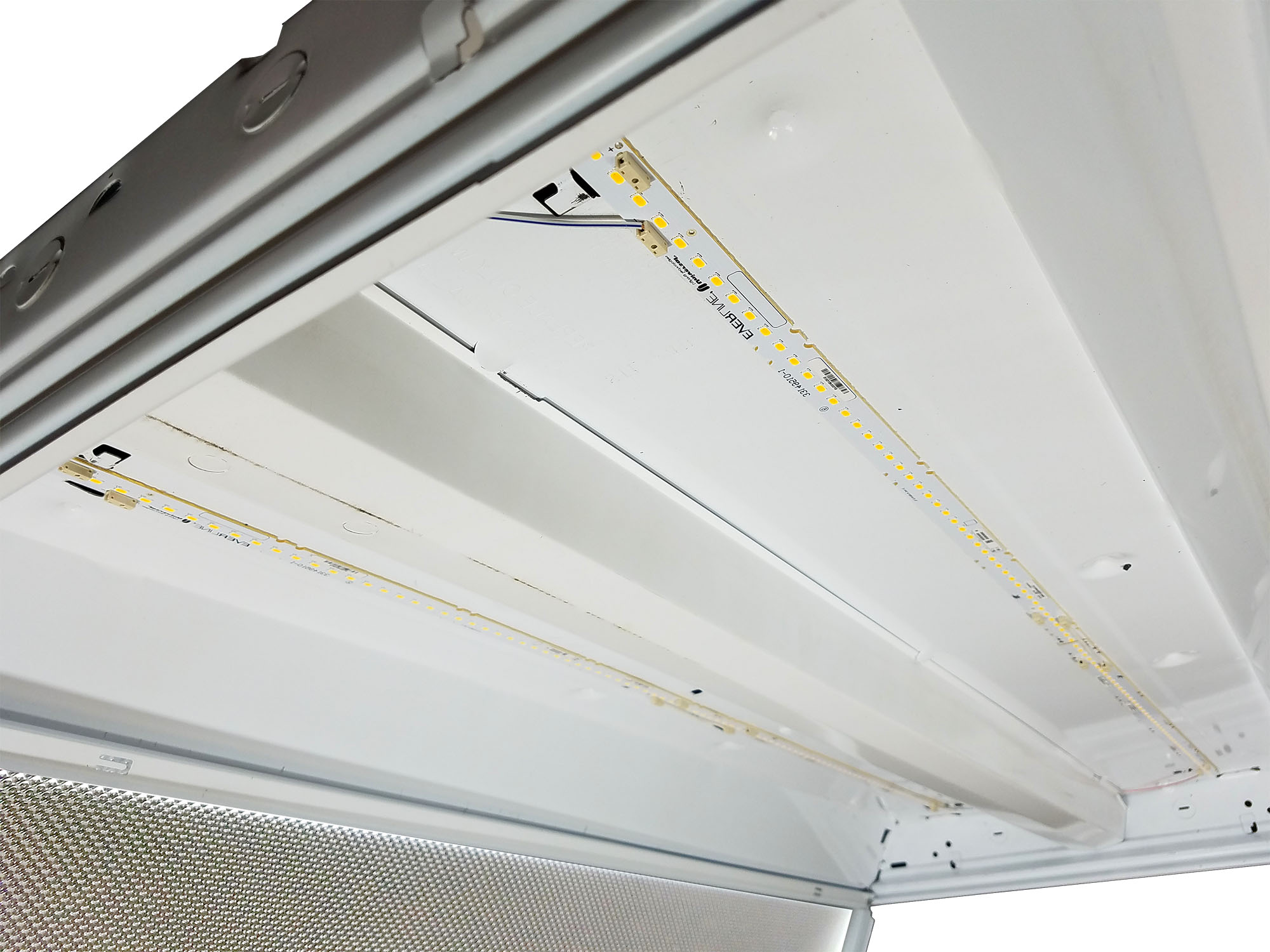

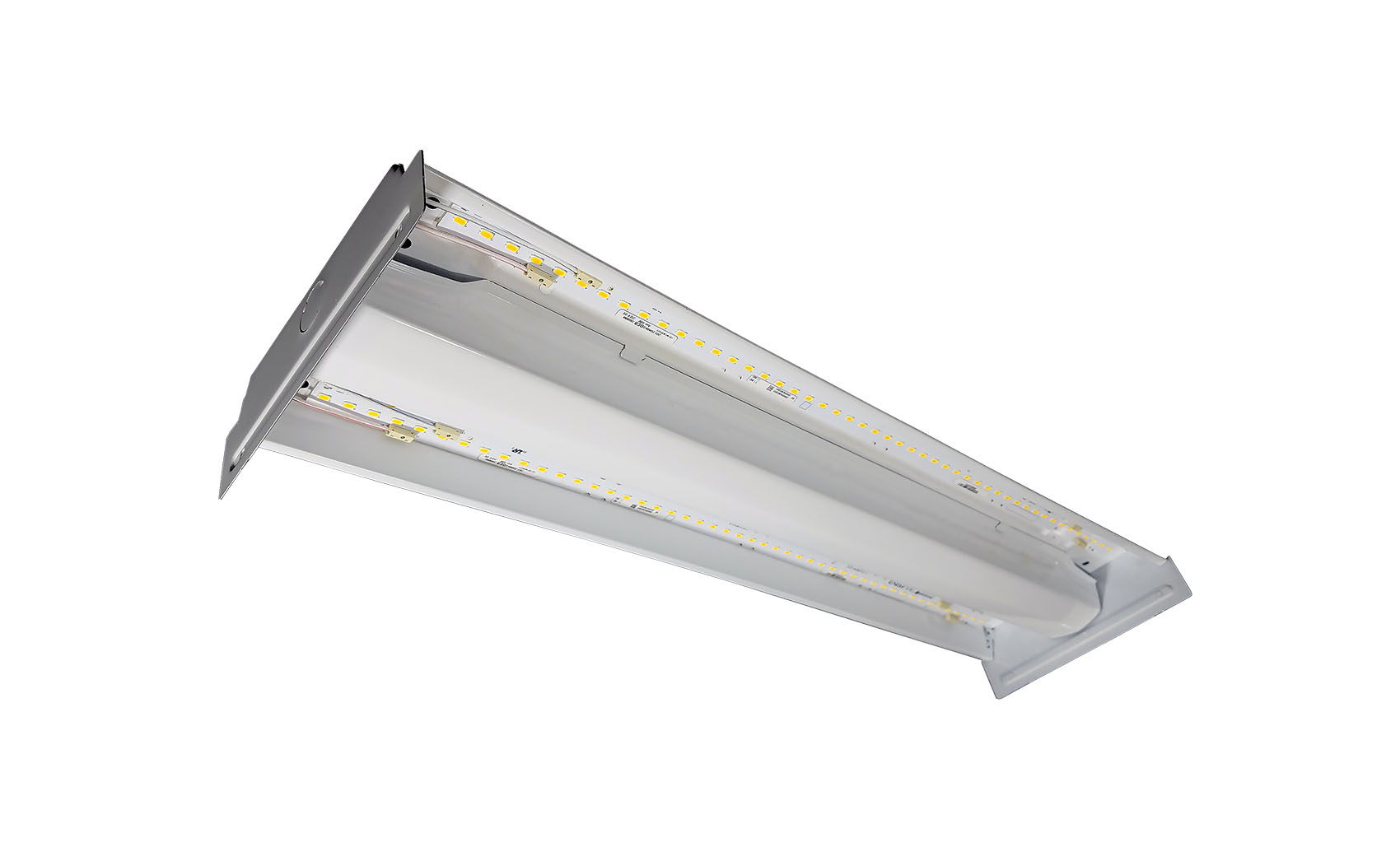

The RLK G2 is available in a wide variety of lumen packages, allowing for flexibility in design and helping to maximize energy savings. The RLK G2 can retrofit a wide variety of fluorescent wraps and troffers. Installation is quick and simple - in just a few minutes, you can have high efficacy LED luminaires.
