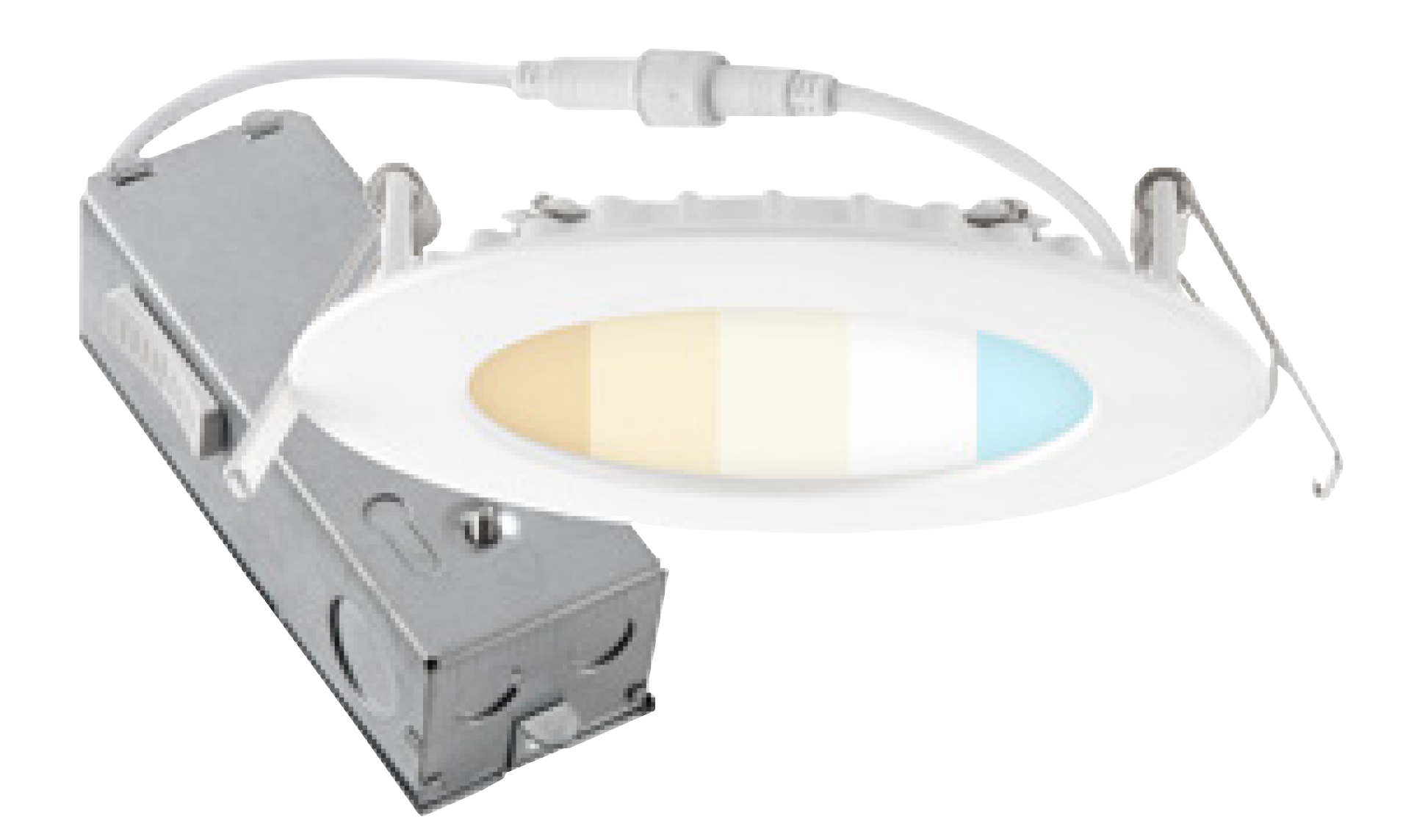

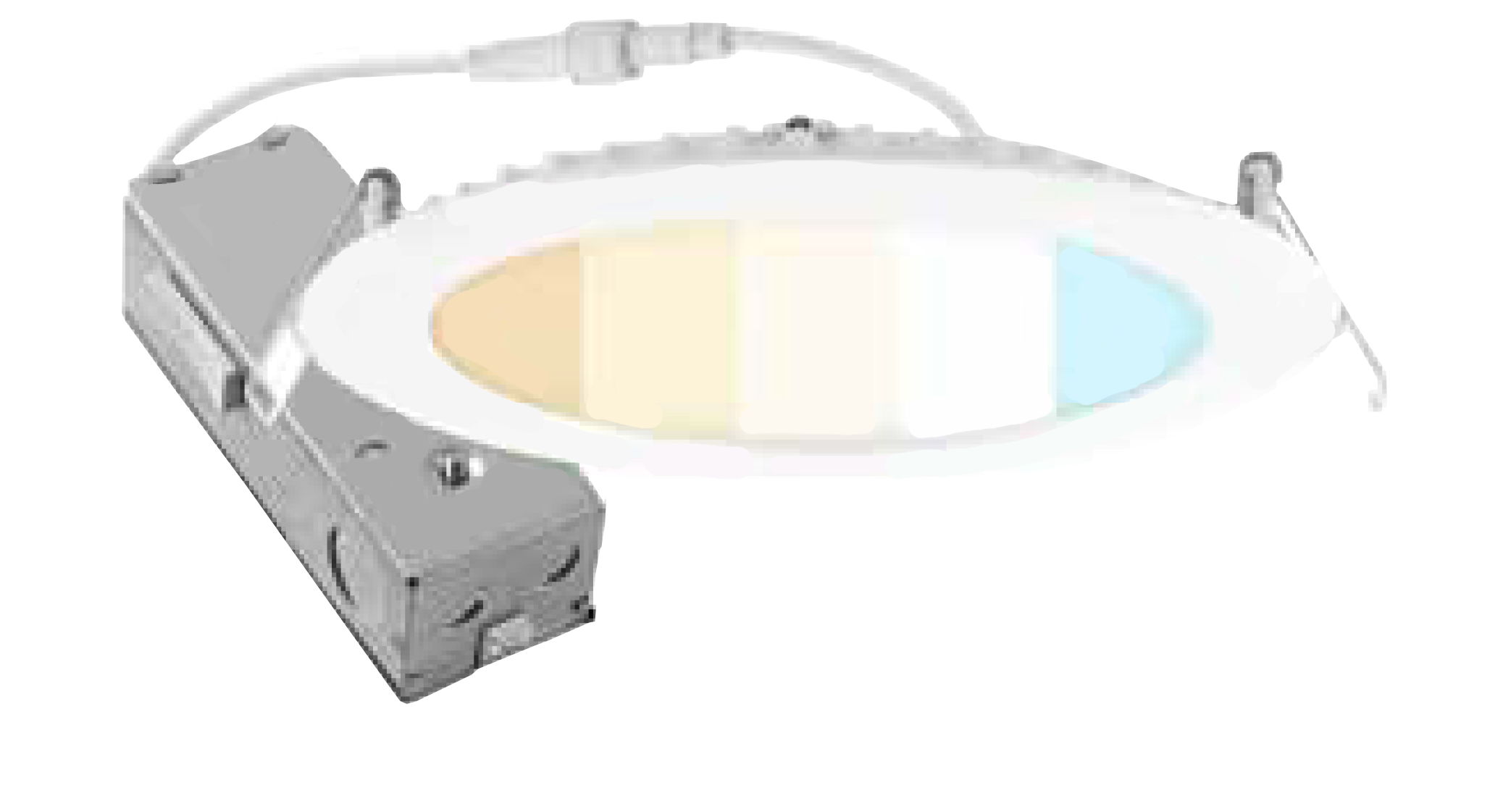

LED Slim Select Down Light

The DSS LED slim select down light is available in 4" (DSS 4) and 6" (DSS 6) sizes. Each size is offered in 90 CRI and features field selectable color temperature - 2700K, 3000K, 3500K, 4000K and 5000K. The DSS can be used in retrofit and new construction applications. These down lights are compatible with insulated and non-insulated ceilings. Both the DSS 4 and DSS 6 come with a smooth white reflector trim.

Click to download (.pdf):
DSS 4
DSS 6
Click to view:
DSS 4
DSS 6
Click to download:
DSS 4: .ies files | .pdf files
DSS 6: .ies files | .pdf files

  • Applications: Suitable for most commercial, industrial and institutional retrofit and new construction applications - retail, hospitality, office
  • Lumen Output: 689 lm in the DSS 4; 1,169 in the DSS 6
  • Max Lumens Per Watt: 80.6
  • Predicted L70 Lifetime: 50,000 hours
  • Warranty: 5 year limited system warranty
  • Certifications: ETL listed for wet locations, IP43, RoHS compliant

cETLus logo

Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempVoltages AvailablePredicted L70 Lifetime
DSS 4 MD 12 SW 9SEL4" Housing6899.870.490 CRI / 2700K, 3000K, 3500K, 4000K, 5000K120V50,000 hours
DSS 6 MD 12 SW 9SEL6" Housing116914.580.690 CRI / 2700K, 3000K, 3500K, 4000K, 5000K120V50,000 hours
Catalog #
Equivalency
DSS 4 MD 12 SW 9SEL65W BR30 Inc.
DSS 6 MD 12 SW 9SEL32W PL-T
Catalog #
ImageSpec SheetPhotometry Files
DSS 4 MD 12 SW 9SELView Download Download
DSS 6 MD 12 SW 9SELView Download Download

DSS4-1jpggreen

Durable construction

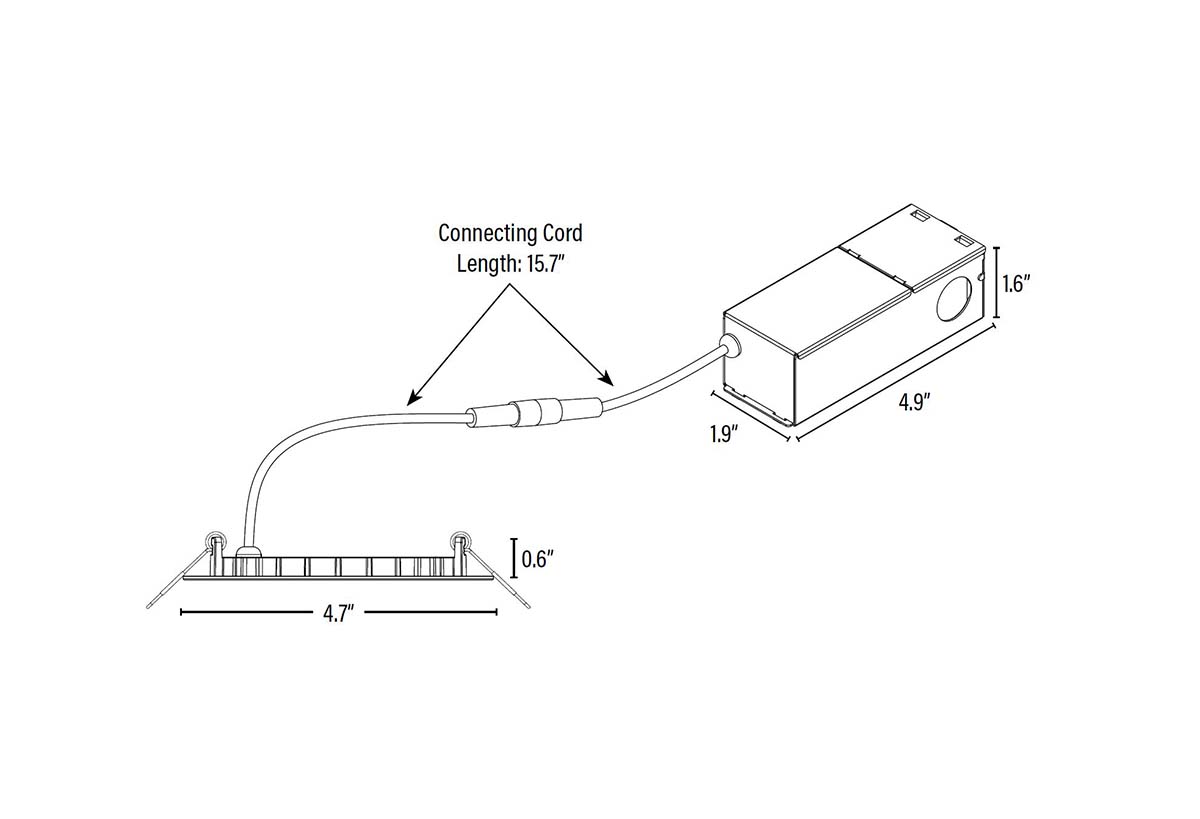

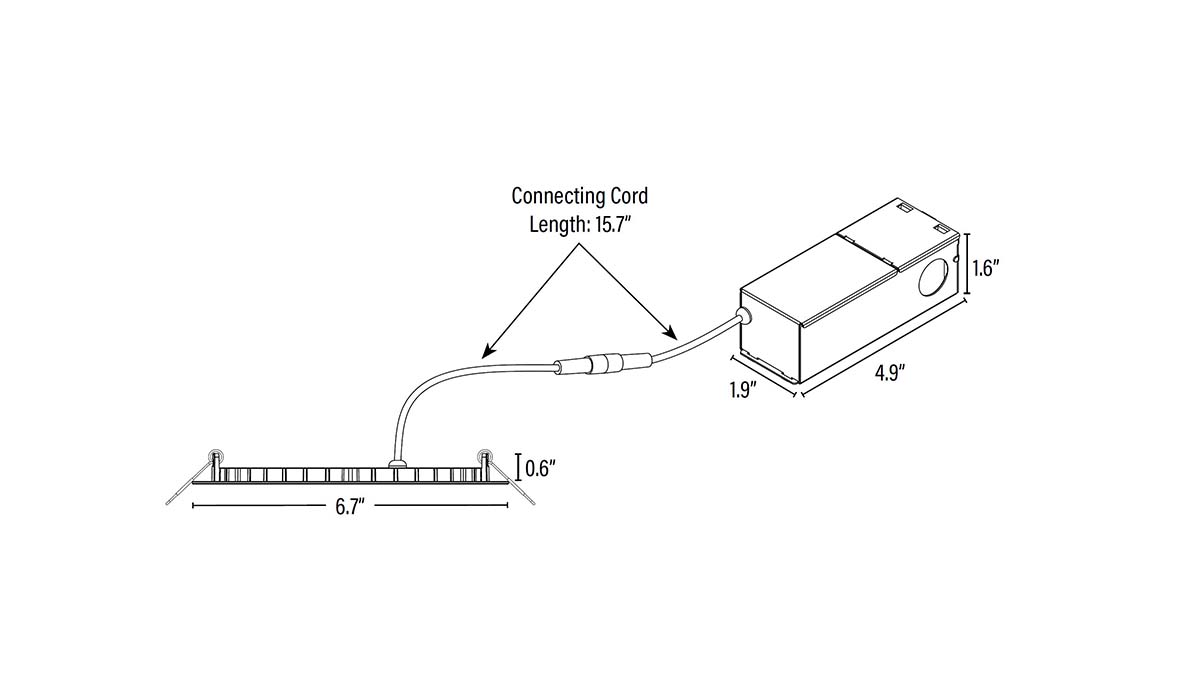

The DSS features durable thermoplastic and aluminum construction. The DSS 4 fits 3" to 4" diameter openings, while the DSS 6 fits 5" to 6" diameter openings. Spring action clips secure the fixture to ceiling or existing frame.
