LED High Bay

The PBL is a high performance, extremely versatile general area LED high bay available in a wide variety of sizes, lumen packages and control options. Diffuser lenses are available to minimize glare and improve aesthetics. The PBL's housing and LED tray is precision brake formed from aluminum and pre-painted with a highly durable, highly reflective white finish. Several control options - including IoT-compatible sensors - can be incorporated. A "heavy duty" version of the PBL - with optional pendant mounting - is available here. Every PBL is made in the USA - in our Henderson, NC facility, using mostly domestic and some foreign components.

Download (.pdf)	Wattage	Output Range	Dimensions
PBL 2	67 - 87W	8,805 - 12,153 lumens	24.06" x 11.68" x 2.765"
PBL 2W	100 - 119W	13,766 - 18,881 lumens	24.06" x 15.244" x 2.925"
PBL 4	84 - 174W	12,018 - 24,412 lumens	45.56" x 11.168" x 2.765"
PBL 4W	172 - 390W	27,935 - 68,267 lumens	45.56" x 15.244" x 2.925"

Download (.pdf)	Wattage
PBL 2	67 - 87W
PBL 2W	100 - 119W
PBL 4	84 - 174W
PBL 4W	172 - 390W

Click to download (.pdf):
PBL Sell Sheet

Click to view:
PBL 2
PBL 2W
PBL 4
PBL 4W

Click to download:
PBL 2: .ies files | .pdf files
PBL 2W: .ies files | .pdf files
PBL 4: .ies files | .pdf files
PBL 4W: .ies files | .pdf files

Applications: Suitable for most commercial, industrial and institutional applications - retail, warehouse, manufacturing, cold/frozen storage
Lumen Output: From around 9,000 lm in PBL2 to just under 52,000 in the PBL4W VH lumen package. The PBL4W SH HDW ("Super High") package ranges from ~64,000 lm up to just over 68,000
Max Lumens Per Watt: 175.2
Size Options: Available in 4-foot and 2-foot, standard and wide widths
Finish Options: Available in White (Standard), Matte Black and Metallic Silver
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
Re-BoardABILITY: Every PBL is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations. DLC Premium listing for PBL 4W SH UV 840.
Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

Luminaire Photos
Re-boardABILITY

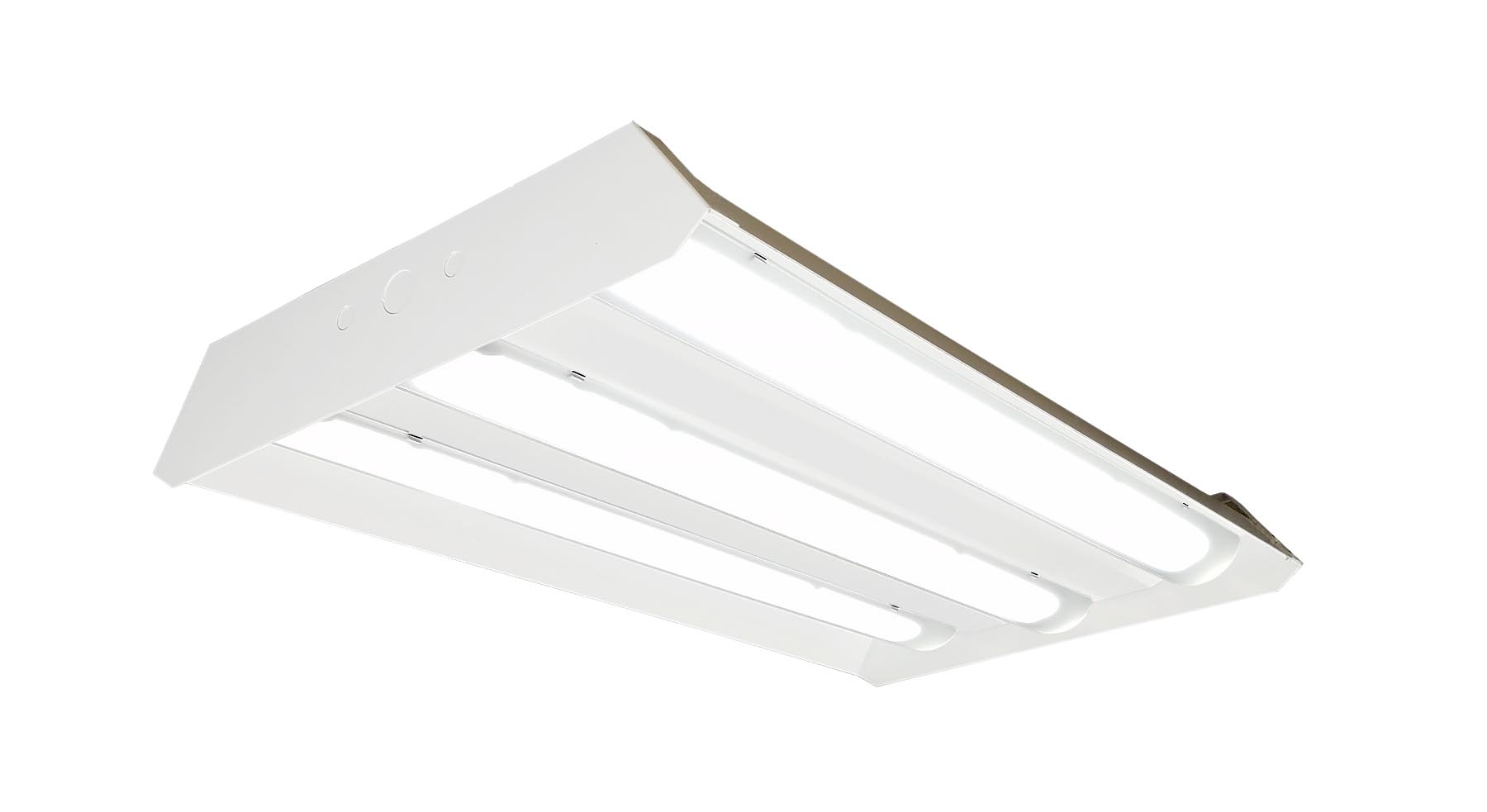

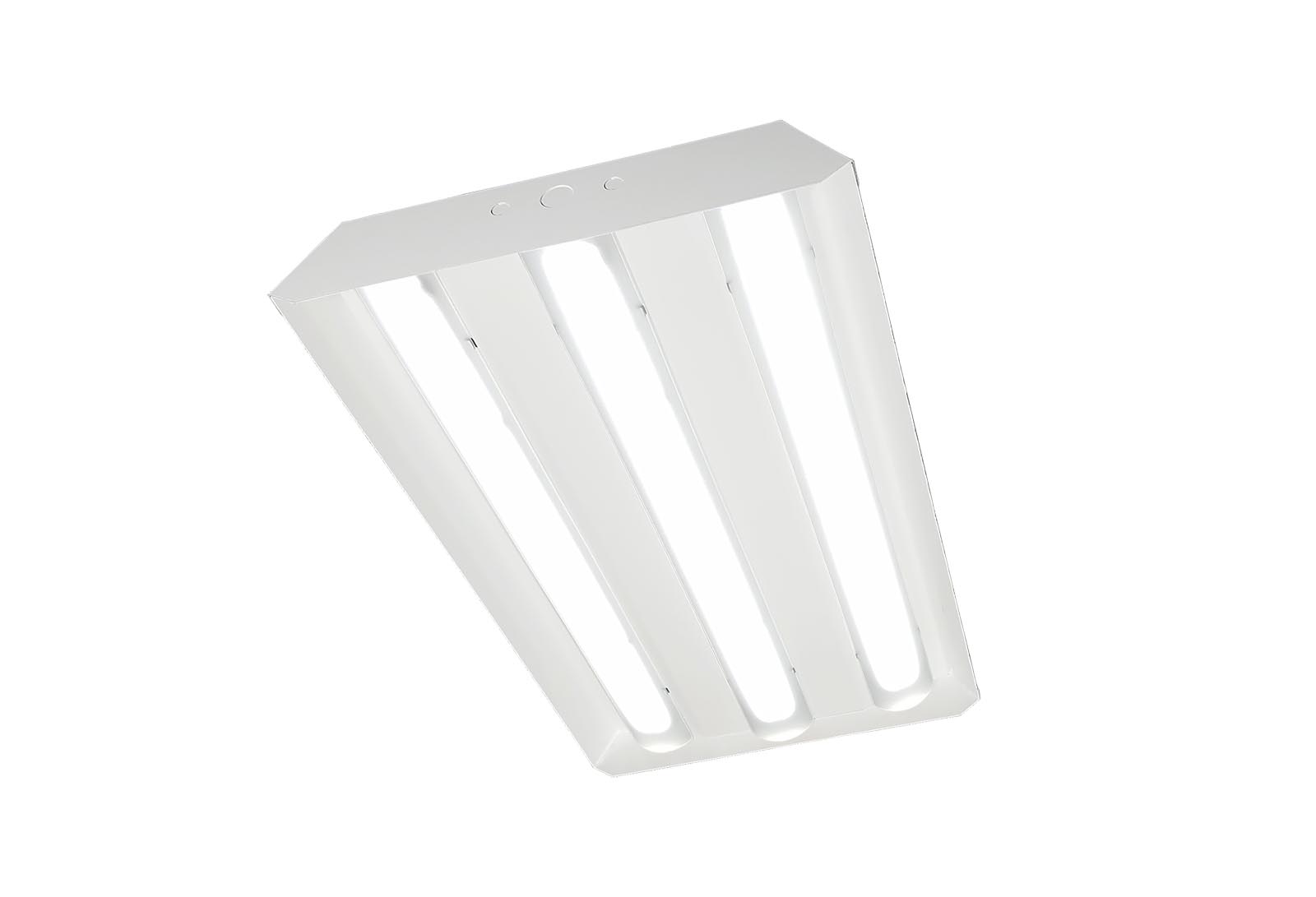

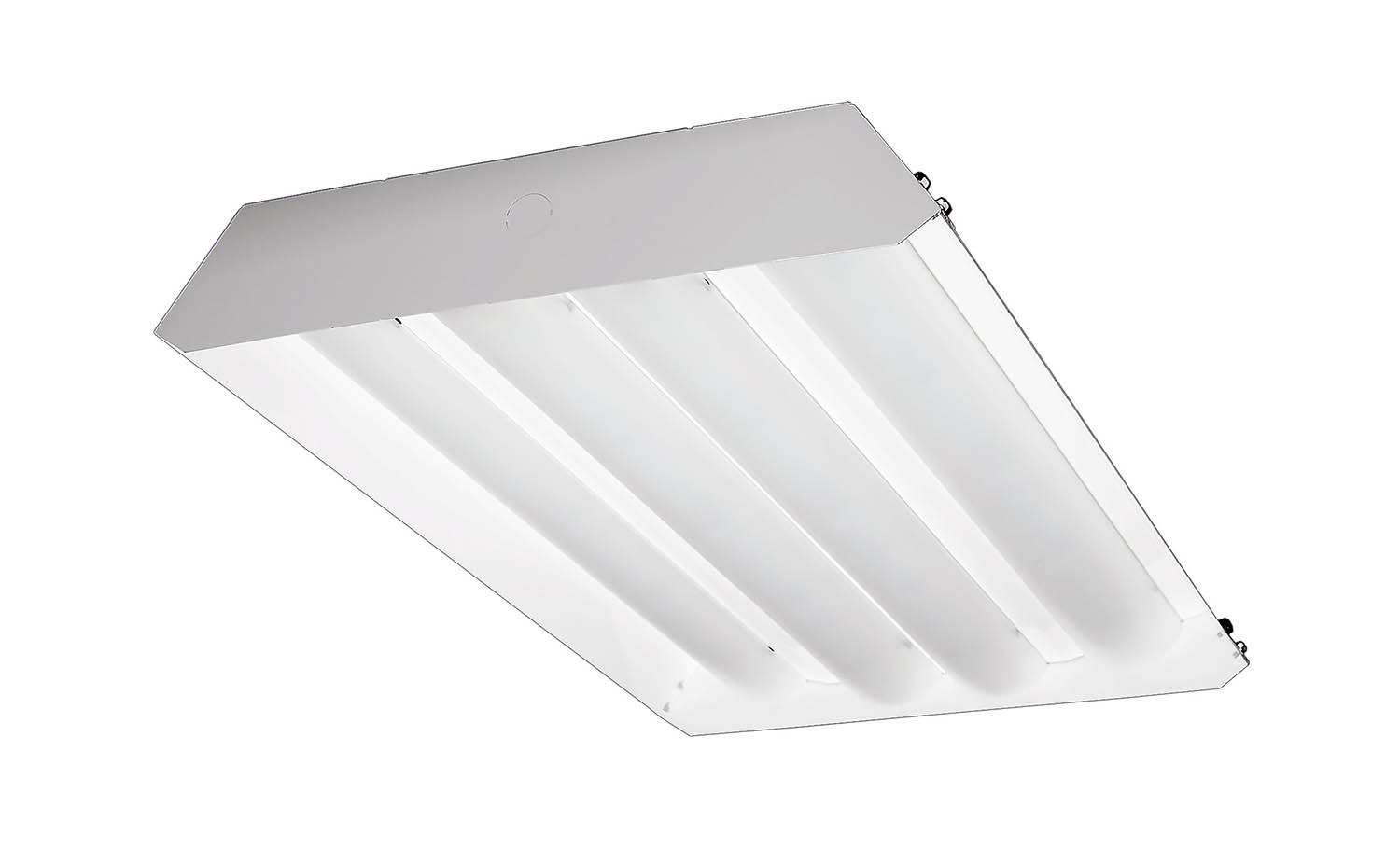

PBL2W with lenses
PBL2W with lenses
PBL2W with lenses

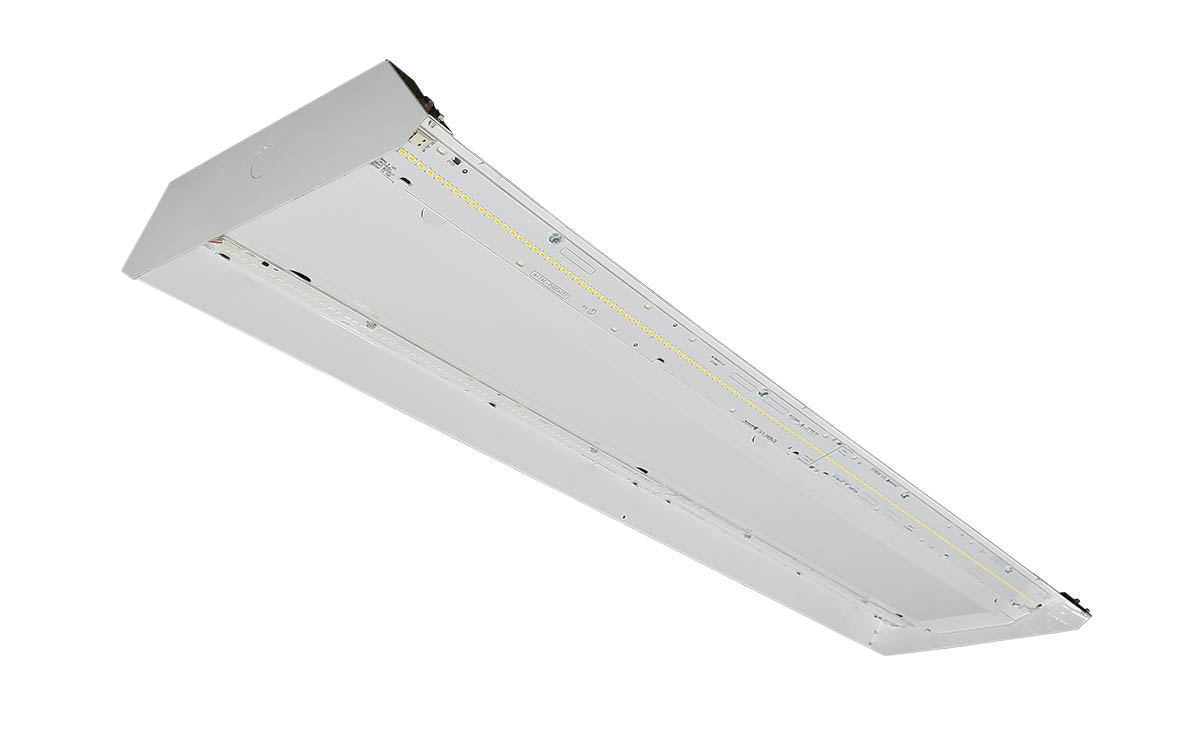

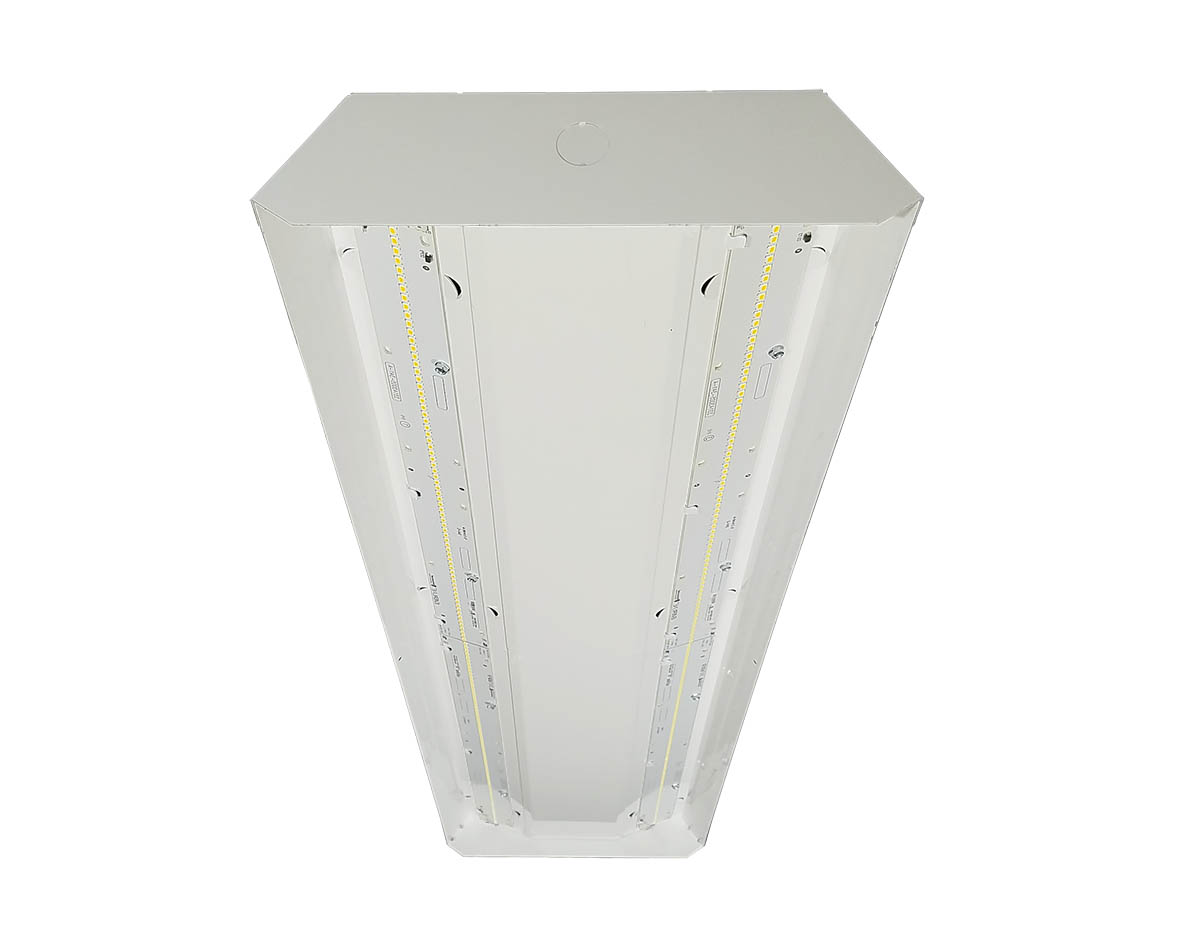

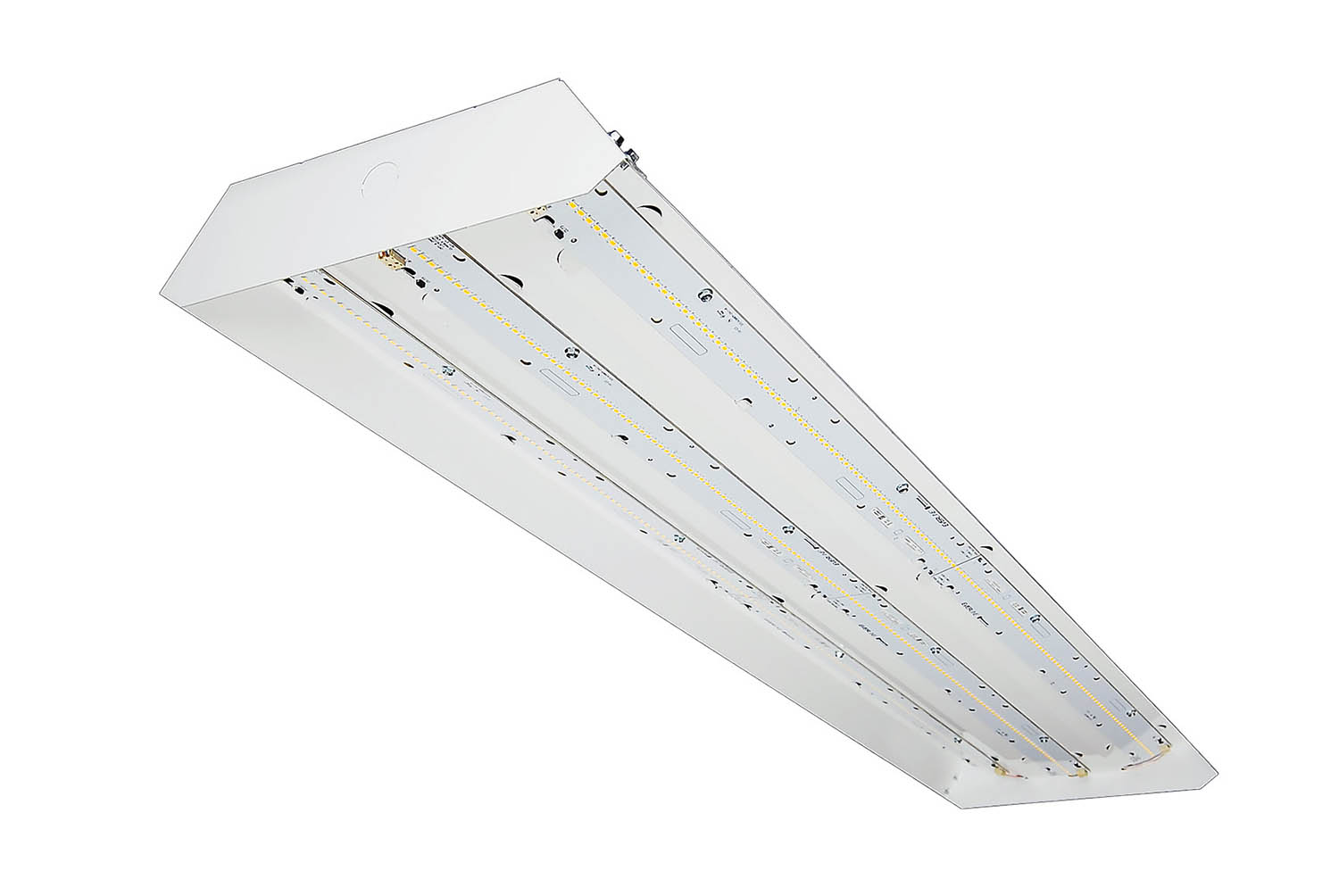

PBL4 ("SL," "VL," or "LW" lumen output options)
PBL4 ("SL," "VL," or "LW" lumen output options)

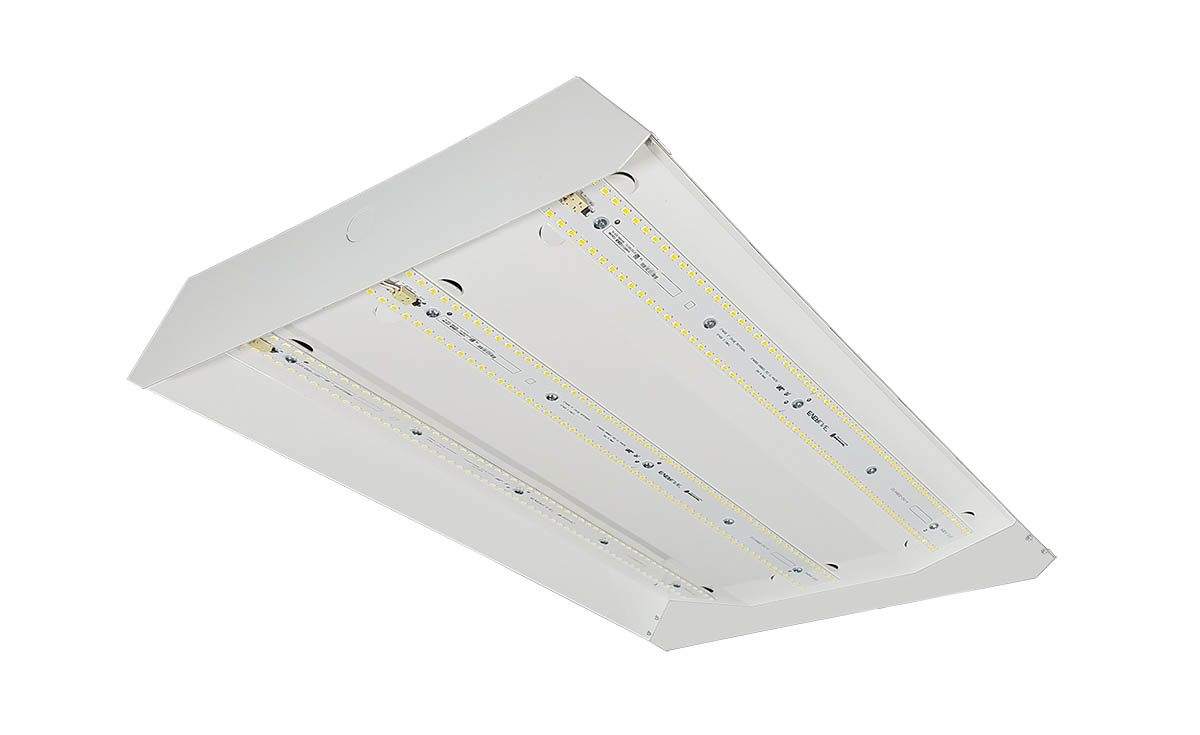

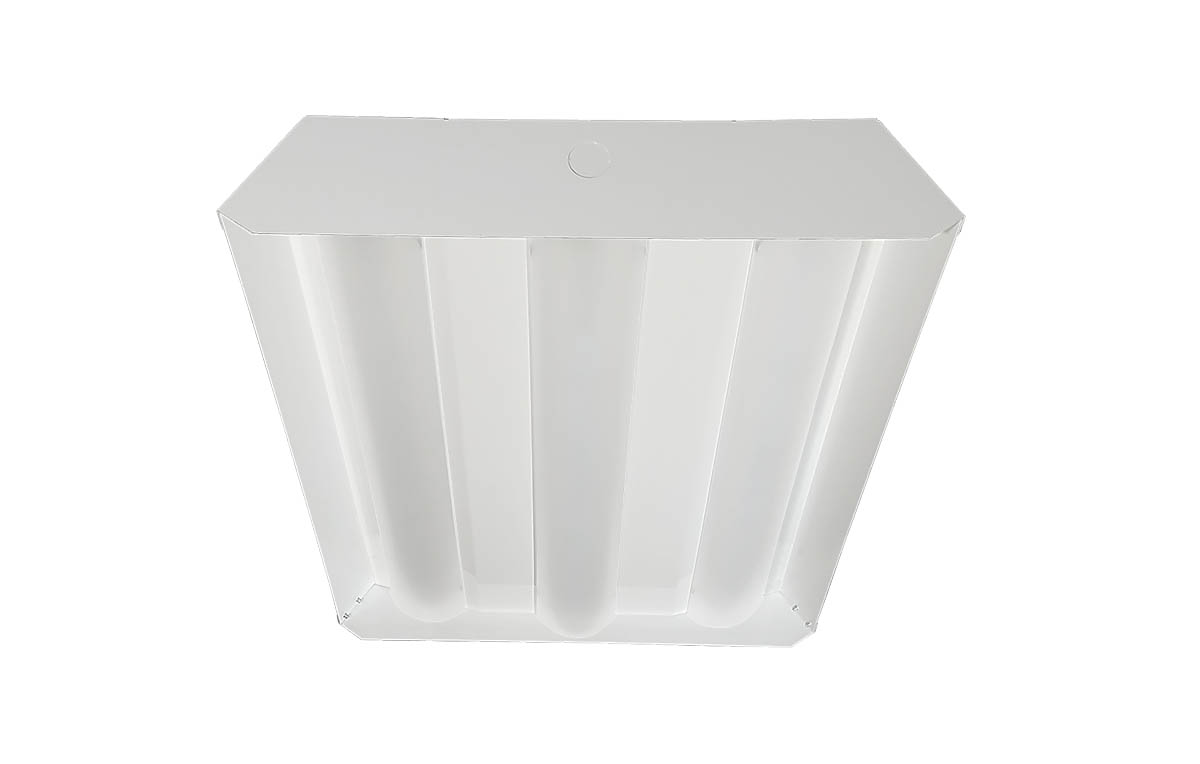

PBL2W "HI" lumen output option

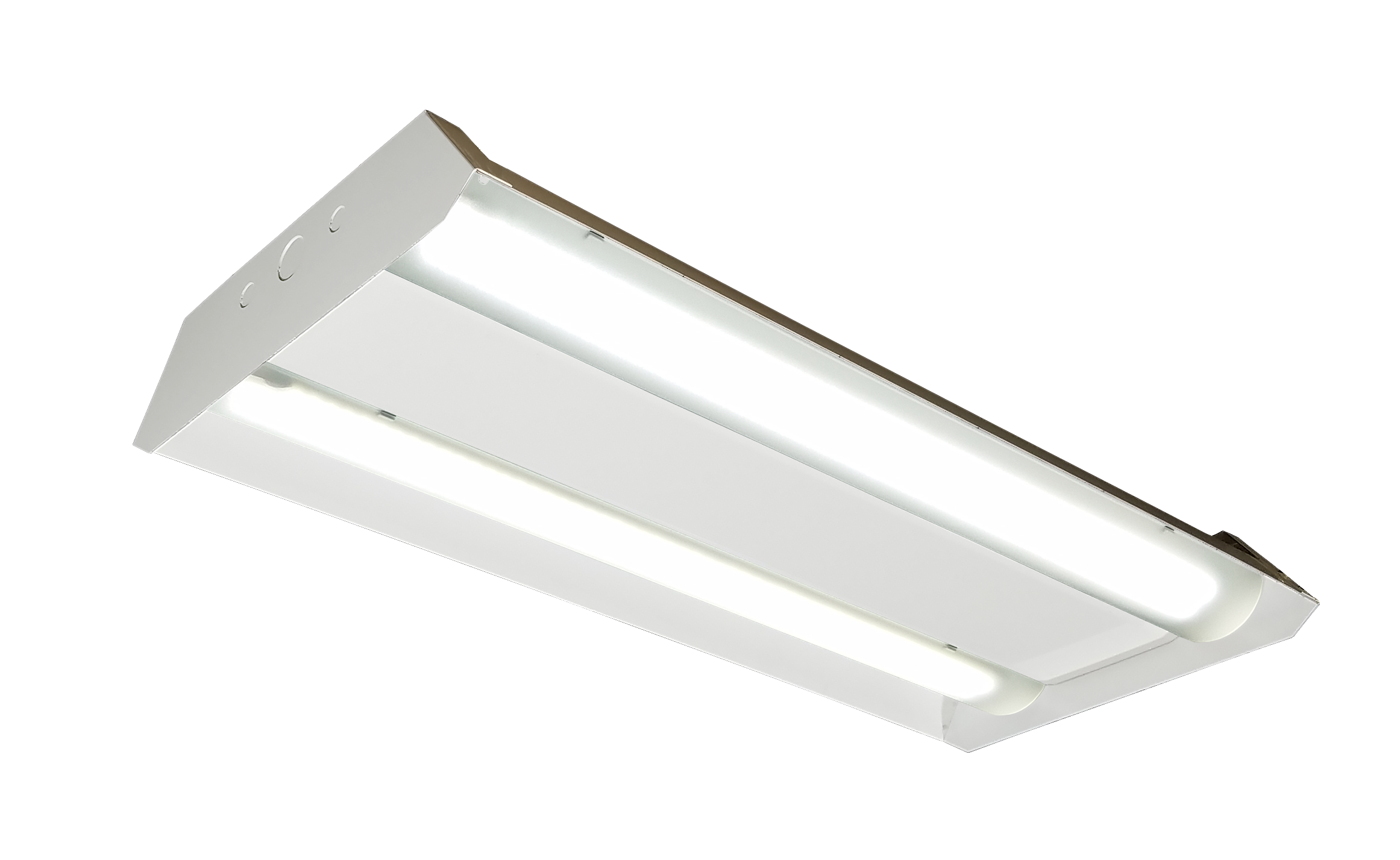

PBL2W with lenses

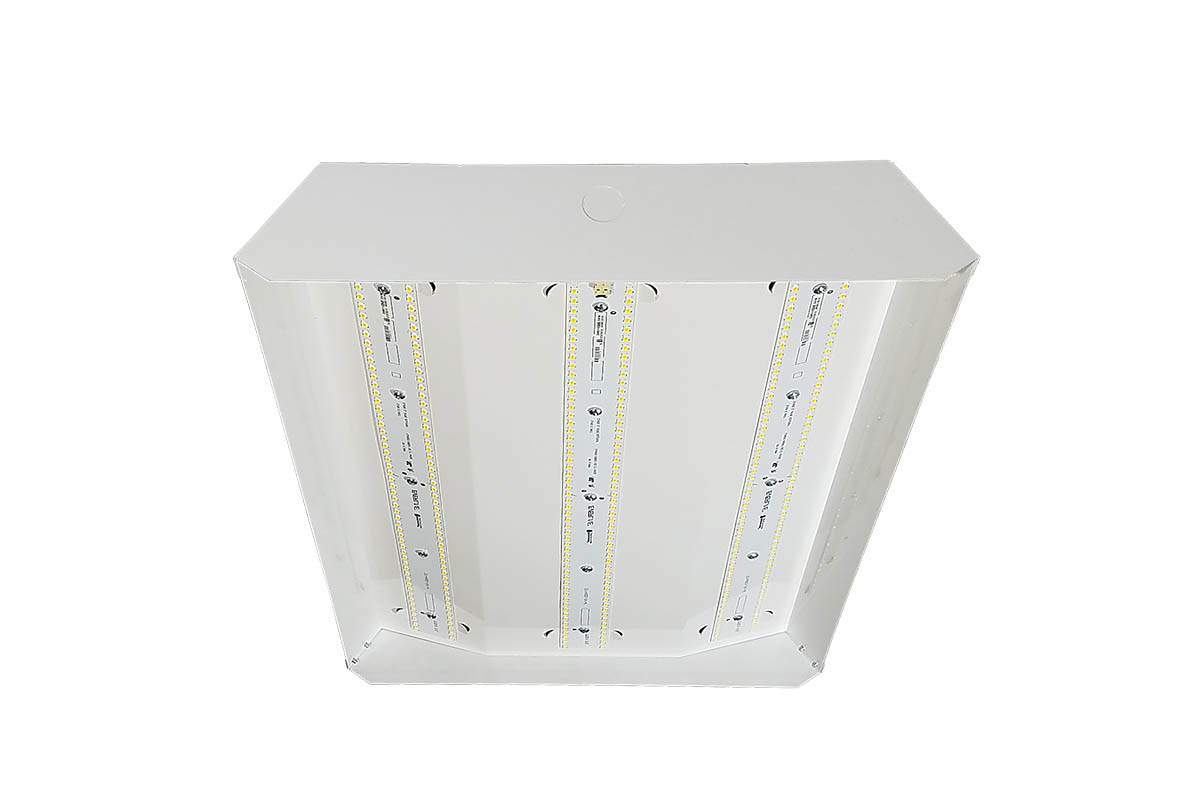

PBL2W "HI" lumen output option
PBL2W with lenses

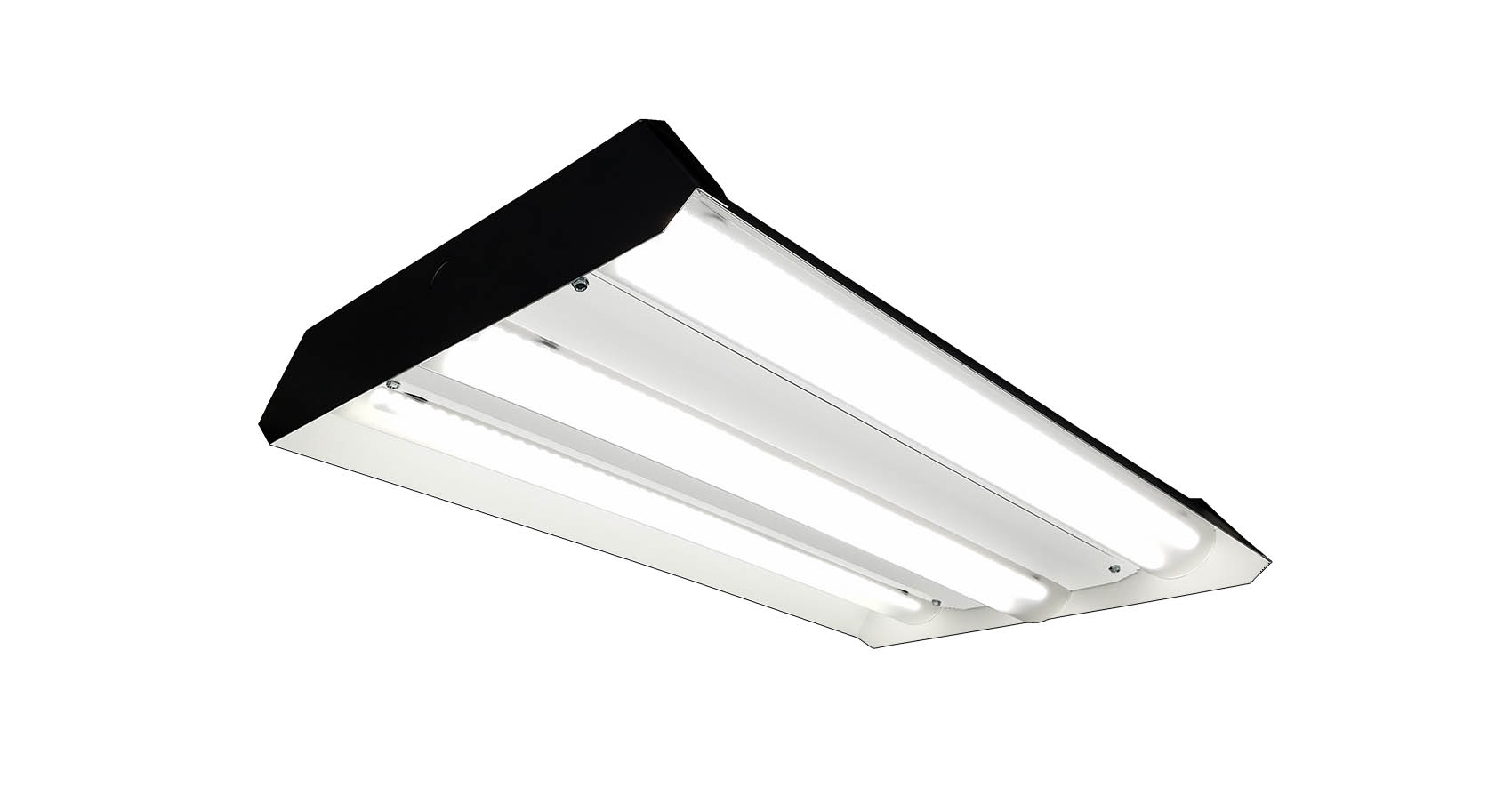

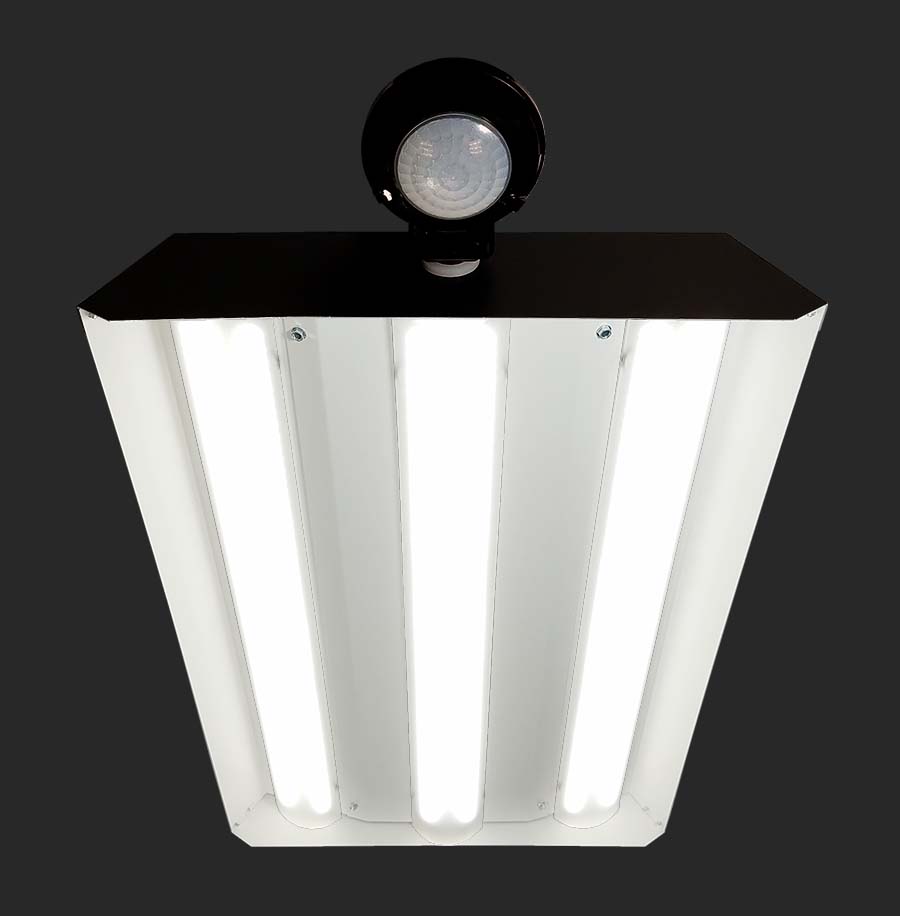

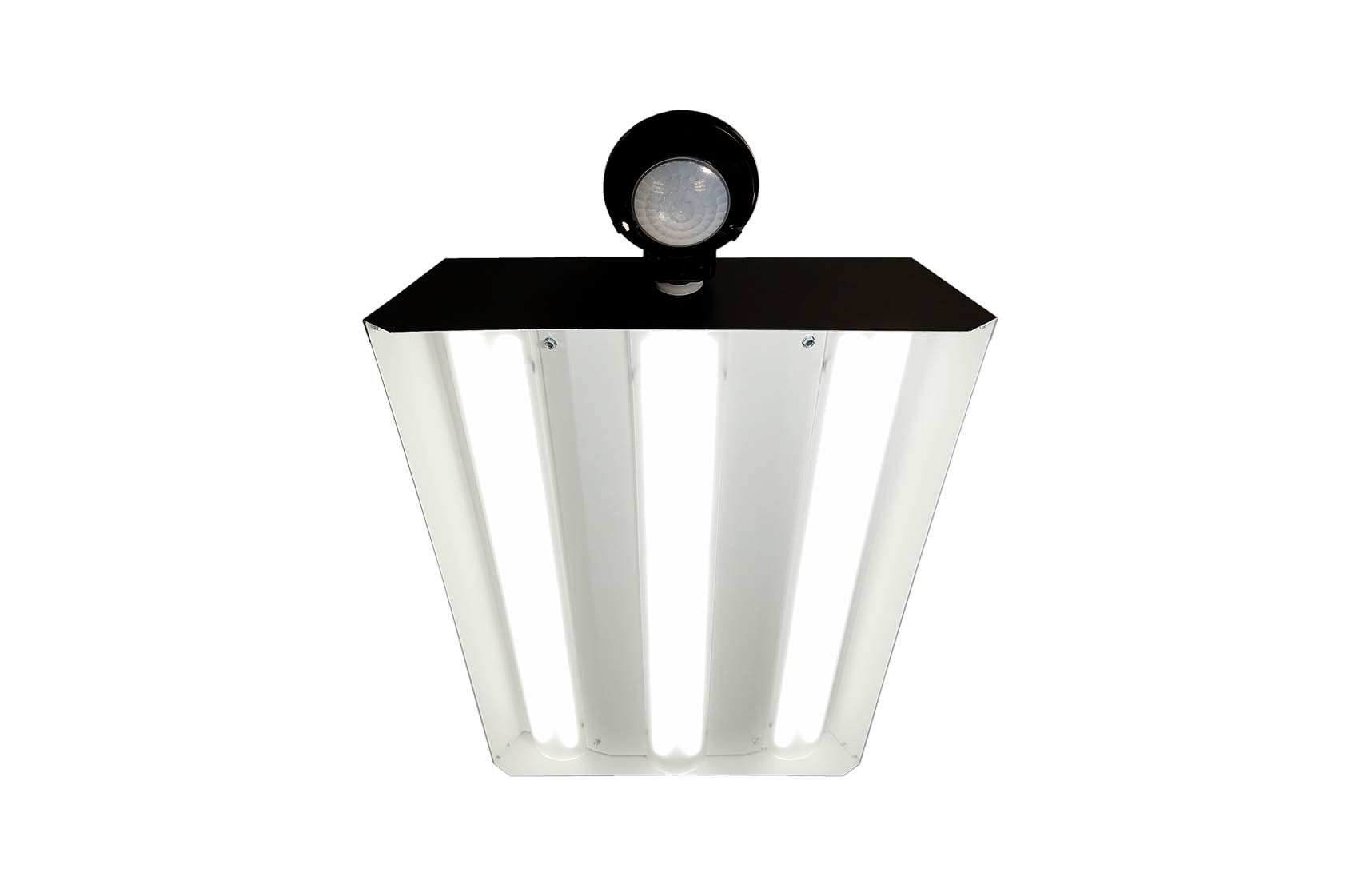

PBL2W in Matte Black finish, with lenses and black FSP sensor

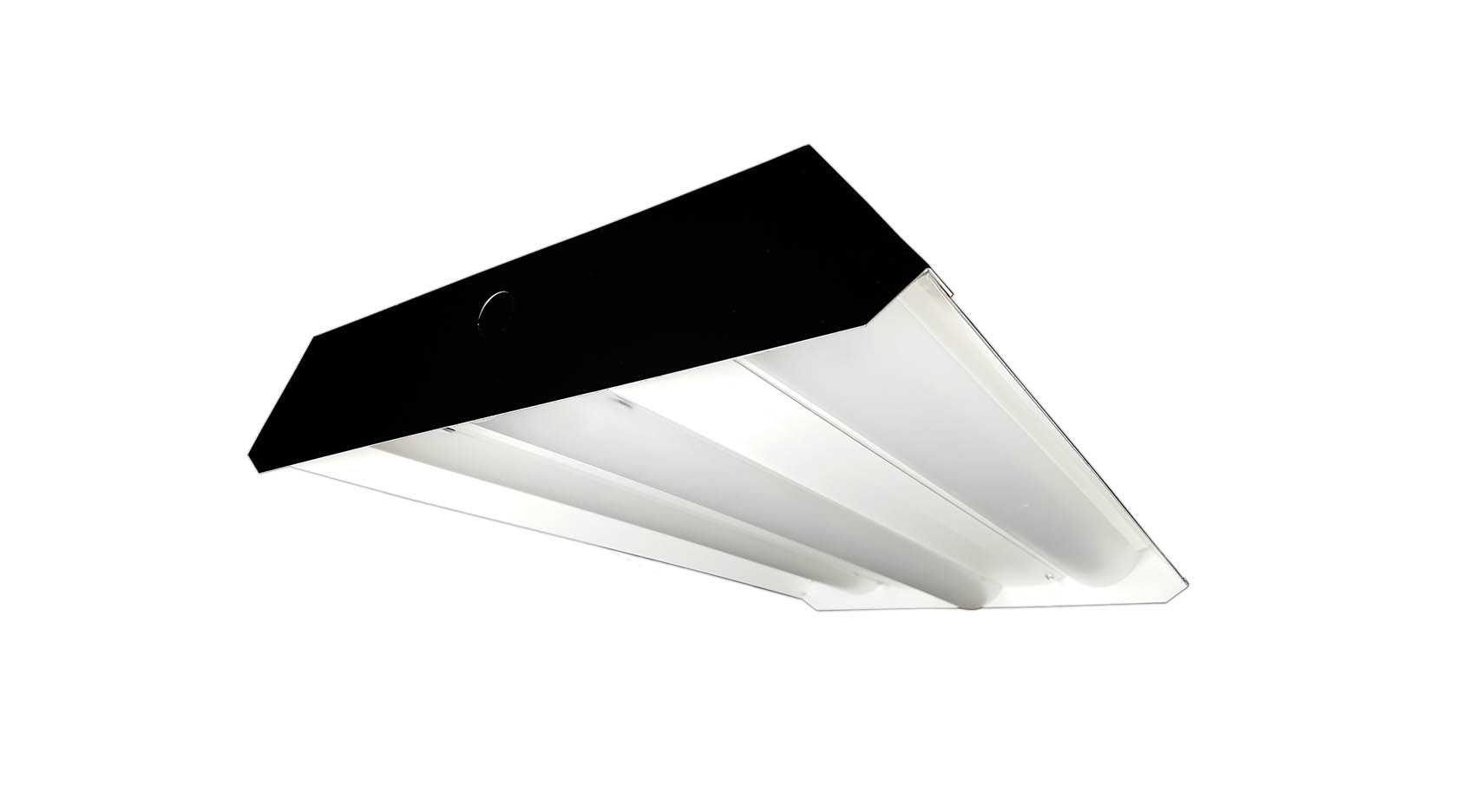

PBL2W in Matte Black finish, with lenses
PBL2W in Matte Black finish, with lenses

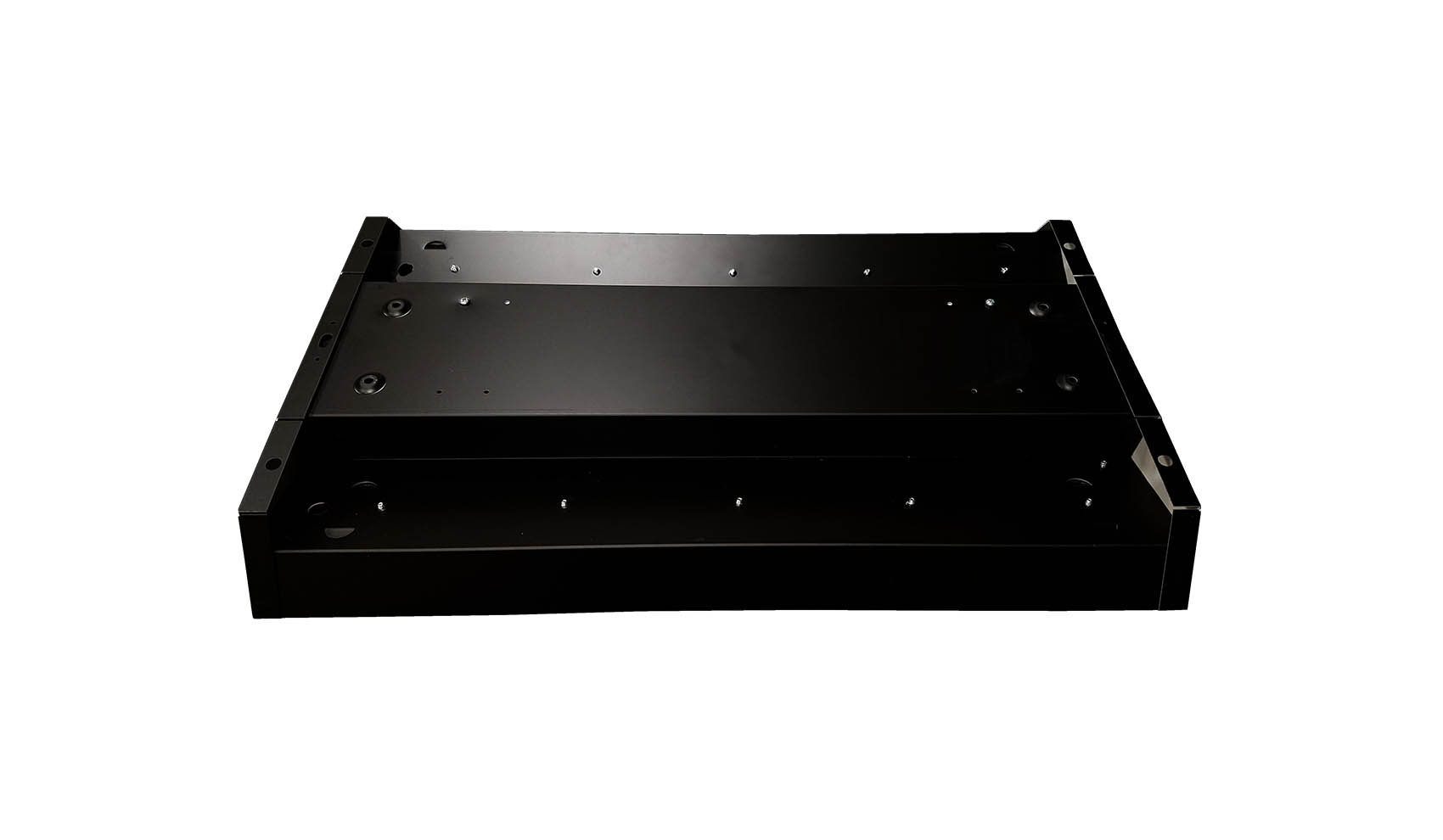

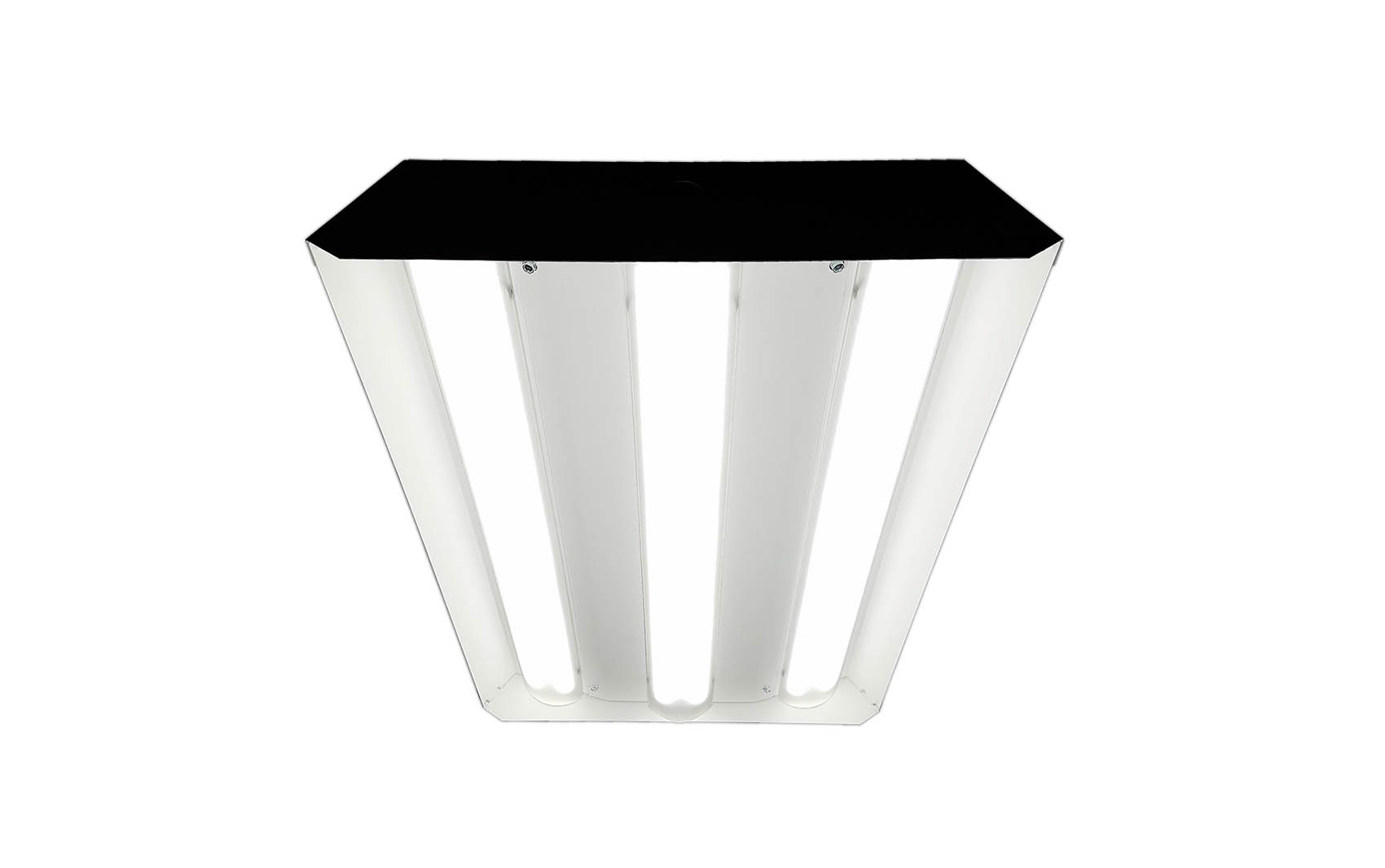

PBL2W in Matte Black finish
PBL2W in Matte Black finish, with lenses

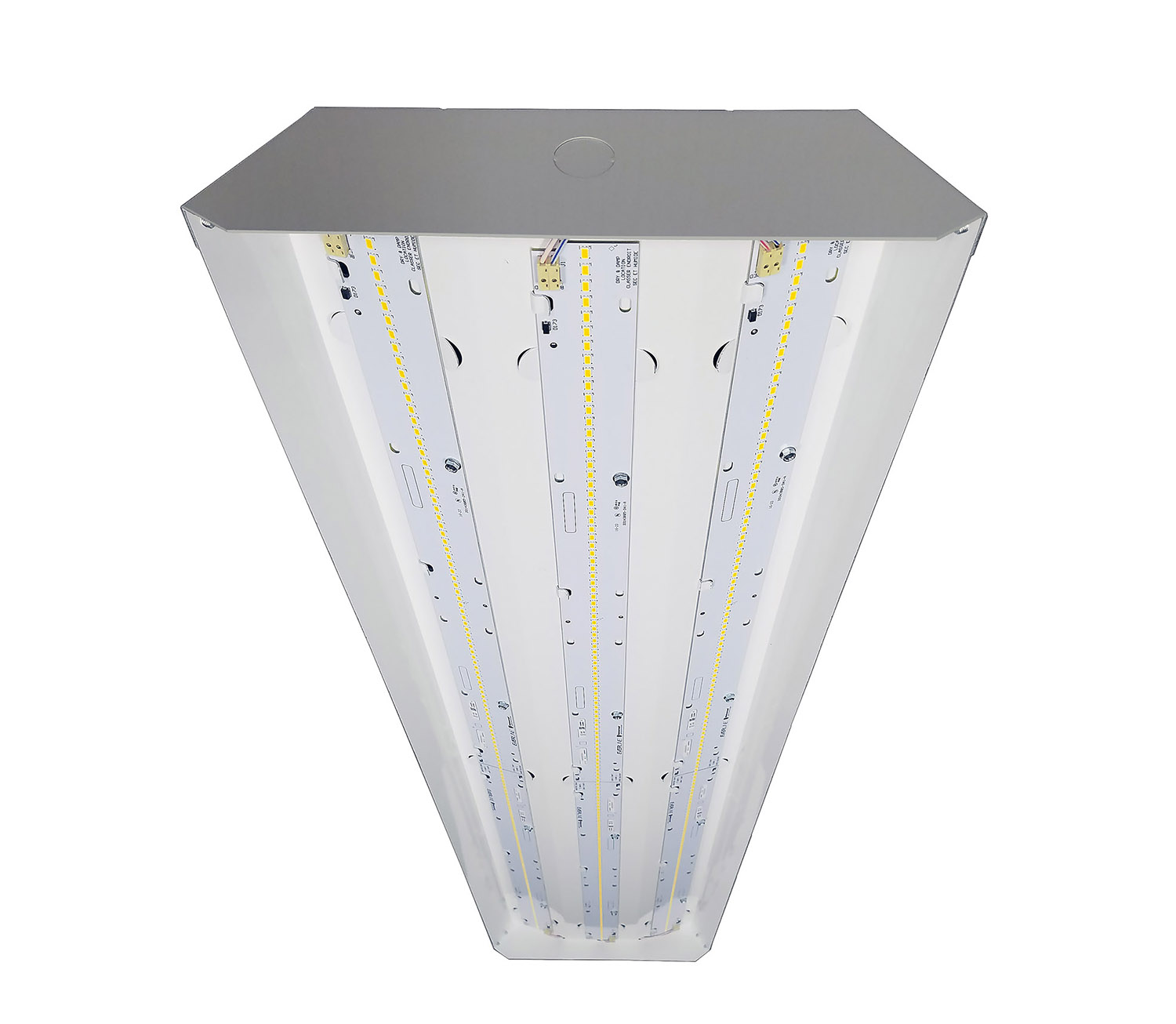

PBL4
PBL4

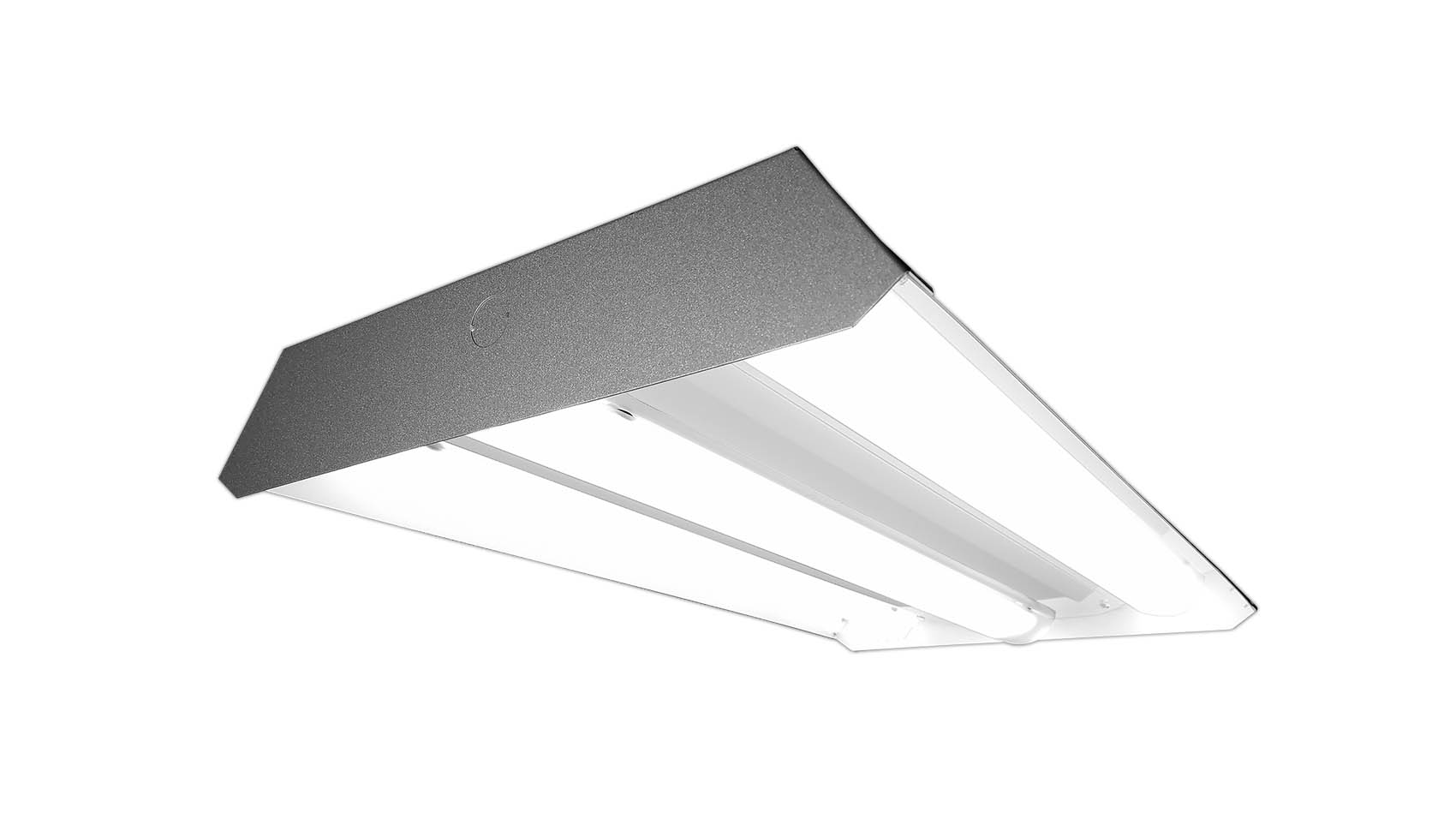

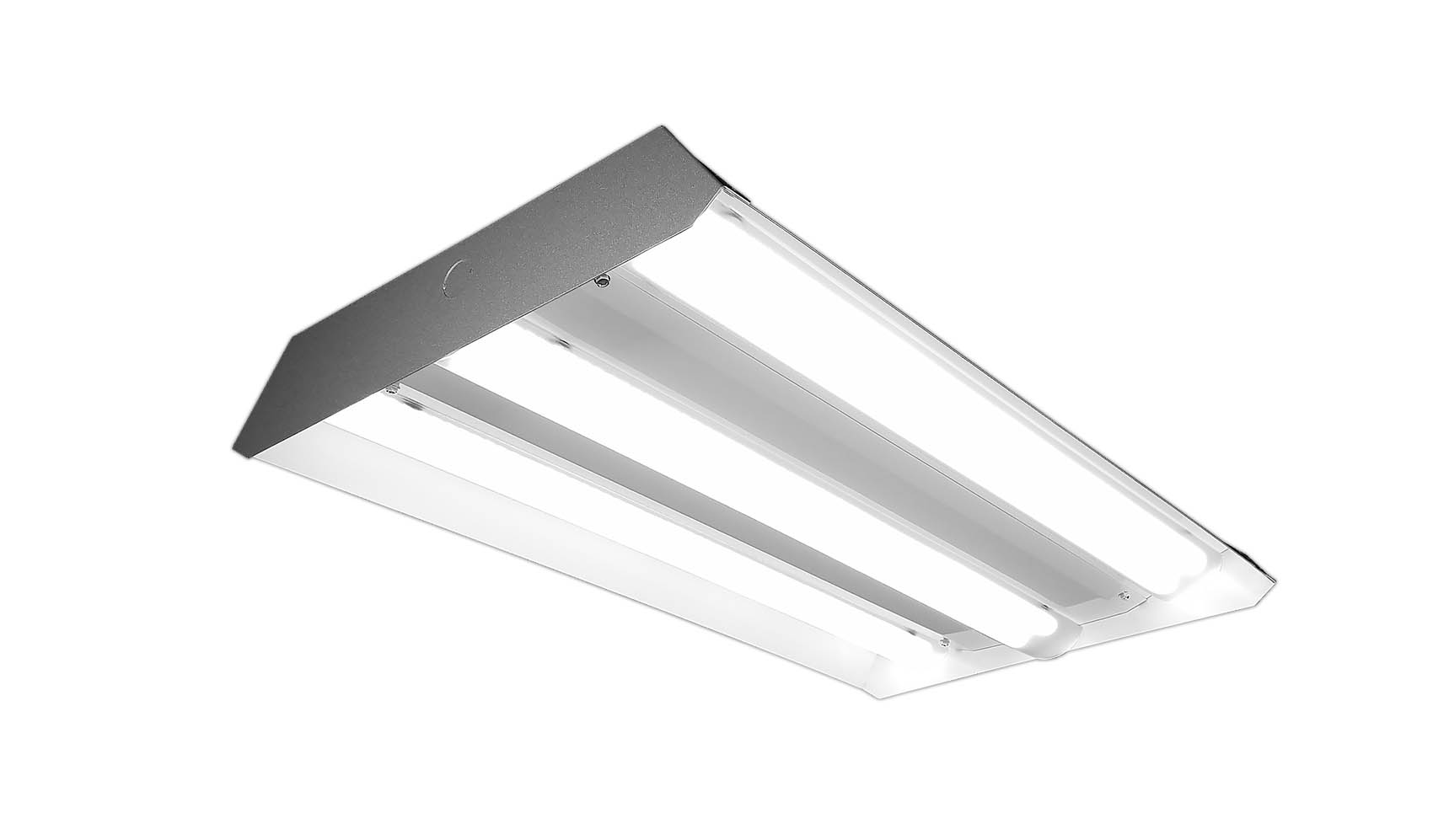

PBL2W with lenses, in Metallic Silver finish
PBL2W with lenses, in Metallic Silver finish
PBL2W with lenses, in Metallic Silver finish

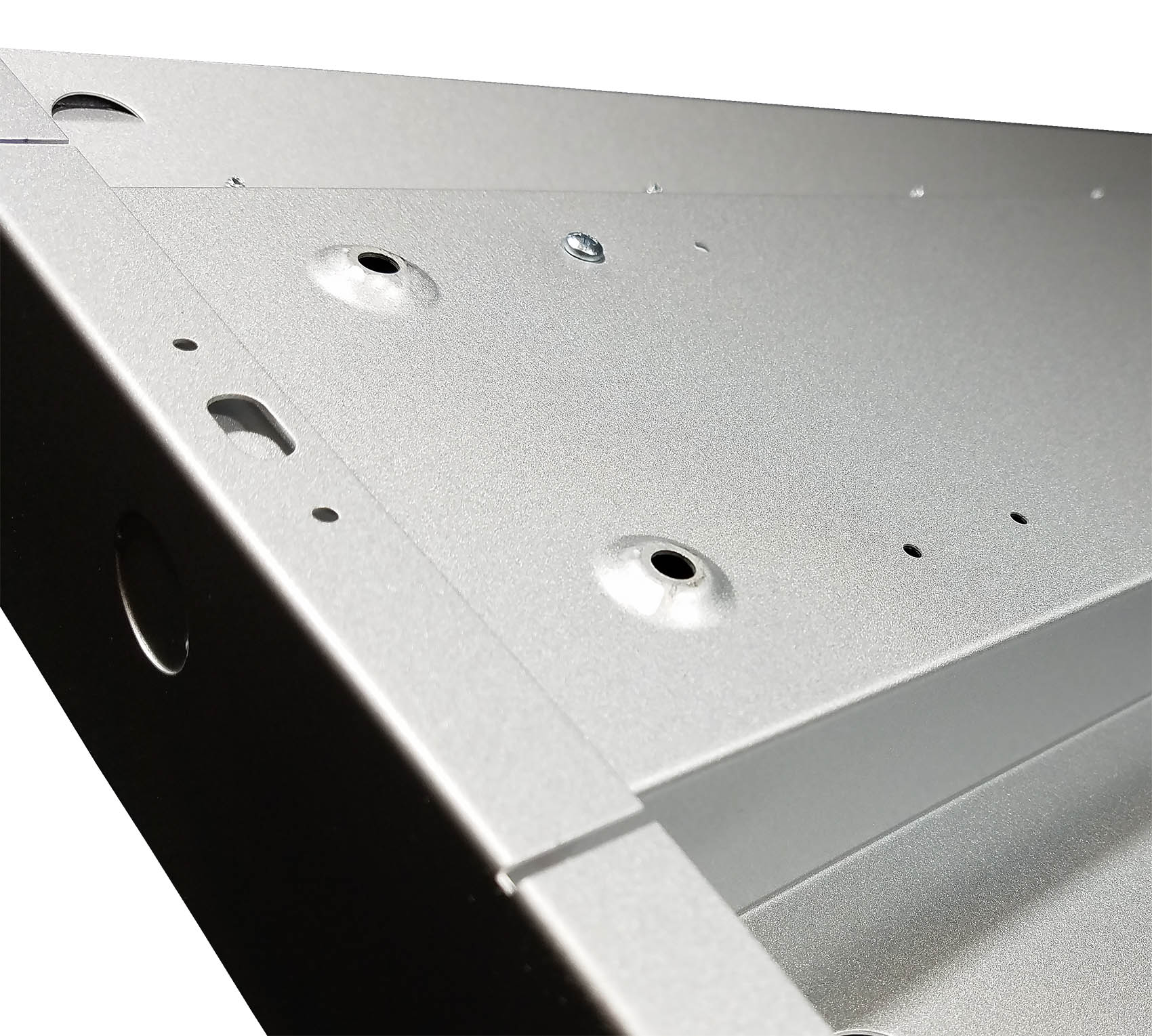

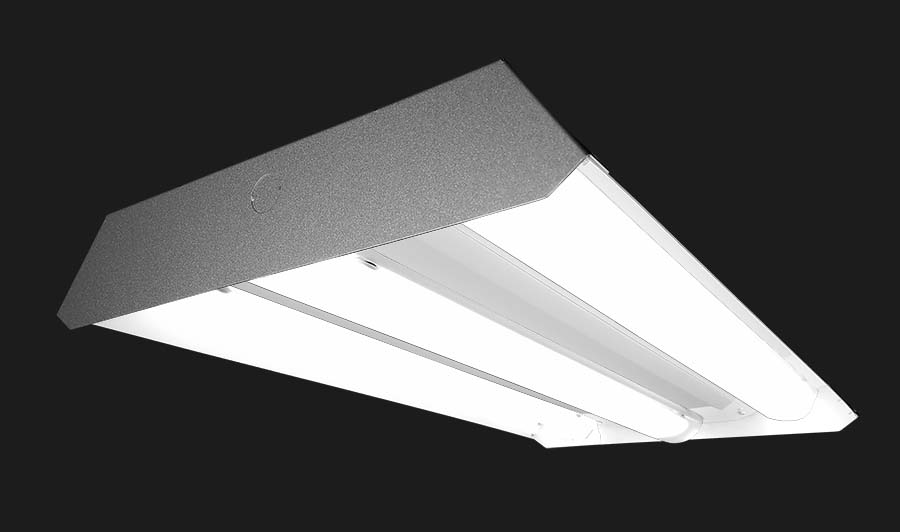

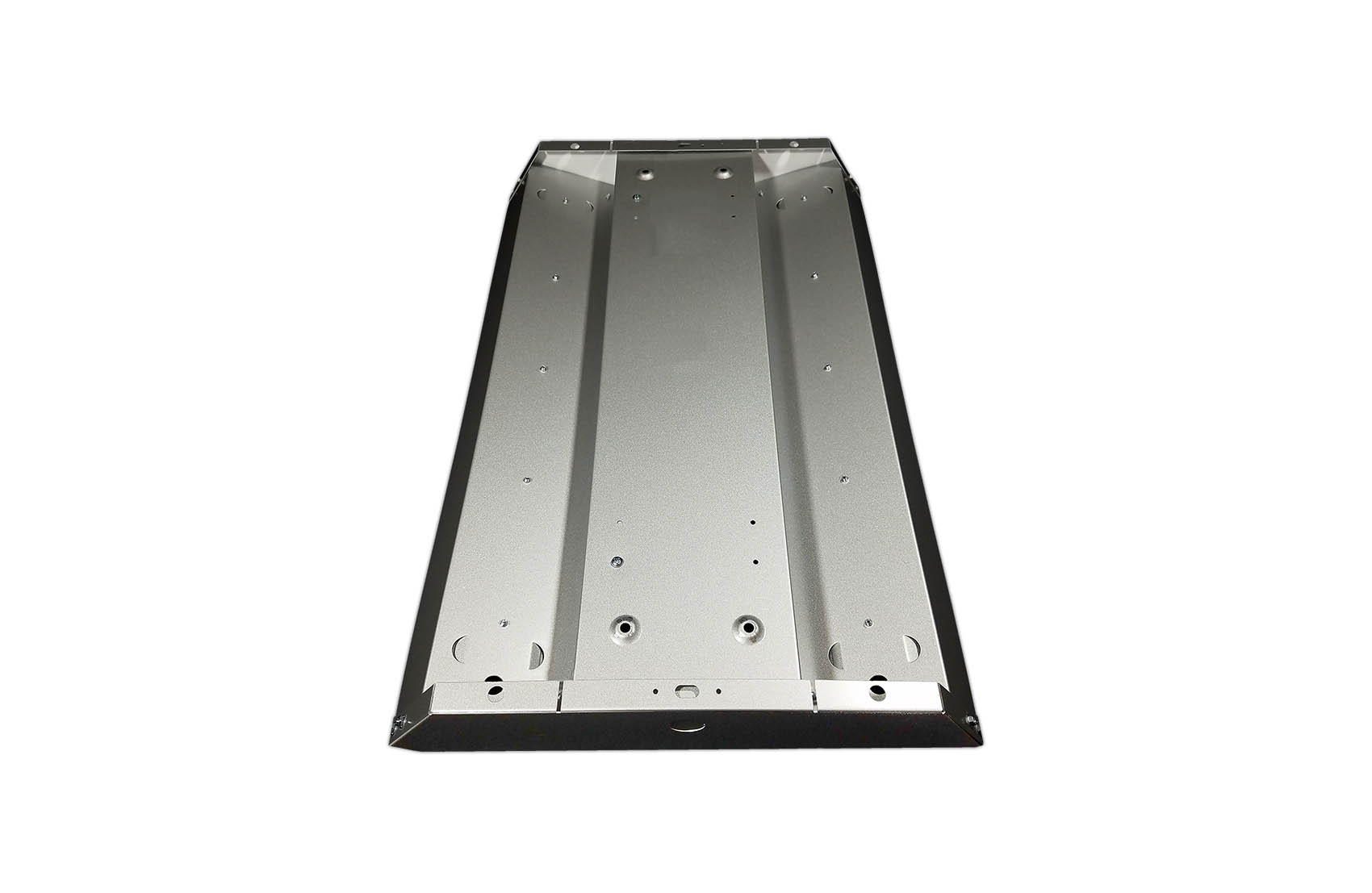

PBL2W in Metallic Silver finish
PBL2W in Metallic Silver finish

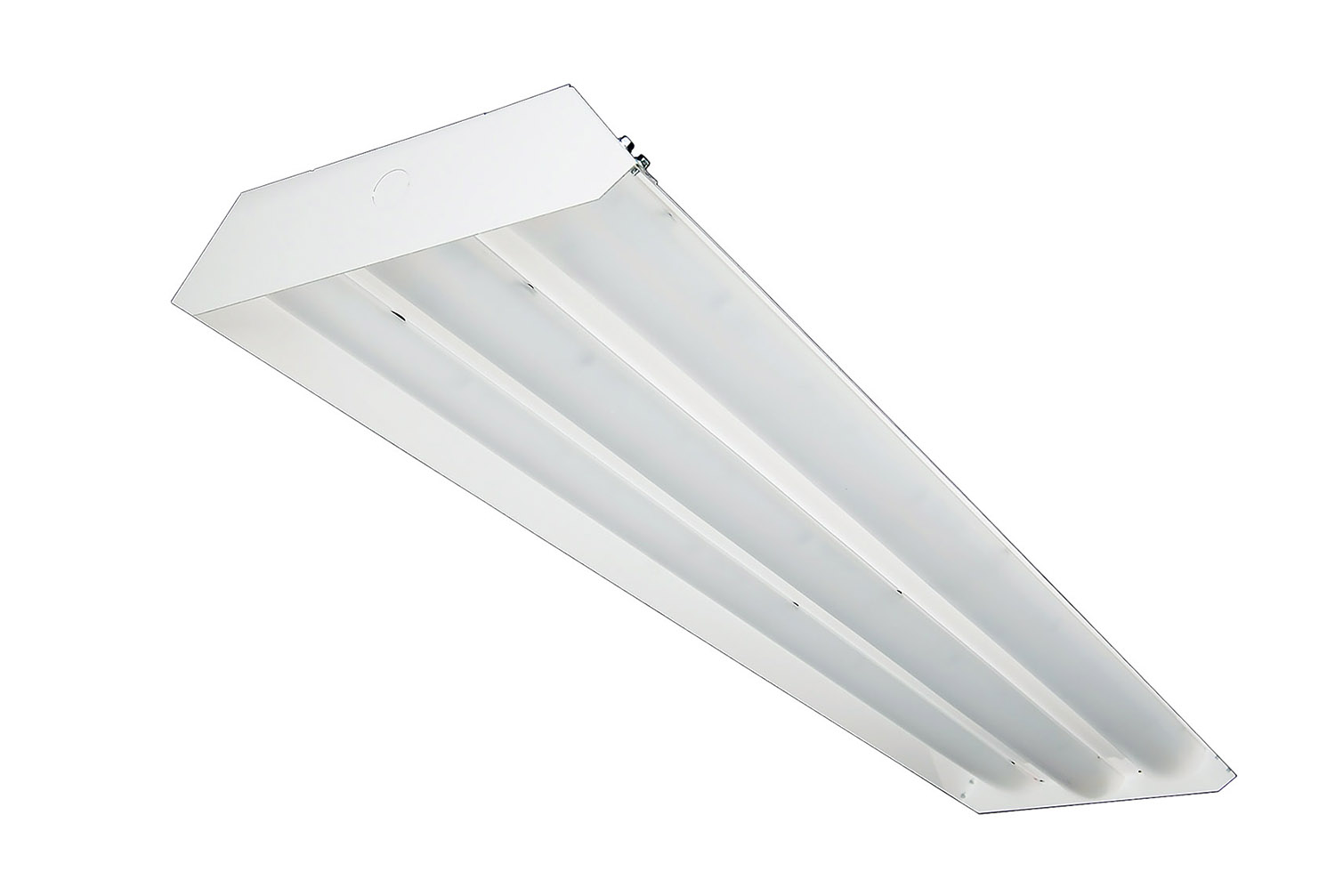

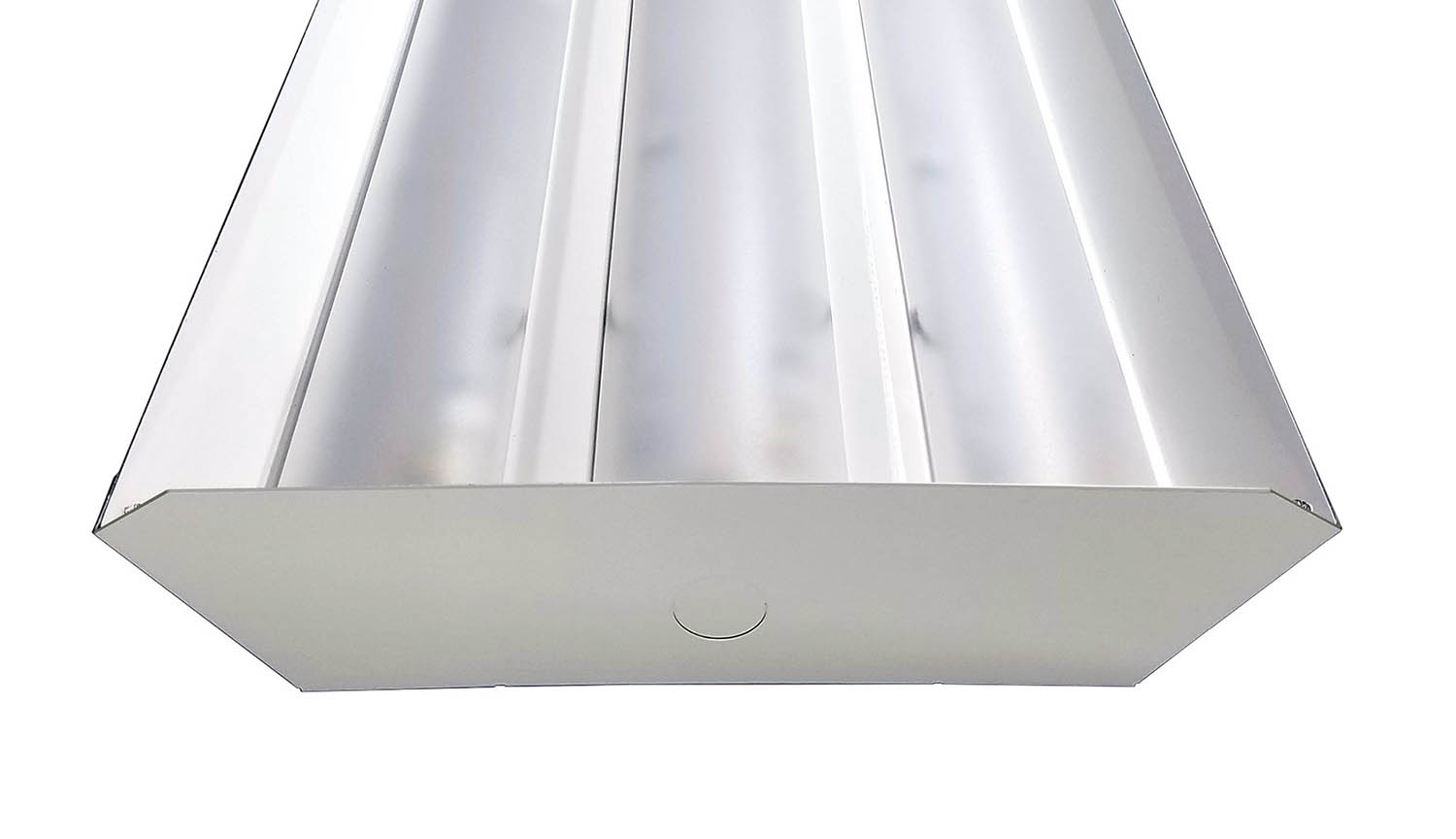

PBL4 with lenses

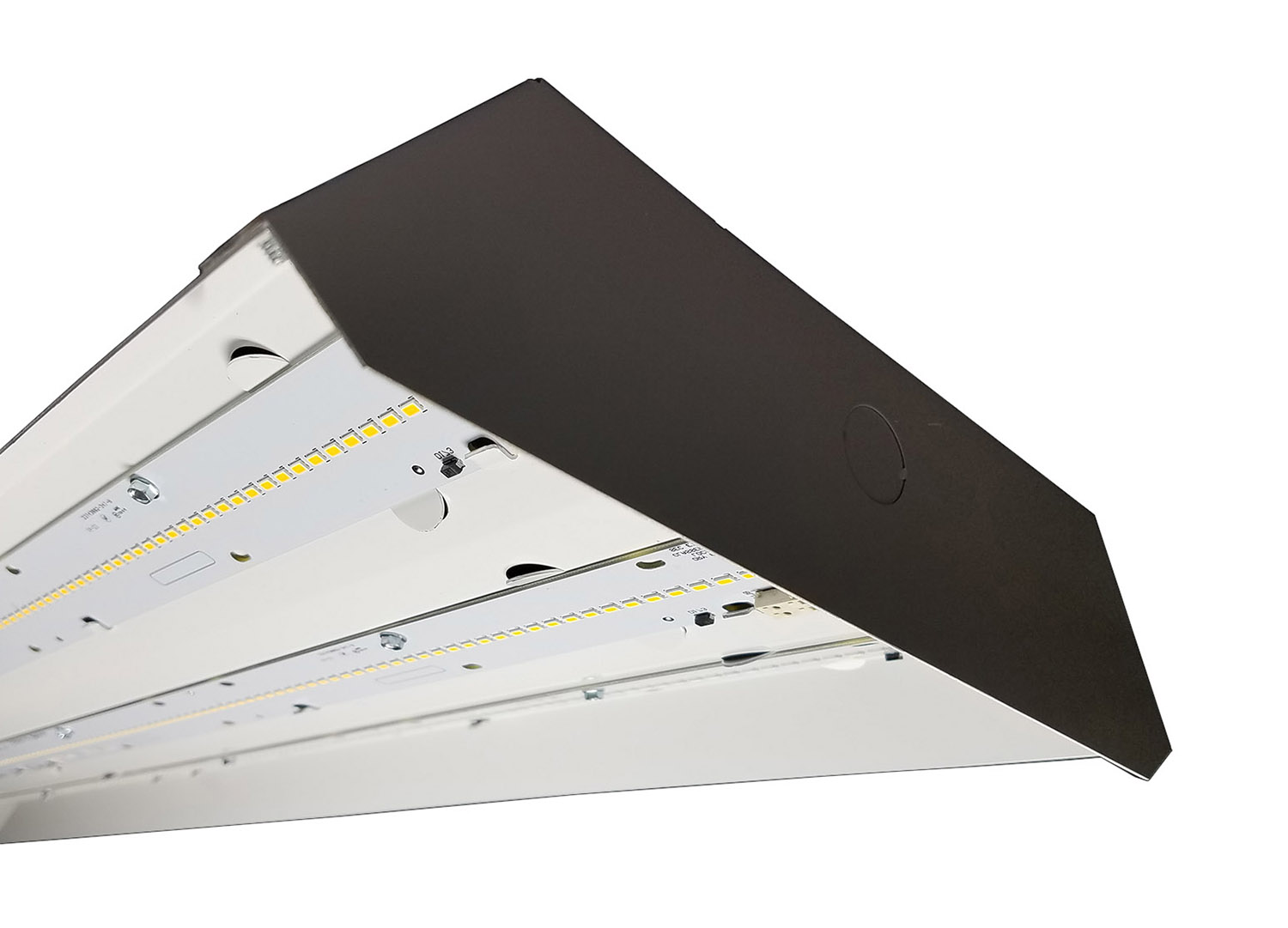

PBL4
PBL4 with lenses

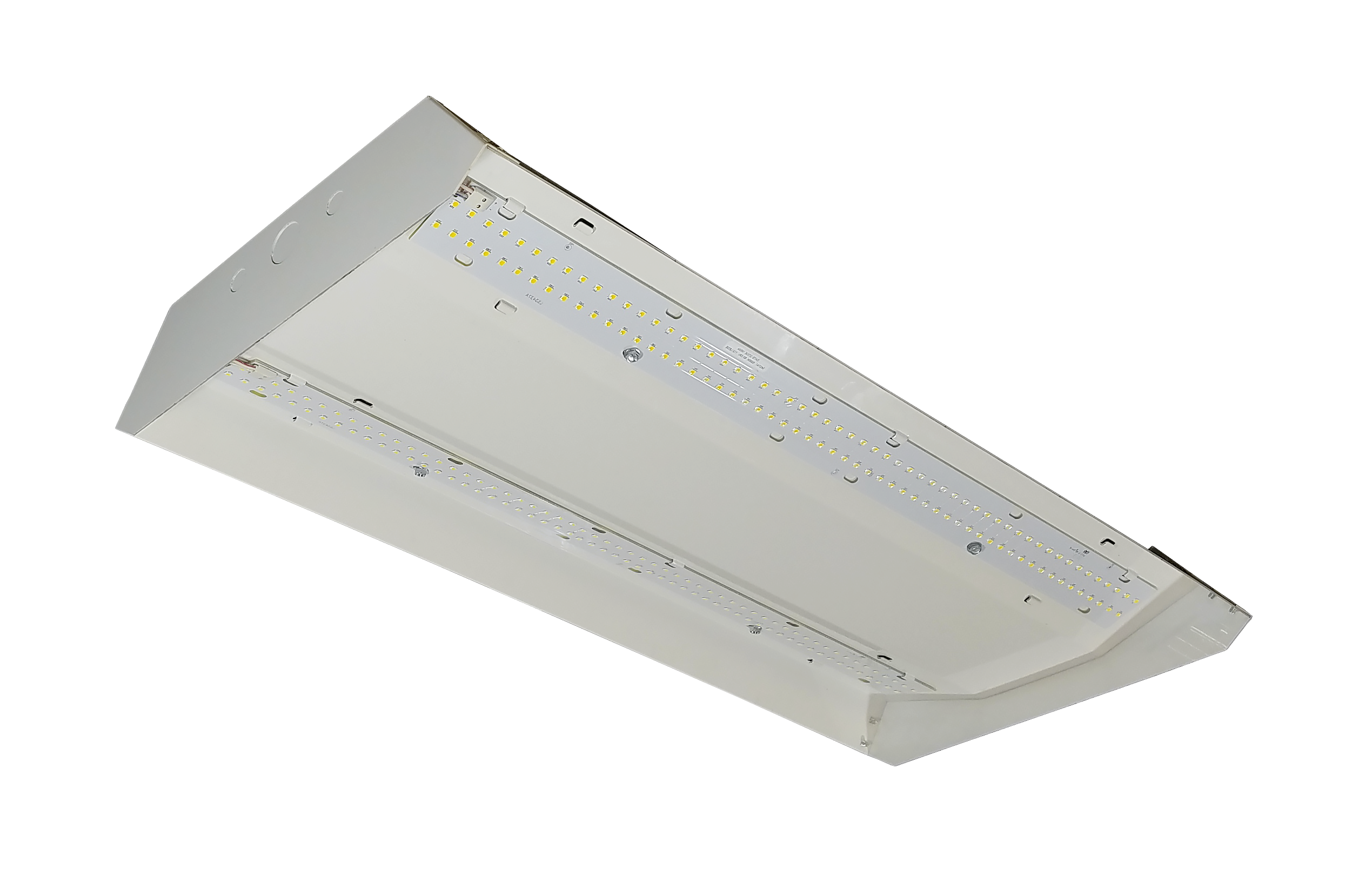

PBL2

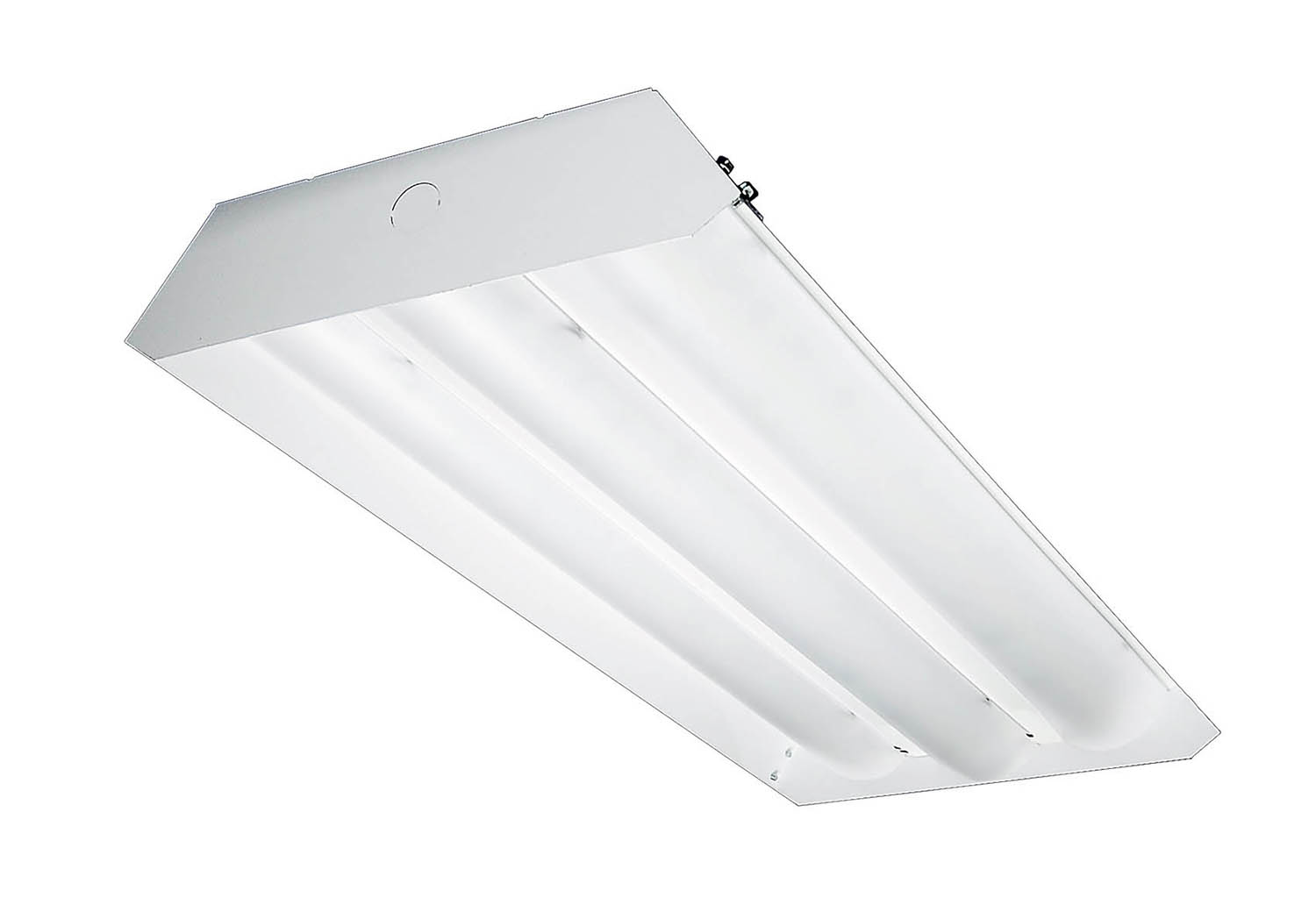

PBL2 with lenses
PBL2 with lenses ("LW" lumen output option)

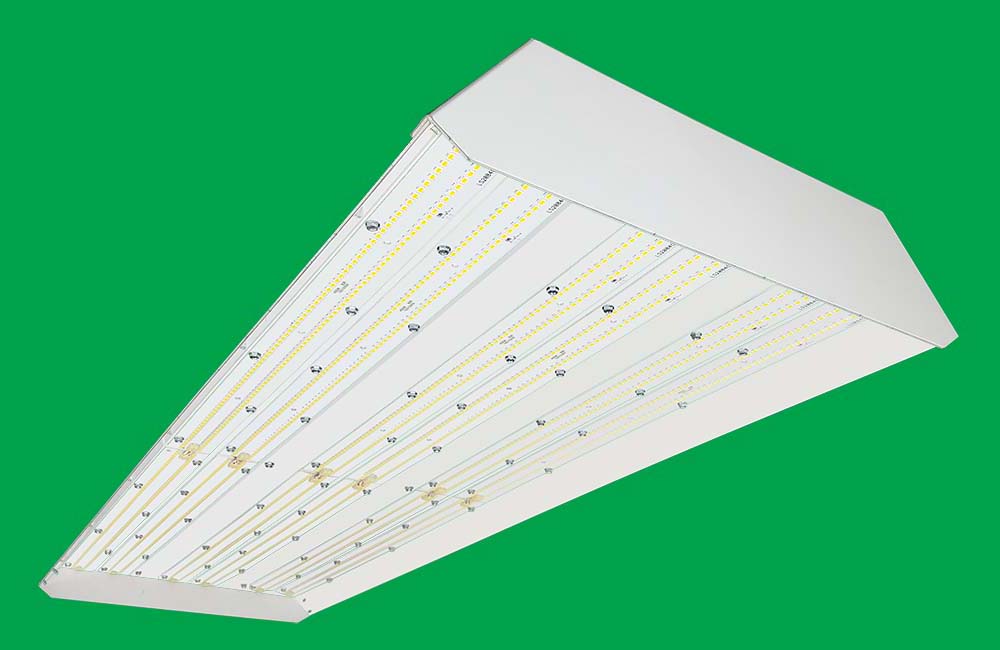

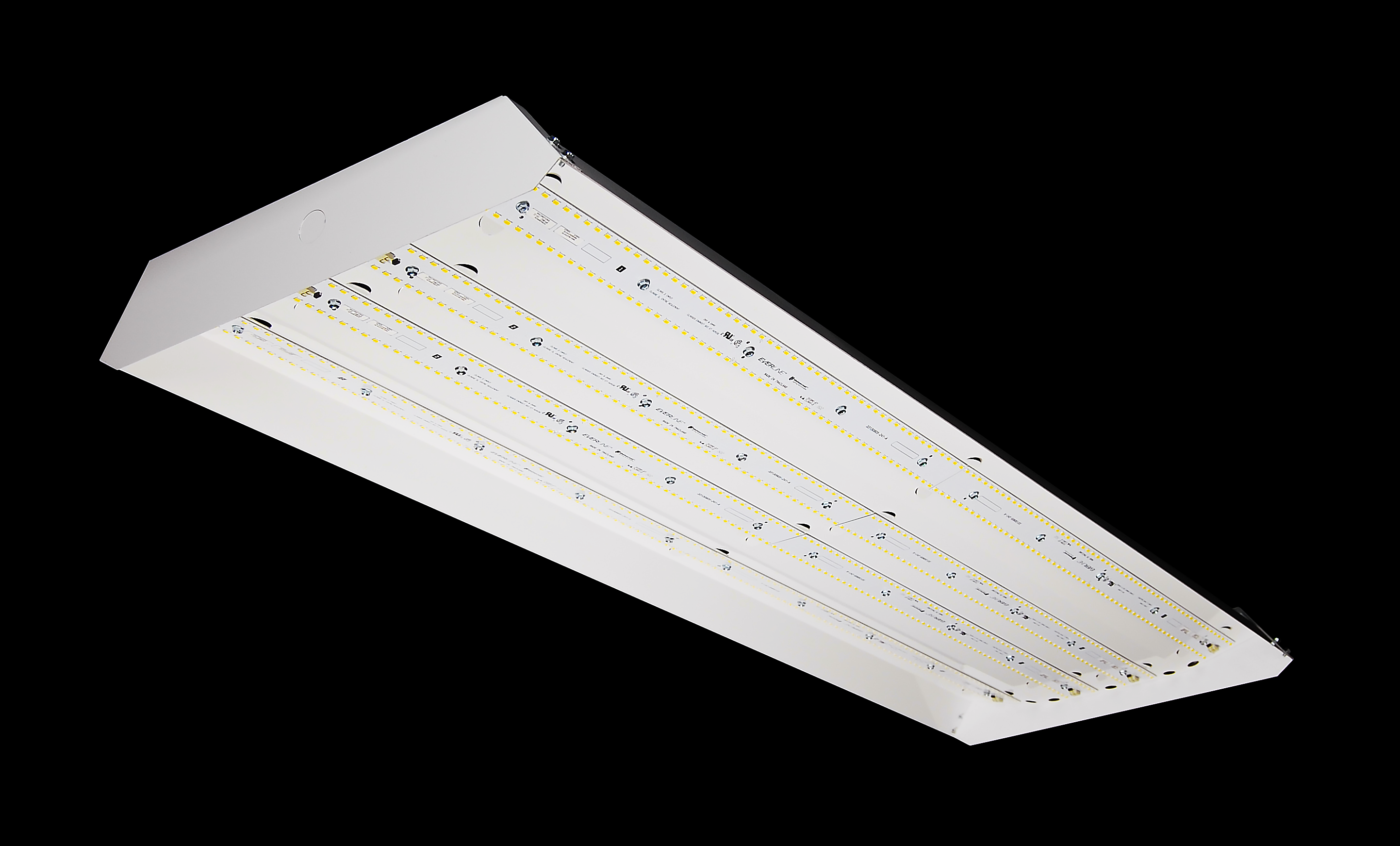

PBL4W
PBL4W with lenses

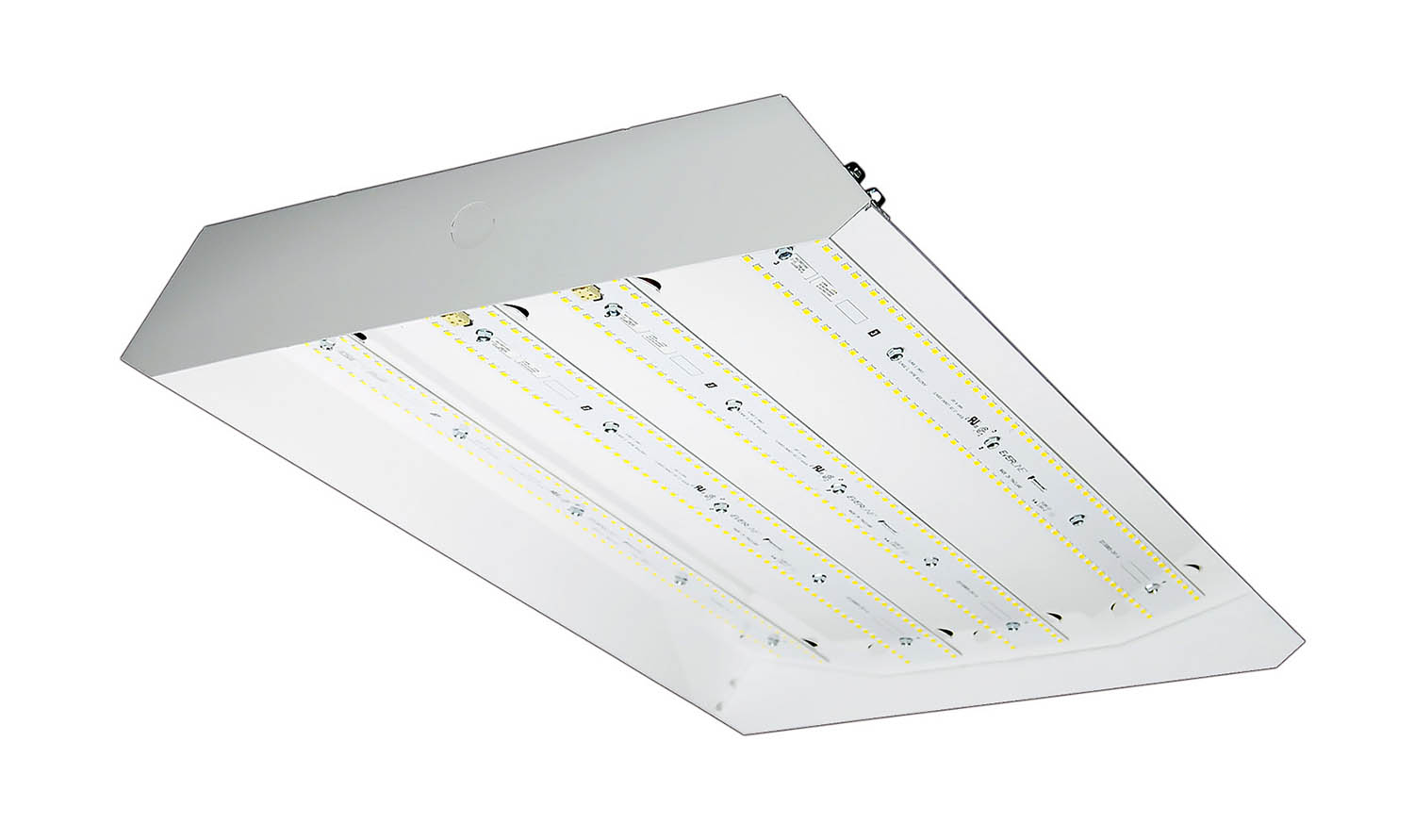

PBL2W
PBL2W with lenses

Every PBL can be upgraded through our concept of Re-boardABILITY. Replacing boards is simple and only takes a few minutes! Time varies depending on the model.

Blog post

PBL series leads the way for major LED upgrade

Note: Table scrolls horizontally

Catalog #	Size/Width	Lumens	Watts	LPW	CRI / Color Temp	Voltages Available	DLC Listed	Predicted L70 Lifetime
PBL 2 LW UV 835	2-foot/Standard	9041	72	125.1	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 2 LW UV 840	2-foot/Standard	9340	72	129.2	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 2 LW UV 850	2-foot/Standard	9620	72	133.1	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 2 MD UV 835	2-foot/Standard	11422	87	131.3	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 2 MD UV 840	2-foot/Standard	11799	87	135.6	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 2 MD UV 850	2-foot/Standard	12153	87	139.7	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 2W MH UV 835	2-foot/Wide	13432	104	129.2	80 CRI / 3500K	120-277V	Yes	Up to 189,000 hrs (calculated)
PBL 2W MH UV 840	2-foot/Wide	13876	104	133.4	80 CRI / 4000K	120-277V	Yes	Up to 189,000 hrs (calculated)
PBL 2W MH UV 850	2-foot/Wide	14292	104	137.4	80 CRI / 5000K	120-277V	Yes	Up to 189,000 hrs (calculated)
PBL 2W HI UV 835	2-foot/Wide	17889	119	150.3	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 2W HI UV 840	2-foot/Wide	18385	119	154.4	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 2W HI UV 850	2-foot/Wide	18881	119	158.2	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 SL UV 835	4-foot/Standard	11998	86	139.5	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 SL UV 840	4-foot/Standard	12394	86	144.1	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 SL UV 850	4-foot/Standard	12766	86	148.4	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 VL UV 835	4-foot/Standard	13982	104	134.4	80 CRI / 3500K	120-277V	Yes	Up to 189,000 hrs (calculated)
PBL 4 VL UV 840	4-foot/Standard	14444	104	138.9	80 CRI / 4000K	120-277V	Yes	Up to 189,000 hrs (calculated)
PBL 4 VL UV 850	4-foot/Standard	14877	104	143.1	80 CRI / 5000K	120-277V	Yes	Up to 189,000 hrs (calculated)
PBL 4 LW UV 835	4-foot/Standard	17193	136	126.4	80 CRI / 3500K	120-277V, 347V, 480V	No	Up to 189,000 hrs (calculated)
PBL 4 LW UV 840	4-foot/Standard	17761	136	130.6	80 CRI / 4000K	120-277V, 347V, 480V	No	Up to 189,000 hrs (calculated)
PBL 4 LW UV 850	4-foot/Standard	18294	136	134.5	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 MD UV 835	4-foot/Standard	20866	155	134.6	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 MD UV 840	4-foot/Standard	21556	155	139.1	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 MD UV 850	4-foot/Standard	22203	155	143.2	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 HI UV 835	4-foot/Standard	22943	174	131.9	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 HI UV 840	4-foot/Standard	23701	174	136.2	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 HI UV 850	4-foot/Standard	24412	174	140.3	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W LW UV 835	4-foot/Wide	29538	189	156.3	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W LW UV 840	4-foot/Wide	30358	189	160.6	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W LW UV 850	4-foot/Wide	31178	189	165.1	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W MD UV 835	4-foot/Wide	34628	226	153.2	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W MD UV 840	4-foot/Wide	35589	226	157.4	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W MD UV 850	4-foot/Wide	36550	226	161.7	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W HI UV 835	4-foot/Wide	38979	261	149.3	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W HI UV 840	4-foot/Wide	40061	261	153.4	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W HI UV 850	4-foot/Wide	41143	261	157.6	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W VH UV 835	4-foot/Wide	50727	337	150.5	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W VH UV 840	4-foot/Wide	52135	337	154.7	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W VH UV 850	4-foot/Wide	53543	337	158.9	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W SH UV 835 (HDW)	4-foot/Wide	64345	390	165.1	80 CRI / 3500K	120-277V, 347V, 480V	No	Up to 189,000 hrs (calculated)
PBL 4W SH UV 840 (HDW)	4-foot/Wide	66472	390	170.6	80 CRI / 4000K	120-277V, 347V, 480V	Yes - Premium	Up to 189,000 hrs (calculated)
PBL 4W SH UV 850 (HDW)	4-foot/Wide	68267	390	175.2	80 CRI / 5000K	120-277V, 347V, 480V	No	Up to 189,000 hrs (calculated)
PBL 2 LW HE UV 835	2-foot/Standard	8805	67	131.4	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 2 LW HE UV 840	2-foot/Standard	9096	67	135.8	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 2 LW HE UV 850	2-foot/Standard	9369	67	139.8	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 2 MD HE UV 835	2-foot/Standard	11553	85	135.9	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 2 MD HE UV 840	2-foot/Standard	11934	85	140.4	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 2 MD HE UV 850	2-foot/Standard	12292	85	144.6	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 2W MH HE UV 835	2-foot/Wide	13766	100	137.7	80 CRI / 3500K	120-277V	Yes	Up to 189,000 hrs (calculated)
PBL 2W MH HE UV 840	2-foot/Wide	14221	100	142.2	80 CRI / 4000K	120-277V	Yes	Up to 189,000 hrs (calculated)
PBL 2W MH HE UV 850	2-foot/Wide	14648	100	146.5	80 CRI / 5000K	120-277V	Yes	Up to 189,000 hrs (calculated)
PBL 2W HI HE UV 835	2-foot/Wide	17003	106	160.4	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 2W HI HE UV 840	2-foot/Wide	17475	106	164.9	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 2W HI HE UV 850	2-foot/Wide	17947	106	169.3	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 SL HE UV 835	4-foot/Standard	12018	84	143.1	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 SL HE UV 840	4-foot/Standard	12416	84	147.8	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 SL HE UV 850	4-foot/Standard	12788	84	152.2	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 VL HE UV 835	4-foot/Standard	13905	100	139.1	80 CRI / 3500K	120-277V	Yes	Up to 189,000 hrs (calculated)
PBL 4 VL HE UV 840	4-foot/Standard	14365	100	143.7	80 CRI / 4000K	120-277V	Yes	Up to 189,000 hrs (calculated)
PBL 4 VL HE UV 850	4-foot/Standard	14796	100	148	80 CRI / 5000K	120-277V	Yes	Up to 189,000 hrs (calculated)
PBL 4 LW HE UV 835	4-foot/Standard	15913	118	134.9	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 LW HE UV 840	4-foot/Standard	16439	118	139.3	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 LW HE UV 850	4-foot/Standard	16932	118	143.5	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 MD HE UV 835	4-foot/Standard	19697	140	140.7	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 MD HE UV 840	4-foot/Standard	20349	140	145.3	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 MD HE UV 850	4-foot/Standard	20959	140	149.7	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 HI HE UV 835	4-foot/Standard	23543	174	135.3	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 HI HE UV 840	4-foot/Standard	24322	174	139.8	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4 HI HE UV 850	4-foot/Standard	25051	174	144	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W LW HE UV 835	4-foot/Wide	27935	172	162.4	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W LW HE UV 840	4-foot/Wide	28710	172	166.9	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W LW HE UV 850	4-foot/Wide	29485	172	171.4	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W MD HE UV 835	4-foot/Wide	34279	214	160.2	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W MD HE UV 840	4-foot/Wide	35230	214	164.6	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W MD HE UV 850	4-foot/Wide	36181	214	169.1	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W HI HE UV 835	4-foot/Wide	38321	246	155.8	80 CRI / 3500K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W HI HE UV 840	4-foot/Wide	39384	246	160.1	80 CRI / 4000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)
PBL 4W HI HE UV 850	4-foot/Wide	40447	246	164.4	80 CRI / 5000K	120-277V, 347V, 480V	Yes	Up to 189,000 hrs (calculated)

*NOTE: Lumen Adjustment Factors - FR lens: 0.93; Wireguard: 0.90; FR and Wireguard: 0.85

Catalog #	Equivalent*
PBL 2 LW UV 835	150W MH, 2L T5HO, 3L T8 with HBF
PBL 2 LW UV 840	150W MH, 2L T5HO, 3L T8 with HBF
PBL 2 LW UV 850	150W MH, 2L T5HO, 3L T8 with HBF
PBL 2 MD UV 835	250W MH, 4L T8 with HBF
PBL 2 MD UV 840	250W MH, 4L T8 with HBF
PBL 2 MD UV 850	250W MH, 4L T8 with HBF
PBL 2W HI UV 835	400W MH, 4L T5HO, 6L T8 with HBF
PBL 2W HI UV 840	400W MH, 4L T5HO, 6L T8 with HBF
PBL 2W HI UV 850	400W MH, 4L T5HO, 6L T8 with HBF
PBL 4 LW UV 835	400W MH, 4L T5HO, 6L T8 with HBF
PBL 4 LW UV 840	400W MH, 4L T5HO, 6L T8 with HBF
PBL 4 LW UV 850	400W MH, 4L T5HO, 6L T8 with HBF
PBL 4 MD UV 835	400W MH, 4L T5HO, 7L T8 with HBF
PBL 4 MD UV 840	400W MH, 4L T5HO, 7L T8 with HBF
PBL 4 MD UV 850	400W MH, 4L T5HO, 7L T8 with HBF
PBL 4 HI UV 835	400W PSMH, 5L T5HO, 8L T8 with HBF
PBL 4 HI UV 840	400W PSMH, 5L T5HO, 8L T8 with HBF
PBL 4 HI UV 850	400W PSMH, 5L T5HO, 8L T8 with HBF
PBL 4W LW UV 835	7L T5HO, 10L T8 with HBF
PBL 4W LW UV 840	7L T5HO, 10L T8 with HBF
PBL 4W LW UV 850	7L T5HO, 10L T8 with HBF
PBL 4W MD UV 835	8L T5HO, 12L T8 with HBF
PBL 4W MD UV 840	8L T5HO, 12L T8 with HBF
PBL 4W MD UV 850	8L T5HO, 12L T8 with HBF
PBL 4W HI UV 835	750W PSMH, 9L T5HO
PBL 4W HI UV 840	750W PSMH, 9L T5HO
PBL 4W HI UV 850	750W PSMH, 9L T5HO
PBL 4W VH UV 835	1000W MH, 12L T5HO
PBL 4W VH UV 840	1000W MH, 12L T5HO
PBL 4W VH UV 850	1000W MH, 12L T5HO
PBL 4W SH UV 835 (HDW)	1000W PS MH
PBL 4W SH UV 840 (HDW)	1000W PS MH
PBL 4W SH UV 850 (HDW)	1000W PS MH
PBL 2 LW HE UV 835	150W MH, 2L T5HO, 3L T8 with HBF
PBL 2 LW HE UV 840	150W MH, 2L T5HO, 3L T8 with HBF
PBL 2 LW HE UV 850	150W MH, 2L T5HO, 3L T8 with HBF
PBL 2 MD HE UV 835	250W MH, 4L T8 with HBF
PBL 2 MD HE UV 840	250W MH, 4L T8 with HBF
PBL 2 MD HE UV 850	250W MH, 4L T8 with HBF
PBL 2W HI HE UV 835	400W MH, 4L T5HO, 6L T8 with HBF
PBL 2W HI HE UV 840	400W MH, 4L T5HO, 6L T8 with HBF
PBL 2W HI HE UV 850	400W MH, 4L T5HO, 6L T8 with HBF
PBL 4 LW HE UV 835	400W MH, 4L T5HO, 6L T8 with HBF
PBL 4 LW HE UV 840	400W MH, 4L T5HO, 6L T8 with HBF
PBL 4 LW HE UV 850	400W MH, 4L T5HO, 6L T8 with HBF
PBL 4 MD HE UV 835	400W MH, 4L T5HO, 7L T8 with HBF
PBL 4 MD HE UV 840	400W MH, 4L T5HO, 7L T8 with HBF
PBL 4 MD HE UV 850	400W MH, 4L T5HO, 7L T8 with HBF
PBL 4 HI HE UV 835	400W PSMH, 6L T5HO, 9L T8 with HBF
PBL 4 HI HE UV 840	400W PSMH, 6L T5HO, 9L T8 with HBF
PBL 4 HI HE UV 850	400W PSMH, 6L T5HO, 9L T8 with HBF
PBL 4W LW HE UV 835	7L T5HO, 10L T8 with HBF
PBL 4W LW HE UV 840	7L T5HO, 10L T8 with HBF
PBL 4W LW HE UV 850	7L T5HO, 10L T8 with HBF
PBL 4W MD HE UV 835	8L T5HO, 12L T8 with HBF
PBL 4W MD HE UV 840	8L T5HO, 12L T8 with HBF
PBL 4W MD HE UV 850	8L T5HO, 12L T8 with HBF
PBL 4W HI HE UV 835	750W PSMH, 9L T5HO
PBL 4W HI HE UV 840	750W PSMH, 9L T5HO
PBL 4W HI HE UV 850	750W PSMH, 9L T5HO

*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.

Catalog #	Image	Spec Sheet	.ies & .pdf files
PBL 2 LW UV 835	View	Download	Download
PBL 2 LW UV 840	View	Download	Contact Factory
PBL 2 LW UV 850	View	Download	Download
PBL 2 MD UV 835	View	Download	Contact Factory
PBL 2 MD UV 840	View	Download	Contact Factory
PBL 2 MD UV 850	View	Download	Download
PBL 2W MH UV 835		Download	Contact Factory
PBL 2W MH UV 840		Download	Contact Factory
PBL 2W MH UV 850		Download	Contact Factory
PBL 2W HI UV 835	View	Download	Contact Factory
PBL 2W HI UV 840	View	Download	Download
PBL 2W HI UV 850	View	Download	Download
PBL 4 SL UV 835	View	Download	Contact Factory
PBL 4 SL UV 840	View	Download	Contact Factory
PBL 4 SL UV 850	View	Download	Contact Factory
PBL 4 VL UV 835	View	Download	Contact Factory
PBL 4 VL UV 840	View	Download	Contact Factory
PBL 4 VL UV 850	View	Download	Contact Factory
PBL 4 LW UV 835	View	Download	Contact Factory
PBL 4 LW UV 840	View	Download	Contact Factory
PBL 4 LW UV 850	View	Download	Contact Factory
PBL 4 MD UV 835	View	Download	Contact Factory
PBL 4 MD UV 840	View	Download	Download
PBL 4 MD UV 850	View	Download	Download
PBL 4 HI UV 835	View	Download	Download
PBL 4 HI UV 840	View	Download	Contact Factory
PBL 4 HI UV 850	View	Download	Download
PBL 4W LW UV 835	View	Download	Contact Factory
PBL 4W LW UV 840	View	Download	Download
PBL 4W LW UV 850	View	Download	Download
PBL 4W MD UV 835	View	Download	Contact Factory
PBL 4W MD UV 840	View	Download	Download
PBL 4W MD UV 850	View	Download	Download
PBL 4W HI UV 835	View	Download	Contact Factory
PBL 4W HI UV 840	View	Download	Download
PBL 4W HI UV 850	View	Download	Download
PBL 4W VH UV 835	View	Download	Contact Factory
PBL 4W VH UV 840	View	Download	Download
PBL 4W VH UV 850	View	Download	Download
PBL 2 LW HE UV 835	View	Download	Contact Factory
PBL 2 LW HE UV 840	View	Download	Contact Factory
PBL 2 LW HE UV 850	View	Download	Contact Factory
PBL 2 MD HE UV 835	View	Download	Contact Factory
PBL 2 MD HE UV 840	View	Download	Contact Factory
PBL 2 MD HE UV 850	View	Download	Contact Factory
PBL 2W MH HE UV 835		Download	Contact Factory
PBL 2W MH HE UV 840		Download	Contact Factory
PBL 2W MH HE UV 850		Download	Contact Factory
PBL 2W HI HE UV 835	View	Download	Contact Factory
PBL 2W HI HE UV 840	View	Download	Download
PBL 2W HI HE UV 850	View	Download	Download
PBL 4 SL HE UV 835	View	Download	Contact Factory
PBL 4 SL HE UV 840	View	Download	Contact Factory
PBL 4 SL HE UV 850	View	Download	Contact Factory
PBL 4 VL HE UV 835	View	Download	Contact Factory
PBL 4 VL HE UV 840	View	Download	Contact Factory
PBL 4 VL HE UV 850	View	Download	Contact Factory
PBL 4 LW HE UV 835	View	Download	Contact Factory
PBL 4 LW HE UV 840	View	Download	Contact Factory
PBL 4 LW HE UV 850	View	Download	Contact Factory
PBL 4 MD HE UV 835	View	Download	Contact Factory
PBL 4 MD HE UV 840	View	Download	Contact Factory
PBL 4 MD HE UV 850	View	Download	Contact Factory
PBL 4 HI HE UV 835	View	Download	Contact Factory
PBL 4 HI HE UV 840	View	Download	Contact Factory
PBL 4 HI HE UV 850	View	Download	Contact Factory
PBL 4W LW HE UV 835	View	Download	Contact Factory
PBL 4W LW HE UV 840	View	Download	Download
PBL 4W LW HE UV 850	View	Download	Download
PBL 4W MD HE UV 835	View	Download	Contact Factory
PBL 4W MD HE UV 840	View	Download	Download
PBL 4W MD HE UV 850	View	Download	Download
PBL 4W HI HE UV 835	View	Download	Contact Factory
PBL 4W HI HE UV 840	View	Download	Download
PBL 4W HI HE UV 850	View	Download	Download

Download the Room Estimator to get an idea how many luminaires you need for your space. Fill out the criteria under "Area" and select the model you're looking for. Based on the desired light level selected, the Estimator will calculate the number of luminaires required.

Note: This is an estimate only. Actual results may vary depending on field conditions. LumenFocus makes no warranties as to the performance predicted by the calculations. Please contact your LumenFocus representative for a more detailed photometric analysis.

Up to 68,000+ lumens!

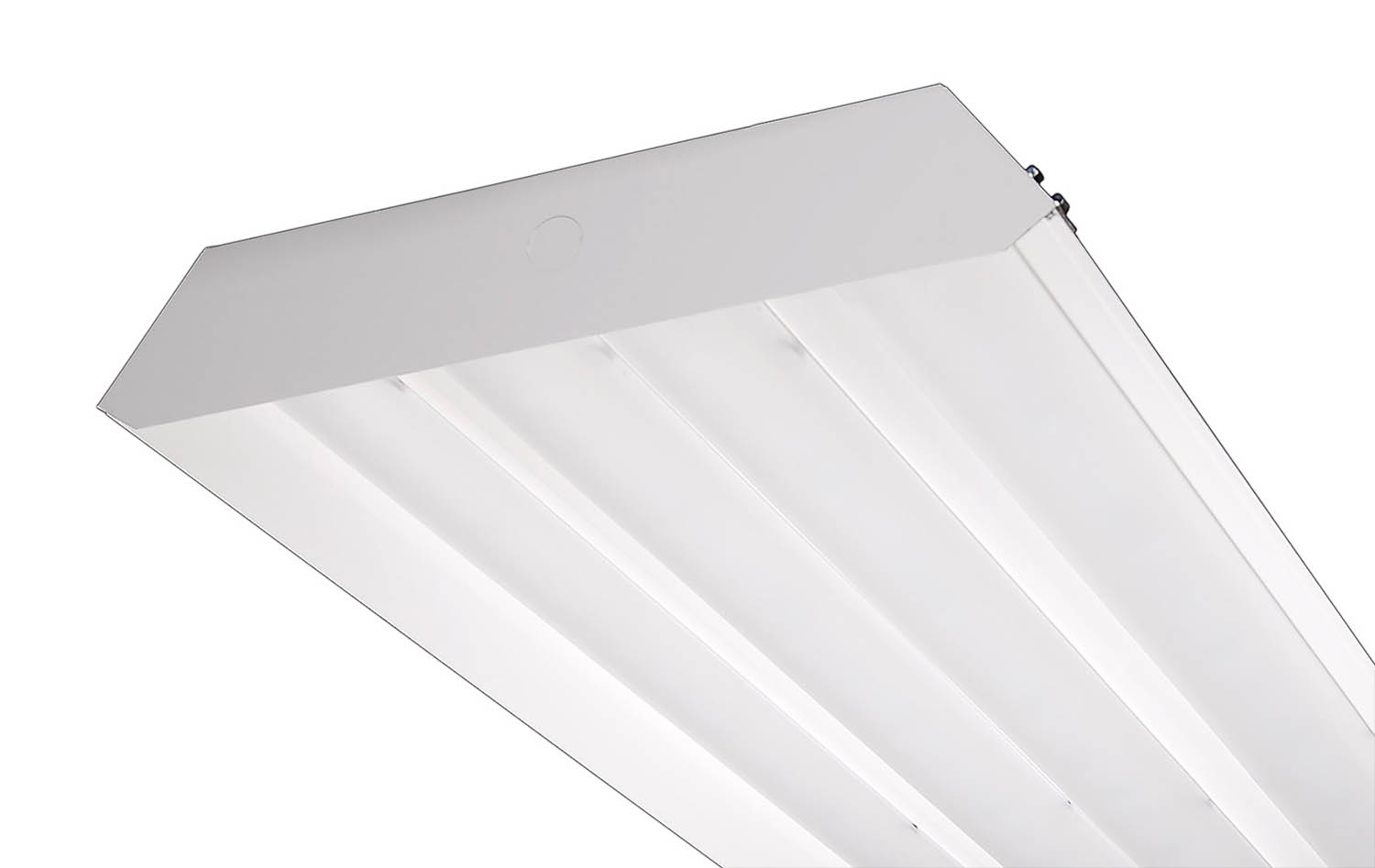

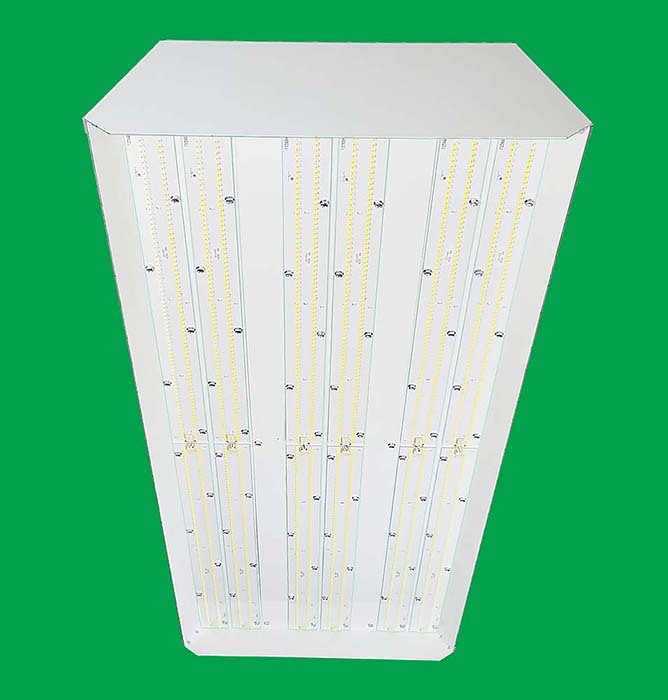

Our new PBL 4W "SH" ("Super High)" luminaire is our most powerful high bay, and one of our most efficient models - with efficacies up to 175.2 lumens per watt!

The SH produces about 64,345 - 68,267 lumens, depending on the CCT selected. The 4000K option is DLC Premium listed.

The SH has an L90 lifetime of 54,000 hours, and an L70 of up to 189,000 hours - so it will provide high efficacy illumination for a long time to come. Note: The "SH" requires an upgrade to the unibody, heavy duty version of the PBL, the PBL HD. Click here to learn more about the PBL HD.

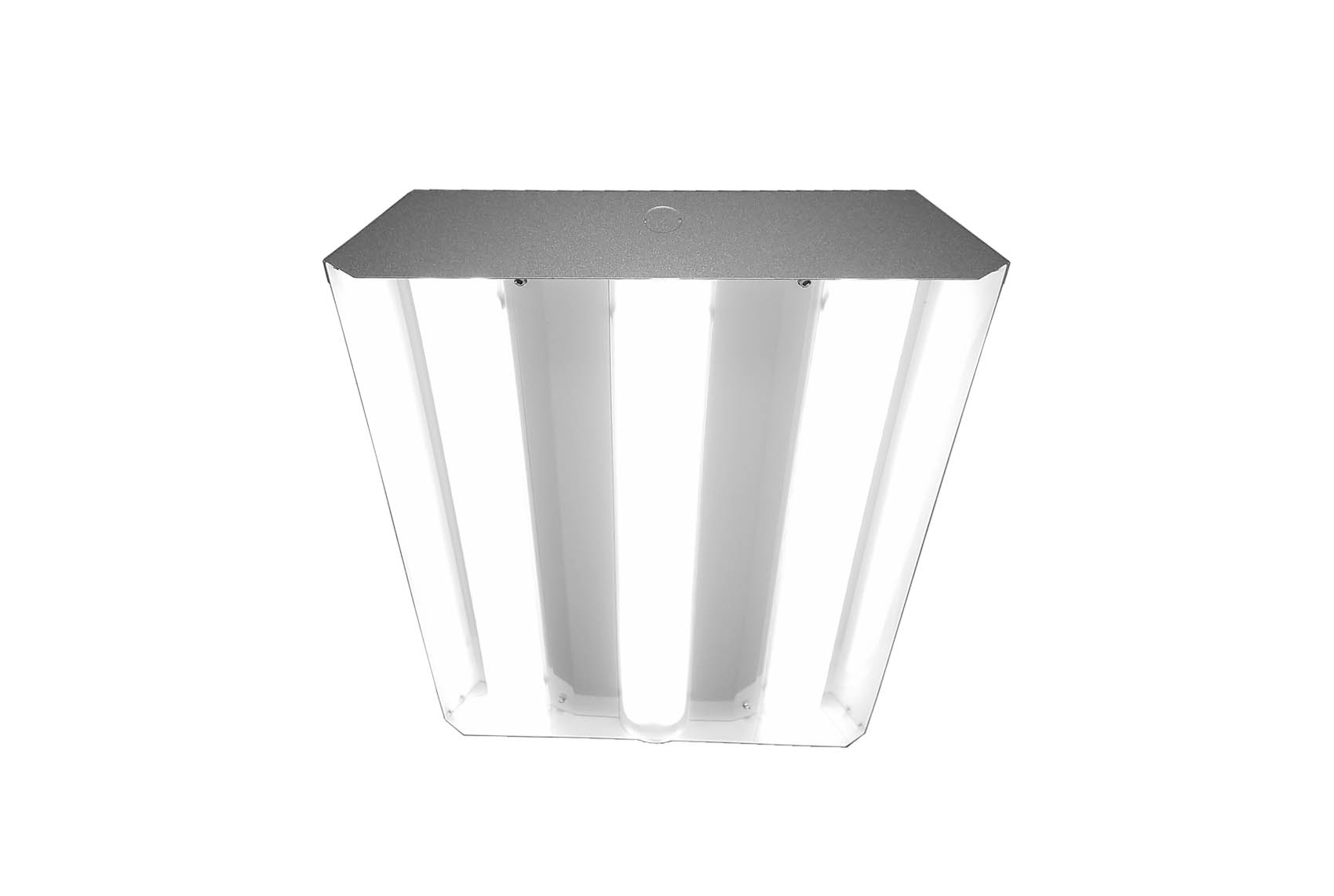

If you need a high quality high bay, we have a PBL for you. With a wide range of sizes and lumen packages to choose from, we can make sure you get the exact light level you need. We offer a wide range of mounting, controls, and other options.

68,000+ lumens!

Our new PBL 4W "SH" ("Super High)" luminaire is our most powerful high bay, and one of our most efficient models - with efficacies up to 175.2 lumens per watt!

The SH produces about 64,345 - 68,267 lumens, depending on the CCT selected. The 4000K option is DLC Premium listed.

The SH has an L90 lifetime of 54,000 hours, and an L70 of up to 189,000 hours - so it will provide high efficacy illumination for a long time to come.

Variety, versatility

All the control you need

Maximize the savings potential of your PBL with one of our many control options. The Wattstopper FSP sensor equips your PBL with multi-level control based on motion and/or daylight contribution. Rated for both wet and cold locations, every FSP comes pre-installed and pre-wired on the end cap. Three different lenses are available, tailored for the ideal detection area and mounting height. All parameters can be adjusted from the floor via a wireless configuration tool (the FSIR-100 – sold separately). The Bluetooth-enabled FSP-321B, also available for the PBL, is adjustable via iOS or Android app.

The PBL is also available with an optional on/off occupancy sensor (option "ZOS"). With the Leviton OSFHU-ITW (or an equivalent), each individual PBL can be controlled based on occupancy in its detection zone.

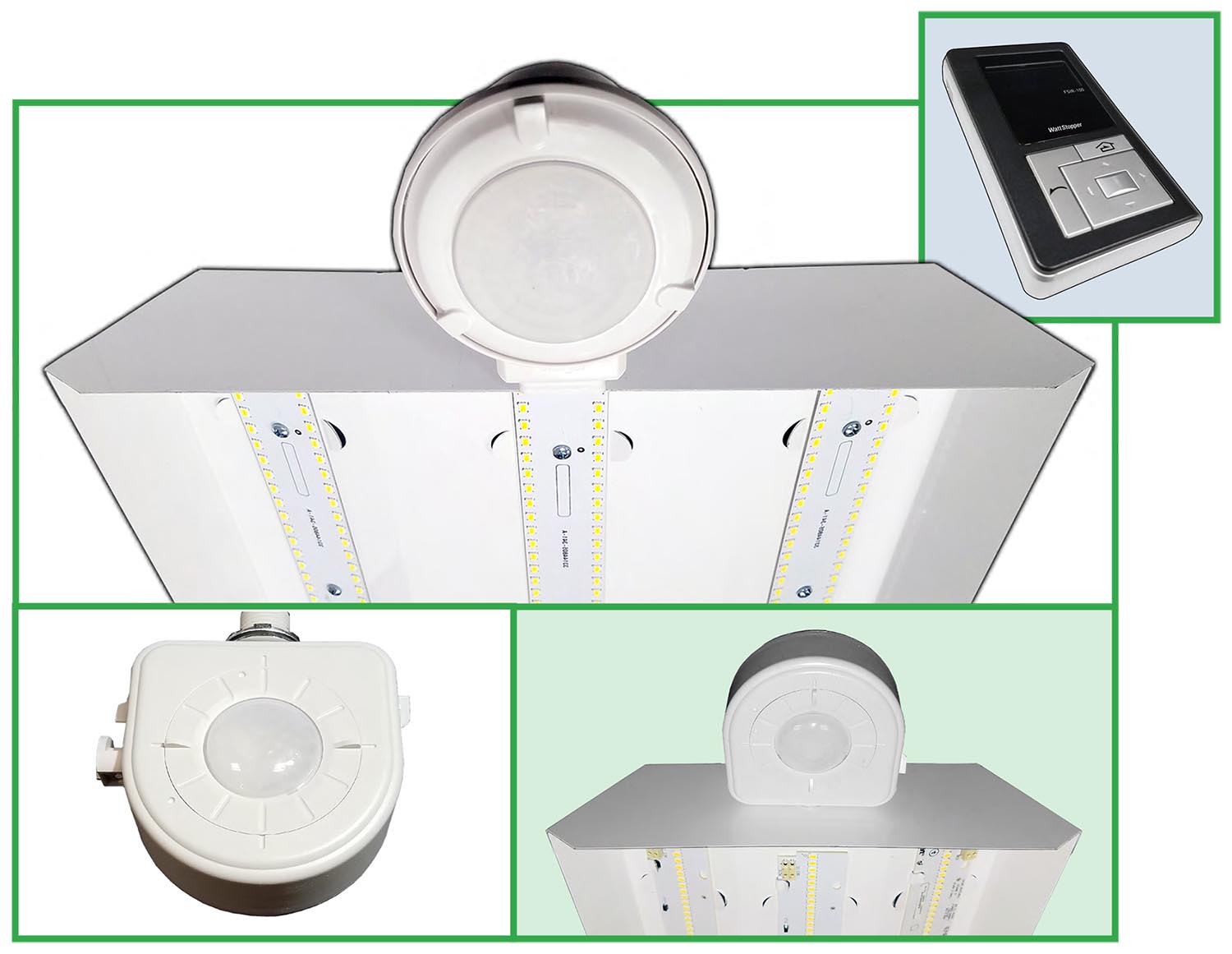

Above: The Wattstopper FSP sensor with an L7 lens installed on a PBL. Top right: The iOS/Android app interface for the Bluetooth-enabled FSP-321B.

IoT compatibility

We offer more robust network control options and Internet of Things (IoT) compatibility with products from Enlighted and Douglas. Contact us for more info. Also, if there's another control system you're looking for - such as Nedap, Daintree, or another IoT-based system - just contact us. We can incorporate it.

Learn more about Enlighted Controls

Learn more about Douglas Controls
