LED Lay-In
The FFL2R G2 offers an aesthetic, highly efficient LED troffer solution. Part of the FormFocus product line, the FFL2R G2 features two rows of high efficacy LED boards with a CRI over 90! These high efficiency LED arrays are shielded by frosted acrylic diffusers. The FFL2R G2 is available in 2x2 and 2x4, and in a wide array of lumen outputs for maximum flexibility. The housing features a highly reflective white enamel finish. The low profile and lightweight housing allows for easy installation. The FFL2R G2 is available with an optional occupancy/daylight sensor. All LED boards and drivers are field replaceable. Click here to view the high output version of the FFL2R G2, the FFL2R G2 HO. Surface-mounting and frame-in kits are optional. Every FFL2R G2 is made in the USA - in our Henderson, NC facility, utilizing mostly domestic and some foreign components.
Click to download (.pdf):
FormFocus FFL2R and FFL2R HO G2 Sell SheetÂ
FormFocus FFL2R and FFL2R HO G2 Sell SheetÂ

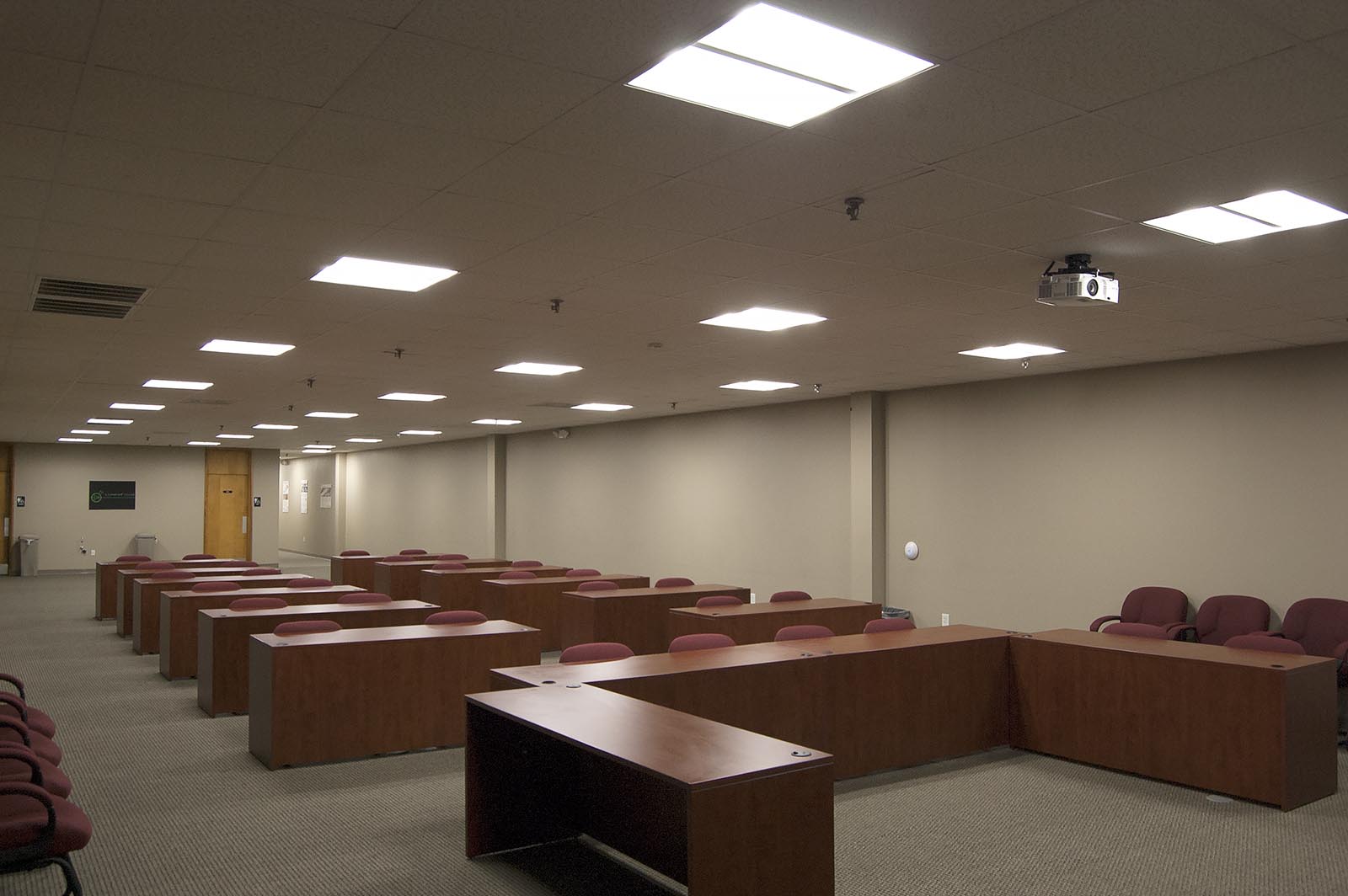

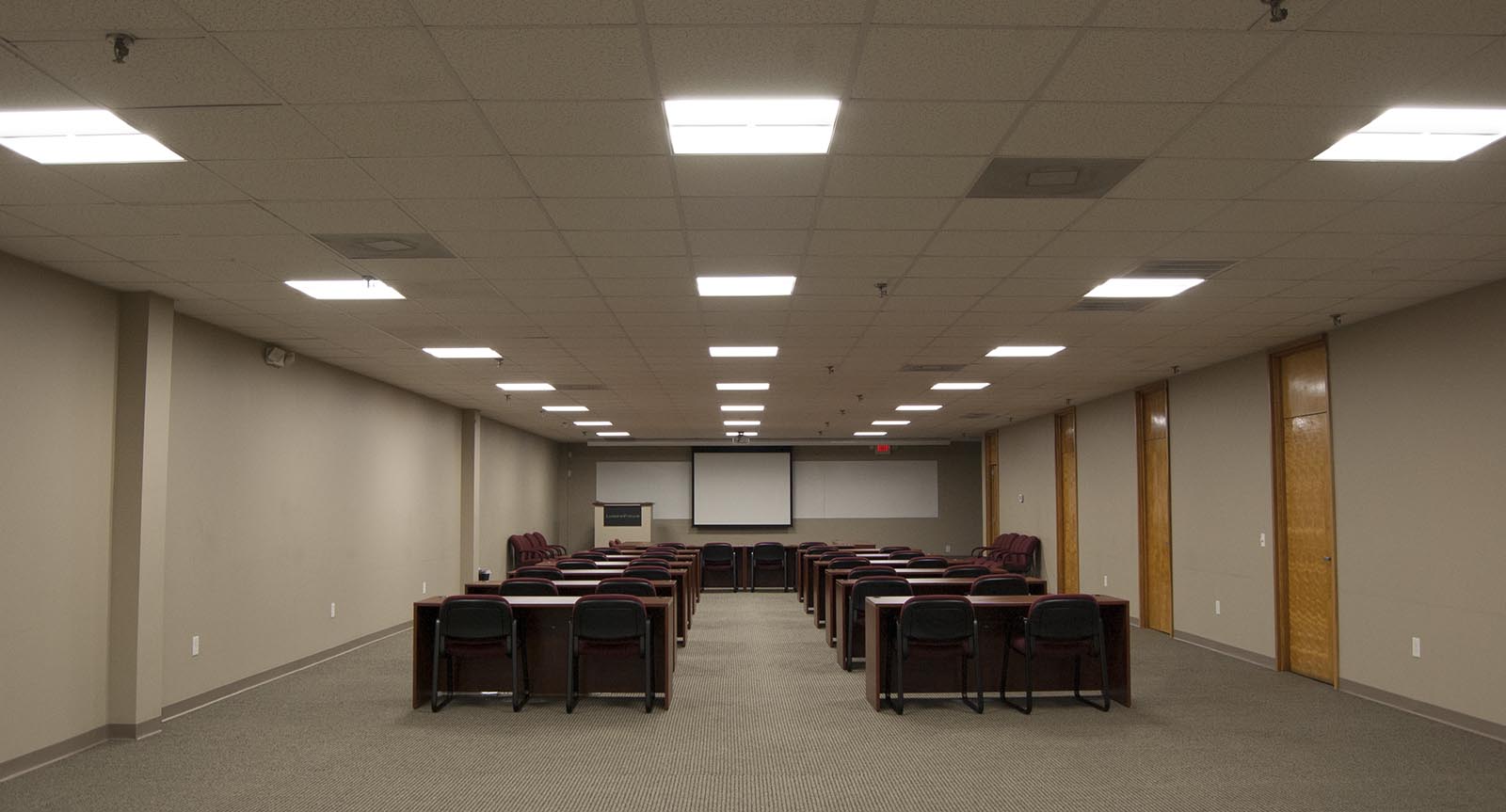

- Applications:Â Suitable for most commercial and institutional applications - office, retail, classrooms, healthcare facilities
- Lumen Output: From 1,855 lm to almost 9,000 lm
- Max Lumens Per Watt: Just over 152

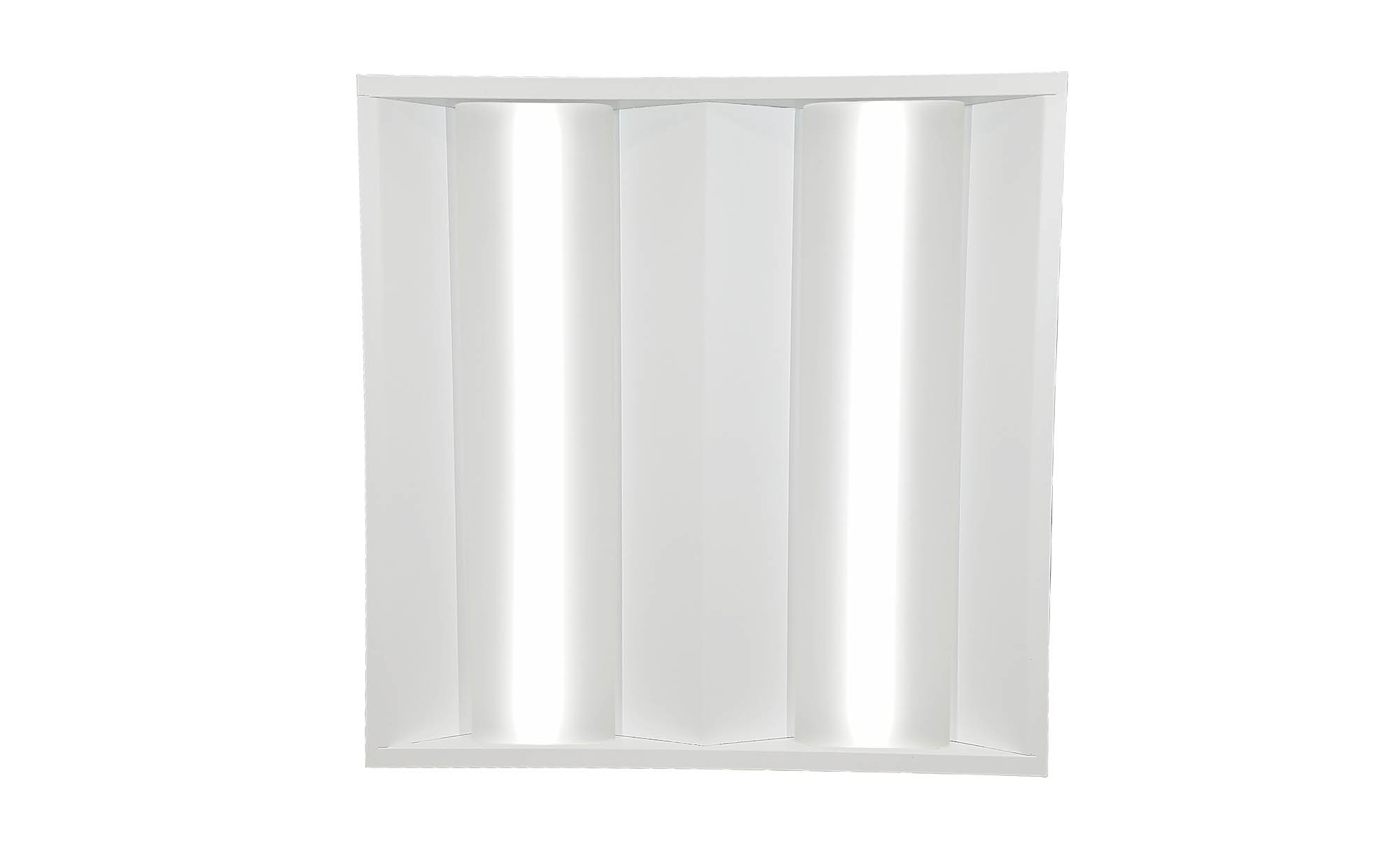

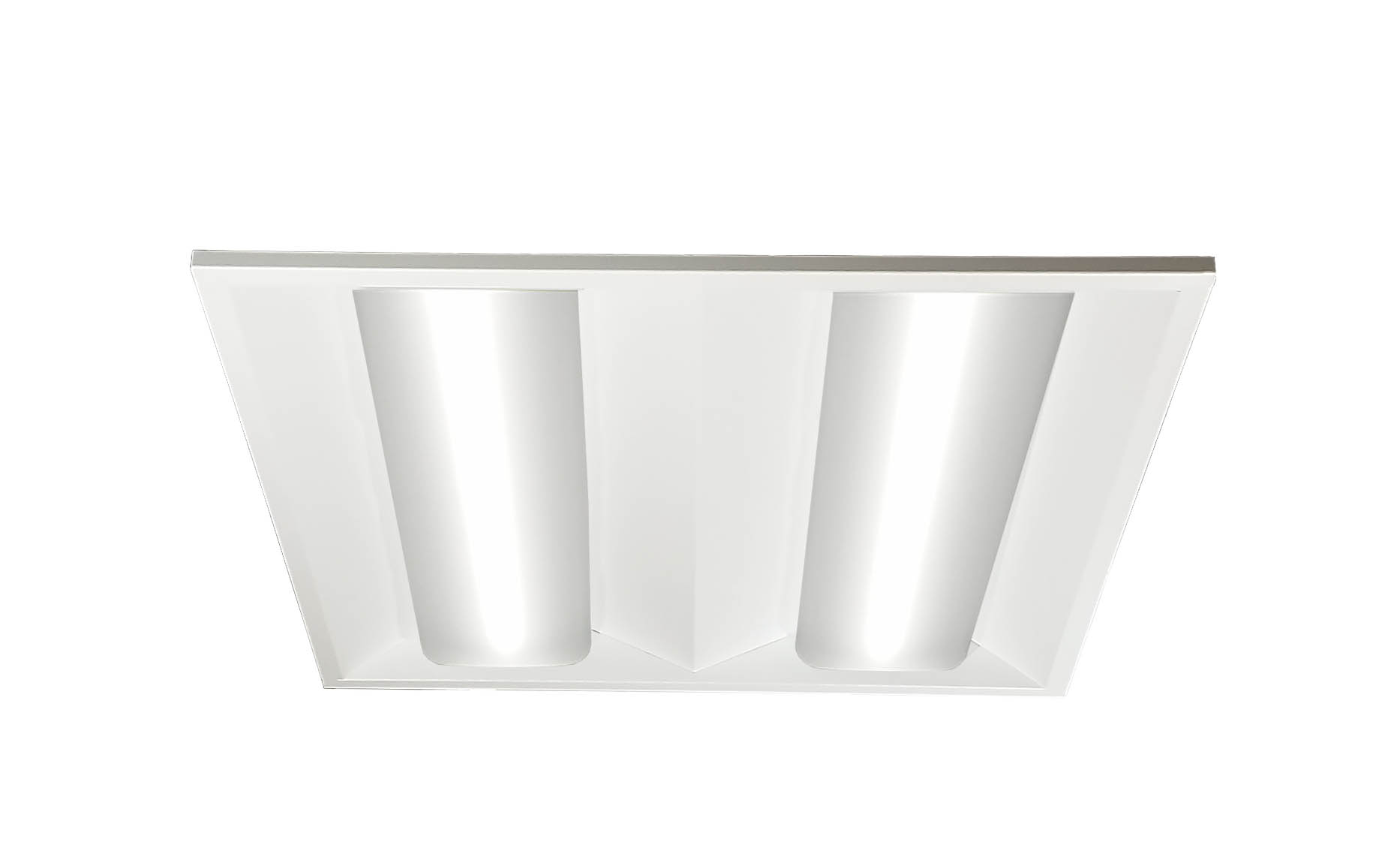

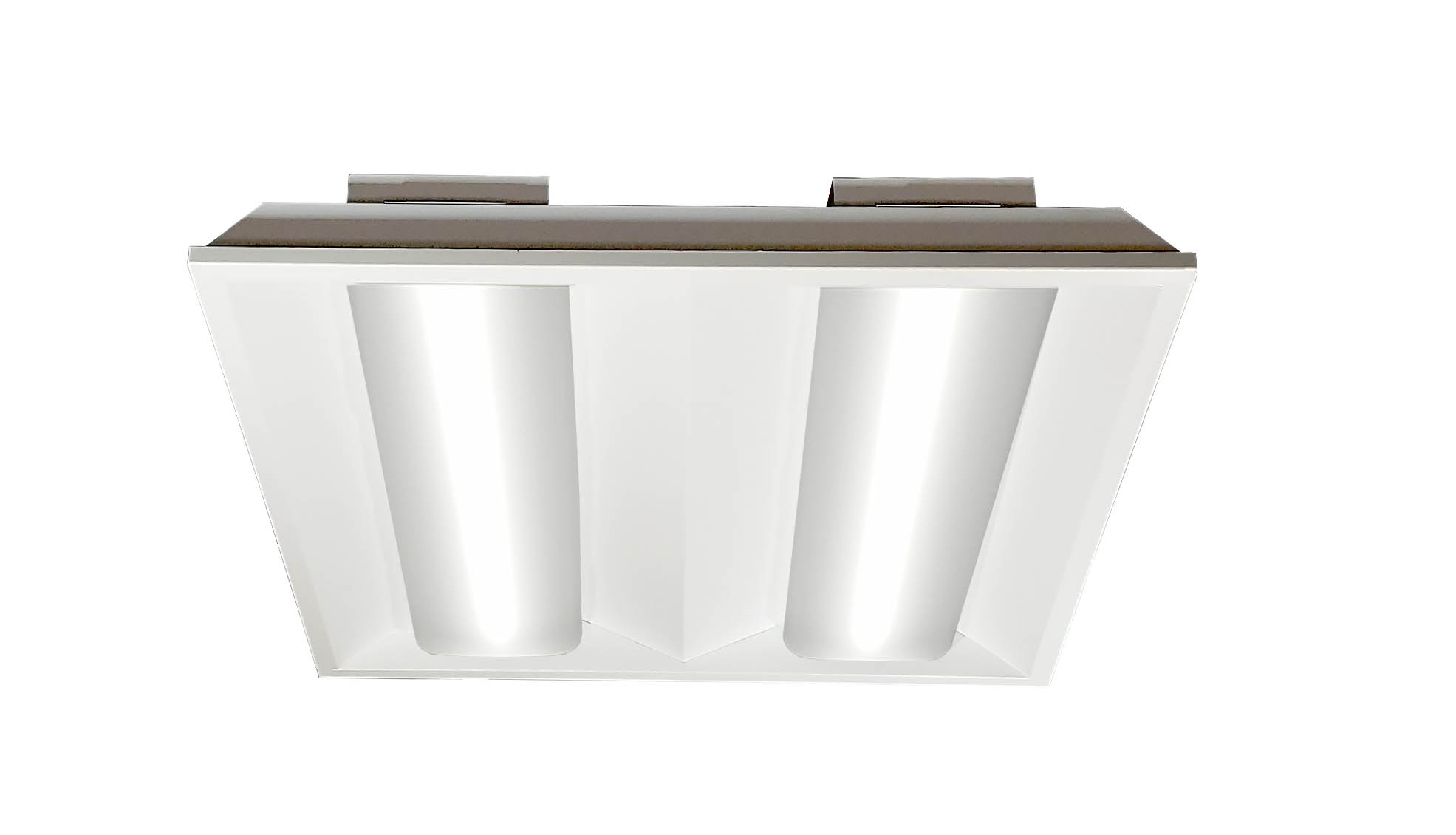

- Size Options:Â 2x2, 2x4
- Predicted L70 Lifetime: 142,000 hours (2x4); 131,000 hours (2x2)
- Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
- Re-BoardABILITY: Every FFL2R G2 is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
- Certifications:Â UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations
- Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

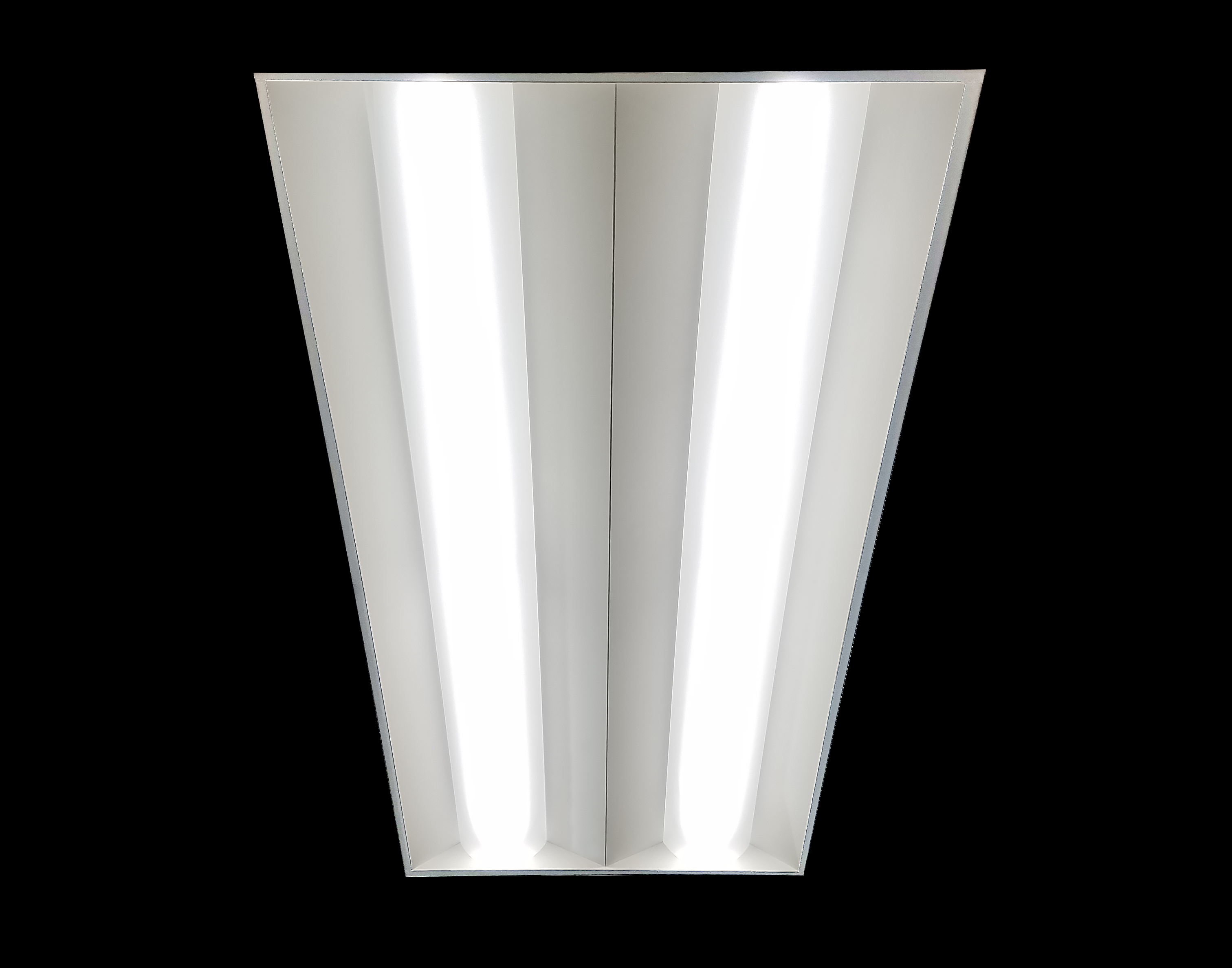

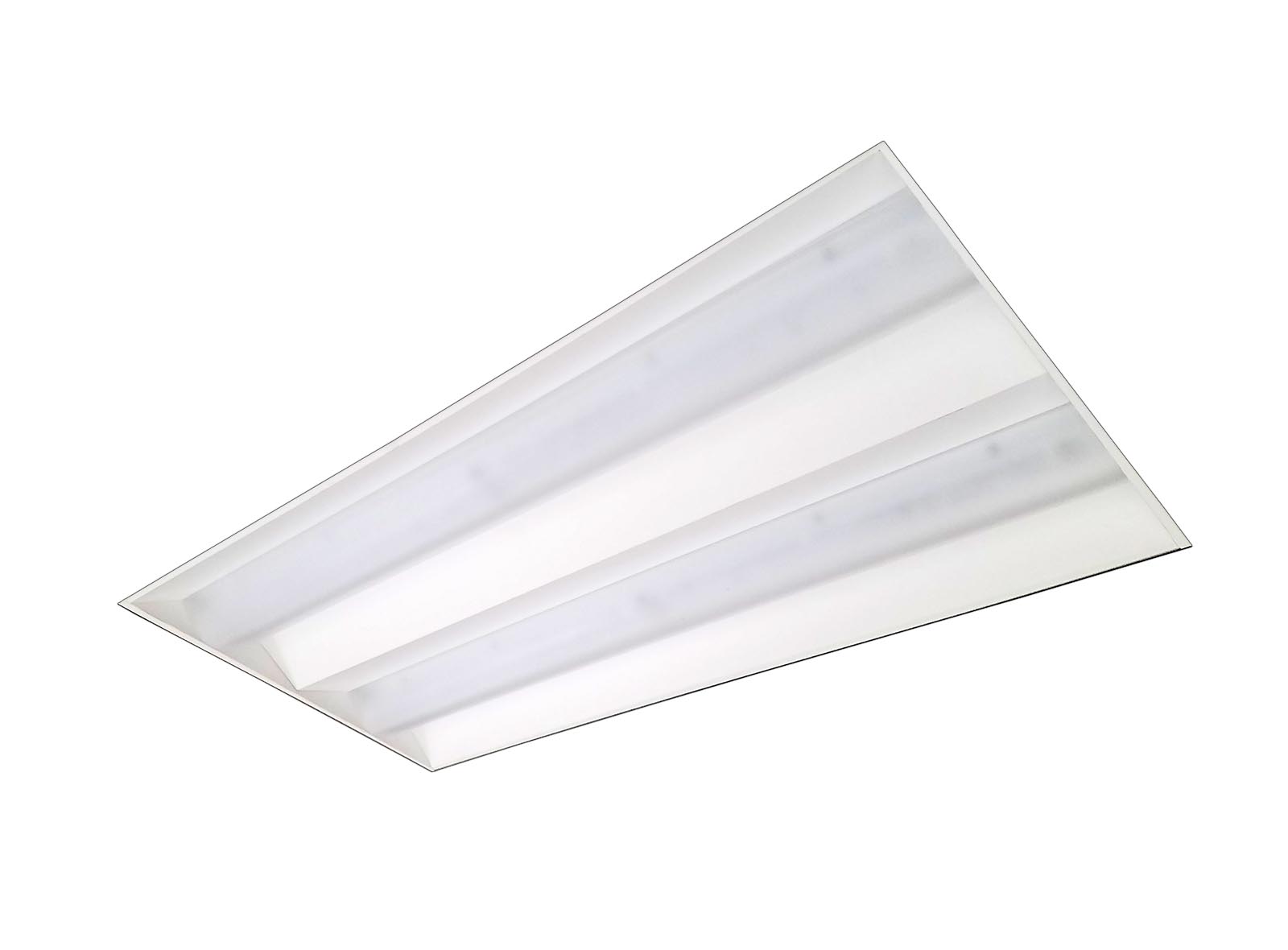

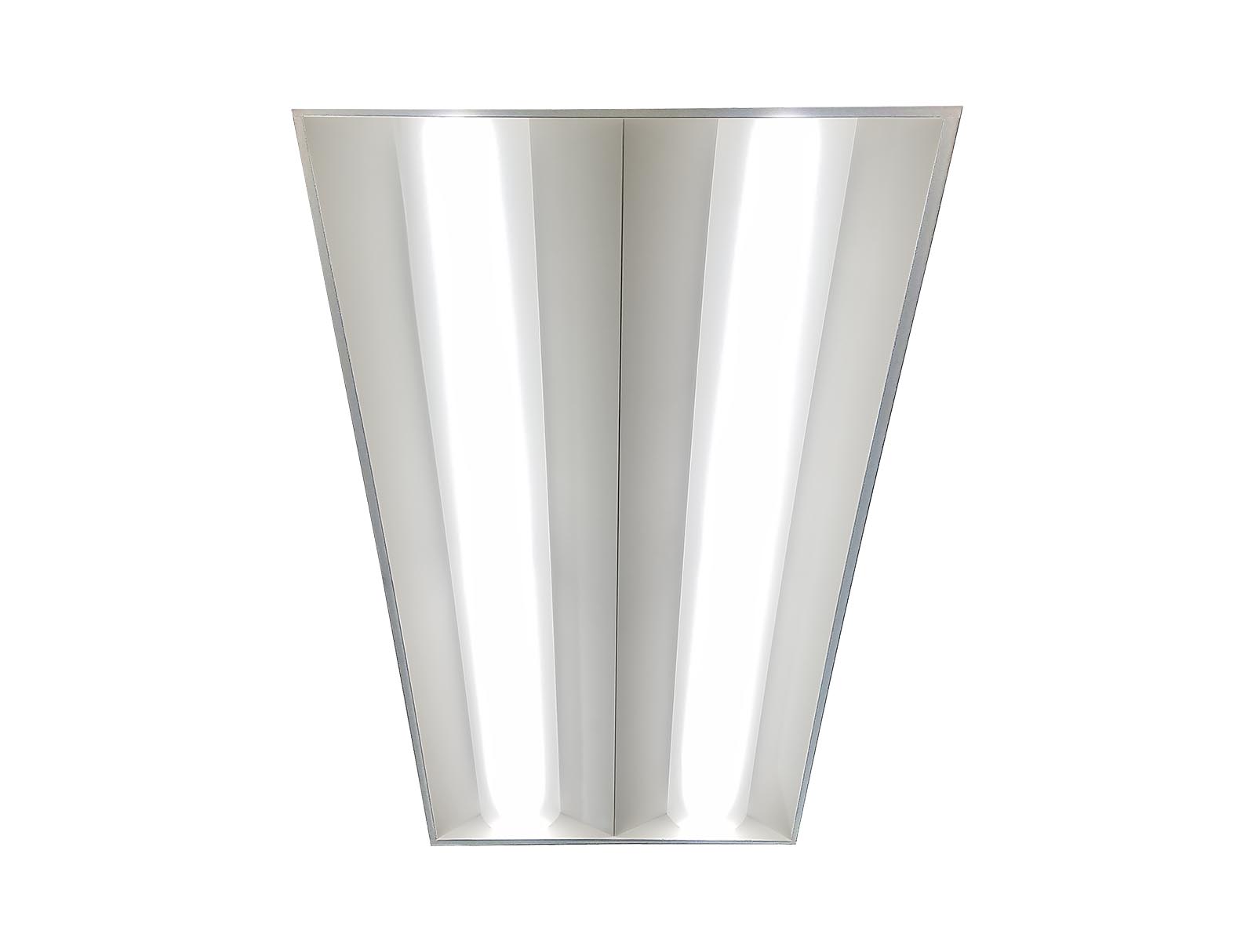

FFL2R G2 2x4
Note: Table scrolls horizontally
| Size | Lumens | Watts | LPW | CRI / Color Temp | Voltages Available | DLC Listed | Predicted L70 Lifetime | |
|---|---|---|---|---|---|---|---|---|
| FFL 2R G2 24 SL UV FA 930 | 2x4 | 2851.4 | 20.2 | 141.3 | 90 CRI / 3000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 SL UV FA 935 | 2x4 | 2863.4 | 20.2 | 141.9 | 90 CRI / 3500K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 SL UV FA 940 | 2x4 | 2931.4 | 20.2 | 145.3 | 90 CRI / 4000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 SL UV FA 950 | 2x4 | 2931.4 | 20.2 | 145.3 | 90 CRI / 5000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 VL UV FA 930 | 2x4 | 3667.4 | 25.2 | 145.3 | 90 CRI / 3000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 VL UV FA 935 | 2x4 | 3682.8 | 25.2 | 145.9 | 90 CRI / 3500K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 VL UV FA 940 | 2x4 | 3770.3 | 25.2 | 149.4 | 90 CRI / 4000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 VL UV FA 950 | 2x4 | 3770.3 | 25.2 | 149.4 | 90 CRI / 5000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 LW UV FA 930 | 2x4 | 4113.4 | 28.2 | 145.9 | 90 CRI / 3000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 LW UV FA 935 | 2x4 | 4130.7 | 28.2 | 146.5 | 90 CRI / 3500K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 LW UV FA 940 | 2x4 | 4228.8 | 28.2 | 150 | 90 CRI / 4000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 LW UV FA 950 | 2x4 | 4228.8 | 28.2 | 150 | 90 CRI / 5000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 ML UV FA 930 | 2x4 | 4857.1 | 32.8 | 147.9 | 90 CRI / 3000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 ML UV FA 935 | 2x4 | 4877.6 | 32.8 | 148.6 | 90 CRI / 3500K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 ML UV FA 940 | 2x4 | 4993.4 | 32.8 | 152.1 | 90 CRI / 4000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 ML UV FA 950 | 2x4 | 4993.4 | 32.8 | 152.1 | 90 CRI / 5000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 MD UV FA 930 | 2x4 | 5748.5 | 39.1 | 147.1 | 90 CRI / 3000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 MD UV FA 935 | 2x4 | 5772 | 39.1 | 147.7 | 90 CRI / 3500K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 MD UV FA 940 | 2x4 | 5909.9 | 59.1 | 151.2 | 90 CRI / 4000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 MD UV FA 950 | 2x4 | 5909.9 | 59.1 | 151.2 | 90 CRI / 5000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 HI UV FA 930 | 2x4 | 6784 | 46 | 147.6 | 90 CRI / 3000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 HI UV FA 935 | 2x4 | 6812.6 | 46 | 148.2 | 90 CRI / 3500K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 HI UV FA 940 | 2x4 | 6974.4 | 46 | 151.7 | 90 CRI / 4000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 HI UV FA 950 | 2x4 | 6974.4 | 46 | 151.7 | 90 CRI / 5000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 VH UV FA 930 | 2x4 | 7810.8 | 52.9 | 147.7 | 90 CRI / 3000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 VH UV FA 935 | 2x4 | 7843.7 | 52.9 | 148.4 | 90 CRI / 3500K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 VH UV FA 940 | 2x4 | 8030 | 52.9 | 151.9 | 90 CRI / 4000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 VH UV FA 950 | 2x4 | 8030 | 52.9 | 151.9 | 90 CRI / 5000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 SH UV FA 930 | 2x4 | 8753.2 | 59.8 | 146.4 | 90 CRI / 3000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 SH UV FA 935 | 2x4 | 8790.1 | 59.8 | 147 | 90 CRI / 3500K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 SH UV FA 940 | 2x4 | 8998.9 | 59.8 | 150.5 | 90 CRI / 4000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 24 SH UV FA 950 | 2x4 | 8998.9 | 59.8 | 150.5 | 90 CRI / 5000K | 120-277V, 347V | Yes | 142,000 hours |
| FFL 2R G2 22 SL UV FA 930 | 2x2 | 1855.9 | 14.1 | 131.4 | 90 CRI / 3000K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 SL UV FA 935 | 2x2 | 1863.8 | 14.1 | 132 | 90 CRI / 3500K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 SL UV FA 940 | 2x2 | 1908 | 14.1 | 135.1 | 90 CRI / 4000K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 SL UV FA 950 | 2x2 | 1908 | 14.1 | 135.1 | 90 CRI / 5000K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 VL UV FA 930 | 2x2 | 2868 | 21 | 136.8 | 90 CRI / 3000K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 VL UV FA 935 | 2x2 | 2880.1 | 21 | 137.4 | 90 CRI / 3500K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 VL UV FA 940 | 2x2 | 2948.5 | 21 | 140.6 | 90 CRI / 4000K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 VL UV FA 950 | 2x2 | 2948.5 | 21 | 140.6 | 90 CRI / 5000K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 LW UV FA 930 | 2x2 | 3869.7 | 27.9 | 138.8 | 90 CRI / 3000K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 LW UV FA 935 | 2x2 | 3886 | 27.9 | 139.4 | 90 CRI / 3500K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 LW UV FA 940 | 2x2 | 3978.3 | 27.9 | 142.7 | 90 CRI / 4000K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 LW UV FA 950 | 2x2 | 3978.3 | 27.9 | 142.7 | 90 CRI / 5000K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 MD UV FA 930 | 2x2 | 4708.8 | 33.7 | 139.6 | 90 CRI / 3000K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 MD UV FA 935 | 2x2 | 4728.6 | 33.7 | 140.2 | 90 CRI / 3500K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 MD UV FA 940 | 2x2 | 4840.9 | 33.7 | 143.6 | 90 CRI / 4000K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 MD UV FA 950 | 2x2 | 4840.9 | 33.7 | 143.6 | 90 CRI / 5000K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 HI UV FA 930 | 2x2 | 5782 | 42.5 | 136 | 90 CRI / 3000K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 HI UV FA 935 | 2x2 | 5806.3 | 42.5 | 136.6 | 90 CRI / 3500K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 HI UV FA 940 | 2x2 | 5944.2 | 42.5 | 143.6 | 90 CRI / 4000K | 120-277V, 347V | Yes | 131,000 hours |
| FFL 2R G2 22 HI UV FA 950 | 2x2 | 5944.2 | 42.5 | 143.6 | 90 CRI / 5000K | 120-277V, 347V | Yes | 131,000 hours |
| Equivalency* | |
|---|---|
| FFL 2R G2 24 SL UV FA 930 | 2L F40 T12 |
| FFL 2R G2 24 SL UV FA 935 | 2L F40 T12 |
| FFL 2R G2 24 SL UV FA 940 | 2L F40 T12 |
| FFL 2R G2 24 SL UV FA 950 | 2L F40 T12 |
| FFL 2R G2 24 VL UV FA 930 | 2L F32 T8 ES (28W), NBF |
| FFL 2R G2 24 VL UV FA 935 | 2L F32 T8 ES (28W), NBF |
| FFL 2R G2 24 VL UV FA 940 | 2L F32 T8 ES (28W), NBF |
| FFL 2R G2 24 VL UV FA 950 | 2L F32 T8 ES (28W), NBF |
| FFL 2R G2 24 LW UV FA 930 | 2L F32 T8, NBF |
| FFL 2R G2 24 LW UV FA 935 | 2L F32 T8, NBF |
| FFL 2R G2 24 LW UV FA 940 | 2L F32 T8, NBF |
| FFL 2R G2 24 LW UV FA 950 | 2L F32 T8, NBF |
| FFL 2R G2 24 ML UV FA 930 | 3L F40 T12 |
| FFL 2R G2 24 ML UV FA 935 | 3L F40 T12 |
| FFL 2R G2 24 ML UV FA 940 | 3L F40 T12 |
| FFL 2R G2 24 ML UV FA 950 | 3L F40 T12 |
| FFL 2R G2 24 MD UV FA 930 | 3L F32 T8, NBF |
| FFL 2R G2 24 MD UV FA 935 | 3L F32 T8, NBF |
| FFL 2R G2 24 MD UV FA 940 | 3L F32 T8, NBF |
| FFL 2R G2 24 MD UV FA 950 | 3L F32 T8, NBF |
| FFL 2R G2 24 HI UV FA 930 | 4L F40 T12 |
| FFL 2R G2 24 HI UV FA 935 | 4L F40 T12 |
| FFL 2R G2 24 HI UV FA 940 | 4L F40 T12 |
| FFL 2R G2 24 HI UV FA 950 | 4L F40 T12 |
| FFL 2R G2 24 VH UV FA 930 | 4L F32 T8, NBF |
| FFL 2R G2 24 VH UV FA 935 | 4L F32 T8, NBF |
| FFL 2R G2 24 VH UV FA 940 | 4L F32 T8, NBF |
| FFL 2R G2 24 VH UV FA 950 | 4L F32 T8, NBF |
| FFL 2R G2 24 SH UV FA 930 | 5L F32 T8, NBF |
| FFL 2R G2 24 SH UV FA 935 | 5L F32 T8, NBF |
| FFL 2R G2 24 SH UV FA 940 | 5L F32 T8, NBF |
| FFL 2R G2 24 SH UV FA 950 | 5L F32 T8, NBF |
| FFL 2R G2 22 SL UV FA 930 | 2L F17 T8, NBF / 1L FB32 T8, NBF |
| FFL 2R G2 22 SL UV FA 935 | 2L F17 T8, NBF / 1L FB32 T8, NBF |
| FFL 2R G2 22 SL UV FA 940 | 2L F17 T8, NBF / 1L FB32 T8, NBF |
| FFL 2R G2 22 SL UV FA 950 | 2L F17 T8, NBF / 1L FB32 T8, NBF |
| FFL 2R G2 22 VL UV FA 930 | 3L F17 T8, NBF |
| FFL 2R G2 22 VL UV FA 935 | 3L F17 T8, NBF |
| FFL 2R G2 22 VL UV FA 940 | 3L F17 T8, NBF |
| FFL 2R G2 22 VL UV FA 950 | 3L F17 T8, NBF |
| FFL 2R G2 22 LW UV FA 930 | 4L F17 T8, NBF / 2L FB32 T8, NBF |
| FFL 2R G2 22 LW UV FA 935 | 4L F17 T8, NBF / 2L FB32 T8, NBF |
| FFL 2R G2 22 LW UV FA 940 | 4L F17 T8, NBF / 2L FB32 T8, NBF |
| FFL 2R G2 22 LW UV FA 950 | 4L F17 T8, NBF / 2L FB32 T8, NBF |
| FFL 2R G2 22 HI UV FA 930 | 3L FB31 T8, NBF |
| FFL 2R G2 22 HI UV FA 935 | 3L FB31 T8, NBF |
| FFL 2R G2 22 HI UV FA 940 | 3L FB31 T8, NBF |
| FFL 2R G2 22 HI UV FA 950 | 3L FB31 T8, NBF |
| Image | Spec Sheet | .ies & .pdf files | |
|---|---|---|---|
| FFL 2R G2 24 SL UV FA 930 | View | Download | Download |
| FFL 2R G2 24 SL UV FA 935 | View | Download | Download |
| FFL 2R G2 24 SL UV FA 940 | View | Download | Download |
| FFL 2R G2 24 SL UV FA 950 | View | Download | Download |
| FFL 2R G2 24 VL UV FA 930 | View | Download | Download |
| FFL 2R G2 24 VL UV FA 935 | View | Download | Download |
| FFL 2R G2 24 VL UV FA 940 | View | Download | Download |
| FFL 2R G2 24 VL UV FA 950 | View | Download | Download |
| FFL 2R G2 24 LW UV FA 930 | View | Download | Download |
| FFL 2R G2 24 LW UV FA 935 | View | Download | Download |
| FFL 2R G2 24 LW UV FA 940 | View | Download | Download |
| FFL 2R G2 24 LW UV FA 950 | View | Download | Download |
| FFL 2R G2 24 ML UV FA 930 | View | Download | Download |
| FFL 2R G2 24 ML UV FA 935 | View | Download | Download |
| FFL 2R G2 24 ML UV FA 940 | View | Download | Download |
| FFL 2R G2 24 ML UV FA 950 | View | Download | Download |
| FFL 2R G2 24 MD UV FA 930 | View | Download | Download |
| FFL 2R G2 24 MD UV FA 935 | View | Download | Download |
| FFL 2R G2 24 MD UV FA 940 | View | Download | Download |
| FFL 2R G2 24 MD UV FA 950 | View | Download | Download |
| FFL 2R G2 24 HI UV FA 930 | View | Download | Download |
| FFL 2R G2 24 HI UV FA 935 | View | Download | Download |
| FFL 2R G2 24 HI UV FA 940 | View | Download | Download |
| FFL 2R G2 24 HI UV FA 950 | View | Download | Download |
| FFL 2R G2 24 VH UV FA 930 | View | Download | Download |
| FFL 2R G2 24 VH UV FA 935 | View | Download | Download |
| FFL 2R G2 24 VH UV FA 940 | View | Download | Download |
| FFL 2R G2 24 VH UV FA 950 | View | Download | Download |
| FFL 2R G2 24 SH UV FA 930 | View | Download | Download |
| FFL 2R G2 24 SH UV FA 935 | View | Download | Download |
| FFL 2R G2 24 SH UV FA 940 | View | Download | Download |
| FFL 2R G2 24 SH UV FA 950 | View | Download | Download |
| FFL 2R G2 22 SL UV FA 930 | View | Download | Download |
| FFL 2R G2 22 SL UV FA 935 | View | Download | Download |
| FFL 2R G2 22 SL UV FA 940 | View | Download | Download |
| FFL 2R G2 22 SL UV FA 950 | View | Download | Download |
| FFL 2R G2 22 VL UV FA 930 | View | Download | Download |
| FFL 2R G2 22 VL UV FA 935 | View | Download | Download |
| FFL 2R G2 22 VL UV FA 940 | View | Download | Download |
| FFL 2R G2 22 VL UV FA 950 | View | Download | Download |
| FFL 2R G2 22 LW UV FA 930 | View | Download | Download |
| FFL 2R G2 22 LW UV FA 935 | View | Download | Download |
| FFL 2R G2 22 LW UV FA 940 | View | Download | Download |
| FFL 2R G2 22 LW UV FA 950 | View | Download | Download |
| FFL 2R G2 22 MD UV FA 930 | View | Download | Download |
| FFL 2R G2 22 MD UV FA 935 | View | Download | Download |
| FFL 2R G2 22 MD UV FA 940 | View | Download | Download |
| FFL 2R G2 22 MD UV FA 950 | View | Download | Download |
| FFL 2R G2 22 HI UV FA 930 | View | Download | Download |
| FFL 2R G2 22 HI UV FA 935 | View | Download | Download |
| FFL 2R G2 22 HI UV FA 940 | View | Download | Download |
| FFL 2R G2 22 HI UV FA 950 | View | Download | Download |

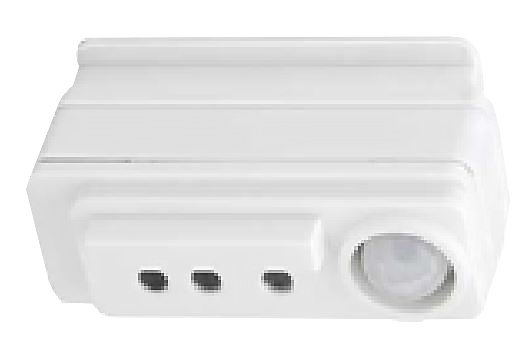

Options and controls
The FFL2R G2 can be purchased with an optional Surfac
e Mount Kit. The SMK is an aesthetically pleasing steel frame with a matte white finish. For controls, the Philips EasySense is a simple and cost effective way to maximize energy savings and address code-compliance strategies. This sensor sits discreetly in the FFL2R G2, and provides occupancy sensing, daylight harvesting and task tuning. View spec sheet for more details, and for more available options.
