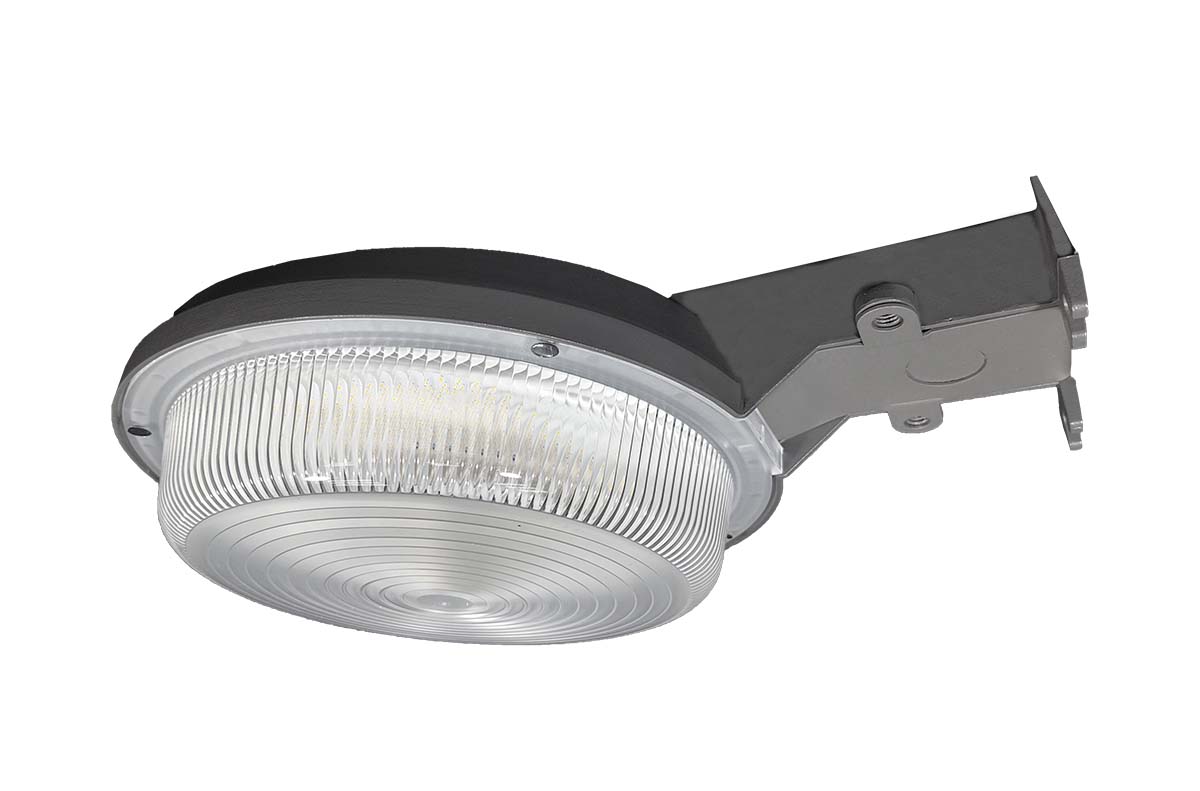

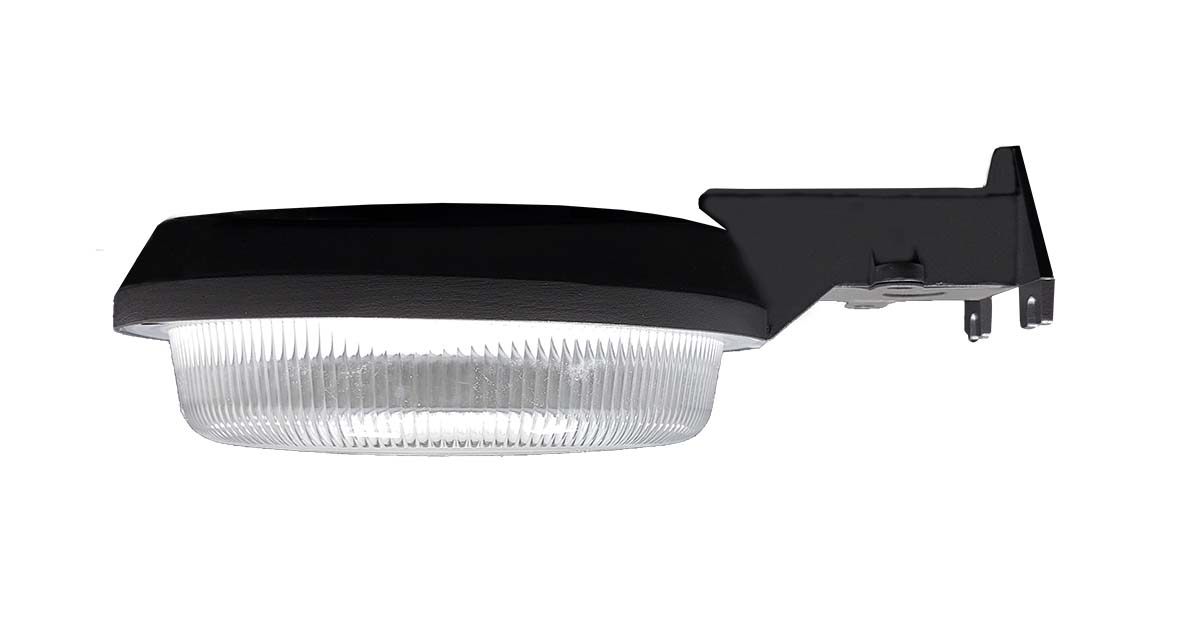

LED Select Dusk To Dawn Area Light

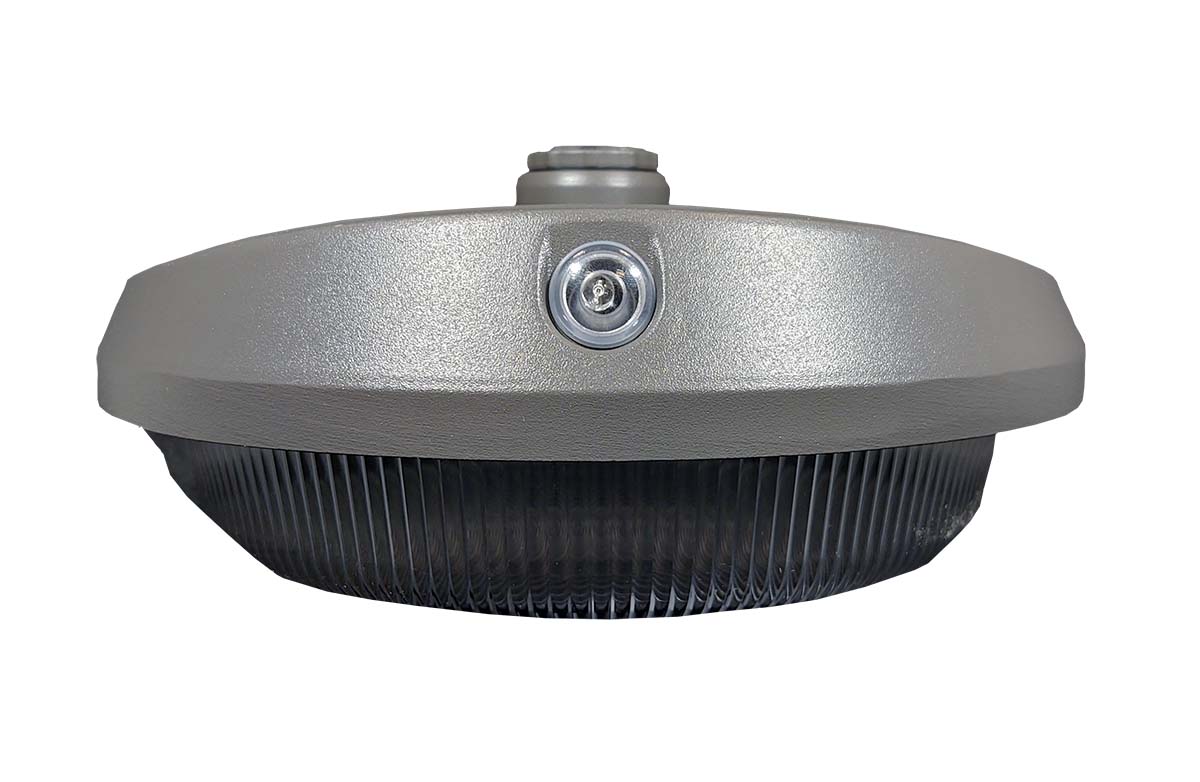

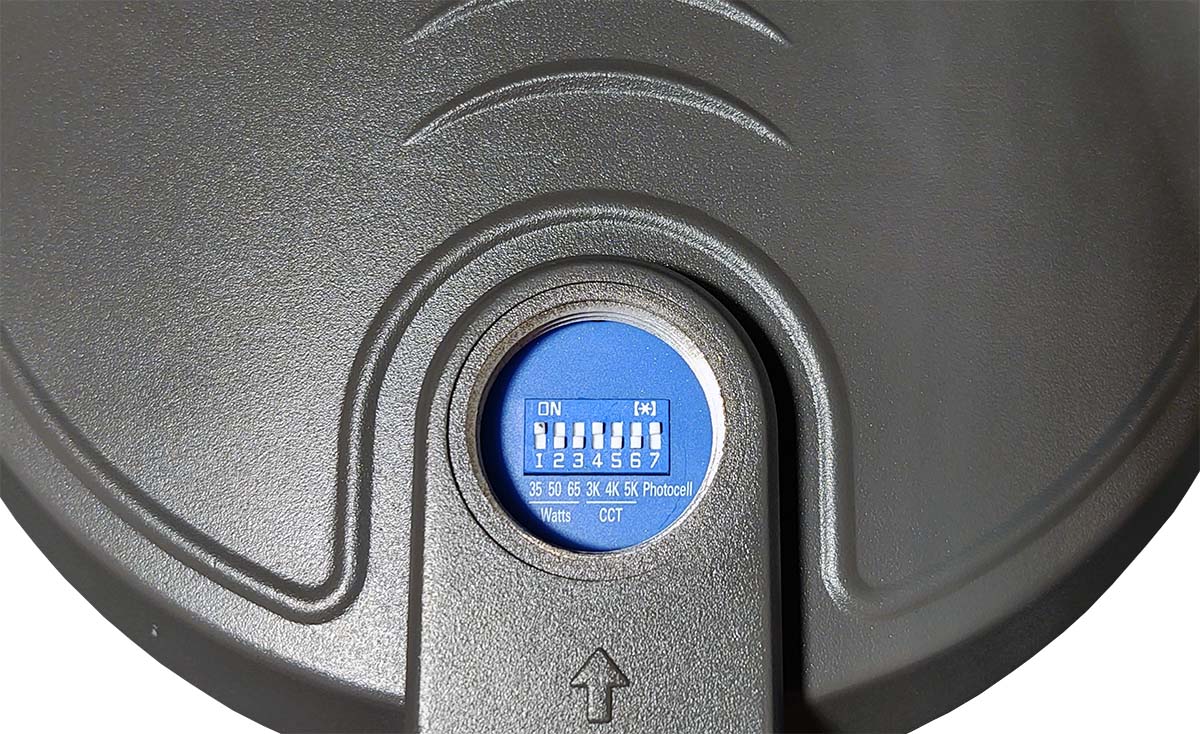

The ADS is an LED dusk to dawn area light with field selectable output and color temperatures. There are three selectable CCTs - 3000K, 4000K and 5000K. It features an integral photocell and Type 5S optics.  There are three selectable wattages - 35W, 50W and 65W. Wattage and CCT are easily adjusted in the field. Simply remove the cap from the top of the fixture to access the dip switches underneath, which adjust wattage, CCT and photocell settings.

Click to download (.pdf):
ADS
Click to view:
ADS
Click to download:
ADS: .ies files | .pdf files

  • Applications: Suitable for most exterior site lighting applications: parking lots, entry ways, loading docks, pathways, building security
  • Lumen Output: 4,375 lumens at 35W; 6,250 at 50W; 8,125 at 65W
  • Max Lumens Per Watt: 125
  • Predicted L70 Lifetime: 50,000 hours
  • Warranty: 5 year limited system warranty
  • Certifications: UL listed for wet locations. IP66 rated, RoHS

PBLU 3

Note: Table scrolls horizontally
Catalog #
Selected OutputLumensWattsLPWBUG RatingOpticVoltages AvailableWarrantyPredicted L70 Lifetime
ADS SEL 5S UV FPC 7SELLow437535125B2-U2-G1Type 5S120-277V5 years50,000 hrs
ADS SEL 5S UV FPC 7SELMedium625050125B2-U2-G1Type 5S120-277V5 years50,000 hrs
ADS SEL 5S UV FPC 7SELHigh812565125B2-U2-G1Type 5S120-277V5 years50,000 hrs
Catalog #
Selected OutputEquivalency*
ADS SEL 5S UV FPC 7SELLow (35W)100W MH
ADS SEL 5S UV FPC 7SELMedium (50W)175W MH
ADS SEL 5S UV FPC 7SELHigh (65W)250W MH
Catalog #
ImageSpec Sheet.ies & .pdf files
ADS SEL 5S UV FPC 7SEL (35W)View Download Download
ADS SEL 5S UV FPC 7SEL (50W)View Download Download
ADS SEL 5S UV FPC 7SEL (65W)View Download Download

Durable, long-lasting construction

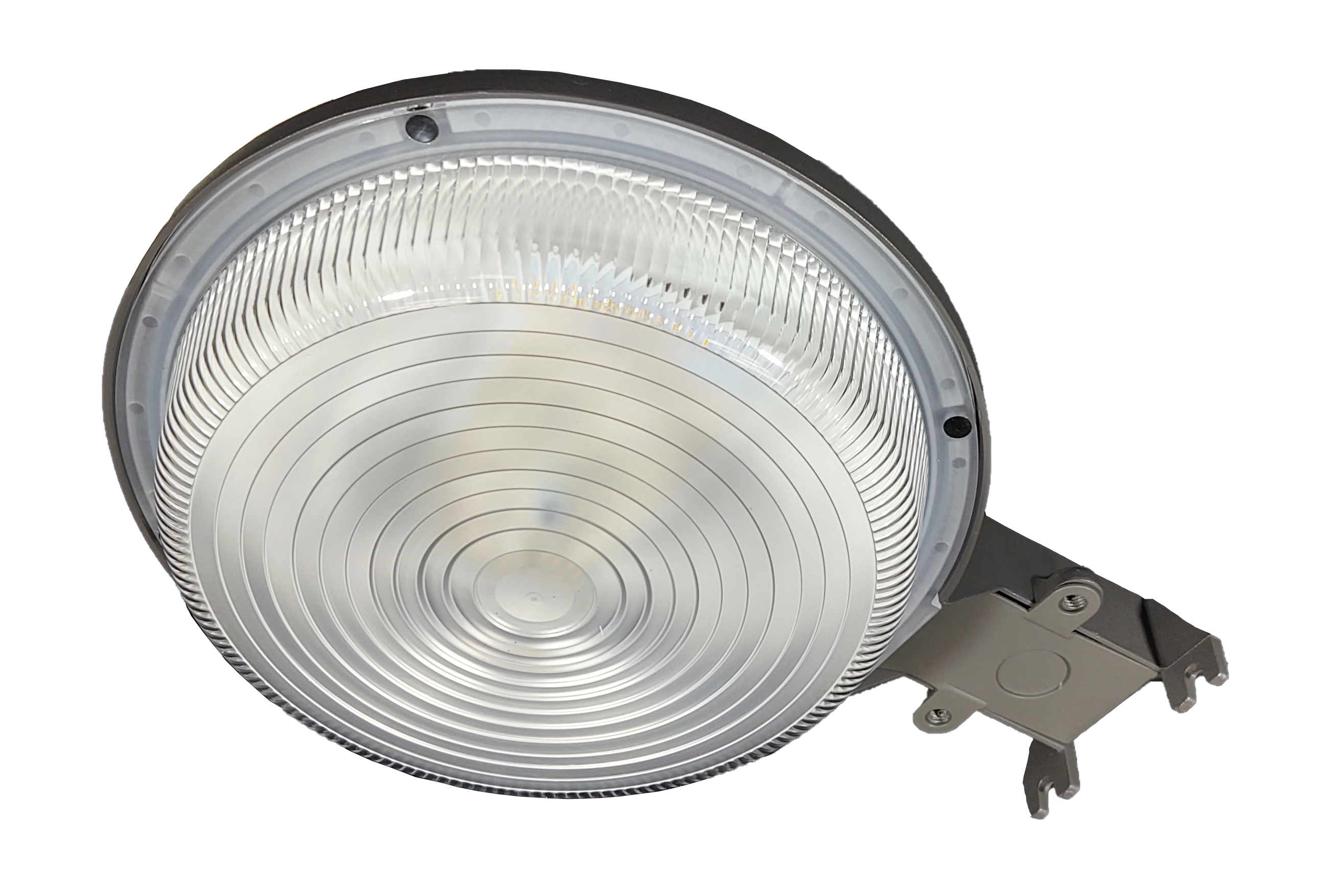

The housing of the ADS is constructed of durable, corrosion resistant, cold-forged aluminum, with a bronze finish. The lens is made of polycarbonate.

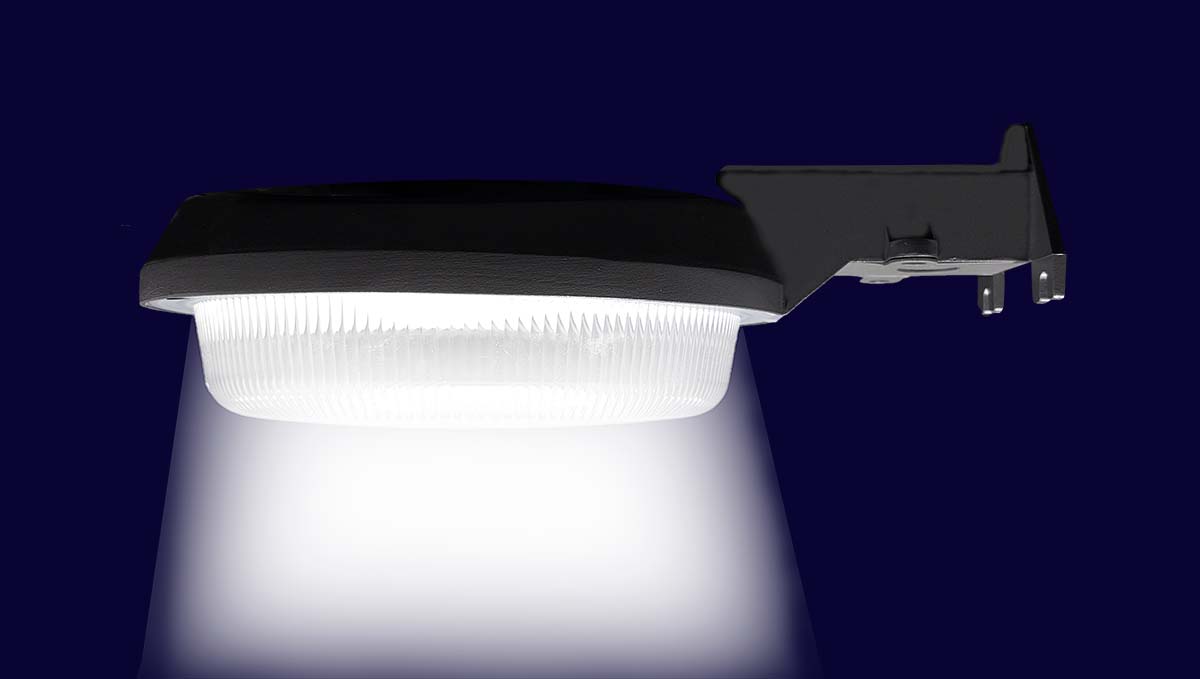

ADS-jpg4-glow
