LED Slide-On Strip Retrofit Kit
The RCLS allows for quick and easy installation - it slips right over existing 4 1/4" wide strip fixtures. All kits come prewired with the necessary branch circuit wiring and quick-connects to plug into a continuous row. This retrofit solution will save on installation cost, material cost and waste. The RCLS is made in the USA - in our Henderson, NC facility, utilizing mostly domestic and some foreign components.
- Applications:Â Suitable for most commercial and institutional applications - office, retail
- Lumen Output:Â From about 2,400 lm - 16,000 lm
- Max Lumens Per Watt:Â About 164
- Size Options:Â 4-foot, 8-foot, 12-foot, 16-foot
- Predicted L70 Lifetime: Up to 189,000 hours (calculated)
- Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
- Re-BoardABILITY: Every RCLS is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
- Certifications:Â UL 1598 listed for US and Canada, suitable for damp locations
- Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available
RCLS4
Click to download (.pdf):
RCLS 4-footer
RCLS 4-footer
Note: Table scrolls horizontally
| Size | Lumens | Watts | LPW | CRI / Color Temp | Voltages Available | Predicted L70 Lifetime | |
|---|---|---|---|---|---|---|---|
| RCL S 4 LW UV FR 835 | 4-foot | 2416 | 17 | 142.1 | 80 CRI / 3500K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 4 LW UV FR 840 | 4-foot | 2496 | 17 | 146.8 | 80 CRI / 4000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 4 LW UV FR 850 | 4-foot | 2571 | 17 | 151.2 | 80 CRI / 5000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 4 ML UV FR 835 | 4-foot | 2917 | 20 | 145.9 | 80 CRI / 3500K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 4 ML UV FR 840 | 4-foot | 3014 | 20 | 150.7 | 80 CRI / 4000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 4 ML UV FR 850 | 4-foot | 3104 | 20 | 155.2 | 80 CRI / 5000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 4 MD UV FR 835 | 4-foot | 3992 | 28 | 145.2 | 80 CRI / 3500K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 4 MD UV FR 840 | 4-foot | 4124 | 28 | 150 | 80 CRI / 4000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 4 MD UV FR 850 | 4-foot | 4248 | 28 | 154.5 | 80 CRI / 5000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 4 MH UV FR 835 | 4-foot | 4815 | 34 | 141.6 | 80 CRI / 3500K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 4 MH UV FR 840 | 4-foot | 4974 | 34 | 146.3 | 80 CRI / 4000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 4 MH UV FR 850 | 4-foot | 5124 | 34 | 150.7 | 80 CRI / 5000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 4 HI UV FR 835 | 4-foot | 6006 | 44 | 136.5 | 80 CRI / 3500K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 4 HI UV FR 840 | 4-foot | 6205 | 44 | 141 | 80 CRI / 4000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 4 HI UV FR 850 | 4-foot | 6391 | 44 | 145.3 | 80 CRI / 5000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 4 VH UV FR 835 | 4-foot | 7750 | 60 | 129.2 | 80 CRI / 3500K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 4 VH UV FR 840 | 4-foot | 8007 | 60 | 133.4 | 80 CRI / 4000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 4 VH UV FR 850 | 4-foot | 8247 | 60 | 137.4 | 80 CRI / 5000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 8 LW UV FR 835 | 8-foot | 3996 | 26 | 153.7 | 80 CRI / 3500K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 8 LW UV FR 840 | 8-foot | 4128 | 26 | 158.8 | 80 CRI / 4000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 8 LW UV FR 850 | 8-foot | 4252 | 26 | 163.5 | 80 CRI / 5000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 8 ML UV FR 835 | 8-foot | 5979 | 40 | 149.5 | 80 CRI / 3500K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 8 ML UV FR 840 | 8-foot | 6176 | 40 | 154.4 | 80 CRI / 4000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 8 ML UV FR 850 | 8-foot | 6362 | 40 | 159 | 80 CRI / 5000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 8 MD UV FR 835 | 8-foot | 7854 | 54 | 145.4 | 80 CRI / 3500K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 8 MD UV FR 840 | 8-foot | 8114 | 54 | 150.3 | 80 CRI / 4000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 8 MD UV FR 850 | 8-foot | 8357 | 54 | 154.8 | 80 CRI / 5000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 8 MH UV FR 835 | 8-foot | 9630 | 68 | 141.6 | 80 CRI / 3500K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 8 MH UV FR 840 | 8-foot | 9949 | 68 | 146.3 | 80 CRI / 4000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 8 MH UV FR 850 | 8-foot | 10247 | 68 | 150.7 | 80 CRI / 5000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 8 HI UV FR 835 | 8-foot | 11666 | 85 | 137.3 | 80 CRI / 3500K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 8 HI UV FR 840 | 8-foot | 12052 | 85 | 141.8 | 80 CRI / 4000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 8 HI UV FR 850 | 8-foot | 12413 | 85 | 146 | 80 CRI / 5000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 8 VH UV FR 835 | 8-foot | 15501 | 120 | 129.2 | 80 CRI / 3500K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 8 VH UV FR 840 | 8-foot | 16013 | 120 | 133.4 | 80 CRI / 4000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 8 VH UV FR 850 | 8-foot | 16494 | 120 | 137.4 | 80 CRI / 5000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 12 LW UV FR 835 | 12-foot | 5555 | 36 | 154.3 | 80 CRI / 3500K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 12 LW UV FR 840 | 12-foot | 5739 | 36 | 159.4 | 80 CRI / 4000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 12 LW UV FR 850 | 12-foot | 5911 | 36 | 164.2 | 80 CRI / 5000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 12 ML UV FR 835 | 12-foot | 8968 | 60 | 149.5 | 80 CRI / 3500K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 12 ML UV FR 840 | 12-foot | 9265 | 60 | 154.4 | 80 CRI / 4000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 12 ML UV FR 850 | 12-foot | 9543 | 60 | 159 | 80 CRI / 5000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 12 MD UV FR 835 | 12-foot | 11651 | 80 | 145.6 | 80 CRI / 3500K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 12 MD UV FR 840 | 12-foot | 12036 | 80 | 150.4 | 80 CRI / 4000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 12 MD UV FR 850 | 12-foot | 12397 | 80 | 155 | 80 CRI / 5000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 16 LW UV FR 835 | 16-foot | 7992 | 52 | 153.7 | 80 CRI / 3500K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 16 LW UV FR 840 | 16-foot | 8256 | 52 | 158.8 | 80 CRI / 4000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 16 LW UV FR 850 | 16-foot | 8504 | 52 | 163.5 | 80 CRI / 5000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 16 ML UV FR 835 | 16-foot | 11957 | 80 | 149.5 | 80 CRI / 3500K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 16 ML UV FR 840 | 16-foot | 12353 | 80 | 154.4 | 80 CRI / 4000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| RCL S 16 ML UV FR 850 | 16-foot | 12723 | 80 | 159 | 80 CRI / 5000K | 120-277V, 347V | Up to 189,000 hours (calculated) |
| Equivalency* | |
|---|---|
| RCL S 4 LW UV FR 835 | 1L F32 T8 w/ NBF |
| RCL S 4 LW UV FR 840 | 1L F32 T8 w/ NBF |
| RCL S 4 LW UV FR 850 | 1L F32 T8 w/ NBF |
| RCL S 4 ML UV FR 835 | 1L F32 T8 w/ HBF |
| RCL S 4 ML UV FR 840 | 1L F32 T8 w/ HBF |
| RCL S 4 ML UV FR 850 | 1L F32 T8 w/ HBF |
| RCL S 4 MD UV FR 835 | 2L F32 T8 w/ NBF, 1L F54 T5HO |
| RCL S 4 MD UV FR 840 | 2L F32 T8 w/ NBF, 1L F54 T5HO |
| RCL S 4 MD UV FR 850 | 2L F32 T8 w/ NBF, 1L F54 T5HO |
| RCL S 4 MH UV FR 835 | 2L F32 T8 w/ HBF |
| RCL S 4 MH UV FR 840 | 2L F32 T8 w/ HBF |
| RCL S 4 MH UV FR 850 | 2L F32 T8 w/ HBF |
| RCL S 4 HI UV FR 835 | 3L F32 T8 w/ NBF |
| RCL S 4 HI UV FR 840 | 3L F32 T8 w/ NBF |
| RCL S 4 HI UV FR 850 | 3L F32 T8 w/ NBF |
| RCL S 4 VH UV FR 835 | 2L F54 T5HO |
| RCL S 4 VH UV FR 840 | 2L F54 T5HO |
| RCL S 4 VH UV FR 850 | 2L F54 T5HO |
| RCL S 8 LW UV FR 835 | 2L F32 T8 w/ NBF |
| RCL S 8 LW UV FR 840 | 2L F32 T8 w/ NBF |
| RCL S 8 LW UV FR 850 | 2L F32 T8 w/ NBF |
| RCL S 8 ML UV FR 835 | 2L F32 T8 w/ HBF, 1L F96 T12HO |
| RCL S 8 ML UV FR 840 | 2L F32 T8 w/ HBF, 1L F96 T12HO |
| RCL S 8 ML UV FR 850 | 2L F32 T8 w/ HBF, 1L F96 T12HO |
| RCL S 8 MD UV FR 835 | 4L F32 T8 w/ NBF, 2L F54 T5HO |
| RCL S 8 MD UV FR 840 | 4L F32 T8 w/ NBF, 2L F54 T5HO |
| RCL S 8 MD UV FR 850 | 4L F32 T8 w/ NBF, 2L F54 T5HO |
| RCL S 8 MH UV FR 835 | 4L F32 T8 w/ HBF |
| RCL S 8 MH UV FR 840 | 4L F32 T8 w/ HBF |
| RCL S 8 MH UV FR 850 | 4L F32 T8 w/ HBF |
| RCL S 8 HI UV FR 835 | 2L F96 T12HO |
| RCL S 8 HI UV FR 840 | 2L F96 T12HO |
| RCL S 8 HI UV FR 850 | 2L F96 T12HO |
| RCL S 8 VH UV FR 835 | 4L F54 T5HO |
| RCL S 8 VH UV FR 840 | 4L F54 T5HO |
| RCL S 8 VH UV FR 850 | 4L F54 T5HO |
| RCL S 12 LW UV FR 835 | 3L F32 T8 w/ NBF |
| RCL S 12 LW UV FR 840 | 3L F32 T8 w/ NBF |
| RCL S 12 LW UV FR 850 | 3L F32 T8 w/ NBF |
| RCL S 12 ML UV FR 835 | 3L F32 T8 w/ HBF |
| RCL S 12 ML UV FR 840 | 3L F32 T8 w/ HBF |
| RCL S 12 ML UV FR 850 | 3L F32 T8 w/ HBF |
| RCL S 12 MD UV FR 835 | 6L F32 T8 w/ NBF, 3L F54 T5HO |
| RCL S 12 MD UV FR 840 | 6L F32 T8 w/ NBF, 3L F54 T5HO |
| RCL S 12 MD UV FR 850 | 6L F32 T8 w/ NBF, 3L F54 T5HO |
| RCL S 16 LW UV FR 835 | 4L F32 T8 w/ NBF |
| RCL S 16 LW UV FR 840 | 4L F32 T8 w/ NBF |
| RCL S 16 LW UV FR 850 | 4L F32 T8 w/ NBF |
| RCL S 16 ML UV FR 835 | 4L F32 T8 w/ HBF |
| RCL S 16 ML UV FR 840 | 4L F32 T8 w/ HBF |
| RCL S 16 ML UV FR 850 | 4L F32 T8 w/ HBF |
| Image | Spec Sheet | |
|---|---|---|
| RCL S 4 LW UV FR 835 | View | Download |
| RCL S 4 LW UV FR 840 | View | Download |
| RCL S 4 LW UV FR 850 | View | Download |
| RCL S 4 ML UV FR 835 | View | Download |
| RCL S 4 ML UV FR 840 | View | Download |
| RCL S 4 ML UV FR 850 | View | Download |
| RCL S 4 MD UV FR 835 | View | Download |
| RCL S 4 MD UV FR 840 | View | Download |
| RCL S 4 MD UV FR 850 | View | Download |
| RCL S 4 MH UV FR 835 | View | Download |
| RCL S 4 MH UV FR 840 | View | Download |
| RCL S 4 MH UV FR 850 | View | Download |
| RCL S 4 HI UV FR 835 | View | Download |
| RCL S 4 HI UV FR 840 | View | Download |
| RCL S 4 HI UV FR 850 | View | Download |
| RCL S 4 VH UV FR 835 | View | Download |
| RCL S 4 VH UV FR 840 | View | Download |
| RCL S 4 VH UV FR 850 | View | Download |
| RCL S 8 LW UV FR 835 | View | Download |
| RCL S 8 LW UV FR 840 | View | Download |
| RCL S 8 LW UV FR 850 | View | Download |
| RCL S 8 ML UV FR 835 | View | Download |
| RCL S 8 ML UV FR 840 | View | Download |
| RCL S 8 ML UV FR 850 | View | Download |
| RCL S 8 MD UV FR 835 | View | Download |
| RCL S 8 MD UV FR 840 | View | Download |
| RCL S 8 MD UV FR 850 | View | Download |
| RCL S 8 MH UV FR 835 | View | Download |
| RCL S 8 MH UV FR 840 | View | Download |
| RCL S 8 MH UV FR 850 | View | Download |
| RCL S 8 HI UV FR 835 | View | Download |
| RCL S 8 HI UV FR 840 | View | Download |
| RCL S 8 HI UV FR 850 | View | Download |
| RCL S 8 VH UV FR 835 | View | Download |
| RCL S 8 VH UV FR 840 | View | Download |
| RCL S 8 VH UV FR 850 | View | Download |
| RCL S 12 LW UV FR 835 | View | Download |
| RCL S 12 LW UV FR 840 | View | Download |
| RCL S 12 LW UV FR 850 | View | Download |
| RCL S 12 ML UV FR 835 | View | Download |
| RCL S 12 ML UV FR 840 | View | Download |
| RCL S 12 ML UV FR 850 | View | Download |
| RCL S 12 MD UV FR 835 | View | Download |
| RCL S 12 MD UV FR 840 | View | Download |
| RCL S 12 MD UV FR 850 | View | Download |
| RCL S 16 LW UV FR 835 | View | Download |
| RCL S 16 LW UV FR 840 | View | Download |
| RCL S 16 LW UV FR 850 | View | Download |
| RCL S 16 ML UV FR 835 | View | Download |
| RCL S 16 ML UV FR 840 | View | Download |
| RCL S 16 ML UV FR 850 | View | Download |
Download the Room Estimator to get an idea how many luminaires you need for your space. Fill out the criteria under "Area" and select the model you're looking for. Based on the desired light level selected, the Estimator will calculate the number of luminaires required.
Note: This is an estimate only. Actual results may vary depending on field conditions. LumenFocus makes no warranties as to the performance predicted by the calculations. Please contact your LumenFocus representative for a more detailed photometric analysis.
Note: This is an estimate only. Actual results may vary depending on field conditions. LumenFocus makes no warranties as to the performance predicted by the calculations. Please contact your LumenFocus representative for a more detailed photometric analysis.
Easy installation, minimal waste

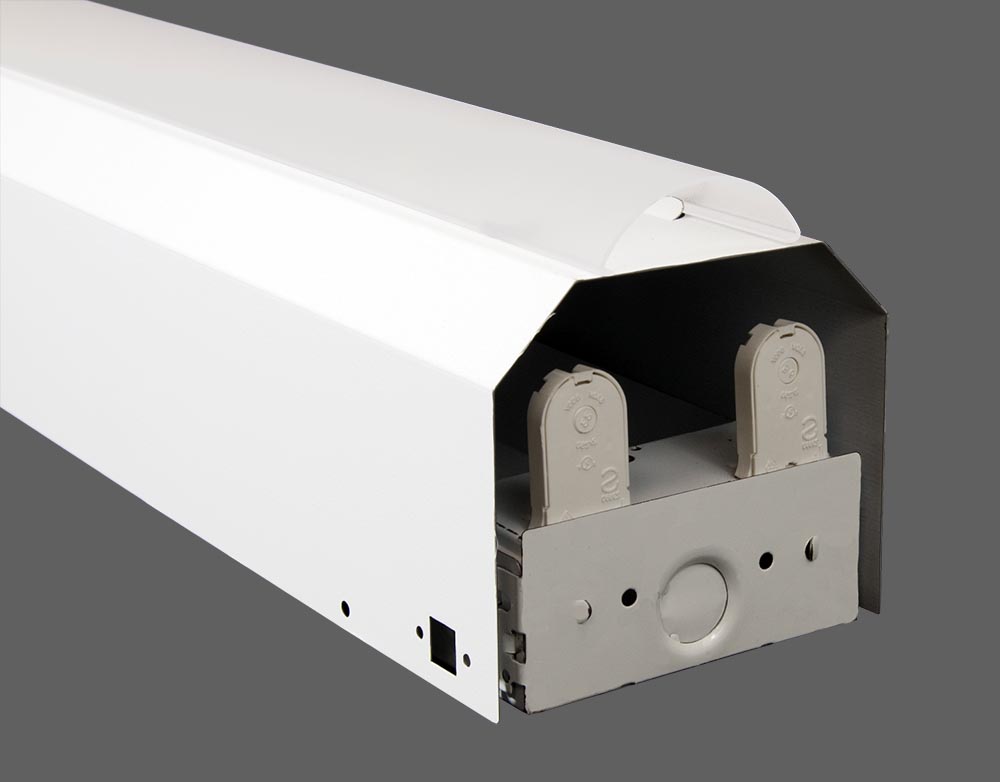

The RCLS is pictured here with the end cap removed. The strip slips right over the existing housing, saving you on installation costs, material costs and waste. The LED tray is precision brake formed from cold rolled steel, and features a highly durable mattte white finish. A frosted diffuser covers the LEDs, minimizing glare and improving aesthetics.
