Home  /  Products  /  Indoor  /  Linear Industrial  EWL G2

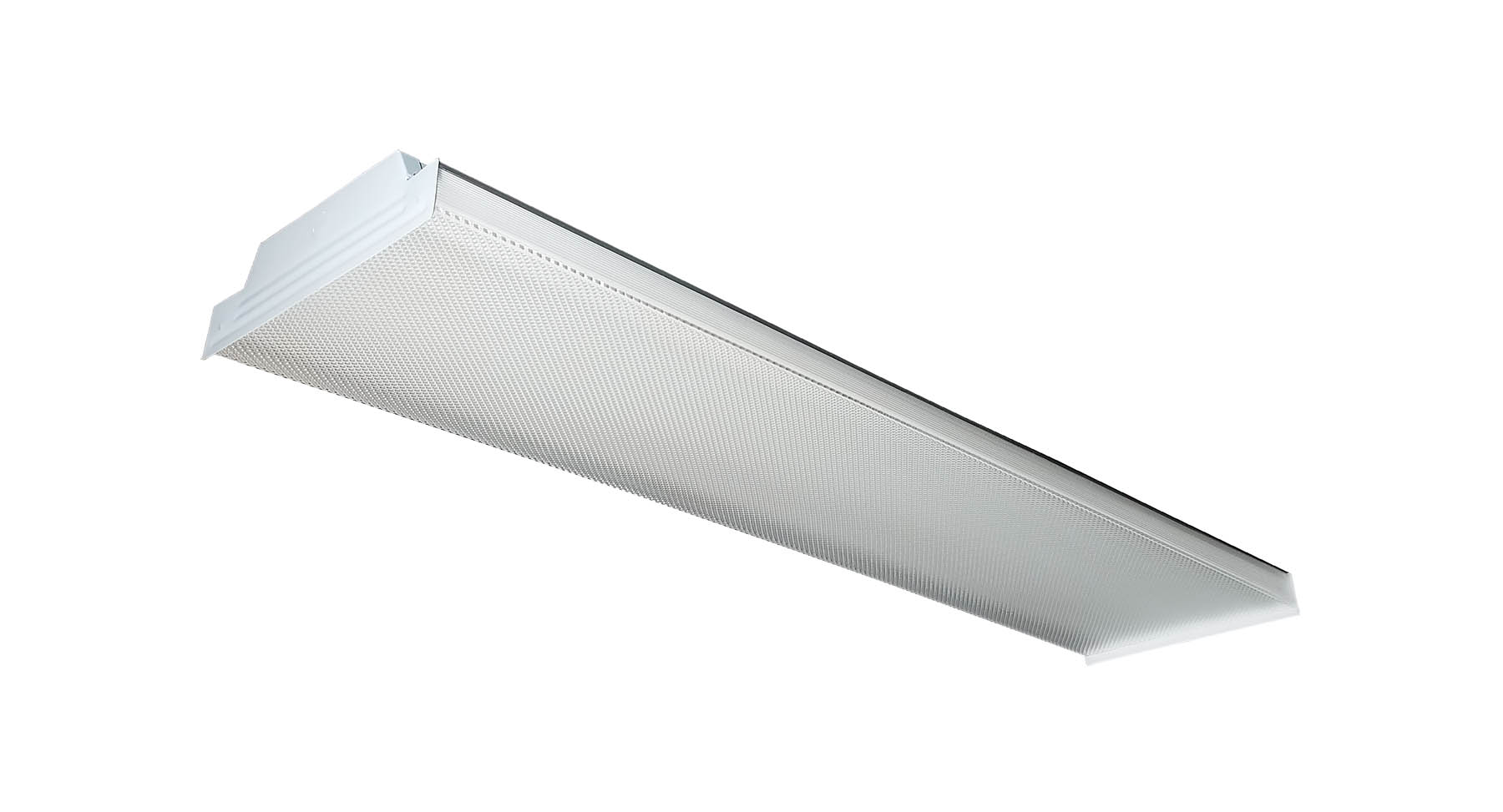

LED Wrap

The EWL G2 LED wrap can be surface-, stem- or cable-mounted as individual units or in continuous rows. Three are three width sizes and two lengths to choose from. The highly efficient LED arrays utilized in the EWL G2 are rated at 90+ CRI. The housing is constructed of highly durable and highly reflective white cold rolled steel. The lens is made of clear prismatic acrylic. Every EWL G2 is made in the USA - in our Henderson, NC facility, using mostly domestic and some foreign components.

  • Applications: Suitable for industrial, retail and institutional applications - warehouse, manufacturing facility, stock room, classroom
  • Lumen Output: From about 1,490 to 10,100 lumens
  • Max Lumens Per Watt: 143.9
  • Size Options: 2-foot and 4-foot lengths; 9-inch, 11.25-inch, and 16-inch widths
  • Predicted L70 Lifetime: Greater or equal to 129,000 hours (calculated)
  • Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
  • Re-BoardABILITY: Every EWL G2 is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
  • Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations
  • Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

cULus-MiA-BAA-90CRI-10yr-2023

Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempShieldingVoltages AvailablePredicted L70 Lifetime
EWL G2 2 VL UV CPA 9302-foot1,496.711.8126.990 CRI / 3000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 VL UV CPA 9352-foot1,503.011.8127.490 CRI / 3500KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 VL UV CPA 9402-foot1,538.711.8130.490 CRI / 4000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 VL UV CPA 9502-foot1,538.711.8130.490 CRI / 5000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 LW UV CPA 9302-foot2,059.415.8130.190 CRI / 3000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 LW UV CPA 9352-foot2,068.015.8130.790 CRI / 3500KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 LW UV CPA 9402-foot2,117.215.8133.890 CRI / 4000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 LW UV CPA 9502-foot2,117.215.8133.890 CRI / 5000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 MD UV CPA 9302-foot3,027.122.7133.290 CRI / 3000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 MD UV CPA 9352-foot3,039.922.7133.890 CRI / 3500KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 MD UV CPA 9402-foot3,112.122.7137.090 CRI / 4000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 MD UV CPA 9502-foot3,112.122.7137.090 CRI / 5000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 HI UV CPA 9302-foot4,019.431.0129.890 CRI / 3000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 HI UV CPA 9352-foot4,036.331.0130.390 CRI / 3500KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 HI UV CPA 9402-foot4,132.231.0133.490 CRI / 4000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 HI UV CPA 9502-foot4,132.231.0133.490 CRI / 5000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 VH UV CPA 9302-foot5,022.036.7137.090 CRI / 3000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 VH UV CPA 9352-foot5,043.236.7137.690 CRI / 3500KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 VH UV CPA 9402-foot5,163.036.7140.890 CRI / 4000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 2 VH UV CPA 9502-foot5,163.036.7140.890 CRI / 5000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 SL UV CPA 9304-foot2,049.615.6131.890 CRI / 3000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 SL UV CPA 9354-foot2,058.215.6132.390 CRI / 3500KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 SL UV CPA 9404-foot2,107.115.6135.590 CRI / 4000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 SL UV CPA 9504-foot2,107.115.6135.590 CRI / 5000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 VL UV CPA 9304-foot3,994.528.5139.990 CRI / 3000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 VL UV CPA 9354-foot4,011.328.5140.590 CRI / 3500KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 VL UV CPA 9404-foot4,106.628.5143.990 CRI / 4000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 VL UV CPA 9504-foot4,106.628.5143.990 CRI / 5000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 LW UV CPA 9304-foot4,979.435.9138.590 CRI / 3000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 LW UV CPA 9354-foot5,000.435.9139.190 CRI / 3500KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 LW UV CPA 9404-foot5,119.135.9142.490 CRI / 4000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 LW UV CPA 9504-foot5,119.135.9142.490 CRI / 5000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 MD UV CPA 9304-foot5,937.043.1137.890 CRI / 3000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 MD UV CPA 9354-foot5,962.143.1138.490 CRI / 3500KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 MD UV CPA 9404-foot6,103.743.1135.990 CRI / 4000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 MD UV CPA 9504-foot6,103.743.1141.790 CRI / 5000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 HI UV CPA 9354-foot7,884.059.6132.290 CRI / 3000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 HI UV CPA 9304-foot7,917.259.6132.890 CRI / 3500KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 HI UV CPA 9404-foot8,105.359.6135.990 CRI / 4000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 HI UV CPA 9504-foot8,105.359.6135.990 CRI / 5000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 VH UV CPA 9304-foot9,841.269.7141.290 CRI / 3000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 VH UV CPA 9354-foot9,882.769.7141.890 CRI / 3500KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 VH UV CPA 9404-foot10,117.569.7145.290 CRI / 4000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
EWL G2 4 VH UV CPA 9504-foot10,117.569.7145.290 CRI / 5000KClear prismatic acrylic120-277V, 347VGreater or equal to 129,000 hours (calculated)
Catalog #
Equivalency*
EWL G2 2 VL UV CPA 9301L F24 T5HO
EWL G2 2 VL UV CPA 9351L F24 T5HO
EWL G2 2 VL UV CPA 9401L F24 T5HO
EWL G2 2 VL UV CPA 9501L F24 T5HO
EWL G2 2 LW UV CPA 9302L F17 T8, NBF
EWL G2 2 LW UV CPA 9352L F17 T8, NBF
EWL G2 2 LW UV CPA 9402L F17 T8, NBF
EWL G2 2 LW UV CPA 9502L F17 T8, NBF
EWL G2 2 MD UV CPA 9303L F17 T8, NBF / 2L F24 T5HO
EWL G2 2 MD UV CPA 9353L F17 T8, NBF / 2L F24 T5HO
EWL G2 2 MD UV CPA 9403L F17 T8, NBF / 2L F24 T5HO
EWL G2 2 MD UV CPA 9503L F17 T8, NBF / 2L F24 T5HO
EWL G2 2 HI UV CPA 9303L F24 T5HO
EWL G2 2 HI UV CPA 9353L F24 T5HO
EWL G2 2 HI UV CPA 9403L F24 T5HO
EWL G2 2 HI UV CPA 9503L F24 T5HO
EWL G2 2 VH UV CPA 9303L F24 T5HO
EWL G2 2 VH UV CPA 9353L F24 T5HO
EWL G2 2 VH UV CPA 9403L F24 T5HO
EWL G2 2 VH UV CPA 9503L F24 T5HO
EWL G2 4 SL UV CPA 9301L F32 T8, NBF
EWL G2 4 SL UV CPA 9351L F32 T8, NBF
EWL G2 4 SL UV CPA 9401L F32 T8, NBF
EWL G2 4 SL UV CPA 9501L F32 T8, NBF
EWL G2 4 VL UV CPA 9302L F32 T8, NBF / 1L F54 T5HO
EWL G2 4 VL UV CPA 9352L F32 T8, NBF / 1L F54 T5HO
EWL G2 4 VL UV CPA 9402L F32 T8, NBF / 1L F54 T5HO
EWL G2 4 VL UV CPA 9502L F32 T8, NBF / 1L F54 T5HO
EWL G2 4 LW UV CPA 9303L F40 T12
EWL G2 4 LW UV CPA 9353L F40 T12
EWL G2 4 LW UV CPA 9403L F40 T12
EWL G2 4 LW UV CPA 9503L F40 T12
EWL G2 4 MD UV CPA 9303L F32 T8, NBF
EWL G2 4 MD UV CPA 9353L F32 T8, NBF
EWL G2 4 MD UV CPA 9403L F32 T8, NBF
EWL G2 4 MD UV CPA 9503L F32 T8, NBF
EWL G2 4 HI UV CPA 9352L F54 T5HO
EWL G2 4 HI UV CPA 9302L F54 T5HO
EWL G2 4 HI UV CPA 9402L F54 T5HO
EWL G2 4 HI UV CPA 9502L F54 T5HO
EWL G2 4 VH UV CPA 9303L F54 T5HO
EWL G2 4 VH UV CPA 9353L F54 T5HO
EWL G2 4 VH UV CPA 9403L F54 T5HO
EWL G2 4 VH UV CPA 9503L F54 T5HO
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
EWL G2 2 VL UV CPA 930View Download Contact Factory
EWL G2 2 VL UV CPA 935View Download Contact Factory
EWL G2 2 VL UV CPA 940View Download Contact Factory
EWL G2 2 VL UV CPA 950View Download Contact Factory
EWL G2 2 LW UV CPA 930View Download Contact Factory
EWL G2 2 LW UV CPA 935View Download Contact Factory
EWL G2 2 LW UV CPA 940View Download Contact Factory
EWL G2 2 LW UV CPA 950View Download Contact Factory
EWL G2 2 MD UV CPA 930View Download Contact Factory
EWL G2 2 MD UV CPA 935View Download Contact Factory
EWL G2 2 MD UV CPA 940View Download Contact Factory
EWL G2 2 MD UV CPA 950View Download Contact Factory
EWL G2 2 HI UV CPA 930View Download Contact Factory
EWL G2 2 HI UV CPA 935View Download Contact Factory
EWL G2 2 HI UV CPA 940View Download Contact Factory
EWL G2 2 HI UV CPA 950View Download Contact Factory
EWL G2 2 VH UV CPA 930View Download Contact Factory
EWL G2 2 VH UV CPA 935View Download Contact Factory
EWL G2 2 VH UV CPA 940View Download Contact Factory
EWL G2 2 VH UV CPA 950View Download Contact Factory
EWL G2 4 SL UV CPA 930View Download Contact Factory
EWL G2 4 SL UV CPA 935View Download Contact Factory
EWL G2 4 SL UV CPA 940View Download Contact Factory
EWL G2 4 SL UV CPA 950View Download Contact Factory
EWL G2 4 VL UV CPA 930View Download Contact Factory
EWL G2 4 VL UV CPA 935View Download Contact Factory
EWL G2 4 VL UV CPA 940View Download Contact Factory
EWL G2 4 VL UV CPA 950View Download Contact Factory
EWL G2 4 LW UV CPA 930View Download Contact Factory
EWL G2 4 LW UV CPA 935View Download Contact Factory
EWL G2 4 LW UV CPA 940View Download Contact Factory
EWL G2 4 LW UV CPA 950View Download Contact Factory
EWL G2 4 MD UV CPA 930View Download Contact Factory
EWL G2 4 MD UV CPA 935View Download Contact Factory
EWL G2 4 MD UV CPA 940View Download Contact Factory
EWL G2 4 MD UV CPA 950View Download Contact Factory
EWL G2 4 HI UV CPA 935View Download Contact Factory
EWL G2 4 HI UV CPA 930View Download Contact Factory
EWL G2 4 HI UV CPA 940View Download Contact Factory
EWL G2 4 HI UV CPA 950View Download Contact Factory
EWL G2 4 VH UV CPA 930View Download Contact Factory
EWL G2 4 VH UV CPA 935View Download Contact Factory
EWL G2 4 VH UV CPA 940View Download Contact Factory
EWL G2 4 VH UV CPA 950View Download Contact Factory

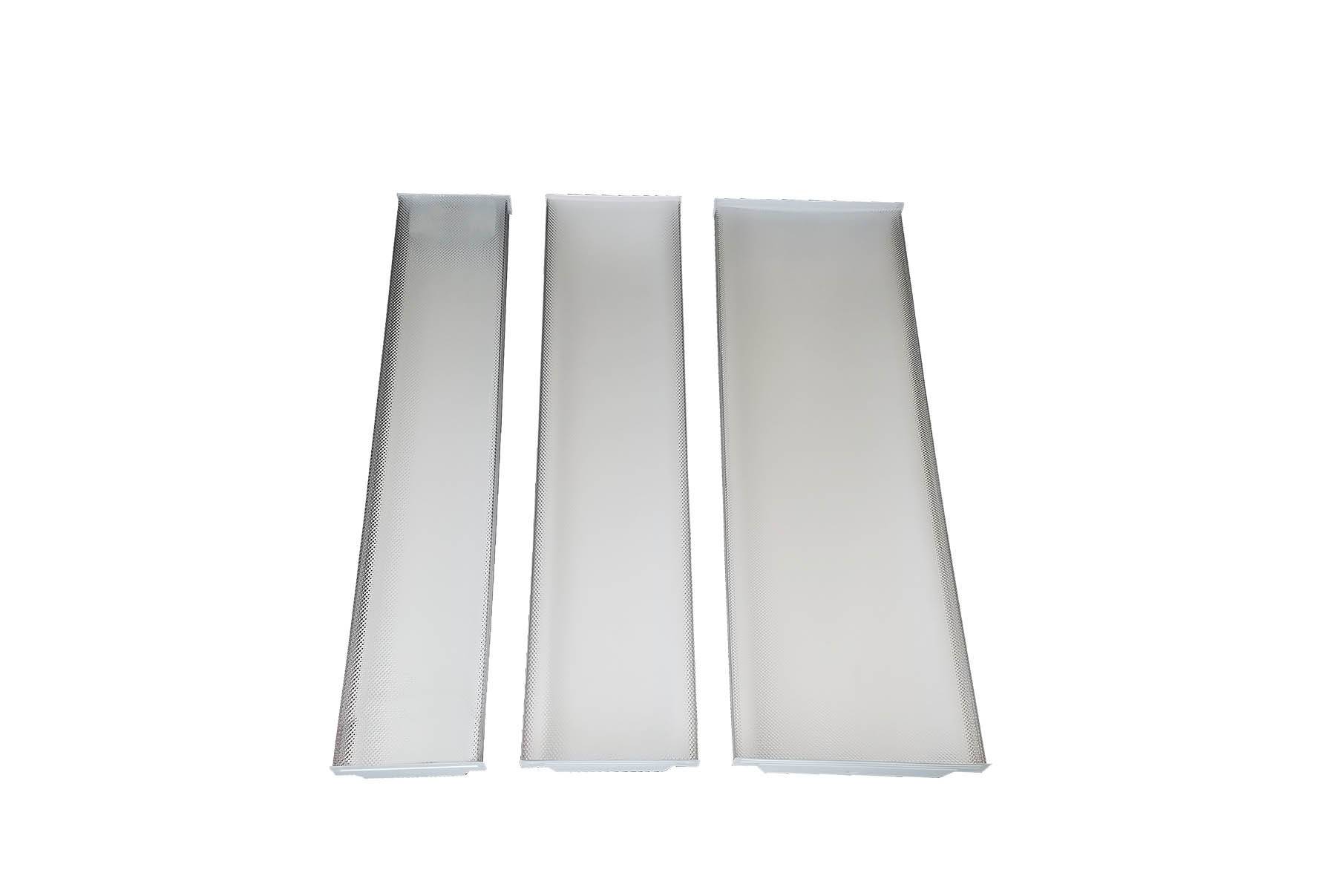

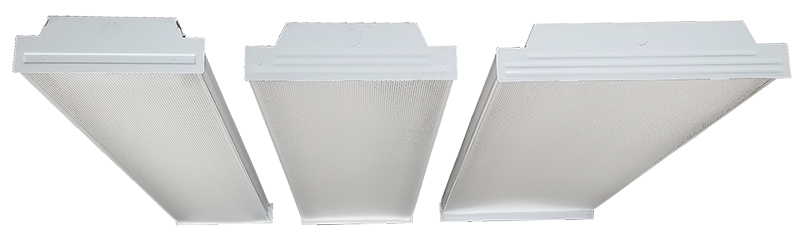

EWLv2-AllWidths2 PNG smaller

Pick your size

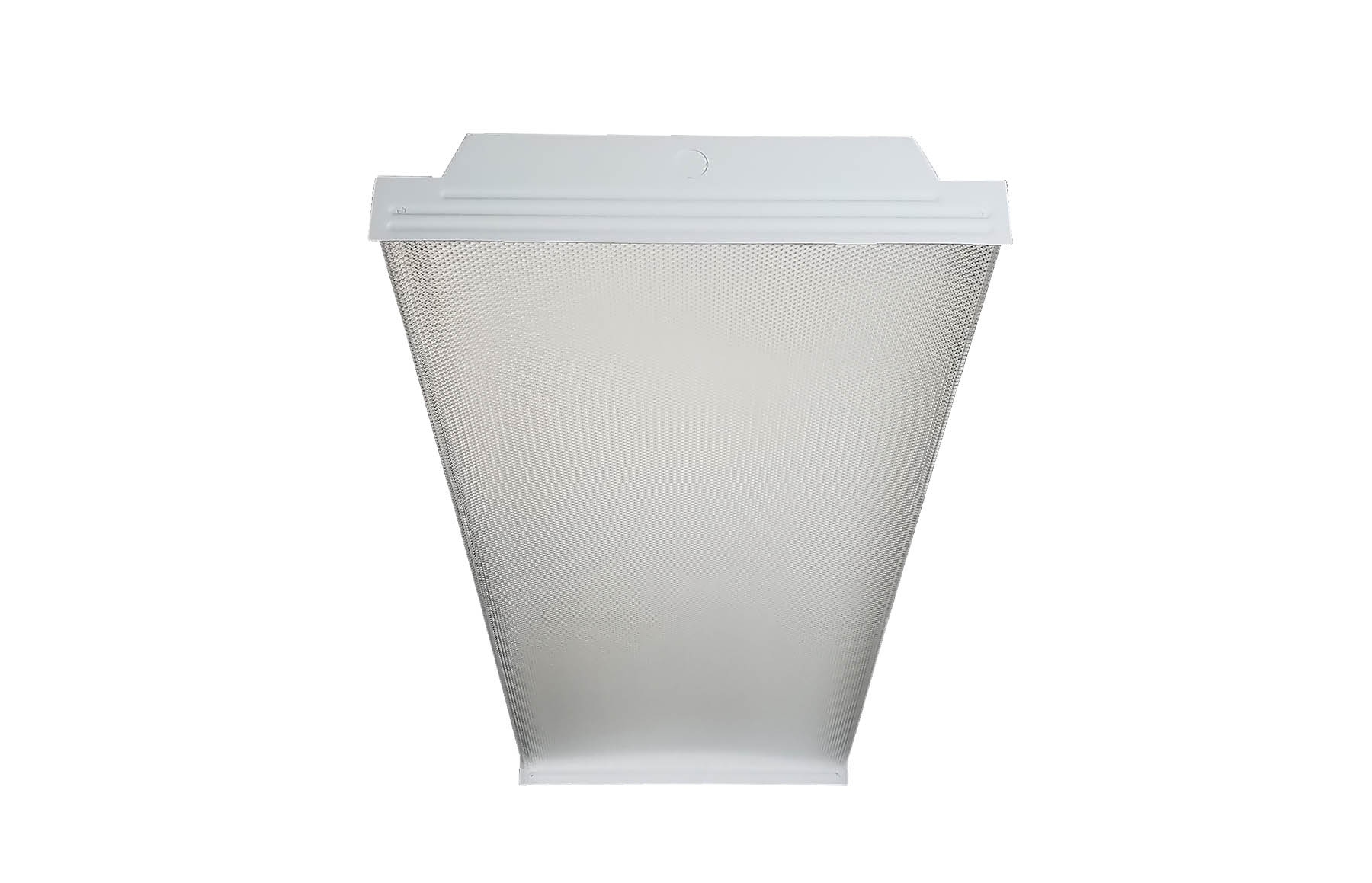

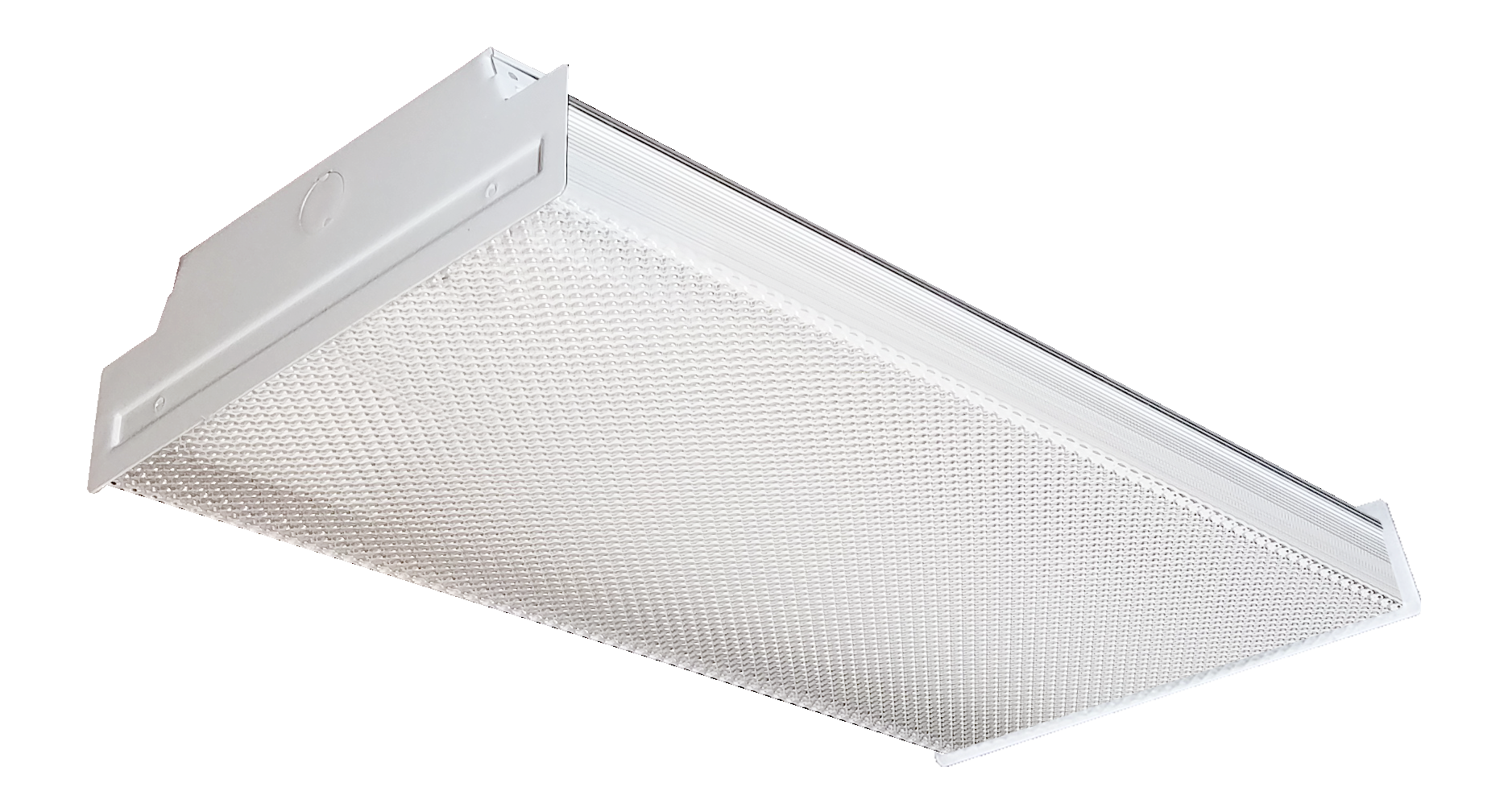

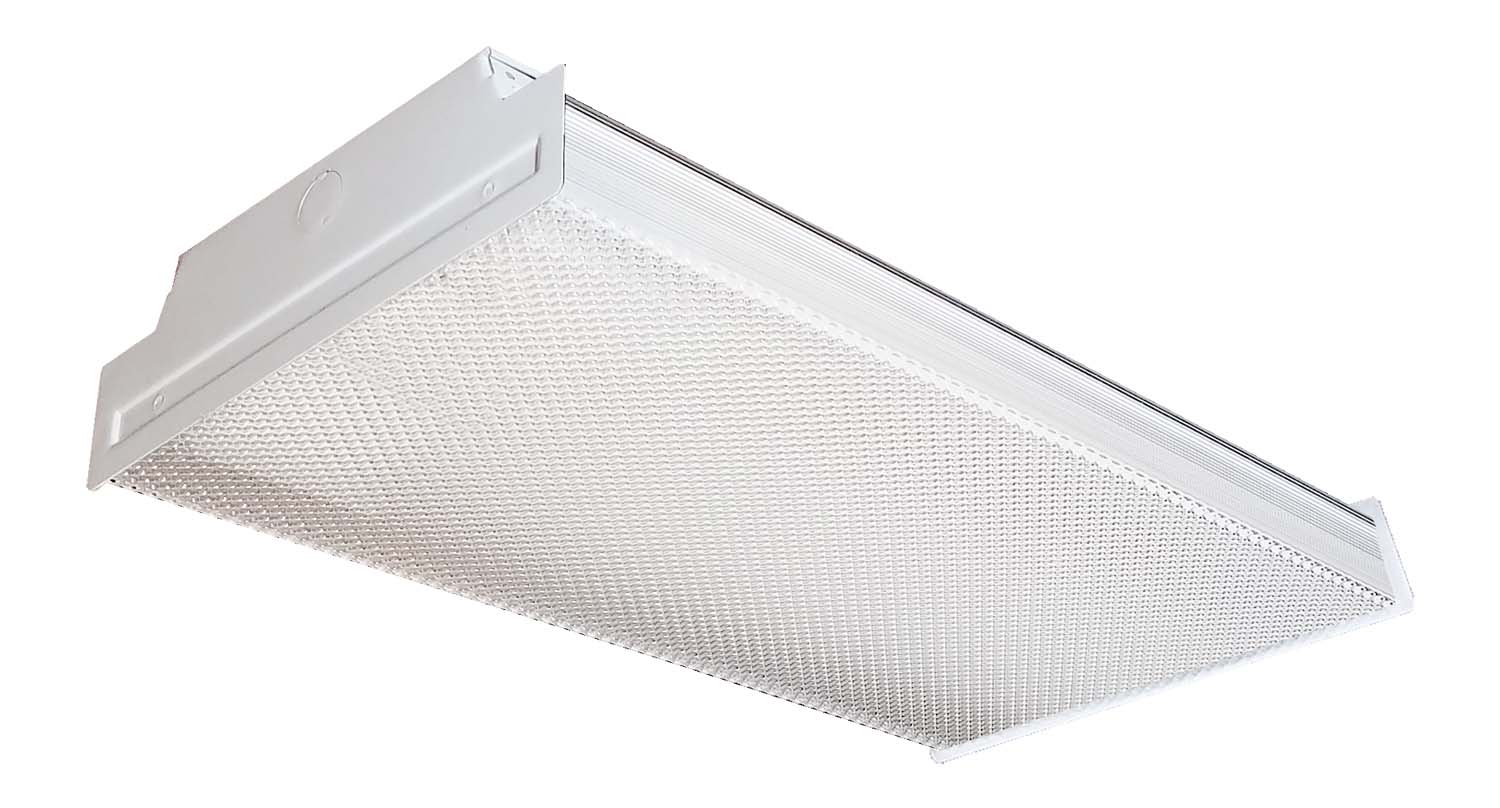

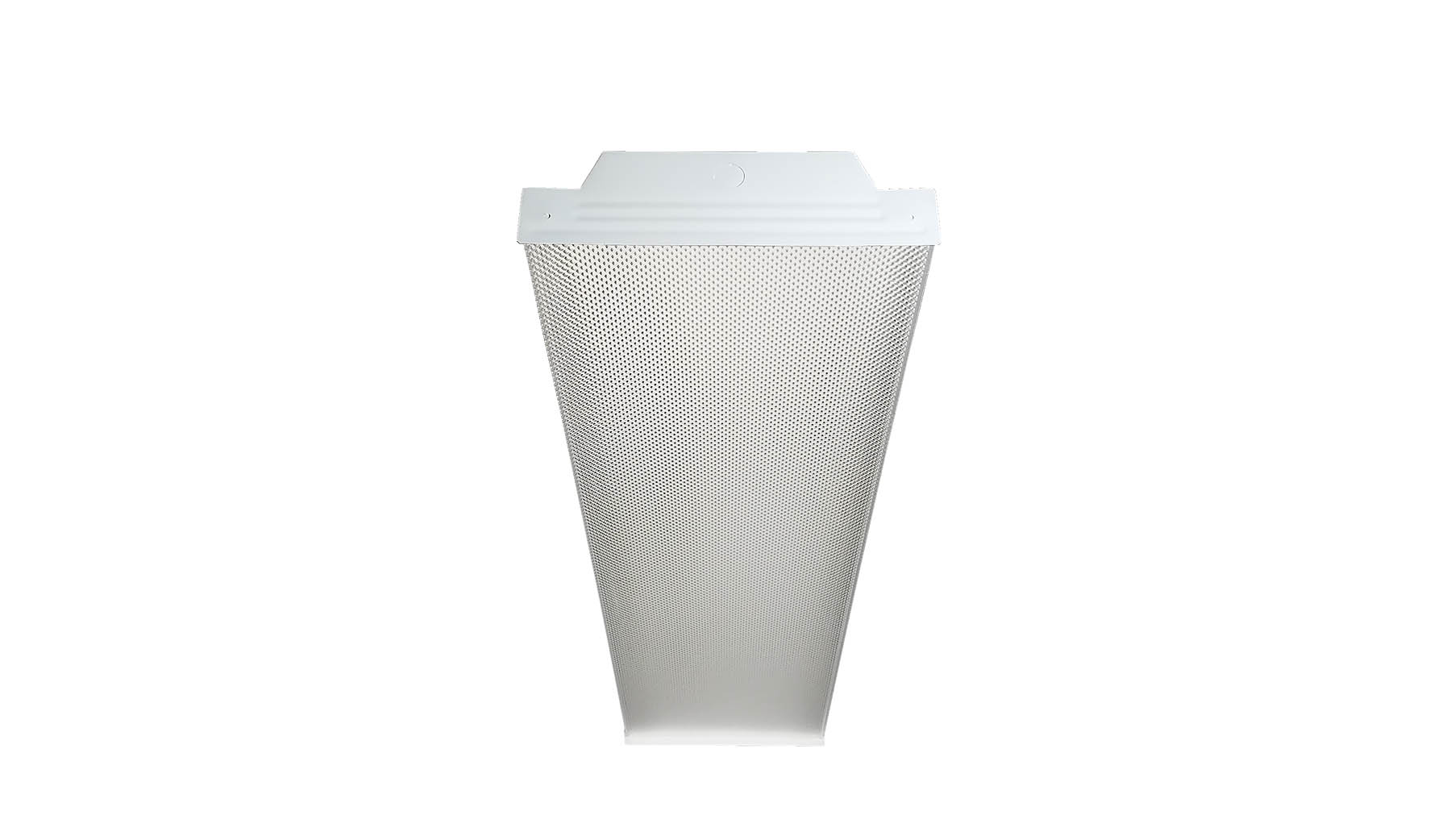

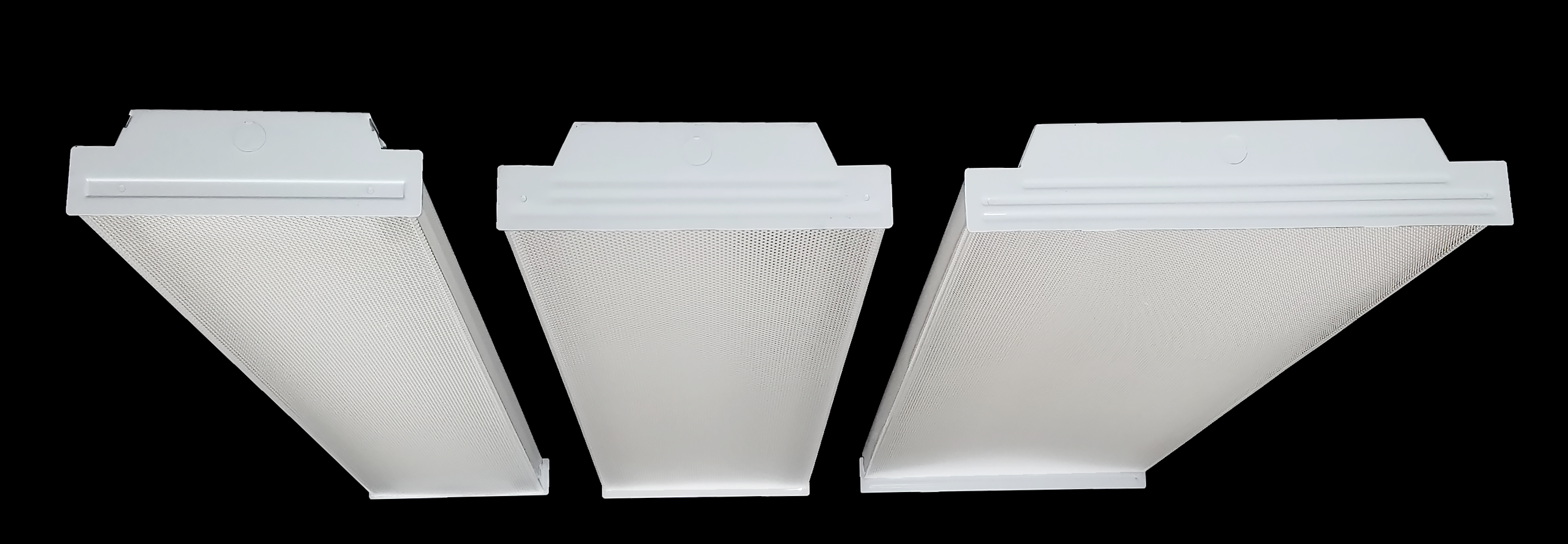

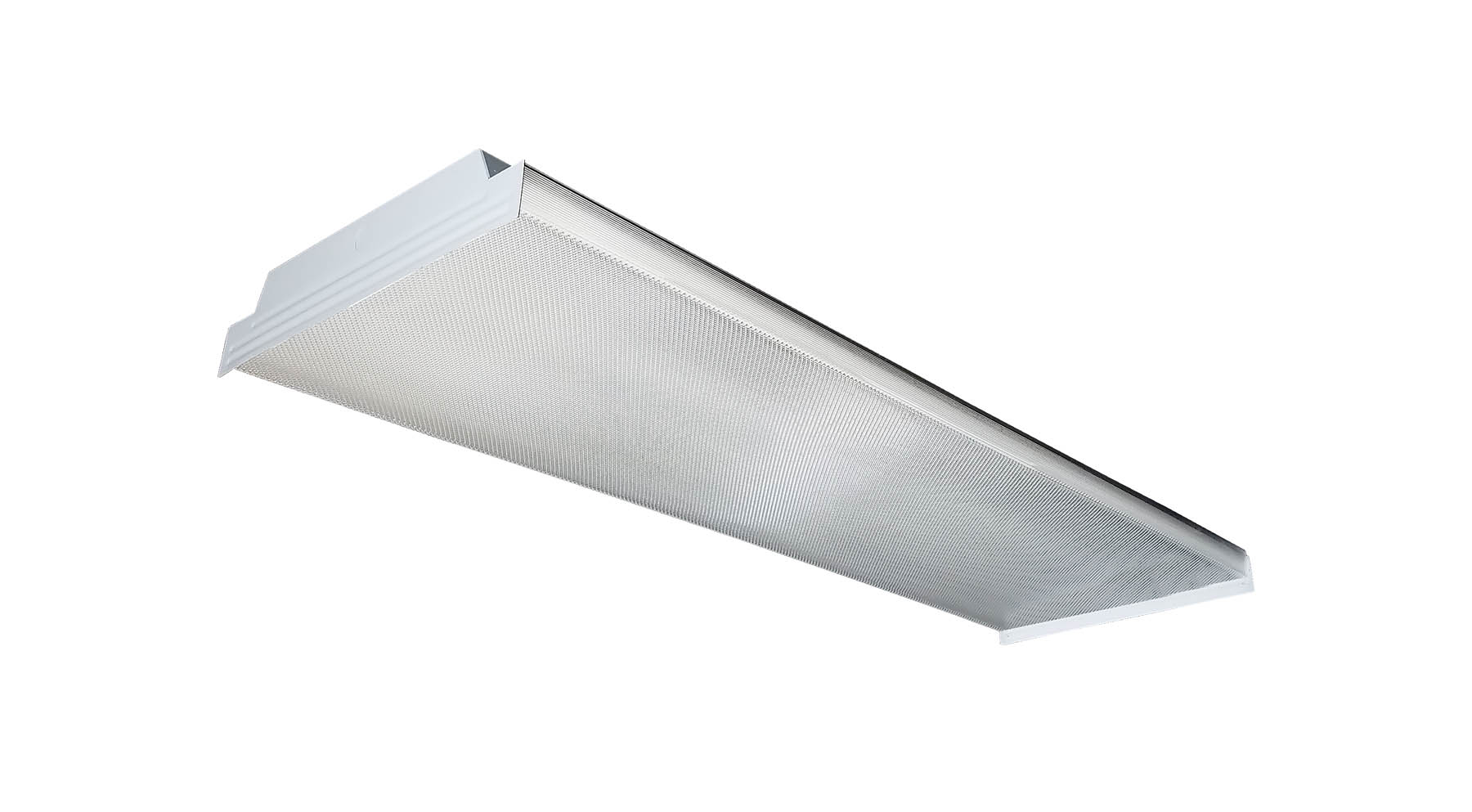

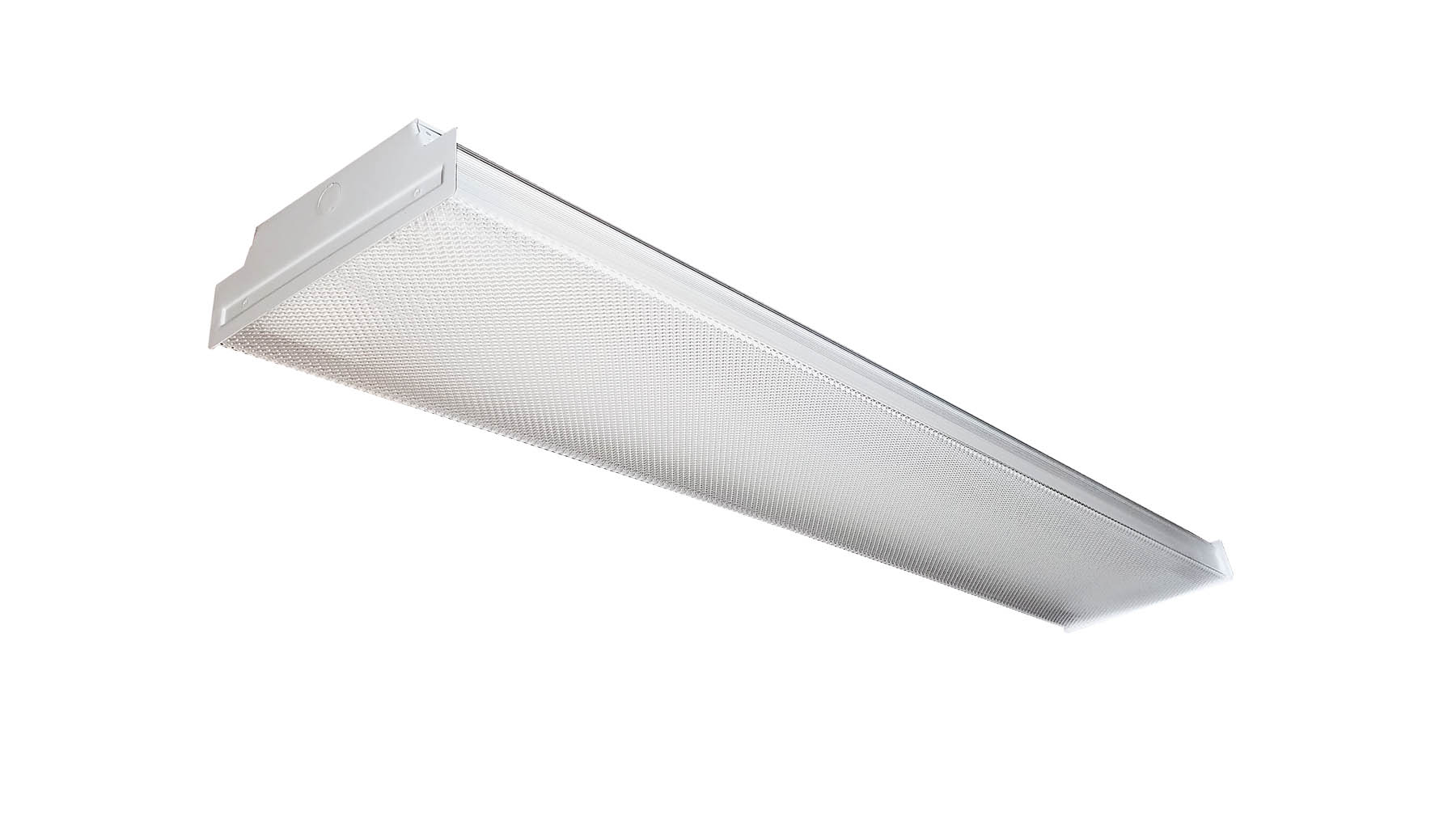

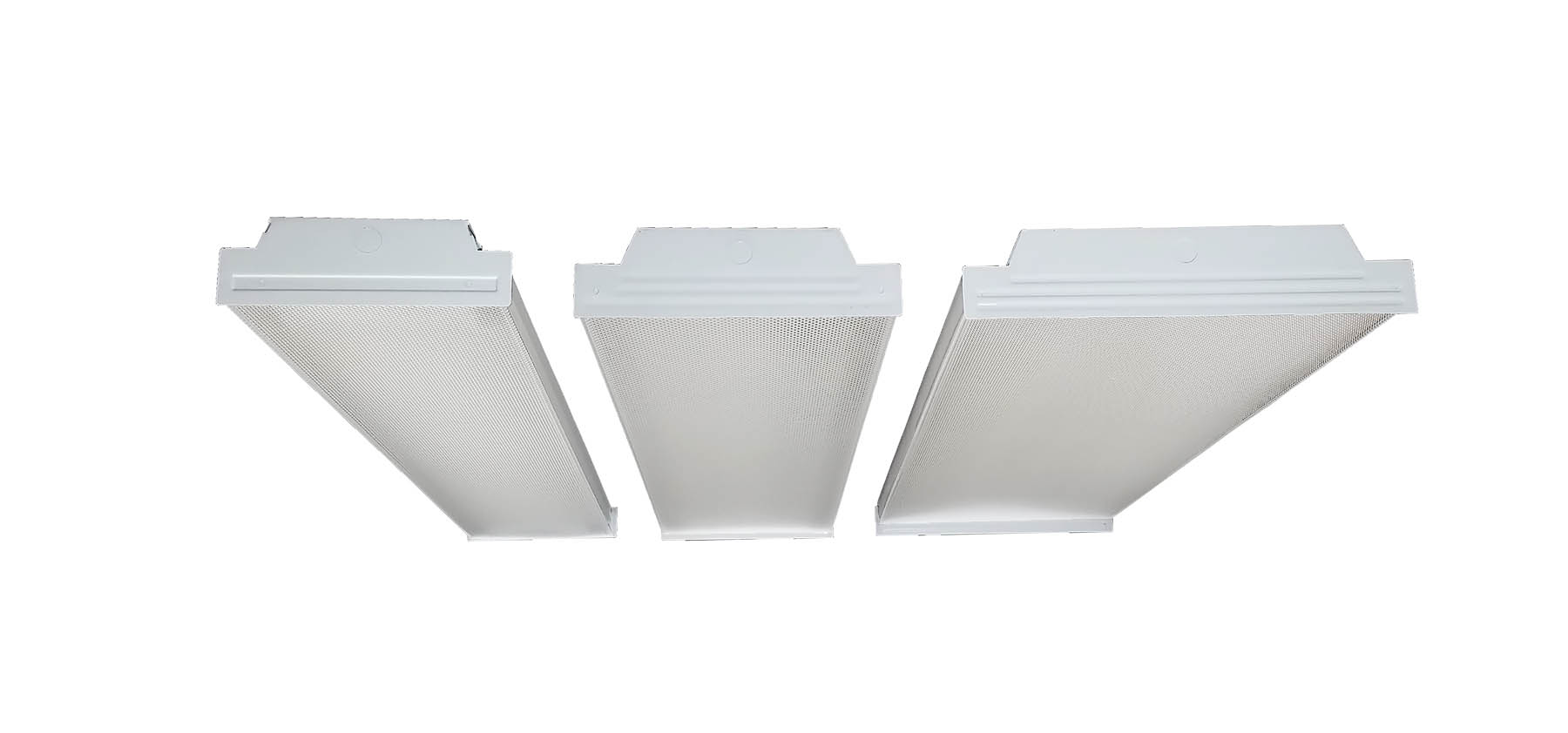

The EWL G2 is available in three different widths: 9-inch, 11-inch and 16-inch. There are two lengths to choose from: 2-foot and 4-foot. It can be equipped with controls, including on/off/dim sensors and microwave sensors. See spec sheet for more details.
