LED Non-Cutoff Wall Pack

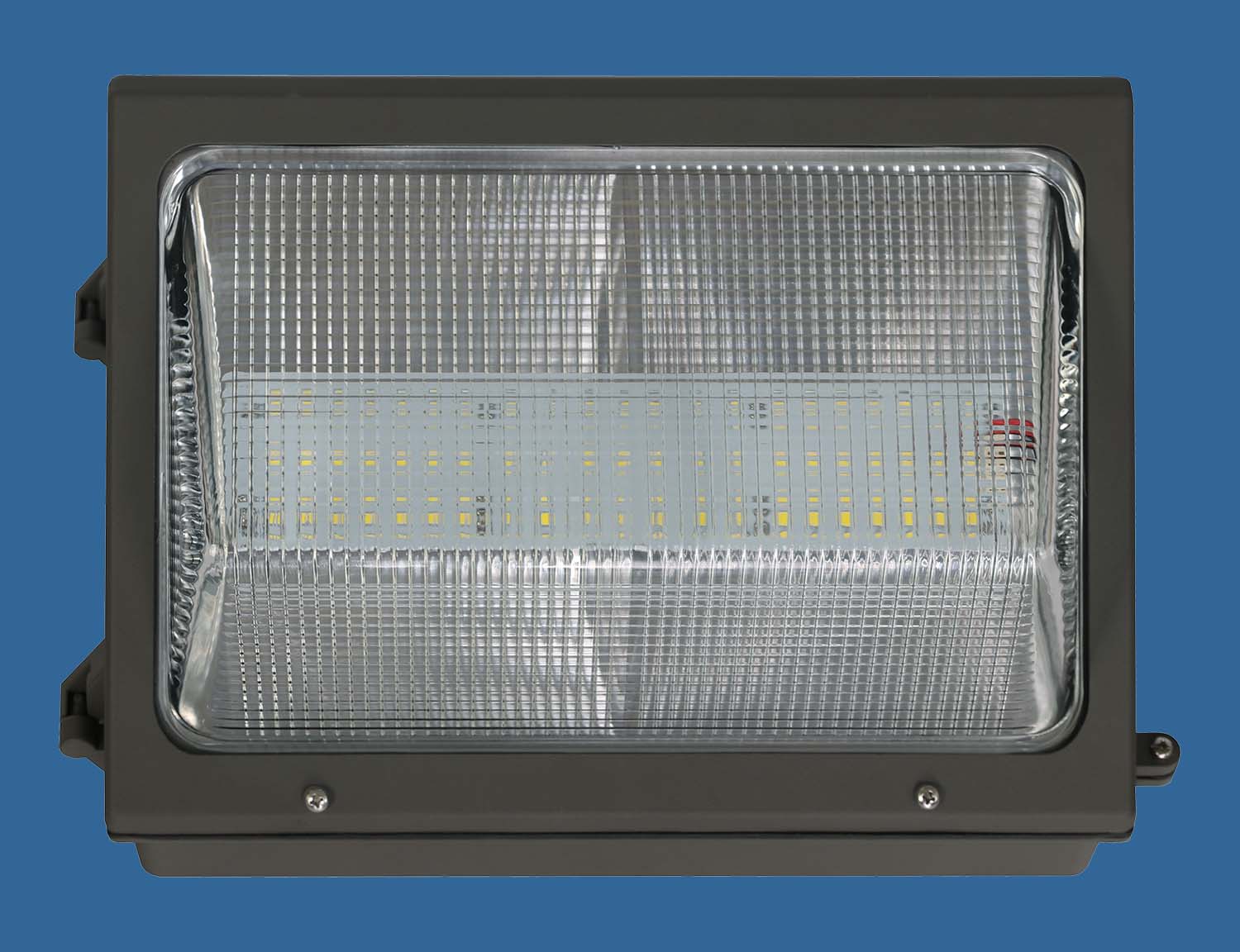

The EPN v2 is a high performance LED wall pack that features uniform illumination with no visible LED pixilation. The housing is die cast aluminum with a dark bronze powder coat finish. The tempered borosilicate glass lens is sealed with a seamless silicone gasket to prevent leaks. The EPN v2 has three half-inch NPT threaded openings for rigid electrical conduit, or for button photocells.
- Applications: Suitable for most exterior wall mount applications - industrial, retail, commercial
- Lumen Output: From about 6,400 lm to over 15,700 lm
- Max Lumens Per Watt: 151
- Predicted L70 Lifetime: Greater than or equal to 158,000 hrs (calculated)
- Predicted L90 Lifetime: Greater than or equal to 49,000 hrs (calculated)
- Warranty: 5 year limited system warranty
- Certifications: UL listed for wet locations. IP65 rated. FCC Par 15, Class A compliant. IEEE C.62.41-2002, 2kV Surge Protection compliant. RoHS compliant
EPN v2
Note: Table scrolls horizontally
| Lumens | Watts | LPW | Shielding | Optic | CRI / Color Temp | Voltages Available | Warranty | Predicted L70 Lifetime | |
|---|---|---|---|---|---|---|---|---|---|
| EPN v2 VL F UV TBG 740 | 6,401 | 42 | 151 | Tempered Borosilicate Glass | Forward | 70 / 4000K | 120-277V | 5 years | Greater than or equal to 158,000 hrs |
| EPN v2 VL F UV TBG 750 | 6,437 | 42 | 151 | Tempered Borosilicate Glass | Forward | 70 / 5000K | 120-277V | 5 years | Greater than or equal to 158,000 hrs |
| EPN v2 LW F UV TBG 740 | 8,264 | 57 | 147 | Tempered Borosilicate Glass | Forward | 70 / 4000K | 120-277V | 5 years | Greater than or equal to 158,000 hrs |
| EPN v2 LW F UV TBG 750 | 8,346 | 57 | 147 | Tempered Borosilicate Glass | Forward | 70 / 5000K | 120-277V | 5 years | Greater than or equal to 158,000 hrs |
| EPN v2 MD F UV TBG 740 | 9,944 | 69 | 145 | Tempered Borosilicate Glass | Forward | 70 / 4000K | 120-277V | 5 years | Greater than or equal to 158,000 hrs |
| EPN v2 MD F UV TBG 750 | 10,048 | 69 | 146 | Tempered Borosilicate Glass | Forward | 70 / 5000K | 120-277V | 5 years | Greater than or equal to 158,000 hrs |
| EPN v2 HI F UV TBG 740 | 12,145 | 84 | 146 | Tempered Borosilicate Glass | Forward | 70 / 4000K | 120-277V | 5 years | Greater than or equal to 158,000 hrs |
| EPN v2 HI F UV TBG 750 | 12,241 | 84 | 146 | Tempered Borosilicate Glass | Forward | 70 / 5000K | 120-277V | 5 years | Greater than or equal to 158,000 hrs |
| EPN v2 VH F UV TBG 740 | 15,523 | 111 | 141 | Tempered Borosilicate Glass | Forward | 70 / 4000K | 120-277V | 5 years | Greater than or equal to 158,000 hrs |
| EPN v2 VH F UV TBG 750 | 15,738 | 111 | 141 | Tempered Borosilicate Glass | Forward | 70 / 5000K | 120-277V | 5 years | Greater than or equal to 158,000 hrs |
| Equivalency* | |
|---|---|
| EPN v2 VL F UV TBG 740 | 150W MH / 100W HPS |
| EPN v2 VL F UV TBG 750 | 150W MH / 100W HPS |
| EPN v2 LW F UV TBG 740 | 250W MH / 150W HPS |
| EPN v2 LW F UV TBG 750 | 250W MH / 150W HPS |
| EPN v2 MD F UV TBG 740 | 250W PSMH / 200W HPS |
| EPN v2 MD F UV TBG 750 | 250W PSMH / 200W HPS |
| EPN v2 HI F UV TBG 740 | 320W PSMH / 250W HPS |
| EPN v2 HI F UV TBG 750 | 320W PSMH / 250W HPS |
| EPN v2 VH F UV TBG 740 | 400W MH |
| EPN v2 VH F UV TBG 750 | 400W MH |
| Image | Spec Sheet | .ies & .pdf files | |
|---|---|---|---|
| EPN v2 VL F UV TBG 740 | View | Download | Download |
| EPN v2 VL F UV TBG 750 | View | Download | Download |
| EPN v2 LW F UV TBG 740 | View | Download | Download |
| EPN v2 LW F UV TBG 750 | View | Download | Download |
| EPN v2 MD F UV TBG 740 | View | Download | Download |
| EPN v2 MD F UV TBG 750 | View | Download | Download |
| EPN v2 HI F UV TBG 740 | View | Download | Download |
| EPN v2 HI F UV TBG 750 | View | Download | Download |
| EPN v2 VH F UV TBG 740 | View | Download | Download |
| EPN v2 VH F UV TBG 750 | View | Download | Download |
Multiple output options
The EPN v2 is available in five different outputs, in both 4000K and 5000K. The VL ("Very Low") output option produces 6400+ lumens at 42 watts. On the high end, the VH ("Very High") output option produces 15,500+ lumens at 111 watts.
